Rent Manfrotto 701HDV Professional Mini Fluid Video AHead in Bengaluru
from ₹306/day
1 rental offer in Bengaluru

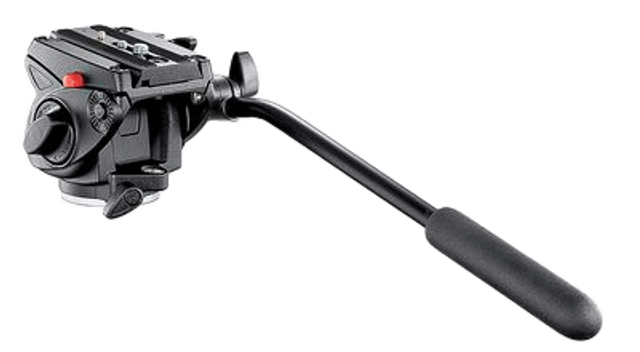

The Manfrotto 701HDV is a professional mini fluid video head designed specifically to support the latest generation of compact digital video cameras and DSLRs.
Rental offers in Bengaluru
Highlights
Fluid Drag System
Fixed fluid cartridges for smooth pan and tilt movements.
Counterbalance
Internal fixed counterbalance system set for 1.5 kg (3.3 lbs) to assist with camera stability.
Sliding Plate
Includes the 501PL quick release plate with 58mm of travel for balancing front-heavy rigs.
Ergonomic Design
Redesigned locks and knobs for better grip and control during operation.
Pan Bar
Includes one telescopic pan bar that can be mounted on either the left or right side.
Specifications
| Maximum Payload | 4.0 kg (8.82 lbs) |
| Weight | 0.83 kg (1.83 lbs) |
| Height | 9.5 cm (3.74 in) |
| Tilt Range | -60° / +90° |
| Panoramic Rotation | 360° |
| Tripod Mount | 3/8"-16 Female Thread |
| Camera Attachment | 1/4"-20 and 3/8"-16 screws |
| Material | Aluminum |
Frequently asked questions
What is the maximum weight the Manfrotto 701HDV can hold?
The Manfrotto 701HDV has a maximum payload capacity of 4 kg (8.82 lbs), making it suitable for professional mirrorless cameras and small camcorders.
Does it come with a quick release plate?
Yes, it uses the industry-standard Manfrotto 501PL sliding quick release plate, which allows for balancing the camera's center of gravity.
Can I mount this on a standard photo tripod?
Yes, as long as your tripod has a 3/8"-16 screw mount. Most professional tripods use this standard size.
Is the pan bar reversible?
Yes, the pan bar can be attached to either the right or left side of the head to accommodate both right and left-handed operators.
