701HDV Pro Fluid Video Mini Head

Design and Position of the Manfrotto 701HDV

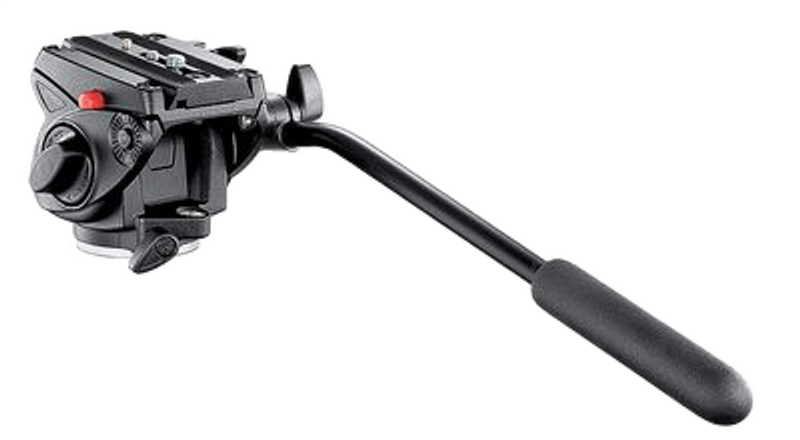

The Manfrotto 701HDV Professional Mini Fluid Video Head is a compact support solution engineered specifically for the generation of lightweight high-definition camcorders and DSLR video rigs. It occupies a critical position in the Manfrotto lineup, sitting above the basic photo-video hybrid heads and below the heavier 500-series professional heads like the 502HD or 504HD. This head was developed as the successor to the 701RC2, bringing improved ergonomics and a more robust internal fluid drag system to a form factor that weighs only 0.83kg. It is designed for videographers who prioritize mobility and a small footprint without sacrificing the dampened movement required for professional-grade pans and tilts.

The core of the 701HDV is its aluminum construction, which provides a balance between structural rigidity and weight. It is categorized as a "mini" head because of its 58mm flat base diameter, making it natively compatible with photo-style tripods that feature a flat top plate and a standard 3/8-inch attachment screw. Unlike larger cinema heads that require a 75mm or 100mm bowl, this head can be mounted on a wide variety of carbon fiber or aluminum legs, such as the Manfrotto 190 or 055 series, making it a staple for run-and-gun documentary filmmakers and travel videographers.

Fluid Drag and Counterbalance Mechanics

The movement of the Manfrotto 701HDV is governed by fixed fluid cartridges on both the pan and tilt axes. These cartridges use a specialized silicone-based grease to provide consistent resistance, which eliminates the "stiction" or jerky starting movement often found in friction-based heads. While the drag is not adjustable—meaning the level of resistance is preset at the factory—it is tuned to handle payloads up to 4kg. This fixed resistance ensures that even when using long focal lengths, the operator can execute smooth, slow pans without the micro-jitters associated with lighter, non-fluid supports.

A defining technical feature of this head is its internal counterbalance spring. The 701HDV features a fixed counterbalance set for a weight of 1.5kg. This spring mechanism is designed to counteract the force of gravity when the camera is tilted forward or backward. When a camera rig weighing approximately 1.5kg is properly balanced on the sliding plate, the head will remain at its tilt angle when the operator releases the handle, rather than flopping over. This significantly reduces the physical effort required by the operator during long shoots and protects the camera gear from accidental impact against the tripod legs. The tilt range is substantial, allowing for a 90-degree vertical tilt downward and a 60-degree tilt upward, covering almost all standard perspective requirements for commercial and narrative work.

Build Quality and Mounting Interface

The physical interface of the Manfrotto 701HDV is centered around the 501PL long sliding quick-release plate. This plate provides 58mm of travel, which is essential for finding the center of gravity on modern camera setups where the weight distribution changes based on the lens, battery, or external monitor used. The plate comes equipped with both 1/4-inch and 3/8-inch camera screws, along with a retractable anti-rotation pin to prevent smaller camcorders from twisting on the plate. A secondary safety catch is integrated into the head’s release mechanism, requiring a two-step process to remove the plate, which prevents the camera from sliding out accidentally if the primary locking knob is loosened.

Ergonomics are addressed through the redesigned pan bar and locking knobs. The pan bar is long enough to provide the leverage needed for smooth movements and can be mounted on either the right or left side of the head via a rosetta attachment, catering to both right-handed and left-handed operators. The locking knobs for pan and tilt are located on the left side, allowing the operator to keep their right hand on the pan bar while making adjustments. These knobs are shaped for high-torque grip, even when wearing gloves, and provide a positive lock that holds the head securely in place for static shots. The head also features a bubble level located at the rear, allowing for quick leveling of the horizon when setting up on uneven terrain.

Operational Performance and Payload Limits

The Manfrotto 701HDV is rated for a maximum payload of 4kg (8.8 lbs). This capacity is optimized for mid-sized mirrorless setups, such as a Sony A7-series or Panasonic GH-series camera equipped with a cage, top handle, and a standard zoom lens. It is also well-suited for professional compact camcorders like the Canon XA series or Sony NX80. Because the fluid drag is fixed, the "feel" of the head is most consistent when the payload is between 1kg and 3kg. If the camera is too light (under 500g), the fixed counterbalance spring may cause the head to tilt upward automatically; if the camera exceeds 4kg, the fluid drag may feel insufficient to hold the weight, and the locks will require more force to engage.

In terms of movement, the 360-degree pan is continuous and smooth, suitable for stitching panoramic photos or capturing wide sweeping shots of landscapes. The tilt movement is dampened to prevent the "pendulum effect" where a camera gains too much momentum at the end of a tilt. The use of high-quality aluminum castings ensures that the head remains functional in a wide temperature range, though like all fluid heads, the viscosity of the internal fluid may increase slightly in extreme cold, providing a firmer drag feel.

On the Shoot: Real-World Indian Scenarios

In a Bengaluru wedding reception, the 701HDV excels due to its compact size and quick deployment. Wedding videographers often work in crowded banquet halls where a large cinema tripod would be a tripping hazard. Mounted on a lightweight set of legs, the 701HDV allows the operator to move quickly between the stage and the guest tables. The fluid pan is essential here for tracking the couple as they move through the crowd, ensuring that the footage remains stable even when the operator is forced to work at the long end of a 70-200mm lens to stay out of the way of the guests.

For a travel documentary shoot in Goa, the head’s 0.83kg weight is a significant advantage. When trekking to remote beaches or fort locations like Chapora, every gram in the backpack matters. The 701HDV can be paired with a carbon fiber tripod to create a professional-grade video kit that weighs less than 3kg total. The sealed fluid cartridges are particularly useful in these environments, as they protect the internal mechanics from the fine sand and high humidity typical of coastal regions, ensuring the pan and tilt remain smooth throughout the duration of the shoot.

In a Mumbai studio setting for a product session—such as filming jewelry or electronics—the 701HDV provides the precision needed for macro work. When filming small objects, even the slightest vibration is magnified. The ability to balance the camera on the 501PL sliding plate allows the videographer to achieve a perfect neutral balance, enabling very slow, controlled "reveal" tilts that highlight the texture and detail of the product. The 3/8-inch mount also allows the head to be easily transferred from a tripod to a slider or a small jib arm, providing a consistent interface across different support systems used in the studio.

Compatibility and Pairing

The Manfrotto 701HDV is part of a broad ecosystem of support gear. Its use of the 501PL sliding plate makes it compatible with a wide range of other Manfrotto products, including the 500, 502, and 701 series heads, as well as various adapters and specialized video monopods. This means a camera can be moved from the 701HDV on a tripod to a 561BHDV monopod without needing to change the plate. It pairs naturally with tripod legs that have a flat top, such as the Manfrotto 055XPRO3 or the 190CXPRO4. For users who need to mount it on a bowl-base tripod, a 75mm half-ball adapter (like the Manfrotto 520BALL) can be used.

In terms of camera pairing, this head is ideal for modern mirrorless systems like the Sony A7S III, Canon EOS R5, or Fujifilm X-T4. It also supports small-form-factor cinema cameras like the Blackmagic Pocket Cinema Camera 4K or 6K, provided they are not overloaded with heavy V-mount batteries and large cine-primes. For audio, the head’s smooth movement ensures that on-camera microphones do not pick up the mechanical clicking or grinding noises often associated with cheaper, non-fluid heads.

Limitations and Alternative Recommendations

While the Manfrotto 701HDV is a highly capable mini fluid head, it has distinct limitations based on its "mini" designation. The most significant limitation is the fixed counterbalance and fixed drag. Professional operators who need to fine-tune the resistance based on the speed of the shot or the specific weight of a rig will find the 701HDV restrictive. If you are using a camera rig that exceeds 4kg—such as a fully rigged RED Komodo, an Arri Alexa Mini, or a DSLR with a heavy 400mm f/2.8 lens—this head will not provide adequate support. The tilt lock may slip, and the pan movement may become jerky under excessive load.

For users working with heavier cinema configurations, a head with adjustable drag and a higher payload capacity, such as the Manfrotto 504X or the Sachtler FSB series, is a more appropriate choice. Additionally, because the 701HDV has a flat base, it does not allow for the rapid leveling provided by a ball-leveling system. If your work involves frequent setups on uneven outdoor terrain where speed is essential, a head with an integrated 75mm half-ball will be more efficient. Finally, for extremely lightweight setups like smartphones or action cameras, the 1.5kg counterbalance spring may be too strong, constantly pushing the camera back to a level position when you want it to stay tilted; in those cases, a smaller friction-based head or a head with a deactivatable spring would be more suitable.
