Crane 2

The Architecture of the Zhiyun Crane 2

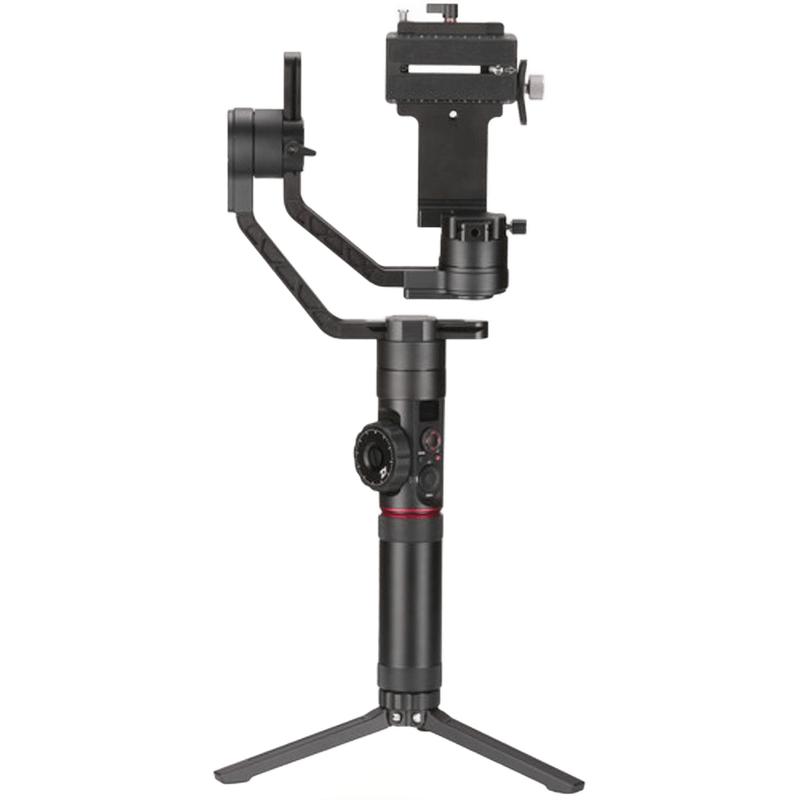

The Zhiyun Crane 2 is a high-capacity three-axis handheld gimbal stabilizer designed to bridge the gap between lightweight mirrorless setups and professional DSLR cinematography rigs. Released as a significant evolution of the original Crane series, this stabilizer introduced a maximum payload capacity of 3.2kg (7.05 lbs), a figure that allows it to support a wide range of camera and lens combinations, including the Canon EOS 5D series with 24-70mm f/2.8 lenses or the Sony A7 series with heavy G-Master glass. At the heart of its operation is the 6th Generation Instune Algorithm System, which provides a 50% increase in motor torque and a 100% improvement in response speed compared to its predecessors. This makes it a foundational tool for independent filmmakers, wedding videographers, and commercial content creators who require smooth, stabilized motion without the bulk of a full vest-and-arm Steadicam system.

Unlike many stabilizers that rely solely on external apps for configuration, the Zhiyun Crane 2 features an integrated OLED display and a tactile control dial on the handle. This design philosophy prioritizes "on-the-fly" adjustments, allowing the operator to modify motor strength, follow speed, and camera parameters without interrupting the flow of a shoot. It sits in the manufacturer’s lineup as a robust, workhorse stabilizer, positioned above the Crane Plus and below the later, more complex Crane 3S. It is specifically engineered for users who prioritize a traditional single-handle form factor but require the mechanical strength to handle professional-grade optics and bodies.

Stabilization Technology and Motor Performance

The stabilization quality of the Zhiyun Crane 2 is defined by its three high-torque motors, which utilize magnetic encoders to track movement with extreme precision. The 6th Gen Instune Algorithm works by calculating the required counter-torque thousands of times per second, effectively neutralizing vibrations from walking, running, or vehicle-mounted operation. The 3.2kg payload is not just a peak figure; the motors are designed to maintain this level of stabilization across their full range of motion: 360 degrees of unlimited rotation on the pan axis, and between -135 and +185 degrees on the tilt axis. This allows for "underslung" mode, where the gimbal is flipped upside down to capture low-angle tracking shots near the ground without needing to re-calibrate the entire system.

A standout feature of this specific model is the integrated tactile follow focus wheel. When connected to compatible cameras (primarily Canon DSLRs via the included control cable), this mechanical wheel allows for real-time digital focus control with three levels of sensitivity. This eliminates the need for a separate wireless follow focus motor in many scenarios, reducing the overall weight and power consumption of the rig. The stabilization is further enhanced by the "Slow-Fall" feature, which protects the camera from sudden drops when the gimbal is powered down, ensuring the motors decelerate gradually rather than collapsing instantly under the weight of the lens.

Build Quality and Handling Ergonomics

Constructed primarily from high-grade aluminum alloy, the Zhiyun Crane 2 weighs approximately 1.25kg without batteries. The handle is finished with a non-slip material that provides a secure grip during long shooting days. One of the most practical design choices is the inclusion of a Manfrotto-standard quick release plate. This allows cinematographers to move their camera from the gimbal to a tripod or monopod in seconds without having to unscrew plates or re-balance the entire setup from scratch. The balancing process is managed through tool-less thumbscrews on all three axes, featuring etched scales that allow operators to note down the exact positions for different lens configurations, significantly speeding up setup times on multi-lens shoots.

The handle houses the battery compartment, which utilizes three 18650 Li-ion batteries with a total capacity of 6000mAh. This power system provides a maximum runtime of 18 hours under ideal balance conditions, a figure that remains industry-leading for single-handle gimbals. Furthermore, the gimbal can provide "DC Power Out" to select Sony cameras, effectively extending the camera's own battery life by drawing from the gimbal’s larger cells. The bottom of the handle features a 1/4"-20 threaded hole, allowing for the attachment of the included aluminum tripod stand or for mounting the gimbal onto jibs, sliders, and dual-handle grips for more complex maneuvers.

Integrated Control and Interface

The Zhiyun Crane 2 was the first in its class to integrate a comprehensive OLED display into the handle. This 0.96-inch screen provides immediate visual feedback on several critical parameters:

• Connection Status: Confirms if the camera is successfully communicating with the gimbal via the control cable.
• Battery Level: A precise percentage indicator for the three 18650 cells.
• Control Mode: Displays whether the gimbal is in Pan Follow (PF), Locking (L), or Full Follow (F) mode.
• Camera Settings: When using compatible Canon, Sony, or Panasonic cameras, the screen displays Shutter Speed, Aperture, ISO, and Exposure Compensation.

The "Quick Control Dial" located below the screen acts as a physical interface for these settings. By pressing or rotating the dial, the operator can change the camera’s ISO or Aperture directly from the gimbal handle. This is particularly useful in changing light conditions where touching the camera body would introduce unwanted shake or require the operator to break their grip. The joystick provides smooth, proportional control over the pan and tilt motors, with the sensitivity of the joystick being customizable through the internal menu to suit either fast-paced action or slow, cinematic reveals.

On the Shoot: Real-World Scenarios

In a high-pressure Bengaluru wedding reception, the Zhiyun Crane 2 excels during the long hours of the "Sangeet" or stage performances. The 18-hour battery life ensures that the videographer does not need to swap batteries in the middle of a ceremony. When paired with a Canon 5D Mark IV, the integrated follow focus wheel allows the operator to pull focus from the couple to the audience seamlessly, maintaining a shallow depth of field while moving through the crowd. The 3.2kg payload easily handles the addition of an on-camera microphone and a wireless video transmitter, which are essential for modern wedding workflows.

For a travel shoot in the varied terrain of Goa, from the humid beaches to the narrow streets of Panjim, the gimbal’s robust motor torque compensates for wind resistance during coastal shots. The Manfrotto quick-release system is invaluable here; a creator can quickly switch from stabilized walking shots of the architecture to a static tripod shot for a time-lapse without the friction of re-balancing. The aluminum build resists the rigors of travel, and the included hard-shell carrying case provides organized storage for the various control cables (Micro to Micro, Micro to Mini, and Sony Multi-USB) required for different camera bodies.

In a Mumbai-based studio product session, the precision of the Instune Algorithm is utilized for macro videography. When capturing slow-motion "hero shots" of jewelry or electronics, the gimbal can be mounted on a slider or a heavy-duty tripod. The operator uses the joystick to perform micro-movements that are smoother than any manual hand-held operation could achieve. The ability to adjust ISO and Aperture from the handle allows the cinematographer to fine-tune the exposure as the light hits different facets of the product, all without touching the camera and risking a shift in the frame.

Compatibility and Essential Pairings

The Zhiyun Crane 2 is designed for a wide ecosystem of professional equipment. Its primary compatibility lies with DSLR and mirrorless cameras that support USB control protocols.

• Canon Support: Full digital follow focus and parameter control for the 5D Mark III, 5D Mark IV, 6D, 7D, and 80D.
• Sony Support: Shutter trigger, zoom control (on power-zoom lenses), and charging support for the A7 series, A6300, and A6500.
• Panasonic Support: Shutter trigger and basic parameter control for the GH4 and GH5.
• Lens Compatibility: Supports heavy zooms like the 24-70mm f/2.8 and 16-35mm f/2.8, as well as fast primes like the 35mm f/1.4 or 85mm f/1.4, provided the total weight stays under 3.2kg.

To maximize the utility of the Crane 2, it is often paired with a dual-handle grip, which redistributes the weight to both arms and allows for more stable operation over long durations. External monitors are also a common pairing, mounted via a friction arm to the 1/4" thread on the handle, as the gimbal’s tilt motor can sometimes obscure the camera’s built-in LCD at certain angles. For cameras that do not support digital follow focus, the Zhiyun External Follow Focus Motor (Mechanical) can be added, which the Crane 2 is designed to power and control through its dedicated focus wheel.

Limitations and Alternative Considerations

While the Zhiyun Crane 2 is a powerful tool, it has specific limitations that may lead a professional to consider other options. The most notable is the physical design of the roll motor arm. Unlike newer "slanted" designs found in the Crane 3S or the DJI RS series, the Crane 2’s roll motor sits directly behind the camera’s rear LCD. This can make it difficult to see the screen when shooting at eye level, often necessitating an external monitor. Furthermore, while the 3.2kg payload is substantial, it is not sufficient for fully rigged cinema cameras like the RED Komodo or Blackmagic URSA Mini, which require the higher 6.5kg payload capacity of the Crane 3S.

The weight of the unit itself, combined with three 18650 batteries and a pro DSLR, can exceed 4kg. For operators who prioritize portability for vlogging or lightweight travel, a more modern, compact gimbal like the Zhiyun Crane M3 or the DJI RS 3 Mini would be more appropriate, as they offer similar stabilization for lighter mirrorless setups with significantly less physical strain. Additionally, the digital follow focus is highly optimized for older Canon protocols; users of newer mirrorless systems from Nikon or Fujifilm may find the digital focus integration less comprehensive, requiring the addition of a mechanical follow focus motor which adds weight and complexity to the rig. Finally, the Crane 2 does not feature the sophisticated "Axis Locks" found on newer models, meaning the arms will swing freely when the unit is powered off and being carried, requiring more care during transport.
