Crane 1

The Foundation of Handheld Mirrorless Stabilization

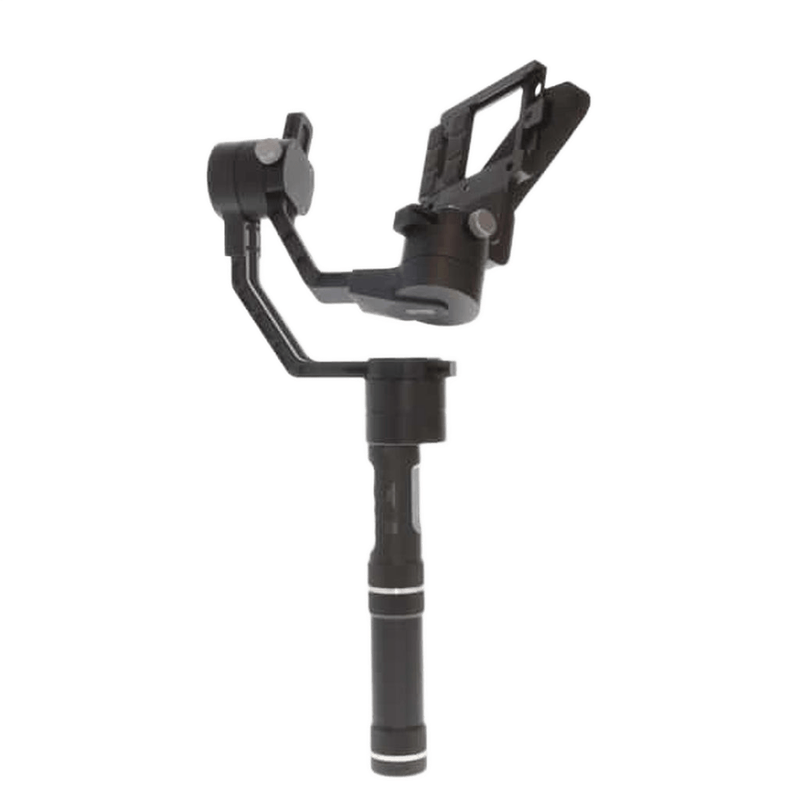

The Zhiyun Crane 1 represents the first generation of professional-grade, single-handle three-axis stabilizers specifically engineered for the mirrorless camera market. At its launch, it established the blueprint for the Crane series, moving away from the bulky, two-handed gimbal designs that dominated the early 2010s. It was designed primarily for filmmakers using mid-weight mirrorless systems like the Sony A7 series or the Panasonic GH series, filling the gap between small action camera gimbals and heavy-duty cinema stabilizers. The device utilizes three 32-bit Microcontroller Units (MCUs) running in parallel at a processing speed of 4000Hz, which allows the system to calculate and compensate for movement with high precision. Unlike earlier motorized stabilizers that relied on limited rotation ranges, this unit introduced 360-degree unlimited rotation along all three axes: pan, tilt, and roll. This mechanical freedom allows operators to perform complex camera movements, such as the "vortex" style roll or continuous panning, without hitting a physical stop or risking cable entanglement, as the wiring is routed internally through the slip rings of the brushless motors.

Motor Technology and Stabilization Precision

The core of the Zhiyun Crane 1 is its high-torque brushless motors integrated with magnetic encoders. These encoders detect even the slightest deviations in balance—down to 0.02 degrees—and trigger the MCUs to apply corrective torque. The system employs the proprietary Honeycomb Core algorithm, which was developed to handle the specific weight distribution of mirrorless cameras where the lens often outweighs the body. This algorithm ensures that the motors do not "hunt" or vibrate when the camera is held at awkward angles. The motors are designed to be energy-efficient while maintaining a payload capacity that officially supports weights between 350g and 1200g, though later firmware updates optimized the torque curves to handle up to 1800g under ideal balance conditions. The stabilization quality is characterized by its "organic" response; rather than a robotic, jerky stop, the Crane 1 utilizes a configurable "deadband" and "follow speed" that can be adjusted via the Zhiyun Assistant app. This allows the operator to define how quickly the gimbal follows their hand movements, ensuring that the footage remains smooth during rapid pans or slow, cinematic tilts.

Build Quality and Mechanical Mounting

Constructed almost entirely from high-grade aluminum alloy, the Zhiyun Crane 1 is built for the rigors of field production while maintaining a relatively low self-weight of approximately 950g (excluding batteries). The handle is textured for grip and houses the battery compartment, while the upper section consists of the three motor arms and the camera mounting plate. A key feature of this model is its tool-less adjustment system. Every axis—tilt, roll, and pan—is equipped with a thumb screw and a sliding scale, allowing the operator to balance the camera by sliding the arms until the center of gravity is neutralized. This is critical for motor longevity and battery efficiency; a perfectly balanced camera requires minimal power to stabilize. The camera mounting plate uses a standard 1/4"-20 screw, and the base of the handle features a 1/4"-20 threaded hole, enabling the gimbal to be mounted on tripods, monopods, or jib arms. The physical interface is minimalist, consisting of a four-way joystick for manual axis control, a power/shutter button, and a mode button that toggles between the various stabilization behaviors.

Operational Modes and Software Control

The Zhiyun Crane 1 offers three primary operational modes that dictate how the motors respond to the operator's input. In Pan Following Mode, the tilt and roll axes are locked, while the camera smoothly follows the horizontal movement of the handle. This is the standard mode for walking shots or tracking subjects. Locking Mode fixes the camera's orientation in a single direction, regardless of how the handle moves, effectively mimicking a tripod on a dolly. Following Mode allows the camera to follow both the pan and tilt movements of the handle, which is essential for capturing vertical action or changing elevation during a shot. Beyond the physical buttons, the gimbal incorporates Bluetooth 4.0 connectivity. When paired with a smartphone, the operator can use the Zhiyun Assistant app to perform remote calibration, adjust motor strength (Low, Medium, High), and even control the gimbal's movement remotely. This is particularly useful for studio setups where the gimbal is mounted on a crane or a slider, allowing for precise remote panning and tilting without touching the unit.

On the Shoot: Real-World Indian Scenarios

In the context of a Bengaluru wedding reception, the Zhiyun Crane 1 excels at navigating the crowded, low-light environments typical of indoor banquet halls. When paired with a fast prime lens like a 35mm f/1.8, the gimbal allows a videographer to weave through guests and capture stabilized "candids" or cinematic "walk-ins" of the couple. The 360-degree pan capability is particularly useful during the high-energy dance sequences on the stage, where the operator can circle the performers without the gimbal hitting a mechanical limit. The silent operation of the brushless motors ensures that the gimbal does not interfere with on-camera microphones during quiet moments like speeches or vows.

For a travel shoot in Goa, the portability of the Crane 1 is a significant advantage. Its ability to be broken down and stored in a compact hard case makes it suitable for trekking to remote locations like the Dudhsagar Falls or navigating the narrow streets of Fontainhas. The long battery life—often reaching 12 hours with the 26500 Li-ion batteries—means a filmmaker can shoot an entire day of b-roll at various beaches and heritage sites without needing a recharge. The stabilization is robust enough to handle the vibrations of a moving vehicle, such as a scooty or an open-top jeep, allowing for smooth "point-of-view" driving shots along the coastal roads.

In a Mumbai-based product studio session, the Crane 1 serves as a precision tool for capturing smooth, macro-style movements of small items like jewelry or electronics. By mounting the gimbal on a slider or a tripod, the operator can use the joystick to execute perfectly linear pans or tilts that would be impossible to achieve by hand. The "Locking Mode" is particularly useful here, ensuring that the camera remains perfectly level while the slider moves, creating a professional "parallax" effect that highlights the textures and details of the product.

Compatibility and Essential Pairings

The Zhiyun Crane 1 is optimized for mirrorless systems that stay within its 1200g-1800g payload limit. Ideal camera bodies include the Sony A7S II, A7R II, and A6300/A6500, as well as the Panasonic GH4 and GH5. When selecting lenses, users should prioritize lightweight optics to keep the total weight away from the motor's maximum threshold. Lenses such as the Sony FE 28mm f/2, the Zeiss 35mm f/2.8, or the Panasonic 12-35mm f/2.8 are excellent matches. It is important to note that zooming a lens physically changes its length and center of gravity; therefore, the Crane 1 is best used with prime lenses or internal-zoom lenses to avoid the need for re-balancing mid-shoot. For power, the original version uses two 26500 Li-ion batteries, while some later iterations were adapted for 18650 cells. The unit also supports camera control cables (sold separately) for Sony and Panasonic cameras, allowing the operator to trigger video recording or control digital zoom directly from the gimbal's handle. For monitoring, since the gimbal's arms can sometimes obstruct the camera's built-in LCD, pairing it with a lightweight external monitor mounted via a "cold shoe" or a "magic arm" to the 1/4" thread on the handle is a common professional configuration.

Limitations and Alternative Considerations

While the Zhiyun Crane 1 was a revolutionary tool, it has specific limitations that may lead a professional to choose a more modern or heavy-duty stabilizer. The most significant limitation is the payload ceiling. It cannot support full-frame DSLRs like the Canon 5D Mark IV or Nikon D850 when equipped with heavy f/2.8 zoom lenses; attempting to do so will result in motor "jitters" or an emergency thermal shutdown of the MCUs. For those using heavier setups or cinema cameras like the Blackmagic Pocket Cinema Camera 6K, the Zhiyun Crane 2S or DJI RS series would be a more appropriate choice due to their higher torque motors and larger mounting plates. Additionally, the Crane 1 lacks an integrated follow-focus motor or a built-in display screen for settings, requiring the use of a smartphone app for deep configuration. The mounting plate is not a "quick-release" type in the modern sense; removing the camera often requires a full re-balance when re-attaching it, which can be time-consuming on fast-paced sets. Finally, the gimbal does not feature an "Inception Mode" or advanced timelapse programming natively on the handle, features that are standard on later models like the Crane Plus or Crane 3 Lab. If your production requires integrated focus pulling or support for heavy 24-70mm f/2.8 glass, you should look toward the higher-payload successors in the Zhiyun lineup.
