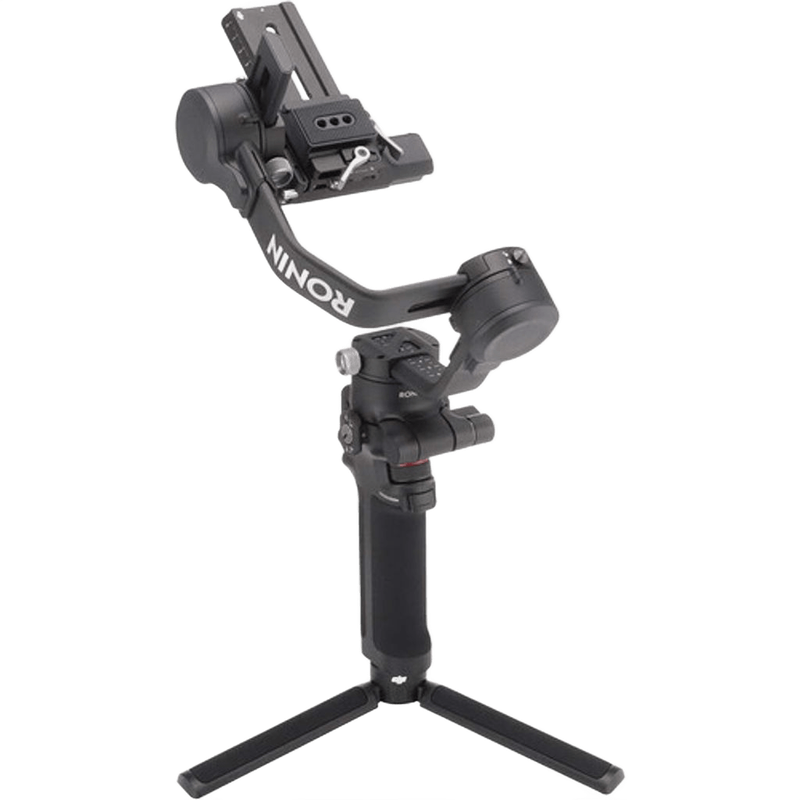

Ronin RSC 2

The Evolution of Compact Stabilization

The DJI Ronin RSC 2 represents a significant structural departure from its predecessor, the Ronin-SC, introducing a foldable design that prioritizes both portability and versatile shooting angles. It occupies a specific niche in the DJI ecosystem, positioned as the high-performance solution for mirrorless camera users who require a payload capacity greater than the entry-level models but do not need the heavy-duty 4.5kg capacity of the RS series flagship. This gimbal is engineered specifically for mirrorless setups, supporting a tested payload of up to 3kg (6.6 lbs). This weight limit accommodates popular combinations such as the Sony A7S III with a 24-70mm f/2.8 GM lens or the Panasonic GH5 with a 12-35mm lens. The primary innovation of this model is its folding mechanism, which allows the gimbal to transition between six different configurations, including upright, underslung, briefcase, and storage modes. When folded, the device occupies a footprint of just 180 by 190 mm, making it roughly the size of a sheet of A5 paper, which is a critical factor for solo operators and travel cinematographers who must minimize kit volume.

Titan Stabilization and SuperSmooth Technology

The core of the DJI Ronin RSC 2 performance lies in the Titan Stabilization Algorithm. This software-hardware integration optimizes the motor response to compensate for high-frequency vibrations and sudden directional changes. Unlike previous iterations, this algorithm proactively predicts user movement to smooth out the transition between pans and tilts. For cinematographers working with longer focal lengths, the gimbal features a dedicated SuperSmooth mode. When activated, this mode increases the motor torque to stabilize lenses with an equivalent focal length of up to 100mm. This is achieved through micro-adjustments that counteract the increased leverage and sensitivity of telephoto optics. The result is a reduction in micro-jitters that typically plague handheld gimbal shots when the field of view is narrow. The stabilization is further supported by the mechanical design of the arms, which are constructed from a combination of aluminum and steel to ensure rigidity while maintaining a total weight of approximately 1.2kg (excluding the battery grip and tripod).

Mechanical Build and Ergonomic Handling

The physical interface of the DJI Ronin RSC 2 is centered around a 1-inch built-in OLED screen. This monochrome display allows the operator to adjust motor parameters, switch between profiles, and select shooting modes without needing to connect to a smartphone app. This is a significant workflow improvement for professionals who need to make rapid adjustments on a busy set. Below the screen sits a clickable front dial, which can be mapped to control focus, iris, or ISO, depending on the camera's compatibility. The gimbal also features a dual-layer camera mounting system compatible with both Manfrotto and Arca-Swiss standards. This allows for a quick transition between the gimbal and a tripod without the need to swap plates. Each of the three axes—pan, tilt, and roll—is equipped with a physical mechanical lock. These locks serve two purposes: they simplify the balancing process by allowing the operator to balance one axis at a time, and they secure the arms during transport to prevent motor damage. The inclusion of RSA/NATO ports on the sides of the handle provides mounting points for accessories like the Briefcase Handle, monitors, or third-party grips, allowing for a customized ergonomic setup.

Advanced Video Features and RavenEye Integration

The DJI Ronin RSC 2 is designed to integrate with the RavenEye Image Transmission System. This system mounts directly under the camera plate and connects via HDMI, transmitting a 1080p live feed at 30 frames per second to a mobile device or a remote monitor at distances up to 200 meters with a latency as low as 60ms. This transmission system is the backbone for ActiveTrack 3.0, which uses the camera's feed to track subjects with high precision. By processing the image data through the RavenEye, the gimbal can follow a person or object even if they move rapidly or are briefly obscured. Additionally, the gimbal supports Force Mobile, where the gimbal's movement mimics the orientation of a smartphone, and a variety of automated creative modes. These include Time-lapse, Motion-lapse, and a 360-degree Roll (Inception Mode), which rotates the camera continuously while moving forward. For content creators focusing on social media, the gimbal can switch to vertical shooting mode with a single tap, reorienting the roll axis to a 90-degree angle without requiring the camera to be physically remounted.

Operational Scenarios in the Indian Context

On a wedding shoot in a crowded Bengaluru banquet hall, the DJI Ronin RSC 2 excels due to its foldable "Sling Mode." During the *pheras* or the couple's entrance, the operator can fold the gimbal into the briefcase configuration to capture low-angle tracking shots of the couple's feet or the floral arrangements on the floor. The 3kg payload is sufficient for a Sony A7 IV with a fast prime lens and a small on-camera microphone, allowing the videographer to move through tight spaces between guests without the bulk of a larger rig. The 14-hour battery life is particularly useful for long Indian wedding days that span from early morning rituals to late-night receptions, often eliminating the need for mid-day charging.

For a travel filmmaker capturing the landscapes of Goa, the portability of the gimbal is its primary advantage. The ability to fold the unit into a compact shape allows it to fit into a standard hiking backpack alongside a mirrorless body and two lenses. When shooting on the beach at sunset, the SuperSmooth mode becomes essential for capturing stable footage of distant surfers using an 85mm lens. The axis locks ensure that the gimbal remains rigid while trekking between locations, preventing the arms from swinging and potentially damaging the internal ribbon cables.

In a Mumbai-based commercial studio setting, the gimbal functions as a precise tool for product videography. When mounted on a tripod and paired with the RavenEye system, a director can monitor the frame on an iPad while the operator uses the front dial to pull focus on a product. The ability to fine-tune the motor stiffness through the OLED screen allows for extremely slow, controlled pans across jewelry or electronics, ensuring that the movement is robotic and repeatable for multiple takes.

Compatibility and Ecosystem

The DJI Ronin RSC 2 is compatible with a wide array of mirrorless and DSLR cameras. For Sony users, it supports the A7 series, A6000 series, and the A1. Canon users can utilize the EOS R5, R6, and even the 5D Mark IV, provided the lens choice does not exceed the 3kg limit. Nikon Z6 and Z7 series cameras are also fully supported for both stabilization and electronic focus control. The gimbal uses a built-in 18650 dual-battery configuration housed within the handle, which supports 18W fast charging via a USB-C port. A full charge takes approximately two hours using a PD (Power Delivery) or QC 2.0 charger. For media, the gimbal does not have internal storage, as it relies on the camera's cards, but it does interface with the camera via various control cables (USB-C, Micro-USB, Mini-USB) to trigger recording and adjust settings. The RSA/NATO ports are compatible with the DJI RS Focus Motor, allowing for manual focus control on vintage or non-AF lenses.

Limitations and Alternative Considerations

While the DJI Ronin RSC 2 is a versatile tool, it has specific limitations that may necessitate a different choice of equipment. The most significant limitation is the integrated battery design. Unlike the RS 2 or RS 3 Pro, the battery handle on the RSC 2 is not removable or swappable. If the battery dies during a shoot, the entire gimbal must be plugged into a power source to charge, which can halt production unless a high-capacity power bank is used while operating. Furthermore, the 3kg payload is a hard limit; attempting to use a heavy cinema camera like a RED Komodo with a cinema zoom lens and a matte box will likely strain the motors, leading to overheating or stabilization failure. In such cases, the DJI RS 3 Pro or a Ronin 2 would be the appropriate choice.

The 1-inch OLED screen, while functional, is significantly smaller than the color touchscreens found on newer models. Navigating complex menus on this small display can be slower and less intuitive during high-pressure shoots. Additionally, while the folding design is a benefit for portability, it introduces more mechanical joints into the frame. For filmmakers who exclusively shoot in a standard upright position and require the absolute maximum structural rigidity for high-speed vehicle mounts, a non-folding gimbal like the original Ronin-S or the RS 2 might offer a more robust, albeit less portable, solution. Finally, the RavenEye system is an external add-on; it is not built into the gimbal body, meaning extra cables and a separate battery for the transmitter must be managed, which can complicate the balancing process for beginners.
