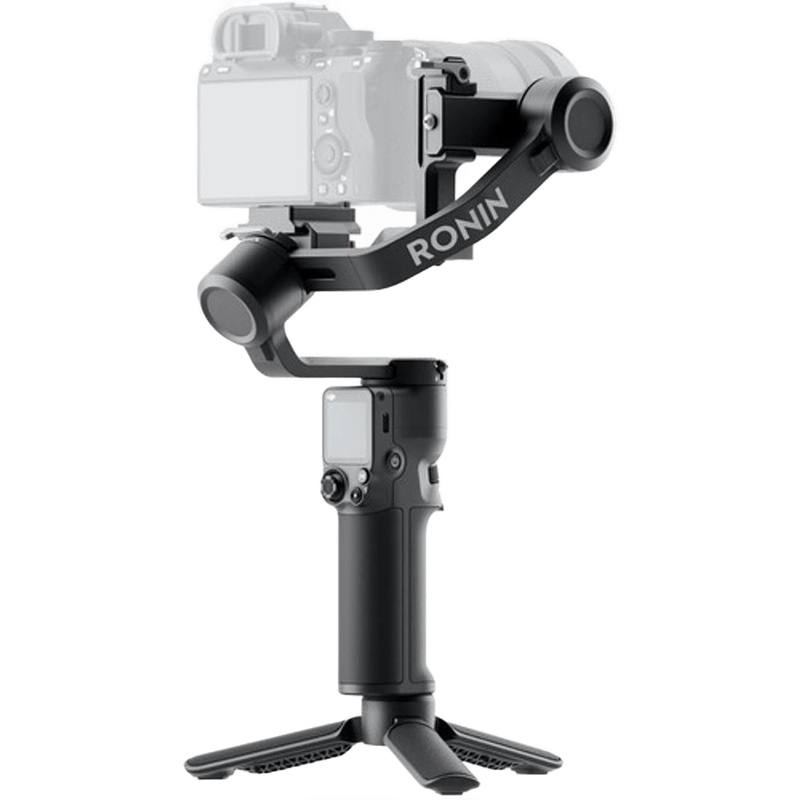

RS 3 Mini Gimbal Stabilizer

The Compact Evolution of the Ronin Ecosystem

The DJI RS 3 Mini represents a significant shift in the design philosophy of the Ronin series, functioning as the first "Mini" iteration of the professional RS stabilizer line. While previous compact stabilizers often sacrificed motor torque or professional features to achieve a smaller footprint, this gimbal is engineered specifically to support mainstream full-frame and APS-C mirrorless camera systems. It sits as the entry point in the RS 3 lineup, positioned below the RS 3 and the RS 3 Pro. It is designed for solo operators, travel videographers, and content creators who require professional-grade stabilization without the physical toll of a 1.3kg or 1.5kg gimbal body. By utilizing a concentrated structural design, it reduces the total weight to approximately 795g when used in portrait mode and 850g in horizontal mode, making it roughly 50% lighter than the RS 3 Pro.

The core of this device is its 2kg (4.4 lbs) payload capacity. This is not an arbitrary figure; it is specifically calibrated to handle popular combinations such as a Sony A7 series camera with a 24-70mm f/2.8 GM lens, or a Canon R7 with an RF-S 18-150mm lens. Unlike mobile-first gimbals, the motor torque here is sufficient to maintain stability even when the lens zooms and the center of gravity shifts slightly. The internal architecture focuses on a shortened arm length and a more efficient motor layout, which allows the gimbal to be folded down to a size comparable to a large tablet, fitting into standard camera backpacks without requiring a dedicated hard case.

Stabilization Performance and 3rd Gen RS Algorithms

The DJI RS 3 Mini utilizes the same 3rd Generation RS Stabilization Algorithm found in the flagship RS 3 Pro. This algorithm is responsible for calculating real-time adjustments based on the data received from the Inertial Measurement Unit (IMU). In practice, this technology compensates for the high-frequency vibrations caused by running or walking, as well as the low-frequency sways of handheld operation. The algorithm is particularly effective when shooting at longer focal lengths; while wide-angle lenses are naturally more forgiving, the RS 3 Mini maintains a steady frame even when using 50mm or 85mm equivalent lenses, provided the total weight remains within the 2kg limit.

A key technical advantage of this stabilization system is its ability to handle "Briefcase Mode" and low-angle shots without requiring additional handles. The motor responsiveness ensures that as the operator transitions from a high eye-level shot to a ground-skimming shot, the gimbal maintains the horizon line with a precision of +/- 0.02 degrees. The 3rd Gen algorithm also improves the gimbal's performance during fast-moving vehicle shots or when the operator is moving through wind, as the motors can exert higher counter-torque to maintain the camera's orientation. This is achieved through high-efficiency brushless motors that provide a high power-to-weight ratio, ensuring that the gimbal does not "drop" or vibrate when pushed to its maximum payload limits.

Build Quality, Mounting, and Native Vertical Shooting

The physical construction of the gimbal utilizes a combination of aluminum alloy and high-strength synthetic materials to maintain rigidity while shedding weight. One of the most significant departures from the larger RS 3 models is the mounting system. The RS 3 Mini features a dual-layered quick-release plate that is compatible with the Arca-Swiss standard. This allows for rapid transitions between the gimbal and tripods without the need to swap plates. The upper plate has a new curved placement guide that prevents the camera from rotating or loosening during high-intensity movement.

The standout mechanical feature is Native Vertical Shooting. On traditional gimbals, switching to a vertical aspect ratio for social media requires an additional "L-bracket" or a complex re-balancing process that often limits the tilt axis range. The RS 3 Mini solves this by allowing the operator to mount the vertical arm directly to the gimbal's horizontal motor. This removes the need for extra accessories and ensures that the camera's weight remains centered over the motors, which preserves the full range of motion and stabilization quality. The 1.4-inch full-color touchscreen provides a centralized interface for adjusting motor strength, follow speed, and gimbal modes (PF, PTF, FPV) without needing to connect to a smartphone app for every minor adjustment.

Wireless Control and Integrated Functionality

The DJI RS 3 Mini integrates Bluetooth Shutter Control, a feature that eliminates the need for physical RSS cables between the gimbal and the camera. Once the initial pairing is complete, the record button on the gimbal handle can trigger video start/stop or photo capture directly on the camera body. This is compatible with a wide range of modern mirrorless cameras from Sony, Canon, Nikon, Fujifilm, and Panasonic. By removing the cable, the gimbal avoids the "cable tug" that can sometimes introduce micro-jitters into a shot, and it simplifies the balancing process as there is no external wire affecting the tension of the axes.

The handle houses an integrated battery that provides up to 10 hours of continuous operation. This is a 2450mAh Li-ion 2S battery that supports 10W charging, allowing it to be fully replenished in approximately 2.5 hours. While the battery is not removable, the 10-hour runtime is generally sufficient for a full day of intermittent shooting. The gimbal also features a front dial located above the trigger. This dial can be customized to control various parameters such as focus, ISO, aperture, or the movement of one of the three gimbal axes. When paired with a compatible camera and a supported power-zoom lens, this dial can even control the focal length of the lens electronically.

Practical Performance in Indian Shoot Environments

In a Bengaluru wedding reception scenario, the RS 3 Mini excels due to its small footprint. Wedding venues in India are often crowded, and navigating through guests with a large RS 3 Pro and a heavy rig can be intrusive. The Mini allows the videographer to move through tight spaces and capture candid moments without drawing excessive attention. The 10-hour battery life is particularly useful for the long duration of Indian wedding ceremonies, where the gimbal might be used from the morning rituals through to the late-night reception. The ability to quickly switch to Native Vertical Shooting is a major advantage for creators who need to deliver "Sangeet" highlights for Instagram Reels alongside traditional horizontal footage.

For a travel shoot in Goa, the gimbal’s weight becomes its primary asset. Hiking to the top of Chapora Fort or walking along the beach for sunset shots requires equipment that does not cause fatigue. The RS 3 Mini can be held with one hand for extended periods, and its compact folded state means it can be tucked into a small daypack. The 3rd Gen stabilization algorithm effectively handles the uneven terrain of rocky coastlines, ensuring that walking shots remain fluid. The Bluetooth shutter control is also beneficial here, as it reduces the setup time when moving between different locations, allowing the creator to start filming as soon as the camera is balanced.

In a Mumbai-based studio product session, the gimbal serves as a precise motion control tool. When filming small products like jewelry or electronics, the "Track" and "Panorama" modes allow for repeatable, robotic movements. The front dial can be mapped to the tilt axis to perform smooth, slow reveals of a product. Because the gimbal is small, it can be placed on a tabletop or a small slider to get close-up shots that would be physically impossible with a larger stabilizer. The native vertical mounting is again useful here for creating high-quality product showcases for mobile-first e-commerce platforms.

Compatibility and Ecosystem Integration

The DJI RS 3 Mini is designed for a specific class of camera equipment. Its compatibility list includes:

• Sony: A7C, A7S III, A7 IV, A6000 series, and ZV-E10 with lenses like the FE 24-70mm f/2.8 GM or the E 10-18mm f/4 OSS.
• Canon: EOS R7, R10, and R5 with lightweight RF lenses like the RF 15-35mm f/2.8L or RF 50mm f/1.8.
• Nikon: Z50, Z6 II, and Z7 II with Z-mount lenses such as the 24-70mm f/4.
• Fujifilm: X-T3, X-T4, X-T5, and X-S10 with XF series lenses.
• Panasonic: GH5, GH6, and S5 with Lumix G or S lenses.

The gimbal features a NATO expansion port on the side, allowing for the attachment of accessories such as the Ronin Briefcase Handle, external monitors, or cold shoe mounts for microphones and lights. While it does not support the DJI LiDAR Range Finder (which requires the RS 3 Pro), it is fully compatible with the DJI Mic system, making it a complete solution for solo vloggers.

Limitations and Alternative Considerations

While the DJI RS 3 Mini is a powerful tool, it has specific limitations that may necessitate a larger gimbal. The 2kg payload is a hard limit; if you intend to use heavy cinema lenses, anamorphic glass, or large full-frame bodies like the Nikon Z9 or Canon R3, the motors will struggle to maintain stability and may overheat. Furthermore, the RS 3 Mini lacks the automated axis locks found on the standard RS 3 and RS 3 Pro. On those models, the axes automatically unlock and expand when powered on; on the Mini, the operator must manually unlock each of the three axes before use and lock them for transport.

The battery is integrated into the handle and cannot be swapped out. For multi-day shoots in remote areas without access to power, this requires carrying a power bank to charge the gimbal during breaks. Additionally, the 1.4-inch screen, while functional, is significantly smaller than the 1.8-inch screen on the RS 3 Pro, making it slightly more difficult to navigate deep menu settings with gloves on. If your workflow requires the use of the DJI Transmission system or the LiDAR focusing module, the RS 3 Mini is not compatible. In those instances, the RS 3 Pro is the required choice. For users who primarily shoot with heavy DSLR systems or large-body mirrorless cameras with battery grips, the standard RS 3 or RS 3 Pro provides the necessary physical clearance and motor torque that the Mini cannot offer.
