TT520 II Flash Speedlite

The Architecture and Positioning of the Godox TT520 II

The Godox TT520 II Flash Speedlite is a dedicated manual power output device designed for photographers who require a high degree of control over their lighting environment without the intervention of automated metering systems. It occupies a specific niche in the manufacturer’s lineup as a bridge between basic on-camera flashes and professional studio strobes, offering a Guide Number of 33 (ISO 100, in meters). Unlike the TTL-enabled Ving or TT685 series, this unit is built on a single-pin universal hot shoe architecture, making it compatible with almost any camera brand that utilizes a standard ISO hot shoe. The internal circuitry is optimized for manual triggering, providing a consistent discharge across its power range. It is primarily designed for "strobist" setups where the photographer manually calculates exposure or uses a light meter to maintain absolute consistency across a series of frames.

Light Output and Optical Performance

The light quality of the Godox TT520 II Flash Speedlite is defined by its 5600K color temperature, which maintains a stability of +/- 200K across its entire power spectrum. This consistency is critical for post-production color grading, ensuring that skin tones and product colors do not shift when the flash power is adjusted. The unit offers eight levels of manual power control, ranging from 1/1 (full power) down to 1/128, allowing for a 7-stop range of light intensity. These adjustments are made in 1/8th stop increments, providing granular control over the exposure. The flash duration ranges from 1/300s at full power to 1/20000s at the lowest setting. This extremely short duration at lower power levels is a technical advantage for freezing high-speed motion, such as water droplets or fast-moving subjects, which might otherwise show motion blur under ambient light or longer flash pulses.

The optical design includes a built-in wide-angle diffuser and a reflection card (bounce card) that slide out from the flash head. When the wide-angle diffuser is deployed, the flash coverage expands to accommodate focal lengths as wide as 18mm on a full-frame sensor, preventing vignetting at the edges of the frame. The S1 and S2 optical slave modes provide additional versatility. In S1 mode, the unit fires in synchronization with the first detected flash burst from a master unit. In S2 mode, the internal sensor ignores the "pre-flash" emitted by TTL systems, allowing this manual flash to be used as a secondary light source alongside modern automated flash systems without firing prematurely.

Build Quality, Mounting, and Wireless Integration

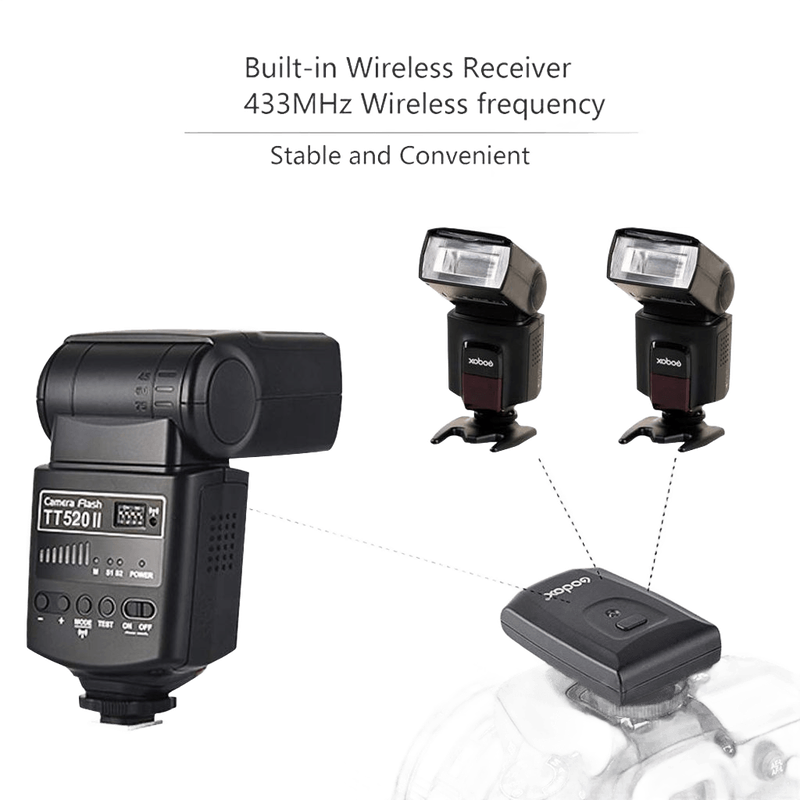

The physical construction of the Godox TT520 II Flash Speedlite is centered around a robust tilt-and-swivel head. The flash head provides a vertical rotation angle from 0 to 90 degrees and a horizontal rotation angle from 0 to 270 degrees. This mechanical flexibility allows for bouncing light off ceilings or walls to create a softer, more diffused light quality. The mounting foot is constructed with a metal plate for increased durability and features a standard screw-lock ring to secure the unit to the camera’s hot shoe or a light stand bracket. For off-camera triggering, the unit features a built-in 433MHz wireless receiver. This is a distinct system from the Godox 2.4GHz X-system; it operates on 16 discrete channels to minimize interference from other wireless devices. The unit typically includes a dedicated RT transmitter that slides into the camera's hot shoe, enabling wireless triggering at distances up to 15 meters in open areas.

The interface on the rear of the unit is tactile and non-digital, utilizing a series of LED indicators to display the current power level. This design choice ensures that settings can be read and adjusted quickly in low-light environments without navigating complex LCD menus. A PC sync port is also included on the side of the body, allowing for wired synchronization with older camera bodies or specialized radio triggers that do not use the hot shoe connection. The battery compartment is designed for four AA batteries, which are housed in a standard configuration that allows for rapid replacement during a shoot.

Video Capability and Limitations

As a dedicated xenon-tube speedlite, the Godox TT520 II Flash Speedlite does not possess continuous LED lighting capabilities for video recording. Its function is strictly limited to still photography. It does not support High-Speed Sync (HSS), meaning its maximum sync speed is limited by the camera's mechanical shutter, typically between 1/160s and 1/250s. For videographers, this unit serves no purpose as a primary light source; however, it can be utilized for "stills-from-video" hybrid shoots where a photographer needs to capture high-resolution promotional stills alongside a video crew. Because it lacks a modeling light, the photographer must rely on test shots or external continuous lights to visualize the shadows and highlights before the flash is triggered. The absence of a cooling fan means the unit relies on passive heat dissipation, which is sufficient for its intended use but necessitates monitoring during rapid, high-power firing sequences to prevent thermal cutout.

Operational Scenarios in the Indian Context

On a real-world shoot, the Godox TT520 II Flash Speedlite performs reliably under varied conditions. Consider a wedding reception in a large banquet hall in Bengaluru. In this scenario, the flash is often mounted on a light stand in a corner of the room, set to 1/4 power, and triggered wirelessly via the 433MHz transmitter. The GN33 output is sufficient to provide a "rim light" or "hair light" for the couple on stage, separating them from the dark background of the hall. Because it is a manual flash, the exposure remains constant even as the couple moves or as other guests' cameras fire, provided the S2 slave mode is correctly configured to ignore pre-flashes.

In a travel photography context, such as a sunset portrait session on a beach in Goa, the unit’s reliance on AA batteries is a significant logistical advantage. In remote areas where specialized lithium-ion chargers might be unavailable, standard AA alkaline or Ni-MH batteries can be sourced easily. The manual power control allows the photographer to balance the flash output precisely with the fading natural light of the "golden hour," ensuring the subject is illuminated without blowing out the highlights of the sunset. The 1/20000s flash duration at low power is particularly useful here for capturing the crisp detail of crashing waves in the background.

For a product photography session in a Mumbai studio, three of these units can be used in a "strobist" array. One unit, fitted with a small softbox, acts as the key light, while the other two, set to lower power levels, act as fill and background lights. The 16-channel wireless system ensures that the flashes do not interfere with other photographers working in adjacent studio bays. The consistency of the 5600K color temperature ensures that the product's colors are rendered accurately, which is essential for e-commerce catalog work where color fidelity is a primary requirement.

Compatibility and Essential Pairings

The Godox TT520 II Flash Speedlite is designed for broad compatibility across the photographic ecosystem. Its primary requirements and compatible accessories include:

• Camera Bodies: Compatible with Canon, Nikon, Sony (via the ADP-AMA Multi-Interface Shoe adapter for older models), Fujifilm, Olympus, and Panasonic. Any camera with a standard ISO hot shoe can trigger this flash.
• Batteries: Requires 4x AA batteries. For optimal recycle times (approx. 0.1 to 5 seconds), high-capacity Ni-MH rechargeable batteries like Eneloop Pro are recommended. Alkaline batteries can be used but will result in slower recycle times as the charge depletes.
• Triggering: Includes a 433MHz RT transmitter. It is also compatible with other 433MHz Godox triggers but is NOT natively compatible with the Godox X1, X2, or X-Pro 2.4GHz transmitters without an external receiver.
• Light Modifiers: The flash head is a standard size, making it compatible with "S-Type" Bowens mount brackets, allowing the use of professional softboxes, beauty dishes, and snoots. It also fits standard clip-on diffusers and honeycomb grids designed for universal speedlites.
• Mounting: Features a 1/4-inch thread on the included mini-stand, allowing it to be mounted directly onto tripods or light stands.

Limitations and Alternative Recommendations

While the Godox TT520 II Flash Speedlite is a highly capable manual tool, it has distinct technical boundaries. The most significant limitation is the lack of TTL (Through-The-Lens) metering. Photographers who work in fast-paced, changing light environments—such as candid event photography or street photography—may find the manual adjustment process too slow and should instead consider the Godox TT685 II or the V860 III, both of which offer full TTL automation. Furthermore, the absence of High-Speed Sync (HSS) means this flash cannot be used with shutter speeds faster than the camera's native sync speed (usually 1/200s). This makes it difficult to use wide apertures (like f/1.4 or f/1.8) in bright daylight without an ND filter. For outdoor portraits requiring HSS, the Godox AD series or the TT685 series would be more appropriate.

The 433MHz wireless system, while functional, is an older technology compared to the 2.4GHz X-system. It has a shorter range and is more prone to signal blockage by physical obstacles. Photographers already invested in the Godox X-system ecosystem (using triggers like the X-Pro or X2T) will find that the TT520 II does not integrate into their wireless group control without adding an external X1R receiver to the flash’s foot. Finally, the recycle time of up to 5 seconds at full power is relatively slow for action photography; those requiring rapid-fire bursts should look toward lithium-ion powered units like the Godox V1, which offers recycle times of less than 1.5 seconds at full power.
