E PZ 16-50mm f/3.5-5.6 OSS Lens

The Architecture of the Sony E PZ 16-50mm f/3.5-5.6 OSS Lens

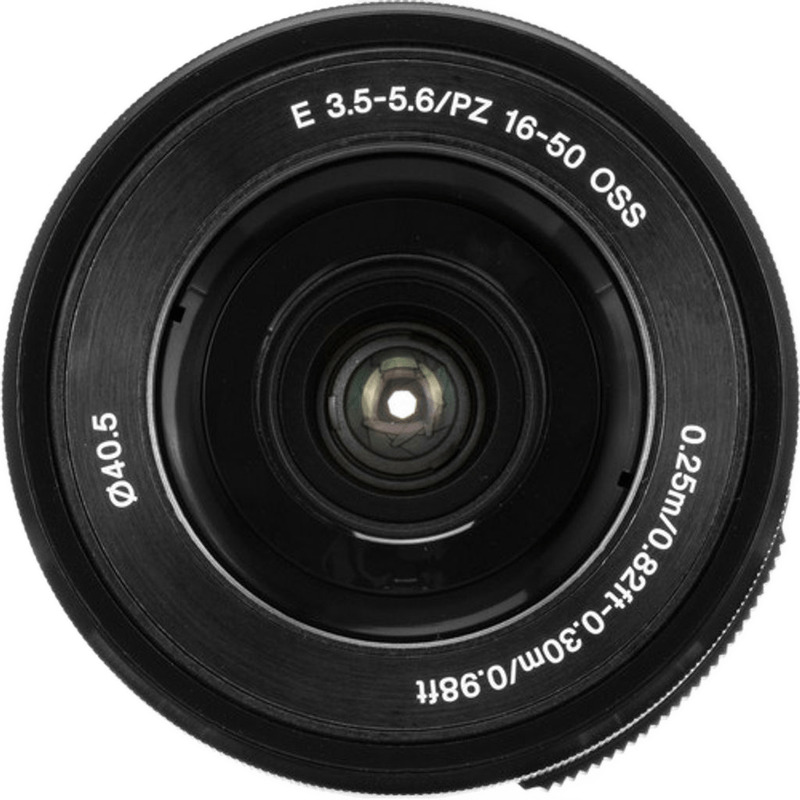

The Sony E PZ 16-50mm f/3.5-5.6 OSS Lens is a standard zoom lens designed specifically for the APS-C sensor format within the E-mount ecosystem. Carrying the model designation SELP1650, this lens occupies a unique position as the primary "pancake" zoom in the manufacturer’s lineup. Its defining physical characteristic is its retractable electronic mechanism. When the camera is powered down, the lens barrel retracts to a total length of just 29.9mm, making it significantly more compact than traditional 18-55mm kit lenses. Upon powering the camera on, the lens extends into its operational state. The optical formula consists of 9 elements arranged in 8 groups, a configuration engineered to balance the requirements of a 3x zoom range with the physical constraints of a collapsible housing. It provides a 35mm equivalent focal range of 24-75mm, covering the most utilized perspectives from wide-angle landscapes to short-telephoto portraiture.

Optical Construction and Image Characteristics

To maintain image integrity across its variable focal length, the Sony E PZ 16-50mm f/3.5-5.6 OSS Lens incorporates specialized glass elements. The optical path includes four aspherical elements. These elements are critical in a lens of this size, as they are designed to correct for spherical aberration and minimize field curvature, which is often a challenge in wide-angle pancake designs. By using aspherical surfaces, the lens can achieve better corner-to-corner sharpness at 16mm than would be possible with standard spherical glass. Additionally, one Extra-low Dispersion (ED) glass element is integrated into the formula to combat chromatic aberration. This ED element helps reduce color fringing, particularly at the 50mm end of the zoom range where longitudinal chromatic aberration is more likely to occur. The lens features a 7-blade circular aperture, which is designed to produce a more natural, rounded bokeh when shooting at wider apertures, such as f/3.5 at the 16mm end. The minimum focus distance varies from 0.25 meters at the wide end to 0.3 meters at the telephoto end, allowing for a maximum magnification ratio of 0.215x, suitable for close-up detail work.

Autofocus Performance and Handling Mechanics

Handling of the Sony E PZ 16-50mm f/3.5-5.6 OSS Lens is centered around its Power Zoom (PZ) technology. Unlike traditional mechanical zoom lenses where the user physically moves the lens groups via a geared ring, this lens utilizes an internal motor to drive the zoom. This can be controlled in two ways: via the zoom lever located on the side of the lens barrel or through the dual-function control ring at the front. When the camera is set to Autofocus (AF) mode, this ring acts as a secondary zoom control. When switched to Manual Focus (MF), the ring becomes a focus-by-wire interface. The internal focusing mechanism is driven by a linear motor, which ensures that the front element does not rotate during focus acquisition—a crucial feature for photographers using polarizing or graduated neutral density filters on the 40.5mm filter thread. The autofocus system is fully compatible with Sony’s Fast Hybrid AF, supporting features like Real-time Eye AF and Real-time Tracking on modern APS-C bodies. Because the focusing is internal, the physical length of the lens does not change during focus adjustments, only during zooming.

Video Capability and Motion Integration

The "PZ" designation makes this lens a specific tool for video production. The electronic Power Zoom allows for a constant, smooth zoom speed that is difficult to replicate with a manual twist-zoom lens. This is particularly useful for slow, cinematic "creeping" zooms. When used with compatible Sony cameras, the zoom speed can be adjusted within the camera menu or controlled remotely via a Bluetooth remote or a smartphone app. The inclusion of Optical SteadyShot (OSS) image stabilization provides approximately 2 to 3 stops of shake compensation. This is vital for handheld video, as it helps dampen high-frequency vibrations that are common when shooting without a tripod. The linear motor used for focusing is nearly silent, preventing the internal microphone from picking up mechanical noise during active tracking. Furthermore, the electronic communication between the lens and the body allows for automatic compensation of "breathing" (the change in focal length when focusing) on supported camera bodies, ensuring a stable frame during rack focus transitions.

On the Shoot: Real-World Indian Scenarios

In a Goa travel shoot, the 16mm wide-angle setting (24mm equivalent) is utilized to capture the expansive architecture of the Basilica of Bom Jesus or the wide vistas of Vagator Beach. The 116-gram weight is a significant advantage here; when paired with a compact body, the entire kit can be carried in a small waist bag or even a large jacket pocket while navigating the humid, outdoor environments of the Konkan coast. The retractable design allows the photographer to move through crowded markets without the lens barrel protruding and catching on surroundings.

During a Mumbai street photography session at Marine Drive or Dadar Station, the Power Zoom lever allows for one-handed operation. A photographer can adjust the focal length from a wide environmental shot of the skyline to a 50mm (75mm equivalent) candid portrait of a passerby using just their thumb, keeping their other hand free to stabilize themselves or manage other gear. The OSS proves essential here as the sun sets, allowing for sharp handheld shots at shutter speeds as low as 1/15th of a second when the aperture closes down to f/5.6 at the long end.

For a Bengaluru wedding reception, this lens often serves as a secondary or "B-roll" tool. While a primary shooter might use a heavy f/2.8 zoom, a second shooter or a videographer using a gimbal like the Crane M3 will find the 16-50mm ideal. Its light weight means the gimbal motors are not strained, and the 16mm focal length is wide enough to capture the scale of a decorated hall in Palace Grounds. In well-lit indoor environments, the lens provides sufficient detail for social media deliverables and highlight reels where portability and speed of setup are prioritized over absolute low-light performance.

Compatibility and Essential Pairings

The Sony E PZ 16-50mm f/3.5-5.6 OSS Lens is natively compatible with all Sony E-mount APS-C cameras, including the A6000, A6100, A6400, A6600, and A6700 series. It is also a frequent choice for the ZV-E10 and ZV-E10 II vlogging cameras due to the Power Zoom functionality. While it can be mounted on full-frame Sony Alpha bodies (like the A7 IV or A7R V), the camera will automatically switch to "APS-C Crop Mode," resulting in a reduced megapixel count (for example, a 33MP full-frame sensor will output approximately 14MP images). The lens uses a 40.5mm filter diameter, which is relatively small; users should look for slim-profile UV or ND filters to avoid any mechanical vignetting at the 16mm wide end. It does not require a separate battery, drawing its power directly from the camera body via the electronic contacts. It is compatible with all standard Sony NP-FW50 and NP-FZ100 powered bodies.

Limitations and Alternative Considerations

While the Sony E PZ 16-50mm f/3.5-5.6 OSS Lens is highly portable, it has distinct limitations that professional users must consider. The variable maximum aperture of f/3.5-5.6 means that as you zoom in, the lens lets in less light. At the 50mm focal length, the maximum aperture is f/5.6, which is not ideal for low-light environments or for creating a very shallow depth of field with significant background blur. Photographers focusing on evening events or indoor sports may find the f/5.6 aperture necessitates high ISO settings, leading to increased noise in the image.

Optically, the lens relies heavily on in-camera software corrections. In RAW files without a lens profile applied, there is significant barrel distortion at 16mm and noticeable vignetting. While Sony’s JPEG engine and modern RAW processors like Lightroom correct this automatically, it does result in a slight loss of resolution at the extreme corners after the image is "stretched" straight. The build quality is primarily high-grade plastic with a metal mount; it is not weather-sealed. For users requiring constant apertures, the Sony E 16-55mm f/2.8 G is a superior, albeit much larger, professional alternative. For those needing more reach without sacrificing the Power Zoom feature, the Sony E PZ 18-105mm f/4 G OSS offers a constant f/4 aperture and a significantly longer zoom range, though it lacks the "pancake" portability of the 16-50mm.
