Lomography 85mm Petzval Lens with 7 keys

The Heritage and Optical Design of the Lomography Petzval 85mm f/2.2

The Lomography Petzval 85mm f/2.2 Lens for Canon EF is a modern re-imagining of the 1840 optical design by Joseph Petzval. While contemporary lens design prioritizes a flat focal plane and edge-to-edge sharpness, this lens is built upon a four-element, three-group optical formula that intentionally embraces field curvature. This specific arrangement results in a sharp central area of focus that rapidly falls off into a characteristic "swirly" bokeh in the peripheral areas of the frame. Unlike modern lenses that utilize complex aspherical elements to correct aberrations, the Petzval 85mm uses high-quality Russian glass to replicate the high-contrast, saturated look of 19th-century portraiture. It sits in the Lomography Art Lens lineup as a specialized tool for portrait and editorial photographers who require a distinct, non-digital aesthetic that cannot be easily replicated in post-processing.

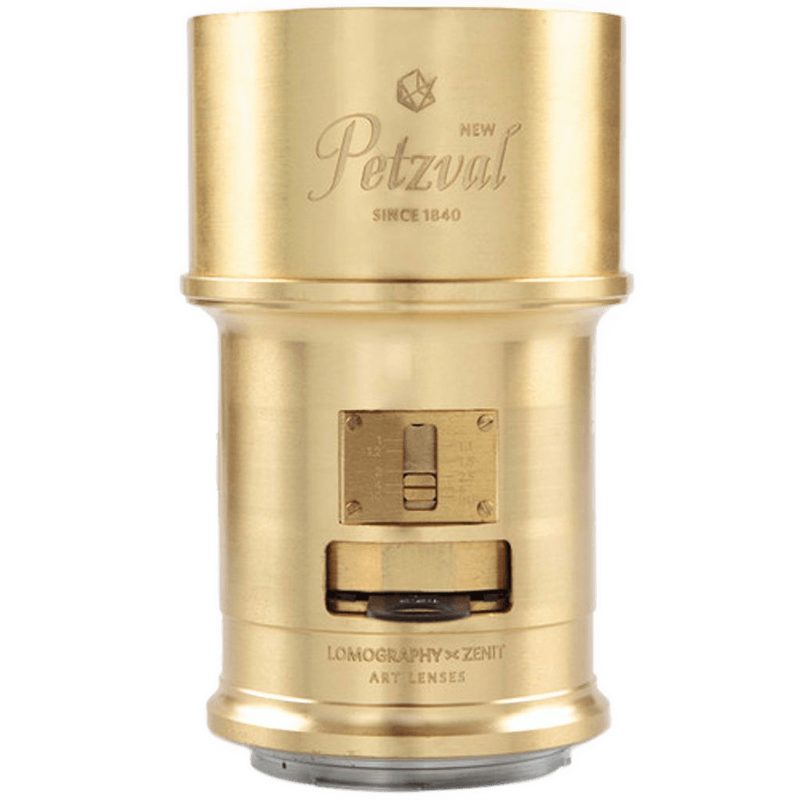

The lens is constructed with a heavy brass outer barrel, providing a tactile and mechanical experience that differs significantly from the polycarbonate housings of modern EF lenses. It is designed specifically for full-frame Canon EF mount cameras, though it maintains compatibility with APS-C sensors where the effective focal length becomes approximately 136mm. On an APS-C sensor, the "swirly" effect is less pronounced because the crop factor eliminates the most extreme areas of field curvature at the edges of the image circle. The lens is purely mechanical; it contains no electronic contacts, meaning there is no communication between the lens and the camera body for EXIF data, aperture control, or autofocus. This places the Lomography Petzval 85mm f/2.2 firmly in the category of creative manual optics, designed for photographers who prioritize deliberate composition and a specific vintage rendering over speed and automation.

Optical Characteristics and the Waterhouse Aperture System

The defining characteristic of the Lomography Petzval 85mm f/2.2 is its unique bokeh, which is a direct result of uncorrected spherical aberration and significant field curvature. When shooting at the maximum aperture of f/2.2, the center of the image remains remarkably sharp, while the background elements appear to spiral around the subject. This effect is most prominent when there is a distance of at least 2 to 3 meters between the subject and a textured background, such as foliage or city lights. The intensity of the swirl is physically tied to the aperture setting; as the lens is stopped down, the depth of field increases and the swirly effect diminishes, eventually behaving more like a traditional 85mm lens at f/8 or f/11.

Control over light and depth of field is managed through a traditional Waterhouse aperture system. Rather than an internal iris diaphragm controlled by a ring or a camera dial, this lens uses interchangeable brass plates that are dropped into a slot on the top of the lens barrel. The standard set includes plates for f/2.2, f/2.8, f/4, f/5.6, f/8, f/11, and f/16. This system ensures perfectly circular bokeh highlights at every stop, as there are no aperture blades to create polygonal shapes. Additionally, Lomography provides experimental plates with custom-shaped cutouts, such as stars or teardrops, which transform out-of-focus highlights into those specific shapes. This physical method of aperture control also means that the lens has no "clicked" or "de-clicked" stops in the modern sense; the plate is either in or out, and changing the aperture requires physically swapping the brass insert, which necessitates a more measured pace of shooting.

Mechanical Build and Manual Handling

The physical handling of the Lomography Petzval 85mm f/2.2 is defined by its rack-and-pinion focusing mechanism. Instead of a traditional focusing ring that rotates around the barrel, this lens utilizes a gold-colored knob located on the side of the brass housing. Turning this knob moves the internal optical block forward and backward along a geared track. This mechanism allows for precise focus adjustments, which is critical given the very thin plane of focus at f/2.2. The focus throw is substantial, allowing for minute corrections, but it is not designed for rapid tracking of moving subjects. The lens has a minimum focusing distance of 1 meter, making it suitable for tight headshots and half-body portraits, though it is not a macro lens.

The build quality is exceptionally dense, with the brass construction contributing to a total weight of approximately 500 grams. This weight provides a stable counterweight to larger Canon DSLR bodies like the 5D or 1DX series. The lens does not feature internal focusing; the physical length of the lens changes as you move through the focus range. The front filter thread is 67mm, allowing for the attachment of standard UV, ND, or polarizing filters. Because the lens is entirely manual and lacks electronic pins, the camera’s internal light meter will function in Aperture Priority or Manual mode using "stop-down metering." Photographers must be aware that the viewfinder will darken as smaller aperture plates are inserted, as the lens does not stay "wide open" for focusing like modern EF lenses do.

Video Performance and Cinematic Application

For cinematographers, the Lomography Petzval 85mm f/2.2 offers a specialized "dream-like" aesthetic that is often used for music videos, dream sequences, or period-accurate historical recreations. The 85mm focal length provides a flattering compression for faces, while the swirly bokeh adds a layer of visual texture that separates the subject from the background in a way that modern cinema glass cannot. Because the lens uses Waterhouse plates, there is no possibility of an aperture pull during a shot; the T-stop (or f-stop) remains fixed for the duration of the take unless the plate is physically removed, which would cause a massive light leak and shift in focus.

Focus breathing is noticeable on this lens due to the rack-and-pinion design, where the magnification of the frame changes slightly as the lens elements move. However, the geared focus knob can be adapted for use with certain follow-focus systems if a zip-gear or custom gear ring is applied to the knob itself, though it is more commonly operated by hand. The lack of image stabilization means that the lens is best used on a tripod, a gimbal, or a camera body with In-Body Image Stabilization (IBIS). When used on a mirrorless system like the Canon EOS R5 via an EF-to-RF adapter, the focus peaking and 10x magnification tools become essential for hitting focus at f/2.2, as the optical viewfinder of a traditional DSLR can be challenging for such a narrow plane of sharp focus.

On the Shoot: Practical Scenarios in India

In a wedding photography context, such as a sunset reception in a Bengaluru garden, the Lomography Petzval 85mm f/2.2 excels at creating "hero" portraits of the couple. When positioned against a backdrop of fairy lights or dense hanging floral arrangements, the lens transforms the background into a circular vortex of light. The sharp central focus allows the photographer to capture the details of the bride’s jewelry and embroidery, while the edges of the frame melt into a soft, painterly blur. In this scenario, the f/2.2 or f/2.8 plates are most effective. The photographer must work slowly, as the manual focus and Waterhouse plates are not suited for the fast-paced action of the ceremony itself, but are ideal for the dedicated portrait session.

For a travel and editorial shoot in the bright, harsh light of a Goa beach, the lens requires a different approach. The high-contrast Russian glass handles the bright coastal sun by producing a warm, vintage flare when light hits the front element at an angle. To maintain the swirly effect while managing the intense light, a 67mm Variable ND filter is often necessary, as the Waterhouse plates are limited to f/16 and the photographer may want to keep the aperture at f/2.2 to preserve the bokeh characteristics. The brass construction is robust, but care must be taken with the open aperture slot to prevent sand or salt spray from entering the internal barrel.

In a Mumbai studio setting for a high-fashion or conceptual headshot session, the lens allows for extreme creative control. Using the shaped Waterhouse plates (like the star or heart shapes), a photographer can create custom-shaped catchlights in the background if small point-lights are used behind the model. The 85mm focal length ensures no facial distortion, while the manual rack-and-pinion focus allows the photographer to precisely nail the focus on the iris of the eye. In a controlled studio environment, the lack of autofocus is not a hindrance, and the unique rendering of the lens provides a "finished" look to the RAW files that requires less digital manipulation to achieve an artistic, non-commercial feel.

Compatibility and Pairing Recommendations

The Lomography Petzval 85mm f/2.2 is natively designed for the Canon EF mount, making it compatible with the entire range of Canon EOS full-frame and APS-C DSLRs. It is also highly adaptable to modern mirrorless systems. When paired with the Canon Mount Adapter EF-EOS R, it functions perfectly on the EOS R, R5, and R6, where the electronic viewfinder (EVF) provides a significant advantage for manual focusing through the use of focus peaking and focus guide tools. It can also be adapted to Sony E-mount, Nikon Z-mount, and L-mount cameras using the respective EF adapters, making it a versatile tool for multi-platform shooters.

In terms of accessories, the lens pairs best with a sturdy tripod or a monopod, especially when shooting at f/2.2 where the depth of field is razor-thin. Since the lens does not communicate with the camera, using a handheld light meter or the camera’s histogram is essential for accurate exposure. For video shooters, an external monitor with a high-resolution screen is recommended to verify focus. Because the Waterhouse plates are small and separate from the lens, a dedicated pouch or case for the aperture set is necessary to prevent loss or damage to the plates during a shoot. The 67mm filter thread is standard, so it pairs well with common circular polarizers and ND filters used in professional kits.

Limitations and Alternative Considerations

The Lomography Petzval 85mm f/2.2 is a specialized artistic tool and is not intended to be a general-purpose portrait lens. The most significant limitation is the lack of autofocus. For event photographers, sports shooters, or anyone capturing subjects in motion, the manual rack-and-pinion focus will likely result in a low hit rate. If your workflow requires high-speed bursts and reliable eye-tracking AF, a modern Canon EF 85mm f/1.8 USM or the EF 85mm f/1.2L II USM would be more appropriate choices, as they offer electronic integration and much faster operation.

Another consideration is the edge-to-edge sharpness. This lens is designed to be soft at the edges; if you are shooting architectural photography, group portraits where people are positioned near the frame boundaries, or landscapes where corner-to-corner detail is required, the Petzval design will be counter-productive. The Waterhouse aperture system, while providing beautiful bokeh, is also slower than a traditional aperture ring. If you need to change your exposure settings rapidly in changing light conditions, the physical act of swapping plates may cause you to miss a shot. In such cases, a lens with a standard internal diaphragm, like the Sigma 85mm f/1.4 DG HSM Art, would provide the necessary speed and optical consistency across the entire frame.
