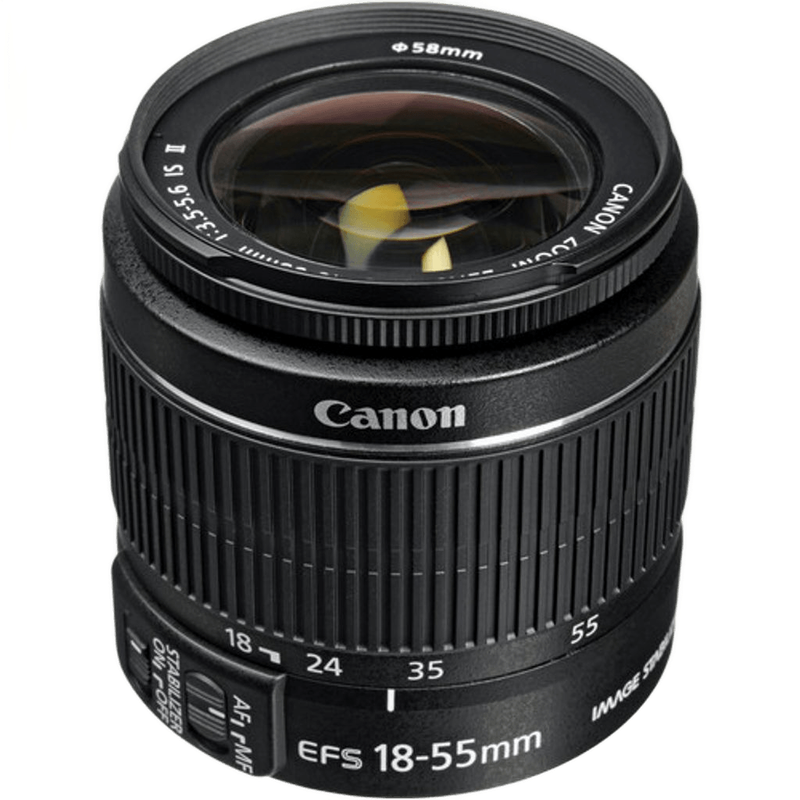

EF-S 18-55mm f/3.5-5.6 IS II Lens

The Role and Design of the Canon EF-S 18-55mm f/3.5-5.6 IS II Lens

The Canon EF-S 18-55mm f/3.5-5.6 IS II Lens is a standard zoom lens designed specifically for the APS-C sensor format. Within the Canon ecosystem, the EF-S mount designation indicates that the lens features a smaller image circle tailored for sensors measuring approximately 22.3 x 14.9mm. When mounted on these bodies, the 1.6x crop factor results in an effective focal length of 28.8mm to 88mm in 35mm equivalent terms. This range covers the transition from a moderately wide angle to a short telephoto perspective, making it the primary optical tool for general-purpose photography. The "II" designation represents a second-generation refinement of the original Image Stabilized kit lens, maintaining the proven optical formula while updating the external aesthetics and internal firmware for improved communication with modern EOS processors.

The optical construction consists of 11 elements arranged in 9 groups. This includes a high-precision aspherical lens element designed to minimize chromatic aberrations and distortions that typically occur throughout the zoom range. By utilizing an aspherical element, the lens can maintain a compact physical profile while correcting for the spherical aberration that often affects wide-angle performance. This lens is positioned as the entry point into the Canon interchangeable lens system, engineered for users who require a lightweight, versatile optic that can handle everything from landscape vistas to tight portraits without the need for frequent lens changes.

Optical Performance and Image Stabilization Technology

Image quality in the Canon EF-S 18-55mm f/3.5-5.6 IS II Lens is defined by its specialized coatings and stabilization hardware. Every element in the lens is treated with Super Spectra coatings. These coatings are engineered to maintain accurate color balance and high contrast while simultaneously suppressing flare and ghosting—a common issue caused by light reflecting off the digital sensor back into the lens elements. The result is a cleaner image when shooting in backlit conditions or under harsh overhead lighting.

The defining technical feature of this lens is its optical Image Stabilizer (IS) system. This mechanism provides up to 4 stops of compensation against camera shake. In practical terms, this allows a photographer to shoot at shutter speeds four times slower than would otherwise be possible without a tripod. For example, at the 55mm focal length where a shutter speed of 1/100s might be required for sharpness, the IS system enables successful handheld captures at speeds as low as 1/6s or 1/8s, provided the subject remains stationary. The IS system automatically detects when the camera is mounted on a tripod to prevent feedback loops, and it works silently to shift internal lens groups in response to movement detected by gyro sensors. The aperture diaphragm utilizes 6 rounded blades, which helps create a more circular opening at wider settings, leading to smoother background blur (bokeh) compared to older, non-rounded designs.

Autofocus Mechanics and Physical Handling

The Canon EF-S 18-55mm f/3.5-5.6 IS II Lens utilizes a DC micro-motor for its autofocus drive. Unlike the STM (Stepping Motor) or USM (Ultrasonic Motor) variants found in higher-end or later-model lenses, the DC motor provides a mechanical linkage that is audible during operation. The autofocus speed is optimized for phase-detection systems found in Canon DSLRs, providing quick acquisition in high-contrast environments. The lens features a minimum focusing distance of 0.25 meters (approximately 9.8 inches) across the entire zoom range. This close-focus capability allows for a maximum magnification of 0.34x at the 55mm end, enabling the capture of small details such as flowers or product textures.

In terms of physical handling, the lens is notably lightweight at approximately 200 grams. The barrel is constructed from high-grade engineering plastic, including the mount, which contributes to its portability. The front element of the lens rotates during focusing, a critical detail for users of screw-in filters. This means that polarizing filters or graduated neutral density filters must be readjusted every time the focus is changed. The lens uses a 58mm filter thread, a standard size within the Canon entry-level lineup. The zoom ring is wide and textured for grip, while the manual focus ring is located at the very front of the barrel. A dedicated switch on the side of the lens allows for immediate toggling between AF (Autofocus) and MF (Manual Focus), alongside a secondary switch to enable or disable the Image Stabilizer.

Video Capability and Limitations

While primarily designed for still photography, the Canon EF-S 18-55mm f/3.5-5.6 IS II Lens is frequently used for video applications on APS-C bodies. The 4-stop Image Stabilizer is particularly effective for handheld video, smoothing out the high-frequency jitters that occur when recording without a gimbal or shoulder rig. The focal range is suitable for vlogging at the 18mm end, providing a wide enough field of view to include the presenter and a portion of the background at arm's length.

However, there are specific technical limitations for video work. Because this lens uses a DC motor rather than an STM motor, the autofocus movement is not silent. On-camera microphones will likely pick up the mechanical "chirping" or "whirring" sounds of the lens elements moving during a focus pull. Furthermore, the autofocus transition is less fluid than STM lenses, often appearing more abrupt in video footage. For professional video results, users typically operate this lens in manual focus mode. The variable maximum aperture (f/3.5 at 18mm to f/5.6 at 55mm) also means that the exposure will change if the lens is zoomed while recording, necessitating adjustments in ISO or shutter speed to maintain consistent brightness.

Practical Application in Indian Shoot Scenarios

On a travel shoot in Goa, the 18mm wide-angle setting is used to capture the expansive architecture of the Basilica of Bom Jesus or the wide shorelines of Palolem Beach. The 4-stop Image Stabilizer becomes essential during the "golden hour" at the forts, where light levels drop but the use of a tripod may be restricted. The lens allows the photographer to keep the ISO lower by using slower shutter speeds, preserving the dynamic range of the sunset colors against the stone structures.

During a wedding reception in Bengaluru, the lens functions as a versatile tool for capturing the scale of the decorated hall at 18mm and then quickly zooming to 55mm for candid portraits of guests. While the f/5.6 aperture at the long end requires the use of an external flash in dim banquet halls, the lens's lightweight nature prevents fatigue during long 8-hour shifts. The 0.25m minimum focus distance is particularly useful here for "macro-lite" shots of the couple's rings, the intricate henna patterns on the bride’s hands, or the details of the floral arrangements.

In a Mumbai-based home studio setup for a small e-commerce brand, the lens handles product photography with precision. At the 55mm focal length, the lens exhibits minimal barrel distortion, ensuring that the proportions of products like footwear or packaged goods are represented accurately. The ability to focus closely allows the photographer to fill the frame with smaller items like jewelry or cosmetics, providing the high-resolution detail required for digital marketplaces.

Compatibility and Pairing Essentials

The Canon EF-S 18-55mm f/3.5-5.6 IS II Lens is compatible with all Canon EOS DSLR bodies that feature an EF-S mount. This includes the EOS 7D series, 90D, 80D, 77D, and the entire Rebel series (such as the 850D, 200D II, and 1500D). It can also be used on Canon EOS M series mirrorless cameras or the EOS R series (like the R7 or R10) through the use of the EF-EOS M Adapter or the EF-EOS R Mount Adapter, respectively. When adapted to mirrorless, the lens retains full autofocus and image stabilization functionality.

For optimal results, this lens is often paired with a 58mm UV filter to protect the front element from dust and scratches, which is particularly important in the varied climates of India. It also pairs well with the Canon EF-S 55-250mm f/4-5.6 IS II, which picks up exactly where this lens leaves off, extending the reach for wildlife or sports. For power, the lens draws a negligible amount of current from the camera's battery (such as the LP-E17 or LP-E6NH), though keeping the Image Stabilizer active for extended periods will result in a slight increase in power consumption.

Limitations and Alternative Recommendations

The Canon EF-S 18-55mm f/3.5-5.6 IS II Lens has clear boundaries in professional performance. The most significant limitation is its "slow" variable aperture. With a maximum aperture of f/5.6 at the 55mm end, it struggles to create a shallow depth of field for professional-grade subject separation. Photographers requiring a constant aperture for low-light work or creamy backgrounds should instead consider the Canon EF-S 17-55mm f/2.8 IS USM, which offers a much larger opening and faster, quieter focusing.

For videographers, the lack of a Stepping Motor (STM) is a drawback. The Canon EF-S 18-55mm f/3.5-5.6 IS STM is a better choice for those who rely on the camera's Dual Pixel CMOS AF for smooth, silent focus racking during filming. Additionally, the plastic mount of the IS II version is less durable than the metal mounts found on "L" series lenses or higher-end EF-S zooms. Users who frequently shoot in dusty or damp environments should look toward weather-sealed alternatives, as this lens lacks the gaskets required to prevent environmental ingress. Finally, this lens cannot be used on full-frame Canon bodies (like the 5D or 6D series) as the rear element protrudes further into the camera body and would interfere with the larger mirror mechanism.
