EF-S 18-200mm f/3.5-5.6 IS

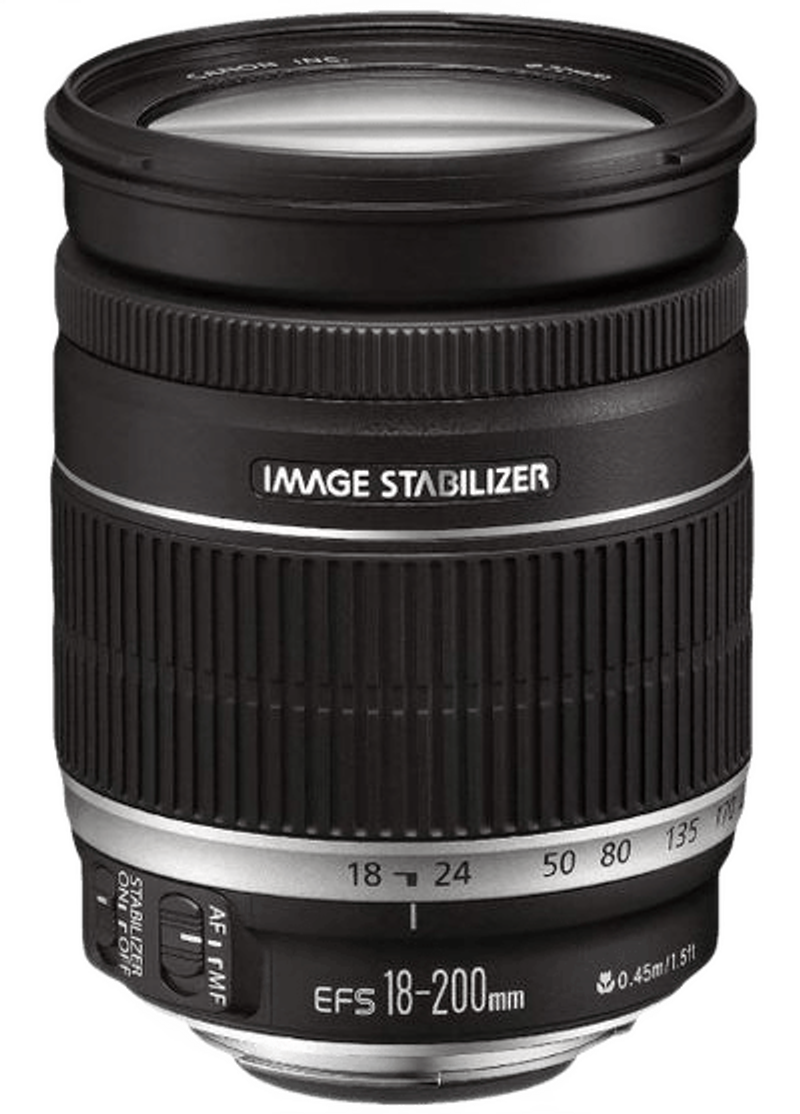

The Design and Purpose of the Canon EF-S 18-200mm f/3.5-5.6 IS

The Canon EF-S 18-200mm f/3.5-5.6 IS is a high-magnification zoom lens designed exclusively for Canon EOS digital SLR cameras featuring APS-C size sensors. With an 11x zoom ratio, it covers a focal range equivalent to approximately 28.8-320mm in the 35mm full-frame format. This lens occupies a specific niche in the EF-S lineup as the definitive "all-in-one" solution, intended to eliminate the need for frequent lens changes during a shoot. It was engineered for photographers who require maximum versatility in a single chassis, making it a staple for travel, documentary, and general-purpose photography where carrying a heavy bag of primes or multiple zooms is impractical.

The optical formula consists of 16 elements arranged in 12 groups. Because it is an EF-S mount lens, it features a smaller image circle tailored to the 1.6x crop factor of sensors found in cameras like the EOS 90D, 7D Mark II, and the Rebel/Kiss series. The lens construction utilizes high-quality plastics and a metal mount to balance durability with a total weight of 595 grams. It measures 78.6mm in diameter and 102mm in length when retracted, extending significantly as it reaches the 200mm telephoto end. This lens was designed for the enthusiast who prioritizes focal flexibility and convenience without sacrificing the core technologies that define the EF system.

Optical Performance and Image Quality Technologies

To manage the inherent challenges of an 11x zoom range—specifically chromatic aberration and geometric distortion—the Canon EF-S 18-200mm f/3.5-5.6 IS incorporates specialized glass elements. It features two UD (Ultra-low Dispersion) elements and two aspherical elements. The UD elements are critical at the telephoto end, where they work to minimize secondary spectrum chromatic aberration, ensuring that color fringing is kept under control when shooting high-contrast subjects at 200mm. The aspherical elements are utilized to correct spherical aberration and curvature of field, which are common issues at the 18mm wide-angle setting.

The lens utilizes Canon’s Super Spectra coating on individual elements. This coating is designed to suppress flare and ghosting by absorbing light that might otherwise reflect off the internal sensor and lens surfaces. This is particularly important for a lens with 16 elements, as the increased number of air-to-glass surfaces can otherwise lead to a loss of contrast. The aperture diaphragm consists of 6 circular blades, which helps maintain a more natural, rounded bokeh when shooting at wider apertures, though the lens is primarily designed for sharpness across the frame rather than extreme background isolation. At 18mm, the maximum aperture is f/3.5, which gradually narrows to f/5.6 as the focal length increases beyond approximately 100mm.

Autofocus Mechanism and Mechanical Handling

The Canon EF-S 18-200mm f/3.5-5.6 IS employs a DC micro-motor for its autofocus system. Unlike USM (Ultrasonic Motor) lenses, the focus ring on this lens rotates during autofocus operation, and there is no full-time manual focus override; the user must toggle the AF/MF switch to make manual adjustments. The autofocus speed is optimized for general photography, providing reliable locking on static and moderately moving subjects. The minimum focusing distance is 0.45 meters (1.5 feet) across the entire zoom range, providing a maximum magnification of 0.24x at the 200mm end, which allows for effective close-up shots of flowers or small details.

One of the most significant features for handling is the 4-stop Image Stabilizer (IS). This system uses tiny gyro sensors to detect camera shake and shifts a dedicated lens group to compensate. This allows for sharp handheld shots at shutter speeds up to four stops slower than would otherwise be possible. For example, at the 200mm end, where a shutter speed of 1/320s might typically be required for sharpness, the IS system enables successful capture at approximately 1/20s. The system also features automatic panning detection; when the lens senses a deliberate horizontal or vertical tracking movement, it disables stabilization in that specific axis to prevent the IS system from "fighting" the photographer’s movement. Additionally, a zoom lock switch is located on the lens barrel to prevent "lens creep"—the tendency of the barrel to extend under its own weight when pointed downward during transport.

Video Capability and Limitations

While the Canon EF-S 18-200mm f/3.5-5.6 IS is primarily a stills lens, its focal range makes it a powerful tool for documentary-style video. The 4-stop Image Stabilizer is highly effective for smoothing out high-frequency vibrations during handheld filming. However, there are specific mechanical traits that videographers must account for. Because the lens uses a DC motor rather than an STM (Stepping Motor) or Nano USM, the autofocus movement is audible on internal camera microphones and is not as smooth as modern video-optimized lenses. Manual focusing is often preferred for critical video work, though the rotating focus ring requires careful handling.

The lens is not parfocal, meaning the focus point will shift slightly as you zoom in or out. Furthermore, the variable aperture (f/3.5 to f/5.6) means that if you are filming a zoom-in shot, the exposure will darken as the physical aperture narrows. This requires the camera to compensate via Auto ISO or shutter speed adjustments if a constant exposure is required. The 72mm filter thread does not rotate during focusing, which is a significant advantage for videographers using circular polarizers or variable ND filters to maintain specific shutter angles in bright Indian daylight. Despite these limitations, the ability to transition from a wide establishing shot to a tight close-up without changing lenses is a major asset for single-operator video shoots.

On the Shoot: Practical Indian Scenarios

In a travel photography context, such as a multi-day shoot across Goa, the Canon EF-S 18-200mm f/3.5-5.6 IS excels as a "one-lens" solution. At the 18mm end, it captures the expansive architecture of Old Goa’s cathedrals or the wide vistas of Vagator beach. Without needing to power down the camera or expose the sensor to salty air and sand, the photographer can immediately zoom to 200mm to capture candid portraits of fishermen or detail shots of distant fort walls. The Image Stabilizer is particularly useful here for sunset shots on the beach where a tripod might be inconvenient.

For a wedding photographer covering a large reception in Bengaluru, this lens serves as an excellent secondary body optic. While a primary body might carry a fast prime for low-light rituals, the 18-200mm on a second body allows the photographer to stand at the back of a large hall and capture wide shots of the stage decor, then instantly zoom in for a tight reaction shot of a guest. The 4-stop IS compensates for the dimmer indoor lighting of banquet halls, allowing for usable shots even as the aperture closes down to f/5.6 at the long end. The zoom lock ensures that as the photographer moves through the crowd with the camera at their side, the lens remains compact and protected.

In a Mumbai-based street photography or documentary project, the versatility of the focal range allows for a discreet approach. The photographer can remain across the street, using the 200mm focal length to capture the bustle of a local market without intruding on the scene. If the action moves closer, the quick pull back to 18mm allows for environmental context. The 595g weight is manageable for all-day trekking through the city, and the 72mm filter thread makes it easy to attach a polarizer to cut through the haze and reflections common in coastal urban environments.

Compatibility and Pairing Essentials

The Canon EF-S 18-200mm f/3.5-5.6 IS is compatible with all Canon EOS cameras that have an EF-S mount. This includes the EOS 7D series, 10D through 90D series, and the entire Rebel (XXXD and XXXXD) range. It can also be used on Canon EOS R-series mirrorless cameras, such as the EOS R7 or R10, via the EF-EOS R Mount Adapter, where it retains full autofocus and stabilization functionality. It is important to note that this lens cannot be physically mounted on full-frame EF mount cameras like the 5D or 6D series, as the rear element protrudes further back and could interfere with the larger mirror mechanism.

For media and power, the lens relies entirely on the host camera body. It pairs well with high-speed SDHC/SDXC cards (UHS-I or higher) to handle the data rates of modern APS-C sensors. In terms of accessories, the lens uses 72mm filters. A circular polarizer is highly recommended for outdoor work to manage reflections and enhance sky saturation. The dedicated lens hood for this model is the EW-78D (sold separately), which is a petal-shaped hood designed to block stray light at 18mm without vignetting while providing physical protection for the front element. Because the lens lacks a weather-sealing gasket at the mount, pairing it with a protective UV filter is a common practice to shield the front glass from dust and moisture.

Limitations and Alternative Recommendations

While the Canon EF-S 18-200mm f/3.5-5.6 IS is highly versatile, it involves certain trade-offs inherent to super-zoom designs. At the 18mm setting, there is noticeable barrel distortion and some softness at the corners of the frame. At the 200mm setting, the maximum aperture of f/5.6 limits its performance in low-light environments compared to faster telephoto zooms. Photographers specializing in indoor sports or low-light theater may find the f/5.6 aperture necessitates high ISO settings that can introduce noise. For these users, a dedicated telephoto like the EF 70-200mm f/2.8L IS III USM would provide significantly better light gathering and faster USM autofocus, albeit at the cost of the wide-angle range and increased weight.

For videographers, the DC motor's noise and the lack of a stepping motor (STM) make it less ideal for "run-and-gun" video where internal audio is being recorded. Those focusing primarily on video might prefer the EF-S 18-135mm f/3.5-5.6 IS STM or USM, which offers smoother, silent focus transitions and compatibility with the Power Zoom Adapter. Additionally, if absolute edge-to-edge sharpness is the primary requirement for landscape or architectural work, a combination of the EF-S 10-18mm STM and the EF-S 15-85mm IS USM will provide superior optical resolution and less distortion than the 18-200mm "all-in-one" design. Finally, users who have migrated to full-frame systems (like the EOS R6 or 5D Mark IV) should look toward the EF 28-300mm f/3.5-5.6L IS USM or the RF 24-240mm IS USM to achieve a similar focal range on a larger sensor.
