EF 24-105mm f/4L IS II USM Lens

The Standard Zoom Redefined for the EF Mount

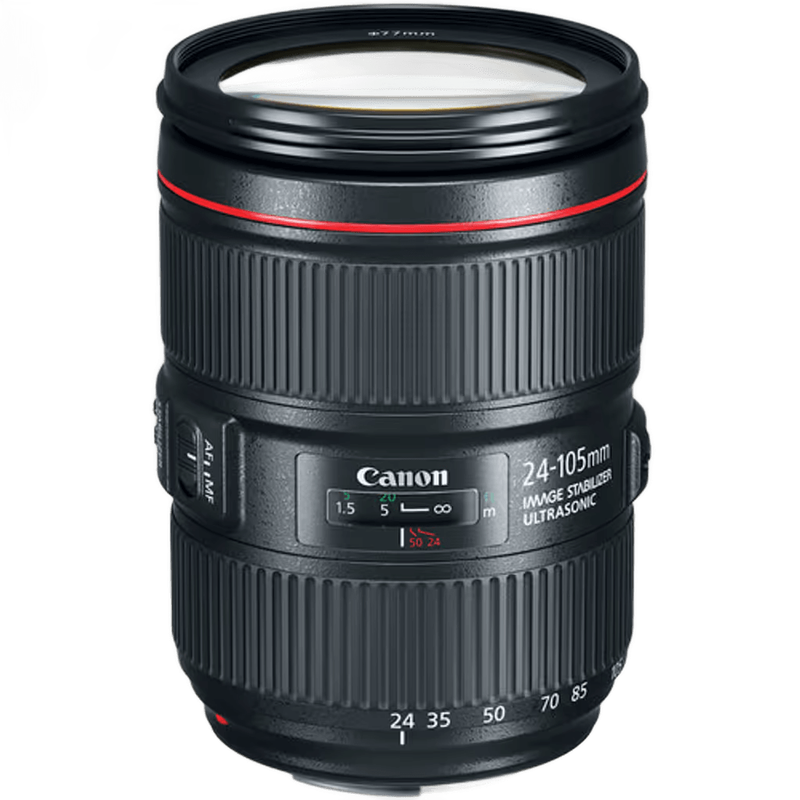

The Canon EF 24-105mm f/4L IS II USM Lens is the second-generation professional standard zoom in the L-series lineup, designed to serve as a versatile workhorse for full-frame DSLR systems. Replacing the original 2005 version, this lens features a revised optical formula consisting of 17 elements arranged in 12 groups. It occupies a critical position in the Canon ecosystem, sitting between the lightweight STM consumer zooms and the high-speed f/2.8 trinity lenses. While the f/4 maximum aperture is one stop slower than the 24-70mm f/2.8L II, the 105mm reach provides 50% more magnification at the long end, making it a preferred choice for photographers who require a single-lens solution for varied environments. It was engineered specifically to meet the high-resolution demands of sensors like the 30.4MP 5D Mark IV and the 50.6MP 5DS R, where optical imperfections are more readily visible.

Optical Engineering and Image Quality

The image quality of the Canon EF 24-105mm f/4L IS II USM Lens is defined by its ability to maintain consistent resolution across a 4.4x zoom range. A primary upgrade in this version is the inclusion of four glass-molded (GMo) aspherical elements. These specialized elements are designed to combat peripheral brightness fall-off and reduce distortion, particularly at the 24mm wide-angle setting where barrel distortion is most common. To address ghosting and flare, Canon applied Air Sphere Coating (ASC). This technology utilizes a layer of microscopic air spheres over traditional multi-layer coatings to significantly reduce the refractive index, which is particularly effective when shooting into strong light sources like stage lights or the sun. The lens also features a 10-blade circular diaphragm, an upgrade from the 8-blade design of its predecessor. This change results in smoother out-of-focus highlights (bokeh) and produces 20-point sunstars when stopped down to f/11 or f/16. Chromatic aberration is managed through the use of high-refractive-index glass, ensuring that color fringing at high-contrast edges is minimized even at the 105mm focal length.

Autofocus Performance and Mechanical Handling

Focusing is driven by a ring-type Ultrasonic Motor (USM) that works in conjunction with a high-speed CPU and optimized AF algorithms. This system provides fast, near-silent internal focusing, meaning the physical length of the lens does not change during focus adjustments. The Canon EF 24-105mm f/4L IS II USM Lens supports full-time manual focus override, allowing the user to make fine adjustments using the focus ring without exiting autofocus mode. The minimum focusing distance is 0.45 meters (approximately 1.5 feet) across the entire zoom range, providing a maximum magnification of 0.24x at the 105mm end. Physically, the lens is built to L-series standards with a dust- and moisture-resistant construction. It features a zoom lock switch to prevent "lens creep" when the camera is carried facing downward. The front and rear elements are treated with a fluorine coating, which repels water, oil, and fingerprints, making the glass easier to clean in the field. At 795 grams, it is heavier than the original version (670g), a trade-off for the improved optical components and more robust barrel construction.

Video Capabilities and Stabilization

For cinematographers, the most significant feature of this lens is the improved Image Stabilizer (IS) system. It provides up to 4 stops of shake correction based on CIPA standards, a marked improvement over the 3 stops found in the Mark I. This allows for stable handheld video recording and sharp stills at shutter speeds as low as 1/15th of a second at the 105mm focal length. The constant f/4 aperture is a critical advantage for video; unlike variable aperture zooms, the exposure remains consistent as the user zooms from 24mm to 105mm. The USM motor is smooth enough for rack focusing, though it lacks the absolute silence of Nano USM or STM motors found in some newer RF lenses. Focus breathing—the slight change in focal length when shifting focus—is present but controlled, making it suitable for most documentary and event videography applications. The 77mm filter thread is standard across many L-series lenses, allowing for the easy use of variable ND filters or circular polarizers without needing step-up rings.

On the Shoot: Real-World Scenarios

In a Bengaluru wedding reception, the Canon EF 24-105mm f/4L IS II USM Lens serves as the primary tool for capturing the flow of the event. At 24mm, it is wide enough to capture the entire stage (Mandap) and large groups of guests. As the ceremony progresses, the 105mm reach allows the photographer to stay at a distance and capture candid expressions without intruding on the couple. While the f/4 aperture may require pushing the ISO on a body like the 6D Mark II or 5D Mark IV in dim hall lighting, the 4-stop IS system compensates for hand shake during slower shutter speed shots of stationary decor or posed portraits.

During a Goa travel shoot, the lens's weather sealing becomes a vital asset. When shooting along the coastline where salt spray and high humidity are prevalent, the gaskets at the mount, rings, and switches protect the internal electronics. The 24-105mm range is ideal for landscape photography at the beaches at sunrise, while the 105mm end provides enough compression for tight street photography in the Latin Quarter of Fontainhas. The fluorine coating ensures that any sea spray hitting the front element can be wiped away without leaving stubborn streaks.

In a Mumbai studio product session, the lens is often used at its "sweet spot" between f/8 and f/11. At these apertures, the four aspherical elements ensure edge-to-edge sharpness, which is essential for commercial work where the final image may be cropped or printed large. The 0.45m minimum focus distance allows for relatively tight shots of medium-sized products like footwear or electronics. When mounted on a tripod, the IS system should be turned off to prevent the internal gyros from introducing unintended movement, a standard practice for studio photography.

Compatibility and Essential Pairings

The Canon EF 24-105mm f/4L IS II USM Lens is natively compatible with all Canon EF-mount DSLR cameras, including both full-frame and APS-C (Crop) sensor bodies. On an APS-C sensor, such as the EOS 90D or 7D Mark II, the effective focal length becomes approximately 38-168mm due to the 1.6x crop factor. It is also highly compatible with the Canon EOS R series mirrorless cameras via the EF-EOS R Mount Adapter, where it retains full autofocus and stabilization functionality.

• Filters: Uses 77mm screw-in filters. A high-quality UV filter is recommended for front element protection, and a circular polarizer is essential for managing reflections in architectural or landscape work.
• Hood: Uses the EW-83M lens hood, which features a locking button to prevent it from being knocked loose during active shoots.
• Bodies: Pairs optimally with the 5D series for a balanced weight distribution. On lighter bodies like the EOS RP, the lens may feel front-heavy, making a battery grip a useful addition for better ergonomics.
• Storage: Fits into most standard medium-sized lens pouches or camera bag compartments designed for 24-70mm or 70-200mm lenses.

Considerations and Alternative Choices

While the Canon EF 24-105mm f/4L IS II USM Lens is a versatile general-purpose lens, it has specific limitations that may lead a professional to choose a different optic. The f/4 maximum aperture is the most significant constraint. For photographers specializing in indoor sports or high-end wedding portraiture where a shallow depth of field and maximum light gathering are required, the Canon EF 24-70mm f/2.8L II USM is the superior choice. The f/2.8 lens provides twice the light-gathering capability and significantly more background blur, though it lacks image stabilization and 35mm of reach at the telephoto end.

Another consideration is the weight and size. At 795g, it is a substantial lens for casual day-long hiking or street photography. Users who prioritize portability over the "L" series build quality and constant aperture might look toward the EF 24-105mm f/3.5-5.6 IS STM, which is lighter and utilizes a quieter lead-screw type motor for video, though it sacrifices edge sharpness and weather sealing. Finally, for those shooting exclusively on the RF mirrorless system, the RF 24-105mm f/4L IS USM offers a more compact design and faster communication with the camera body, making it a more native choice if an adapter is not desired. The EF version remains the standard for those who still utilize DSLR bodies or need a lens that can bridge the gap between their DSLR and mirrorless kits.
