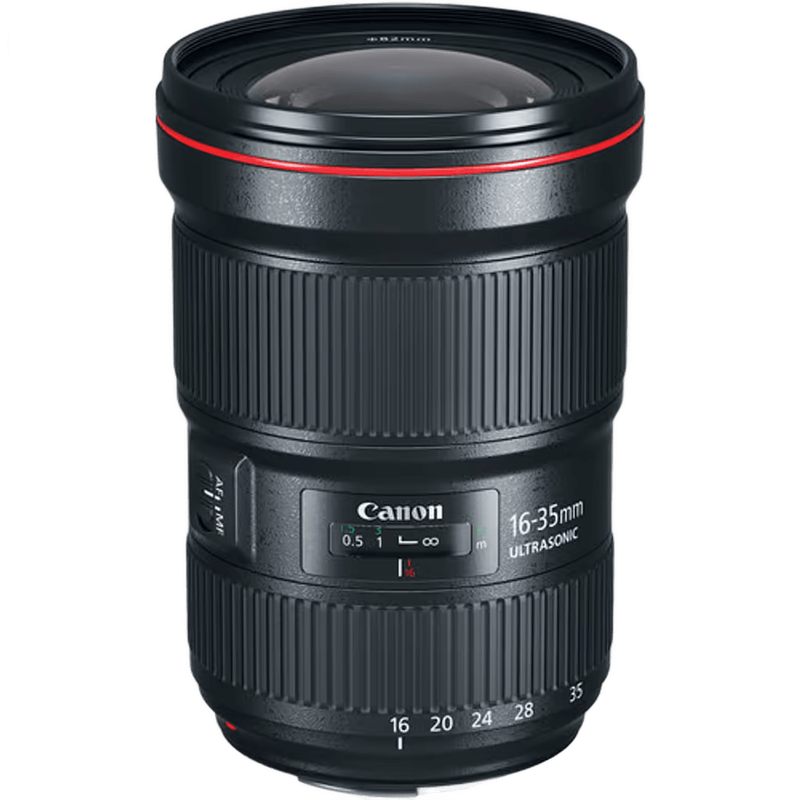

EF 16-35mm f/2.8L II USM Lens

The Professional Ultra-Wide Standard

The Canon EF 16-35mm f/2.8 L II USM Lens is a high-performance, water-resistant, L-series ultra-wide-angle zoom lens that serves as a foundational tool for professional photojournalists, landscape photographers, and architectural specialists. Replacing its predecessor in 2007, this Mark II iteration was specifically re-engineered to meet the higher resolution demands of full-frame digital sensors. It occupies a critical position in the Canon EF lineup as the fast-aperture wide-angle choice, sitting alongside the 24-70mm and 70-200mm f/2.8 lenses to complete the "holy trinity" of professional zooms. While designed primarily for 35mm full-frame sensors, it remains fully compatible with APS-C bodies, where it provides an effective focal range of approximately 25.6-56mm.

The optical construction of the Canon EF 16-35mm f/2.8 L II USM Lens consists of 16 elements arranged in 12 groups. This complex formula was a significant departure from the original version, aimed at improving peripheral image quality and reducing the chromatic aberration that often plagues ultra-wide optics. The lens is built around a robust metal barrel and mount, designed to withstand the rigors of daily professional use in diverse environmental conditions. It represents a balance of wide-angle coverage and a fast, constant maximum aperture, making it a versatile choice for low-light interiors and expansive outdoor vistas alike.

Optical Engineering and Image Characteristics

The Canon EF 16-35mm f/2.8 L II USM Lens utilizes three distinct types of aspherical elements to maintain sharpness across the zoom range. These include a ground aspherical element, a replica aspherical element, and a GMo (Glass Molded) aspherical element. This combination is specifically designed to correct spherical aberrations and ensure that straight lines remain as true as possible, a critical requirement for architectural photography. To further enhance image clarity, Canon integrated two UD (Ultra-low Dispersion) glass elements. These elements work to minimize secondary chromatic aberrations—the "color fringing" often seen at the edges of high-contrast subjects—resulting in higher contrast and better color fidelity.

The lens features a circular 7-blade diaphragm, which produces a pleasing, rounded bokeh in out-of-focus areas, particularly when shooting at the 35mm end at f/2.8. To combat the flare and ghosting that frequently occur with wide-angle lenses due to the large front element, Canon applied optimized lens coatings. These coatings are engineered to suppress internal reflections that can degrade image contrast when a light source, such as the sun or a studio strobe, is just outside or within the frame. The 82mm filter thread was a specific design choice for the Mark II, increased from the 77mm thread of the previous version to help reduce vignetting (light fall-off) at the 16mm wide-angle setting when using standard filters.

Autofocus Performance and Mechanical Handling

Focusing is driven by a ring-type Ultrasonic Motor (USM), which provides high-speed, near-silent autofocus. The Canon EF 16-35mm f/2.8 L II USM Lens employs an internal focusing system, meaning the overall length of the lens does not change during focusing, and the front element does not rotate. This is particularly beneficial for photographers using graduated neutral density filters or circular polarizers, as the filter orientation remains constant. The lens also supports full-time manual focus override, allowing the photographer to manually adjust focus by turning the focus ring even when the lens is set to AF mode, without risk of damaging the internal motor mechanism.

The build quality is consistent with Canon’s L-series standards, featuring extensive weather sealing against dust and moisture. When paired with a weather-sealed EOS body and a protective front filter, the lens is capable of operating in light rain or dusty environments. The zoom ring and focus ring are both rubberized and deeply ribbed, providing a secure grip even when wearing gloves. The minimum focusing distance is 0.28 meters (approximately 0.9 feet) across the entire zoom range, allowing for dramatic close-up wide-angle shots where the foreground subject is emphasized against a vast background.

Video Applications and Cinematography

For videographers, the Canon EF 16-35mm f/2.8 L II USM Lens offers a versatile range for gimbal work and handheld shooting. On a full-frame sensor, the 16mm focal length is wide enough to capture immersive establishing shots or to operate in tight interior spaces where movement is restricted. The constant f/2.8 aperture is a significant advantage for video, as it allows for consistent exposure settings while zooming, avoiding the "flicker" or exposure shifts associated with variable-aperture lenses. While the lens does not feature internal image stabilization (IS), its wide focal lengths are naturally more forgiving of camera shake than telephoto lenses.

The mechanical focus ring has a moderate throw, which, while designed for speed in still photography, provides enough tactile feedback for manual focus pulls in video. When used on Super 35mm cinema cameras or APS-C sensors, the lens behaves like a 24-50mm equivalent, covering the most common "storytelling" focal lengths. The lack of focus breathing is relatively well-controlled for a zoom lens of this era, though some slight magnification change may be visible when racking focus from the minimum distance to infinity. The 82mm front diameter is compatible with standard matte boxes and pro-grade variable ND filters, which are essential for maintaining a 180-degree shutter angle in bright Indian daylight conditions.

On the Shoot: Indian Production Scenarios

In a Bengaluru wedding reception, typically held in large banquet halls or "kalyana mantapas" with intricate decor, the 16-35mm f/2.8 is often the primary lens for the "candid" photographer. The 16mm end allows the photographer to capture the scale of the venue and the massive floral stages, while the f/2.8 aperture handles the often-dim ambient lighting without requiring excessive ISO increases. When the action moves to the dance floor, the fast USM autofocus tracks moving subjects accurately, and the 35mm end provides a natural perspective for three-quarter length portraits of guests without the extreme distortion of an ultra-wide lens.

During a Goa travel or architectural shoot, the lens faces challenges of high humidity and bright, direct sunlight. The weather sealing protects the internal optics from the salt-laden air of the coast. Photographers shooting the colonial architecture of Old Goa benefit from the three aspherical elements, which help keep the vertical lines of cathedrals straight, provided the camera is leveled. The lens's ability to hold contrast even when the sun is in the frame makes it ideal for sunset beach photography, where flare resistance is tested. The 82mm filter thread allows for the use of high-density ND filters to blur the motion of the Arabian Sea waves during long exposures.

In a Mumbai studio session focusing on high-fashion or editorial work, the Canon EF 16-35mm f/2.8 L II USM Lens is used to create stylized, exaggerated perspectives. By shooting from a low angle at 16mm, a photographer can elongate the legs of a model or create a sense of dynamic energy that a standard 50mm lens cannot achieve. In the confined spaces of a typical urban studio, the wide-angle capability is essential for capturing full-body shots or complex set designs. The lens's color rendering is calibrated to match other L-series glass, ensuring that skin tones and fabric colors remain consistent across a multi-lens shoot.

Compatibility and Pairing

The Canon EF 16-35mm f/2.8 L II USM Lens is natively compatible with all Canon EF-mount DSLR bodies, including the EOS 5D Mark IV, 6D Mark II, and the 1D X series. It is also a popular choice for the Canon EOS R mirrorless system when used with the EF-EOS R Mount Adapter. On mirrorless bodies, the lens gains the benefit of Eye-Detection AF and in-body image stabilization (IBIS) on supported models like the R5 or R6, which helps compensate for the lens's lack of native stabilization.

For a complete kit, this lens is typically paired with the EF 24-70mm f/2.8L II USM and the EF 70-200mm f/2.8L IS III USM. For those using it on a cinema rig, it pairs well with the Canon C70 or C300 Mark III via an adapter. Because of its 82mm filter thread, it is advisable to use a dedicated 82mm circular polarizer and a set of 82mm ND filters (ND8, ND64, and ND1000) to maximize its utility in outdoor Indian conditions. It uses the EW-88 hood, which is a petal-shaped bayonet mount design specifically tuned to prevent vignetting at 16mm while providing maximum shade for the front element.

Limitations and Alternative Choices

While the Canon EF 16-35mm f/2.8 L II USM Lens is a professional workhorse, it has specific limitations that may lead a photographer to choose a different optic. The most notable characteristic is its corner sharpness at f/2.8. While the center of the frame is exceptionally sharp, the extreme corners at the 16mm setting exhibit some softness and chromatic aberration when shot wide open. Photographers specializing in high-resolution landscape photography who require edge-to-edge tack-sharpness might prefer the EF 16-35mm f/4L IS USM, which, despite being a stop slower, offers superior corner-to-corner resolution and internal image stabilization.

For those who require the absolute best optical performance available in this focal range, the EF 16-35mm f/2.8L III USM (the successor) features a significantly improved optical design that addresses the corner softness of the Mark II, though at the cost of increased weight and a larger physical profile. Additionally, if the 16mm focal length is not wide enough, the EF 11-24mm f/4L USM offers a much broader field of view, though it lacks the f/2.8 aperture and cannot accept standard screw-on filters. Finally, videographers shooting primarily handheld without a gimbal may find the lack of Image Stabilization in the Mark II a drawback compared to the f/4L IS version or the newer RF-mount equivalents.
