EF 100mm f/2.8L Macro IS USM Lens

The Professional Standard for Macro and Portraiture

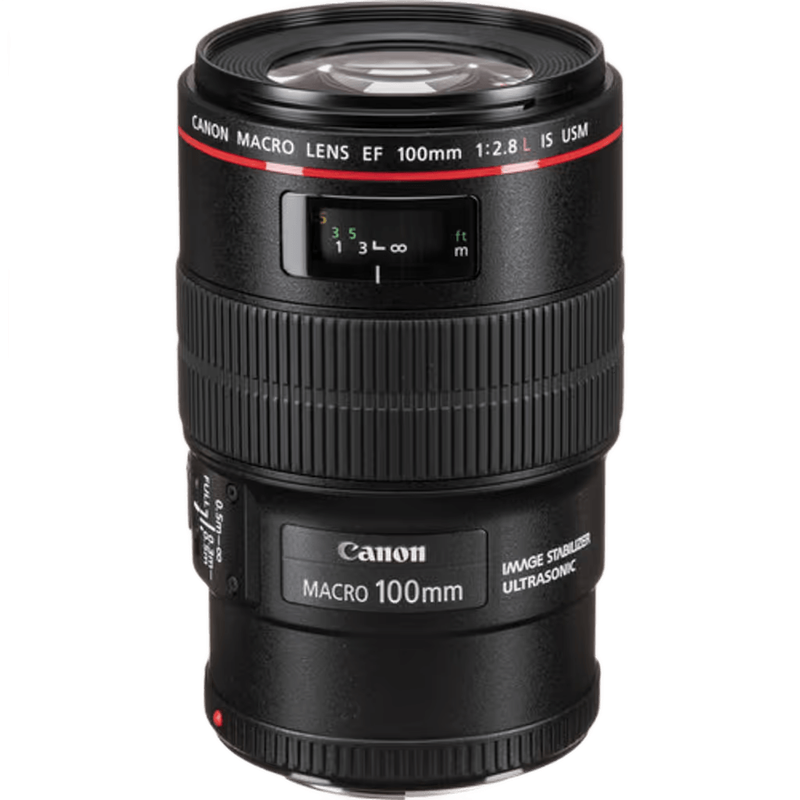

The Canon EF 100mm f/2.8L Macro IS USM Lens is a specialized prime lens within the professional L-series lineup, designed to deliver 1:1 life-size magnification. It serves as the high-performance successor to the standard EF 100mm macro, introducing sophisticated weather sealing and advanced stabilization technologies. The optical construction consists of 15 elements arranged in 12 groups, a significant increase in complexity over non-L counterparts. This lens is engineered for photographers who require absolute precision at close working distances, such as commercial product specialists, forensic photographers, and wedding detailers. Because it utilizes the EF mount, it provides full-frame coverage but is equally compatible with APS-C sensors, where it offers an equivalent focal length of 160mm. The 100mm focal length provides a comfortable working distance of approximately 0.3m (11.8 inches) from the sensor plane to the subject at maximum magnification, allowing for sufficient lighting clearance that shorter macro lenses often struggle to provide.

Optical Engineering and Image Quality

The image quality of the Canon EF 100mm f/2.8L Macro IS USM Lens is defined by its ability to maintain high contrast and resolution even at its widest aperture of f/2.8. A key component of its optical formula is the inclusion of a single Ultra-Low Dispersion (UD) element. This element is specifically positioned to minimize secondary chromatic aberrations, which often manifest as color fringing in high-contrast macro subjects like jewelry or metallic surfaces. To combat internal reflections and ghosting, Canon applies Super Spectra coatings to the lens elements. This is particularly vital in macro photography where off-axis light sources or ring flashes are frequently used in close proximity to the front element. The lens features a 9-blade circular diaphragm, which produces smooth, rounded out-of-focus highlights (bokeh). While many macro lenses suffer from "focus breathing" or a loss of sharpness at infinity, this L-series prime is optimized to perform as a high-resolution portrait lens just as effectively as a macro tool. The transition from the sharp focal plane to the blurred background is linear and predictable, a result of the refined spherical aberration control inherent in the L-series glass selection.

Hybrid Image Stabilization and Handling

This lens was the first in the EF catalog to feature Canon’s Hybrid Image Stabilization (IS) technology. Standard IS systems are designed to compensate for angular shake (tilting the camera), but in macro photography, "shift shake" (moving the camera up/down or side-to-side parallel to the subject) becomes equally disruptive. The Hybrid IS system utilizes an acceleration sensor alongside the traditional gyro sensor to compensate for both types of movement. In practice, this provides up to 4 stops of correction at normal focal distances, 3 stops at 0.5x magnification, and 2 stops at the full 1:1 magnification. The build quality is robust, featuring dust and moisture resistance with O-ring seals at the mount and switches. It weighs approximately 625g and maintains a constant physical length during focusing thanks to its internal focusing mechanism. The lens barrel features a three-position focus limiter switch: 0.3m-0.5m for dedicated macro work, 0.5m-infinity for portraits and general use, and "Full" for the entire range. This limiter is essential for preventing the lens from "hunting" through its extensive focus throw when the camera fails to find a lock immediately.

Video Performance and Cinematography

In a video context, the Canon EF 100mm f/2.8L Macro IS USM Lens is valued for its compression and the ability to capture extreme close-ups of textures or mechanical movements. When used on a stabilized gimbal or a tripod, the 100mm focal length allows for tight "insert shots" without the camera body physically interfering with the lighting setup. The Ring-type Ultrasonic Motor (USM) provides near-silent autofocus, though most cinematographers will utilize the large, rubberized manual focus ring. The focus ring has a long throw, which is beneficial for fine adjustments, though users should note that as a photography-first lens, it does not have hard stops at either end of the focus range. The Hybrid IS is particularly effective for handheld "b-roll" acquisition, smoothing out the micro-jitters that are usually magnified at 100mm. While there is noticeable focus breathing (the change in effective focal length when racking focus from near to far), it is well-controlled compared to budget macro options, making it suitable for professional documentary and commercial video production.

On the Shoot: Indian Production Scenarios

In a Mumbai-based commercial studio session for a high-end jewelry brand, this lens is the primary tool for capturing the intricate details of "Kundan" or "Polki" sets. The 1:1 magnification allows the photographer to fill the frame with a single gemstone or the fine gold wirework. The UD element ensures that the "fire" and facets of the diamonds are rendered without purple fringing, even under harsh, direct strobe lighting. The 0.3m minimum focus distance allows the photographer to place softboxes or snoots close to the jewelry without the lens barrel casting a shadow on the subject.

During a wedding reception in Bengaluru, the lens transitions from a macro tool to a dedicated portrait lens. While the couple is busy with guests, the photographer can use the 0.5m-infinity limiter setting to quickly capture candid portraits from a distance. The f/2.8 aperture, combined with the 100mm focal length, effectively isolates the subject from the often-cluttered background of a wedding hall. When it comes time for the "ring shot" or capturing the detail of the bride's "Mehendi," the photographer can flip the switch back to the macro range. The Hybrid IS proves invaluable here, allowing for sharp handheld shots of the rings in low-light environments where a tripod would be impractical to set up.

For a travel and nature assignment in the Western Ghats or a Goa spice plantation, the weather sealing of the Canon EF 100mm f/2.8L Macro IS USM Lens becomes a critical asset. It can withstand the high humidity and light misting common in these environments. When photographing tropical flora or insects, the 100mm reach provides enough distance to avoid disturbing the subject. The internal focusing means the lens does not extend toward the insect, reducing the risk of scaring it away or accidentally touching a wet leaf and getting moisture on the internal barrel.

Compatibility and Pairing

The Canon EF 100mm f/2.8L Macro IS USM Lens is natively compatible with all Canon EOS DSLR bodies, including the 5D Mark IV, 6D Mark II, and the 1DX series. When paired with the Mount Adapter EF-EOS R, it performs seamlessly on mirrorless bodies like the EOS R5 or R6, retaining full AF speed and Hybrid IS functionality. For specialized macro lighting, the lens features a 67mm front filter thread and is designed to accept the Canon Macro Ring Lite MR-14EX II or the Macro Twin Lite MT-26EX-RT without the need for additional adapters. It is also compatible with the optional Tripod Mount Ring D, which is highly recommended for studio work to allow for quick rotation between landscape and portrait orientations without tilting the tripod head. While it can be used with EF 12 II or EF 25 II Extension Tubes for even greater than 1:1 magnification, it is not compatible with Canon EF Extenders (teleconverters) due to the rear element positioning.

Limitations and Alternative Choices

While the Canon EF 100mm f/2.8L Macro IS USM Lens is a versatile performer, it has specific limitations. For photographers working exclusively in the RF mirrorless ecosystem, the newer RF 100mm f/2.8L Macro IS USM offers a higher 1.4x magnification and a Spherical Aberration (SA) control ring, which may be preferable for those who do not need EF backward compatibility. If the primary goal is extreme macro photography beyond life-size, the Canon MP-E 65mm f/2.8 1-5x Macro is a more appropriate, albeit much more difficult, tool as it offers up to 5:1 magnification but lacks autofocus and infinity focus. For those who find 100mm too tight for their studio space, the EF 50mm f/2.5 Compact Macro offers a wider field of view, though it only reaches 1:2 magnification without an adapter. Finally, while the 100mm f/2.8L is an excellent portrait lens, those seeking the absolute maximum background blur or "creaminess" for fashion work might prefer the EF 85mm f/1.2L II USM or the EF 135mm f/2L USM, which offer wider apertures and different compression characteristics.
