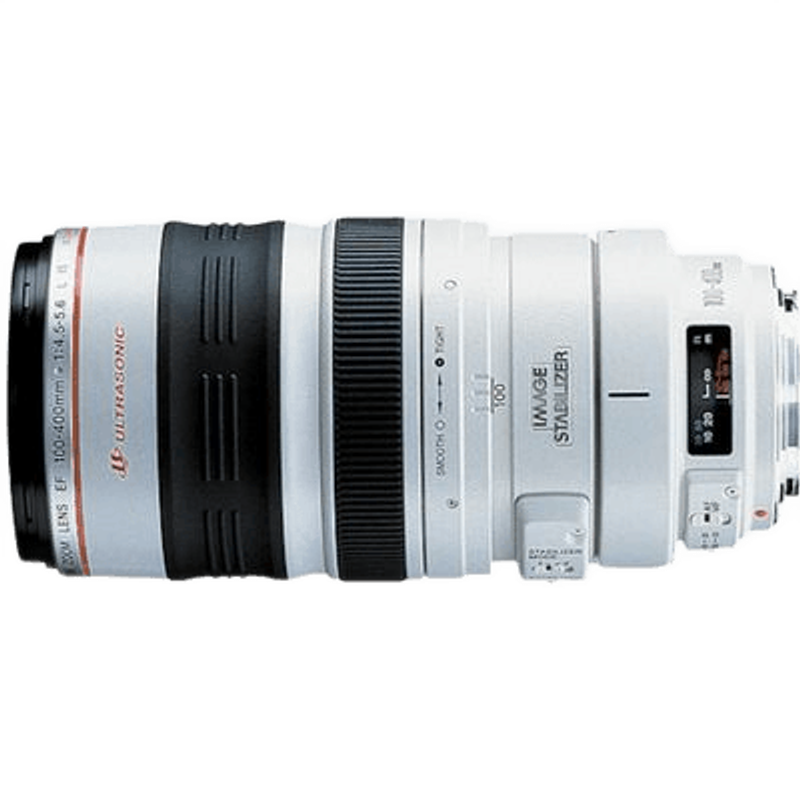

EF 100-400mm f/4.5-5.6L is USM Telephoto Zoom Lens for Canon SLR Cameras

The Architecture of the Canon EF 100-400mm f/4.5-5.6L IS USM

The Canon EF 100-400mm f/4.5-5.6L IS USM is a foundational long-range telephoto zoom within the L-series lineup, designed to bridge the gap between standard telephoto ranges and the extreme focal lengths required for wildlife and field sports. Its optical formula consists of 17 elements arranged in 14 groups. This lens is historically significant for its push-pull zoom mechanism, a design choice that allows for rapid focal length adjustments without the rotational movement of a traditional zoom ring. It was engineered for full-frame EF-mount SLR cameras, though it maintains full compatibility with APS-C sensor bodies where it provides an equivalent focal range of 160-640mm.

Positioned as a versatile alternative to carrying multiple prime lenses, this optic serves photographers who require the flexibility to frame a distant subject at 400mm and immediately pull back to 100mm for environmental context. The lens construction utilizes a high-grade metal barrel and weather-resistant seals, though it predates the advanced fluorine coatings found on later iterations. It is built to withstand the rigors of professional field use, featuring a dedicated tripod collar that allows for 360-degree rotation and a tension adjustment ring to customize the friction of the push-pull action.

Optical Precision and Light Management

The image quality of the Canon EF 100-400mm f/4.5-5.6L IS USM is defined by the inclusion of specialized glass elements designed to mitigate the optical flaws inherent in long-range zooms. It incorporates one Fluorite element and one Super UD (Ultra-low Dispersion) element. These components are critical for correcting secondary spectrum and reducing chromatic aberration, which often manifests as color fringing around high-contrast edges at the 400mm end. By aligning different wavelengths of light more precisely at the focal plane, the lens maintains high contrast and resolution across the zoom range.

The aperture system utilizes an 8-blade diaphragm, which produces a circular opening to maintain a smooth blur in out-of-focus areas, commonly referred to as bokeh. While the maximum aperture is variable—starting at f/4.5 at 100mm and narrowing to f/5.6 by the time it reaches 400mm—the lens is designed to deliver sharp results even when wide open. The internal coatings are optimized to reduce ghosting and flare, which is particularly important when shooting in backlit conditions or under stadium floodlights. The lens achieves a minimum focusing distance of 1.8 meters (approximately 5.9 feet) throughout the entire zoom range, offering a maximum magnification of 0.2x at the 400mm setting, allowing for tight framing of smaller subjects like large insects or flowers.

Mechanical Handling and Autofocus Performance

The autofocus system is driven by a ring-type Ultrasonic Motor (USM), which provides high-speed, near-silent focusing. This system supports full-time manual focus override, allowing the photographer to make fine adjustments without switching out of AF mode. The lens features a focus distance limiter switch with two settings: 1.8m to infinity for general use, and 6.5m to infinity. Engaging the 6.5m limit significantly reduces hunting time when the subject is known to be far away, as the lens does not search through its entire focal range.

A defining characteristic of this lens is its two-mode Image Stabilizer (IS). This was one of the early implementations of IS technology in a long telephoto lens, providing approximately two stops of shake correction. Mode 1 is designed for stationary subjects, correcting for vibrations on both the horizontal and vertical axes. Mode 2 is specifically calibrated for panning, where the system detects the direction of the camera's movement and only applies stabilization perpendicular to that movement. This is essential for tracking moving vehicles or animals. The push-pull zoom mechanism is paired with a "Touch-and-Set" tension ring; tightening this ring prevents "lens creep" when the camera is pointed up or down and allows the user to lock the lens at a specific focal length.

Video Applications and Limitations

In a video context, the Canon EF 100-400mm f/4.5-5.6L IS USM offers a unique aesthetic but requires specific handling. The push-pull zoom allows for very fast "snap-zooms" that are difficult to achieve with a twist-zoom lens, which can be a creative tool for documentary filmmaking. However, achieving a perfectly smooth, slow zoom is challenging without a dedicated rail system or a very steady hand, as the friction of the barrel can cause slight stiction. The lens is not parfocal, meaning focus may shift slightly when changing focal lengths, necessitating a refocus after zooming.

The 2-stop Image Stabilizer is audible in quiet environments and may be picked up by on-camera microphones. For professional video work, external audio recording is recommended. The lens does not feature a silent electronic iris, so aperture changes during recording will occur in visible steps. Despite these factors, the 400mm reach on a Super 35mm or APS-C sensor provides an incredibly narrow field of view, making it a valuable tool for capturing distant details in sports documentaries or wildlife cinematography where the operator cannot get closer to the subject.

Performance in Indian Shooting Scenarios

On a wildlife safari in Ranthambore National Park, the 100-400mm range is highly effective. When a tiger emerges from the brush at a distance, the 400mm focal length provides the necessary reach to capture facial details. If the animal moves toward the safari vehicle, the push-pull mechanism allows the photographer to instantly retract the lens to 100mm to capture the full body and the surrounding jungle environment. The mechanical tension ring is vital here, as it prevents the lens from extending accidentally while the vehicle bounces over uneven terrain.

During a daytime cricket match at the Wankhede Stadium in Mumbai, the lens excels in capturing action from the stands or the boundary rope. Using Mode 2 stabilization, a photographer can pan with a fast bowler through their delivery stride, maintaining sharpness on the player while allowing the background to blur with the motion. The f/5.6 aperture at the long end is sufficient under the bright Indian sun, allowing for shutter speeds of 1/1000s or faster at low ISO settings to freeze the ball in mid-air.

For an outdoor wedding session in the gardens of Bangalore, the lens serves as a powerful portrait tool. At 200mm or 300mm, the compression effect flattens the features of the subjects and pulls the background closer, creating a dense, blurred backdrop of foliage. The 1.8-meter minimum focus distance allows the photographer to remain at a non-intrusive distance from the couple while still capturing intimate close-ups of hands or jewelry. The 77mm filter thread makes it easy to attach circular polarizers to manage the glare from the afternoon sun on skin tones and clothing.

Compatibility and System Integration

The Canon EF 100-400mm f/4.5-5.6L IS USM is compatible with all Canon EOS DSLR bodies. When used on modern mirrorless systems via the EF-EOS R mount adapter, the lens retains full autofocus and image stabilization functionality, often benefiting from the improved focus algorithms of the newer camera bodies. It is also compatible with Canon EF 1.4x and 2x Extenders. Using the 1.4x Extender results in a 140-560mm f/6.3-8 lens, while the 2x Extender creates a 200-800mm f/9-11 lens.

Note on Extender Compatibility: On older DSLR bodies, autofocus may be disabled when using extenders if the effective maximum aperture exceeds f/5.6, unless the camera body supports f/8 autofocus (such as the 1D series or 5D Mark III and later). On R-series mirrorless cameras, autofocus typically remains functional even at f/11. The lens uses 77mm filters, a standard size shared with the EF 24-70mm f/2.8L and EF 70-200mm f/2.8L, allowing for a shared kit of polarizers and ND filters. It is powered directly by the camera battery (LP-E6N, LP-E6NH, or NP-E3 depending on the body) and does not require external power for its IS or USM systems.

Considerations and Alternative Choices

While the Canon EF 100-400mm f/4.5-5.6L IS USM is a versatile performer, it has specific limitations that may lead a photographer to choose a different optic. The 2-stop image stabilization is significantly less effective than the 4-stop or 5-stop systems found in more modern lenses. Photographers working in low-light environments, such as indoor sports arenas or late-evening wildlife shoots, may find the f/5.6 maximum aperture restrictive and might prefer the EF 70-200mm f/2.8L IS III USM, even though it offers less reach.

The push-pull design is polarizing; some users find it faster for action, while others find it prone to drawing in dust over years of use compared to internal-zoom or twist-zoom designs. Those who prefer a traditional twist-zoom mechanism and require better edge-to-edge sharpness and improved IS should look toward the EF 100-400mm f/4.5-5.6L IS II USM. Additionally, for photographers who exclusively need the 400mm focal length and require a wider aperture for better subject separation, the EF 400mm f/5.6L USM (prime) offers a lighter weight and slightly faster AF response, though it lacks image stabilization entirely. Finally, for those needing even more reach without the use of extenders, the Sigma or Tamron 150-600mm variants provide more magnification, albeit with a larger physical footprint and heavier weight.
