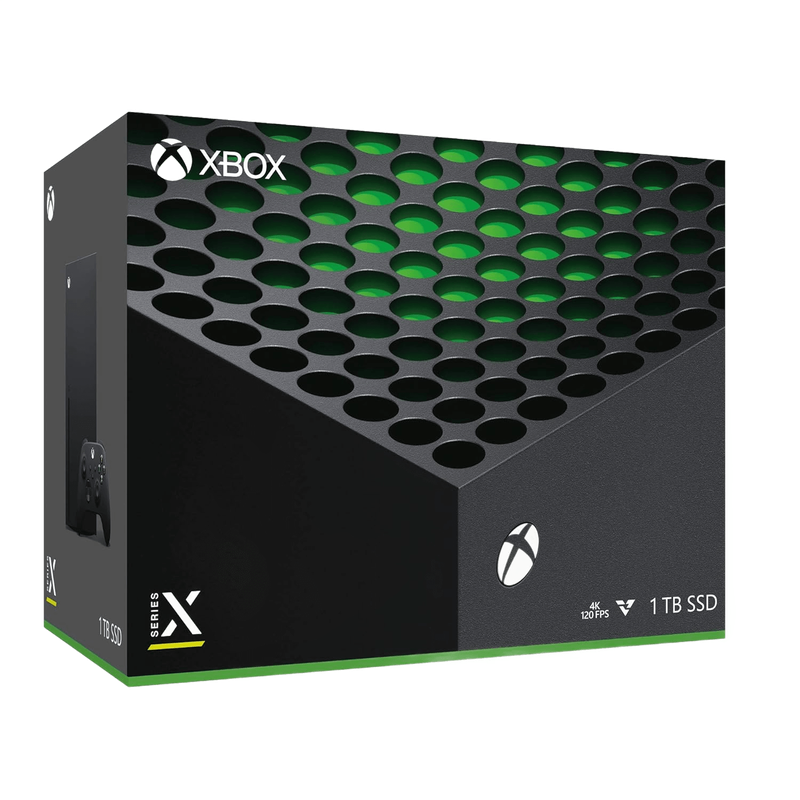

Xbox Series X with 2 Controllers

The Architecture of the Xbox Series X

The Xbox Series X represents the flagship tier of Microsoft’s ninth-generation gaming hardware, engineered as a high-performance computing node for 4K rendering and high-fidelity media playback. At its core is a custom System on a Chip (SoC) built on AMD’s Zen 2 and RDNA 2 architectures. The CPU features 8 cores clocked at 3.8 GHz (or 3.66 GHz with Simultaneous Multithreading enabled), providing the raw computational overhead required for complex physics simulations and high-frame-rate logic. The graphics processing unit delivers 12 Teraflops of performance through 52 Compute Units running at 1.825 GHz. This specific configuration is designed for native 4K resolution at 60 frames per second, with the overhead to reach up to 120 frames per second in optimized titles. This package includes two Xbox Wireless Controllers, facilitating immediate local multiplayer or providing a redundant input device for critical production environments.

The system utilizes 16GB of GDDR6 memory distributed across a 320-bit wide bus. This memory is partitioned to optimize bandwidth: 10GB operates at a peak of 560 GB/s, primarily for GPU-intensive assets, while the remaining 6GB operates at 336 GB/s for standard system tasks and audio processing. This hardware is positioned as the primary choice for users requiring the highest possible graphical fidelity and the fastest load times within the Xbox ecosystem, sitting above the Series S in terms of resolution, storage capacity, and optical media support. It is designed for professional gaming setups, high-end home theaters, and event-based entertainment where visual compromise is not an option.

Visual Fidelity and Lighting Technologies

The Xbox Series X introduces hardware-accelerated DirectX Raytracing (DXR), a significant shift in how light, shadows, and reflections are calculated in real-time. Unlike traditional rasterization, which uses pre-baked lighting maps, Raytracing simulates the physical behavior of light. This results in accurate global illumination, realistic light bounces off colored surfaces, and physically correct reflections in water or glass. For the user, this means environments exhibit a level of depth and realism previously reserved for offline CGI rendering. The console supports Variable Rate Shading (VRS), a technique that allows the GPU to prioritize shading resources on the most detailed parts of the frame, maintaining high visual quality where the eye is focused while saving power on peripheral elements.

High Dynamic Range (HDR) is a cornerstone of the visual output, with support for HDR10 and Dolby Vision. The "Auto HDR" feature uses a machine-learning algorithm to retroactively add HDR enhancements to older titles that were originally mastered in Standard Dynamic Range (SDR), expanding the luminance range and color gamut without developer intervention. The system’s Sampler Feedback Streaming (SFS) allows the console to load only the specific portions of textures needed for the current frame, significantly increasing the efficiency of the 16GB of RAM and allowing for higher-resolution textures to be displayed without saturating the memory bus. This ensures that 4K textures remain sharp even during fast-camera movements or complex scene transitions.

Build, Cooling, and Controller Ergonomics

The physical chassis of the Xbox Series X is a vertical monolith measuring 15.1cm x 15.1cm x 30.1cm and weighing 4.45kg. This form factor is dictated by the Parallel Cooling Architecture. A large, whisper-quiet fan at the top of the unit pulls air through the bottom intake, passing it over a split motherboard and a massive vapor chamber heat sink. This design ensures that the high-performance SoC remains within thermal limits even during prolonged 12-hour sessions, preventing thermal throttling that could drop frame rates. The console can be oriented both vertically and horizontally, though the circular base is fixed for vertical stability.

The two included Xbox Wireless Controllers feature refined ergonomics compared to previous generations. Each controller includes a dedicated Share button for capturing 4K screenshots and video clips instantly. The hybrid D-pad is designed for precision in both cardinal directions and diagonals, while the textured grip on the triggers and bumpers provides tactile feedback during high-intensity use. These controllers utilize Bluetooth Low Energy (BTLE) for easy pairing with external devices and a USB-C port for wired play or charging. The input latency has been reduced through Dynamic Latency Input (DLI), which synchronizes controller inputs with the console’s render pipeline, ensuring that actions are reflected on-screen with millisecond precision.

Performance Metrics and Video Output

The Xbox Series X is equipped with an HDMI 2.1 output, which is essential for its most advanced display modes. It supports 4K at 120Hz, allowing for ultra-smooth motion that is critical for competitive gaming or high-action content. It also supports Variable Refresh Rate (VRR) and Auto Low Latency Mode (ALLM), which eliminate screen tearing and minimize display lag when paired with a compatible television or monitor. For media playback, the console includes a 4K UHD Blu-ray drive, making it a high-end physical media player capable of reading 100GB discs. It supports spatial audio formats including Dolby Atmos, DTS:X, and Windows Sonic, providing a 3D soundstage for immersive environments.

The Velocity Architecture is the defining performance feature, combining a custom 1TB NVMe SSD with hardware-accelerated decompression. This allows for raw I/O throughput of 2.4 GB/s, which jumps to 4.8 GB/s for compressed data. In practice, this enables "Quick Resume," a feature that allows the console to store the active memory state of multiple games on the SSD. Users can switch between different applications in approximately 10 seconds, picking up exactly where they left off without navigating through splash screens or menus. This SSD also virtually eliminates in-game loading screens, allowing for seamless open-world traversal in modern titles.

Application in Professional and Event Environments

In a professional production environment, such as a high-end studio in Mumbai, the Xbox Series X serves as more than a gaming device. During a long-form commercial shoot, it is frequently deployed in the talent green room or the client lounge. The inclusion of two controllers allows for immediate collaborative use, providing a high-fidelity entertainment solution that matches the premium nature of the studio. Because the console supports 4K media apps and has a silent cooling system, it can also be used as a reliable 4K playback source for reviewing reference footage or high-bitrate digital dailies on a calibrated studio monitor.

For a large-scale tech activation or corporate event in Bengaluru, the console’s 12 Teraflops of power are utilized to run interactive demos or architectural visualizations. The 120Hz output is particularly useful here, as it provides a fluid experience that showcases the capabilities of high-end display hardware to attendees. The robust build and efficient cooling mean the unit can run for the entire duration of a multi-day expo without performance degradation. The two controllers allow for head-to-head demonstrations, which are essential for driving engagement at trade show booths.

In a hospitality or event setting, such as a destination wedding in Goa, the Xbox Series X is often integrated into "experience zones" for guests. During the downtime between ceremonies, the console provides a high-resolution entertainment hub. The 4K Blu-ray drive allows for the screening of high-quality wedding films or montages with cinematic audio. The two-controller setup is ideal for these scenarios, as it encourages social interaction among guests. The console's ability to handle 4K HDR content ensures that even in brightly lit lounge areas, the visual output remains punchy and visible on large-format displays.

Compatibility and System Pairings

The Xbox Series X is designed for deep integration with a variety of peripherals. For storage expansion, it features a dedicated port for the Seagate Storage Expansion Card, which matches the internal SSD’s performance exactly. Standard external USB 3.1 hard drives can be used for storing and playing older Xbox One, 360, or original Xbox titles, though Series X-optimized titles must run from the internal SSD or the expansion card. The console is compatible with all Xbox One accessories, including specialized racing wheels, flight sticks, and headsets, ensuring that existing hardware investments remain functional.

For power management, the controllers can be paired with the Xbox Rechargeable Battery + USB-C Cable kit to eliminate the need for AA batteries. In terms of display pairing, to utilize the full feature set of the console, it should be connected to an OLED or high-zone-count FALD (Full Array Local Dimming) display that supports HDMI 2.1. For audio, the console pairs effectively with eARC-compatible soundbars or AV receivers to pass through uncompressed 7.1 linear PCM or Dolby Atmos bitstreams. The system also supports the Xbox Wireless Headset protocol, allowing for low-latency, high-bandwidth audio without the need for a USB dongle.

Limitations and Alternative Considerations

While the Xbox Series X is a powerhouse, it has specific limitations that may lead a user to choose different hardware. Its physical size and weight (4.45kg) make it less than ideal for frequent travel or setups with very limited shelf space. For those who prioritize portability or are working within a strict space constraint, the Xbox Series S offers a significantly smaller footprint, though it sacrifices the 4K disc drive and operates at a lower internal rendering resolution (typically 1080p to 1440p).

The console is also tied to the Xbox ecosystem. If a project requires specific titles or software available only on the PlayStation 5, the Series X cannot bridge that gap. Furthermore, while it is an excellent media player, it does not support certain professional video codecs like Apple ProRes or Avid DNxHR for direct playback; it is a consumer-facing media device, not a professional rack-mount media server. For users who require a device solely for high-end video editing or 3D rendering tasks, a dedicated workstation PC with a discrete NVIDIA RTX GPU would be more appropriate, as the Xbox is a closed environment optimized for execution rather than creation. Finally, the 1TB internal drive (with roughly 802GB of usable space) can fill up quickly with modern 4K assets, necessitating the purchase of expensive proprietary expansion cards if a large library must be kept offline and ready to play.
