AG-AC90 AVCCAM Handheld Camcorder

The Panasonic AG-AC90 and the 3-MOS Sensor Architecture

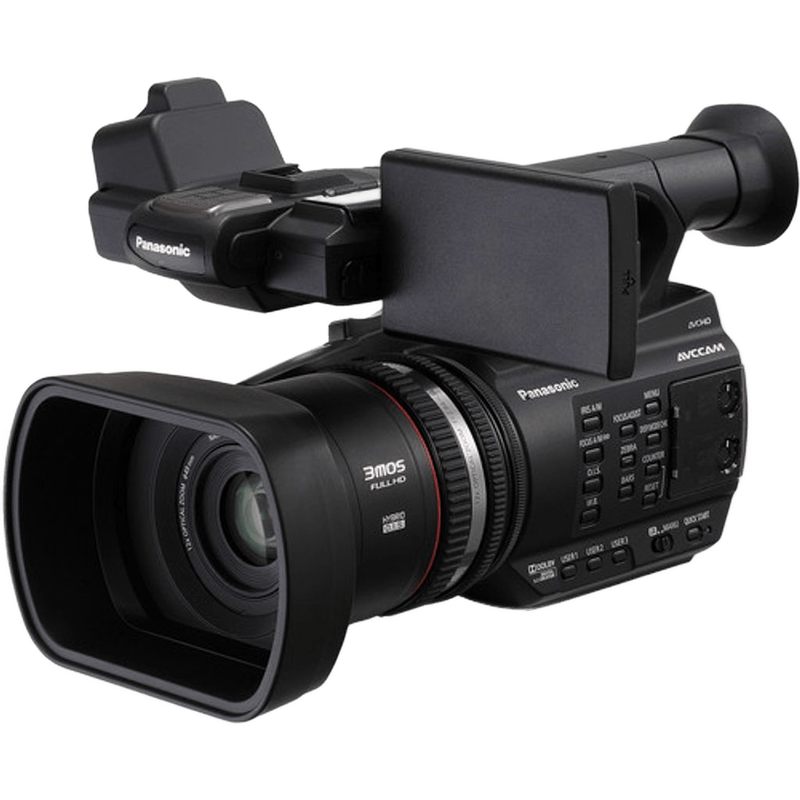

The Panasonic AG-AC90 is a professional-grade AVCCAM handheld camcorder designed to bridge the gap between consumer-level portability and broadcast-level manual control. At the core of its imaging system is a 1/4.7-type 3-MOS image sensor. Unlike single-chip cameras that use a Bayer filter to interpolate color data, this 3-MOS system employs a prism to split incoming light into its primary red, green, and blue components, directing each to a dedicated 2.19-megapixel sensor. This architecture results in a total effective resolution of 6.57 megapixels for video, significantly reducing color moiré and improving color accuracy in complex lighting environments. The sensors utilize Backside Illumination (BSI) technology, which moves the internal circuitry to the rear of the silicon substrate, allowing a larger surface area for photon collection. This specific engineering choice targets the inherent limitations of smaller sensor sizes, providing better signal-to-noise ratios in moderately low-light conditions compared to traditional front-illuminated sensors of the same dimensions.

The optical path is defined by a fixed 12x zoom lens with a focal length range of 2.84mm to 34.1mm. When calculated against a 35mm equivalent, this translates to a wide-angle 29.8mm to a telephoto 357.6mm. The lens features a fast maximum aperture of f/1.5 at the wide end, tapering to f/2.8 at full telephoto. To maintain image clarity, Panasonic applied a Nano Surface Coating to the lens elements. This microscopic film has a low refractive index, which drastically reduces the occurrence of ghosting and flare caused by internal reflections. This makes the camcorder particularly effective when shooting against strong backlighting or under harsh artificial stage lights. Within the Panasonic lineup, this model serves as a high-mobility workhorse for event videographers, corporate documentarians, and educational media departments who require professional XLR audio and manual tactile controls in a chassis that weighs approximately 1.5kg including the battery.

Image Processing and Optical Performance

The image quality of the Panasonic AG-AC90 is defined by its ability to resolve fine detail without the digital harshness often found in single-chip CMOS cameras. The 3-MOS system ensures that every pixel of the output 1080p signal is derived from actual RGB data rather than mathematical estimation. This is most visible in the reproduction of skin tones and the graduation of colors in a sunset or under colored LED stage lighting. The camera utilizes a high-speed LSI (Large Scale Integration) circuit to process the data from the three sensors, applying real-time gamma correction and noise reduction before the signal is encoded into the AVCHD format. Users can access several professional image adjustment tools, including Zebra patterns (selectable from 70% to 100%) and a Color Bar generator for calibrating external monitors.

The lens includes a 5-axis Hybrid OIS (Optical Image Stabilizer). This system combines optical stabilization, which physically moves a lens group to counteract handshake, with electronic stabilization that detects and corrects for five types of movement: horizontal, vertical, yaw, pitch, and roll. This is especially critical when operating at the 357.6mm telephoto end without a tripod. The stabilization system is designed to distinguish between intentional pans and accidental shakes, ensuring that the movement remains fluid rather than robotic. For close-up work, the lens supports a minimum shooting distance of approximately 3.5cm in macro mode at the wide-angle setting, allowing for detailed product shots or nature videography.

Handling, Ergonomics, and Manual Control

The physical interface of the Panasonic AG-AC90 is built around three independent manual rings located on the lens barrel. These rings control Focus, Zoom, and Iris (aperture) respectively. This layout is a significant departure from many compact camcorders that rely on a single multi-purpose ring or menu-based adjustments. The mechanical feel of these rings allows a camera operator to perform smooth, simultaneous adjustments—such as a focus pull while slowly zooming—which is a hallmark of professional cinematography. The Iris ring allows for fine-grained exposure control in 1/2 or 1/3 EV steps, providing a level of precision that is necessary when moving between indoor and outdoor environments.

The camcorder features a 3.5-inch touch-panel LCD monitor with a resolution of 1.15 million dots. A unique design feature of this model is that the LCD screen slides into the front part of the top handle when not in use, protecting the panel during transport and allowing for a more streamlined profile. When deployed, it can rotate 270 degrees for high-angle or low-angle monitoring. For traditional shooting, there is a 0.24-inch Electronic Viewfinder (EVF) with 263,000 dots of resolution, which can be tilted upwards. The top handle also houses a built-in 5.1-channel surround sound microphone and two professional XLR audio inputs with +48V phantom power toggles. These inputs allow for the connection of high-end shotgun or lavalier microphones, with independent manual gain dials protected by a clear plastic shield to prevent accidental adjustments during a shoot.

Video Formats, Codecs, and Recording Limits

Recording on the Panasonic AG-AC90 is handled by the AVCHD Progressive (Version 2.0) standard. This allows for a maximum bit rate of 28 Mbps in the PS mode, which supports 1080/60p and 1080/50p recording. For those seeking a more cinematic motion cadence, the PH mode offers 1080/24p at 21 Mbps. The camera also supports standard interlaced formats (1080/60i) and high-definition 720p modes. Because it uses the H.264 codec within the AVCHD wrapper, the files are highly compressed yet maintain enough detail for professional broadcast or web delivery, while keeping file sizes manageable on standard SD media.

The device is equipped with dual SDXC/SDHC card slots. These slots enable two critical recording modes:

• Relay Recording: When the first card reaches capacity, the camera automatically switches to the second card without dropping a single frame, allowing for continuous recording limited only by total storage and power.
• Simultaneous Recording: The camera writes the same data to both cards at once, creating an instant redundant backup in the event of a card failure.

The camera does not have a 29-minute recording limit often found in DSLR or mirrorless cameras; it can record continuously until the media is full or the power is exhausted. However, it is important to note that this is a strictly High Definition (HD) camcorder. It does not support 4K (UHD) resolutions, and its maximum frame rate is 60fps, meaning it does not offer high-speed "slow motion" modes beyond what can be achieved by conforming 60p footage to a 24p timeline.

On the Shoot: Indian Production Scenarios

In a Bengaluru wedding reception, the Panasonic AG-AC90 excels due to its integrated audio and long-form recording capabilities. In a typical dimly lit banquet hall with high-contrast stage lighting, the 3-MOS sensor system manages the saturated colors of traditional attire and floral decorations without the color bleeding often seen in single-chip cameras. The dual XLR inputs allow the videographer to take a clean line-out feed from the DJ’s mixer into Channel 1 while using a mounted shotgun mic on Channel 2 for ambient crowd noise. The f/1.5 lens helps maintain a clean image even as the house lights are dimmed for the couple's entrance, and the 5-axis OIS allows the operator to move through the crowd handheld without the footage becoming nauseating for the viewer.

For a Goa travel documentary or tourism promotional shoot, the camcorder's portability is its primary asset. When trekking through the humid environments of the Western Ghats or filming on a sun-drenched beach, the Nano Surface Coating on the lens minimizes the "white-out" flare that can occur when the sun is just outside the frame. The retractable LCD screen is a benefit here; it can be tucked away to prevent damage while moving through dense brush. The 29.8mm wide-angle lens is wide enough to capture the scale of Portuguese architecture in Old Goa, while the 12x zoom allows for candid shots of wildlife or distant surfers from the shoreline without needing to swap lenses and expose the sensor to salt air or sand.

During a Mumbai corporate seminar or a product session in a studio, the AG-AC90 functions as a reliable "set and forget" B-camera or a primary long-take camera. In a three-hour seminar at a BKC conference center, the relay recording feature ensures that the entire speech is captured on two 64GB SDXC cards without interruption. The HDMI output provides a clean 1080p signal to an external director's monitor or a live-streaming switcher. The triple manual rings are particularly useful in a studio setting where precise, repeatable focus on a product is required. If the presenter moves slightly off-mark, the dedicated focus ring allows for an immediate, tactile correction that is smoother than a touchscreen-based autofocus system.

Compatibility and Essential Pairings

To maximize the utility of the Panasonic AG-AC90, specific accessory choices are recommended. The camera uses the Panasonic VW-VBD series batteries. The high-capacity VW-VBD58 battery pack provides several hours of continuous operation, which is essential for event work. For media, Class 10 or UHS-I SDHC/SDXC cards are required to handle the 28 Mbps bit rate of the PS mode. While higher-speed cards (UHS-II) will work, they do not offer a performance benefit within the camera itself, as the internal bus is optimized for AVCHD speeds.

For audio, the camera pairs naturally with shotgun microphones like the Sennheiser MKE 600 or the Audio-Technica AT875R, which fit into the integrated microphone holder. Since the camera provides 48V phantom power, these professional mics do not require internal batteries. For tripod mounting, the base features a standard 1/4-20 threaded hole. Given the camera's 1.5kg weight, a fluid-head tripod with a payload capacity of at least 3kg is recommended to ensure smooth pans and tilts. The AV Multi out and HDMI ports allow for connection to legacy analog equipment or modern digital recorders like an Atomos Ninja, though the internal AVCHD recording is usually sufficient for most HD workflows.

Limitations and Alternative Recommendations

While the Panasonic AG-AC90 is a versatile tool, it has distinct limitations that may make other equipment more suitable for specific needs. The most prominent limitation is the sensor size. The 1/4.7-inch sensors are significantly smaller than the 1-inch sensors found in newer camcorders or the Super 35/Full Frame sensors in cinema cameras. This means that achieving a "shallow depth of field" (blurred background) is very difficult unless the subject is close to the lens and the background is far away. If your production requires a cinematic, "bokeh-heavy" look, a mirrorless camera like the Panasonic Lumix GH5 or a large-sensor camcorder like the Sony PXW-Z150 would be a better choice.

Furthermore, the lack of 4K resolution is a factor for future-proofing content. As 4K becomes the standard for streaming and commercial delivery, the 1080p output of the AC90 may not meet the requirements of high-end commercial clients. For 4K production in a similar form factor, the Panasonic AG-UX90 or the AG-CX350 offer updated sensors and higher bit-rate codecs. Finally, while the BSI technology helps, this is not a "dark-seeing" camera. In extremely low-light environments, such as a night-time street shoot with no streetlights, the small sensors will produce visible electronic noise. In such cases, a camera with a larger physical sensor area is necessary to maintain image integrity.
