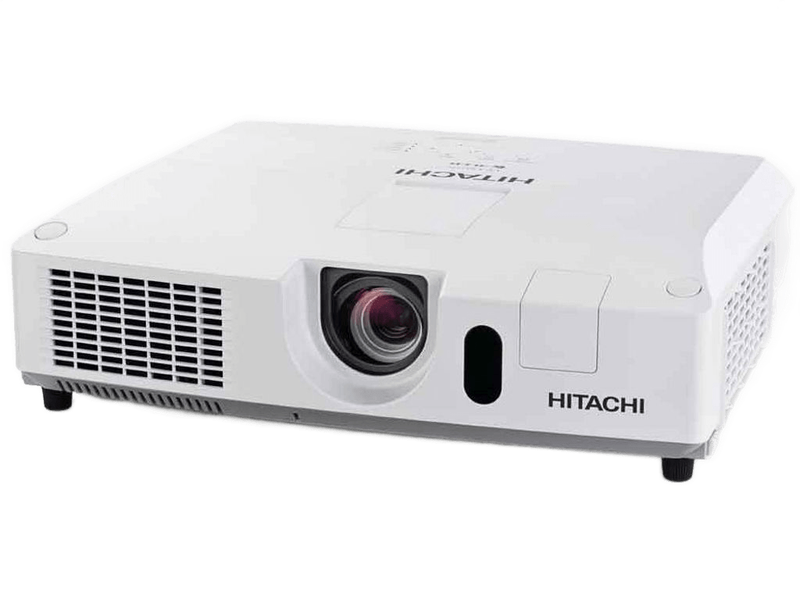

Hitachi 5000 Lumens Projector

The Core Architecture of the Hitachi 5000 Lumens Projector

The Hitachi 5000 Lumens Projector is a high-output 3LCD installation and portable projector designed to bridge the gap between standard office projectors and large-venue auditorium units. At its core, this device utilizes a three-chip inorganic LCD system, typically featuring 0.63-inch or 0.75-inch polysilicon TFT panels depending on the specific sub-model in the 5000-lumen class. Unlike single-chip DLP projectors that use a spinning color wheel, the 3LCD architecture splits the light from the 245W or 300W UHP lamp into its primary red, green, and blue components using dichroic mirrors. These beams are passed through the three LCD panels and recombined via a prism before being projected through the lens. This ensures that the color light output is exactly equal to the white light output at 5000 ANSI lumens, preventing the "rainbow effect" often seen in high-brightness DLP alternatives.

Positioned as a workhorse for medium-to-large environments, this projector is engineered for environments where ambient light cannot be fully controlled. The 5000-lumen rating provides enough luminance to maintain a legible image on screens ranging from 60 inches to 300 inches diagonally. It is designed for professional presenters, event managers, and educators who require a reliable 24/7 capable machine with a focus on color accuracy and installation flexibility. The chassis is built with a side-loading lamp door and a high-performance hybrid filter, allowing for maintenance without removing the unit from a ceiling mount.

Optical Precision and Image Enhancement Technologies

The image quality of the Hitachi 5000 Lumens Projector is defined by its native resolution—typically XGA (1024 x 768) or WXGA (1280 x 800)—and its high contrast ratio, which often reaches 3000:1 or 10,000:1 with the use of an Active Iris. This iris dynamically adjusts the light output frame-by-frame, deepening black levels in dark scenes while maintaining the peak 5000-lumen brightness for highlights. One of the standout proprietary technologies included is the Hitachi Accentualizer. This digital processing engine enhances the sharpness, gloss, and shade of the image to make it appear more like a flat-panel display. By adjusting these three parameters, the projector compensates for the inherent softening that can occur when light is projected over long distances or onto less-than-ideal surfaces.

Furthermore, the Image Optimizer function automatically adjusts the Accentualizer and HDCR (High Dynamic Contrast Range) settings based on the lamp's age and brightness level. As a UHP lamp nears the end of its 3000-to-5000-hour lifespan, its spectral output shifts; the Image Optimizer compensates for this to ensure color consistency over years of use. For medical education environments, the projector also includes a DICOM (Digital Imaging and Communications in Medicine) Simulation Mode. This mode adjusts the grayscale levels to follow the DICOM Part 14 standard, making it suitable for viewing non-diagnostic medical images like X-rays and scans in a classroom setting where high brightness is required for a large audience.

Build Quality, Mounting, and Mechanical Handling

Handling the Hitachi 5000 Lumens Projector reveals a focus on mechanical precision. The unit typically weighs between 4.6kg and 6.8kg, making it light enough for a single technician to mount on a standard universal ceiling bracket but substantial enough to house a sophisticated cooling system. The lens assembly usually offers a 1.7x manual zoom, providing a wide range of throw distances. For example, a 100-inch diagonal image can be achieved from a distance of approximately 3 meters to 5 meters, allowing for flexible placement at the back of a room or closer to the screen to avoid shadows from the presenter.

The inclusion of manual vertical and horizontal lens shift is a critical handling feature. This allows the optical block to move independently of the chassis, enabling the user to align the image perfectly with the screen without tilting the projector. Tilting a projector usually introduces trapezoidal distortion, which requires digital keystone correction that can degrade image resolution. By using lens shift, the projector maintains every pixel of its native resolution. For more complex setups, Hitachi’s Perfect Fit 2 technology allows for digital corner-by-corner adjustment. This is particularly useful when projecting onto surfaces that are not perfectly flat or when the projector must be placed at an off-center angle. The cooling system is designed with a side-to-side airflow pattern, ensuring that heat is dissipated away from the lens and the audience, and the hybrid filter is rated for up to 5000 hours of use before requiring a simple vacuuming or replacement.

Input Versatility and Video Signal Processing

The Hitachi 5000 Lumens Projector is equipped with a robust array of inputs to handle modern and legacy video sources. It typically features two HDMI ports, one of which often supports MHL (Mobile High-Definition Link), allowing users to mirror content from smartphones or tablets while charging the device. For legacy systems, it includes two D-sub 15-pin VGA inputs, component video, and S-Video. The projector also functions as a network device via its RJ-45 Ethernet port. This allows for Crestron Connected and AMX Device Discovery compatibility, enabling centralized management of multiple projectors across a campus or corporate office. Users can monitor lamp hours, power status, and input selection remotely through a web browser.

On the video processing side, the projector can accept signals up to 1080p at 60Hz, which it then downscales to its native resolution using a high-quality internal scaler. This ensures that high-definition video content from Blu-ray players or laptops remains crisp and free of motion artifacts. The internal 16W mono speaker is powerful enough for small meeting rooms, eliminating the need for external audio reinforcement in some scenarios. For presentations without a computer, the USB Type A port supports PC-less presentations, allowing the projector to display JPEG, PNG, BMP, and GIF files directly from a thumb drive. It also supports wireless presentation via an optional USB dongle, enabling multiple users to switch between their laptop screens over a Wi-Fi connection.

The Projector in Professional Indian Shoot Scenarios

In a Bengaluru corporate headquarters, the Hitachi 5000 Lumens Projector is frequently used for high-stakes quarterly reviews in glass-walled boardrooms. Even with the midday sun filtered through blinds, the 5000-lumen output ensures that complex Excel spreadsheets and architectural renders remain legible. The WXGA resolution provides the 16:10 aspect ratio common in modern laptops, ensuring that the entire screen is utilized without letterboxing. The quiet operation mode (typically around 29dB in Eco mode) ensures that the cooling fans do not distract from the speakers during a presentation.

For a wedding reception in a Mumbai banquet hall, this projector serves as the primary visual engine for "Sangeet" videos and live social media feeds. In these environments, ambient lighting from stage LEDs and chandeliers is high. The 3LCD technology is vital here because it reproduces the vibrant reds and golds of traditional Indian attire more accurately than budget DLP projectors. Using the Perfect Fit 2 feature, technicians can quickly map the image onto a custom-built fabric backdrop or a textured wall, correcting for any slight folds or unevenness in the temporary setup. The long throw capability allows the projector to be placed safely on a high stand at the back of the hall, well away from the guest seating and food service areas.

In a Mumbai studio session for a fashion brand, the projector is used for "digital backdrops." By projecting high-resolution textures or cityscapes onto a white cyclorama, photographers can create the illusion of location shoots. The 5000-lumen brightness allows the photographer to use a degree of ambient studio lighting or low-power continuous LED lights without washing out the projected background. The manual lens shift is used here to move the background image up or down to match the model's eye line without having to physically move the heavy projector stand, saving significant time during set changes.

Compatibility, Pairing, and Essential Accessories

To maximize the utility of the Hitachi 5000 Lumens Projector, it should be paired with a high-gain screen (1.1 to 1.5 gain) if used in very bright rooms, or a matte white screen for the widest possible viewing angles. For long-distance signal transmission, especially in large Indian venues where the source might be 20 or 30 meters away, the use of an HDMI-over-Ethernet (HDBaseT) extender is recommended to prevent signal degradation. The projector’s dual VGA inputs also make it compatible with older switching systems still found in many Indian educational institutions.

When used in a mobile kit, the projector pairs well with heavy-duty tripod stands capable of supporting at least 8kg. For wireless workflows, a Chromecast or Apple TV can be powered directly from the projector's USB port (if the port provides 5V/2A) or an external power strip, turning the unit into a smart display. For maintenance, it is essential to keep a spare DT01291 or equivalent lamp on hand, as UHP lamps are consumable items. The hybrid filter should be checked every 500 hours in dusty environments to ensure the 3LCD panels do not suffer from "dust blobs" which can appear as out-of-focus spots on the projected image.

Limitations and Alternative Recommendations

While the Hitachi 5000 Lumens Projector is a versatile tool, it has specific limitations. It is not a native 4K projector; while it can accept 1080p signals, it will always output at its native XGA or WXGA resolution. For high-end cinema screenings or color-critical video grading where 4K detail is required, a native 4K laser projector would be a more appropriate, albeit significantly more expensive, choice. Additionally, this is a standard-to-long throw projector. It cannot be placed inches away from a wall to create a large image. For small rooms or tight trade-show booths, an Ultra-Short Throw (UST) projector is required to avoid the presenter blocking the light path.

The 5000-lumen output, while powerful for indoor use, is insufficient for outdoor projection mapping on large buildings or for use in direct sunlight. For those applications, large-venue projectors with 10,000 to 20,000 lumens and interchangeable lenses are necessary. Finally, because it uses a lamp-based light source rather than a laser, there is a warm-up and cool-down period of approximately 30 to 60 seconds. If your shoot requires "instant-on" capability or the ability to mount the projector at extreme 360-degree angles (such as pointing straight down at the floor for long periods), a laser-phosphor projector should be selected instead to avoid damaging the lamp or internal optics.
