X1 Trigger

The Foundation of the Godox 2.4GHz Wireless X System

The Godox X1 Trigger serves as a primary control hub for the Godox 2.4GHz Wireless X system, a radio-frequency ecosystem designed to replace older, less reliable optical and infrared triggering methods. Unlike optical triggers that require a direct line of sight between the master and slave units, the X1 utilizes a 2.4GHz radio frequency that penetrates obstacles and functions reliably in high-glare environments. It is positioned as the foundational transmitter in the Godox lineup, offering a balance of multi-group control and TTL (Through-The-Lens) automation. This device was engineered for photographers who require off-camera flash synchronization across multiple units without the physical constraints of sync cables or the range limitations of built-in camera master modes. It supports 32 individual channels to prevent interference from other photographers and 5 distinct groups (A, B, C, D, and E), allowing for complex lighting ratios to be managed directly from the camera’s hot shoe.

Signal Transmission and Exposure Control Technologies

The core utility of the Godox X1 Trigger lies in its ability to transmit complex exposure data instantaneously. It supports High-Speed Sync (HSS) up to 1/8000s, which is critical for controlling ambient light levels when shooting with wide apertures in bright conditions. The trigger utilizes a 2.4GHz signal with an effective operating range of approximately 100 meters in open areas. For exposure accuracy, the X1 supports TTL autoflash, Manual flash, and Multi-flash modes. In TTL mode, the trigger communicates with the camera’s metering system to calculate the necessary flash output, transmitting this data to the remote strobes before the shutter opens. It also features Flash Exposure Compensation (FEC) in 1/3 stop increments up to +/- 3 stops, Flash Exposure Lock (FEL), and modeling flash control. The inclusion of a 0-100ms synchronization delay setting allows for precision timing, which is particularly useful for photographers working with specialized high-speed capture or rear-curtain sync effects.

Physical Architecture and Interface Handling

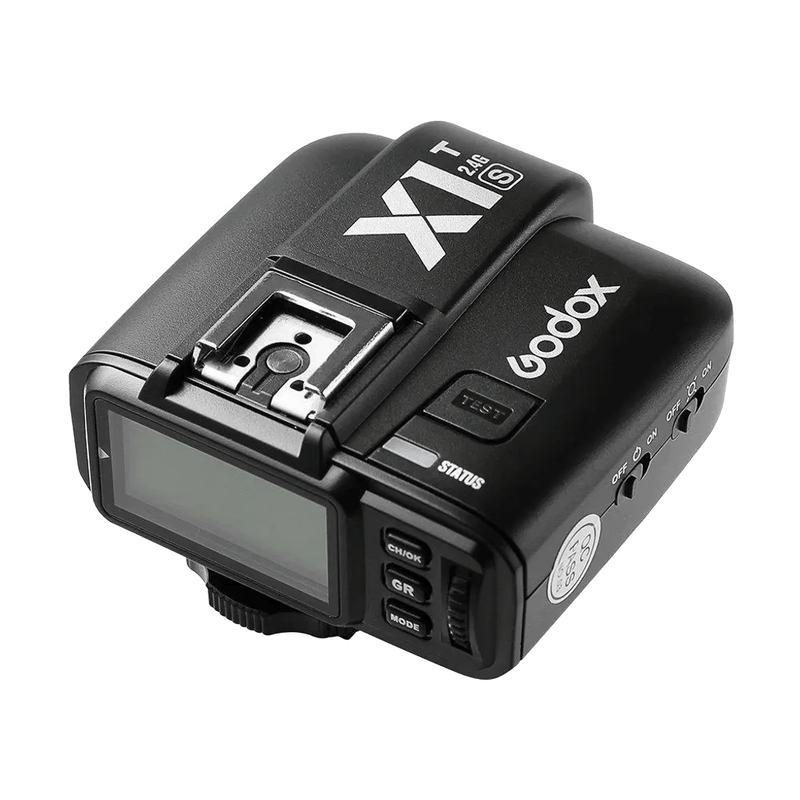

The Godox X1 Trigger is built with a low-profile design to minimize the top-heavy feel of a camera when a transmitter is mounted. The top of the unit features a pass-through hot shoe, allowing a secondary flash or another trigger to be stacked on top, though this is primarily used for mounting a speedlight in manual mode. The interface consists of a back-lit LCD panel that displays the status of all five groups simultaneously. Control is managed through a series of dedicated buttons (CH for channel, GR for group, and Mode) and a side-mounted scroll wheel used for adjusting power values and navigating menus. The mounting foot features a traditional locking ring to secure the unit to the camera. On the side of the housing, there is a PC sync port for connecting to legacy studio strobes via cable and a Micro-USB port dedicated to firmware updates, ensuring the device remains compatible with newer camera bodies as they are released. The unit is powered by two AA batteries, which provide the voltage necessary for the AF-assist beam—a red laser-pattern projector on the front of the unit that helps the camera achieve focus in low-light environments.

Integration in Hybrid and Video Workflows

While primarily a tool for still photography, the Godox X1 Trigger provides specific utilities for hybrid shooters and videographers. For those using Godox LED video lights that are compatible with the X-system, the X1 can remotely toggle these lights on and off or adjust their brightness levels across different groups. This eliminates the need to manually reach for lights mounted on high stands or in awkward positions during a video production. Additionally, the trigger can function as a remote shutter release. When a Godox X1R receiver is connected to a camera’s shutter release port via a compatible cable, the X1 transmitter can fire the camera from up to 100 meters away. This is a common setup for wildlife photography or for placing a "remote cam" in a position where a photographer cannot physically stand, such as behind a basketball hoop or at the edge of a stage.

Operational Performance in Indian Professional Scenarios

In a Bengaluru wedding reception, the Godox X1 Trigger is often deployed to manage a multi-light setup in large banquet halls. In these environments, the 2.4GHz signal is essential for cutting through the heavy electronic interference caused by wireless microphones, Wi-Fi routers, and mobile devices. A photographer can place two AD600Pro strobes on stands for room fill and a V860III speedlight on a bracket for hair light, controlling all three independently from the X1 on their camera. The ability to switch groups from TTL to Manual is vital here; the photographer might use TTL for the roaming couple portraits to account for changing distances, while keeping the background strobes on a fixed Manual power setting to maintain consistent ambient exposure.

For a travel shoot in Goa, the High-Speed Sync (HSS) capability of the X1 becomes the primary tool. When shooting a subject against a bright midday ocean backdrop, a photographer can set their shutter speed to 1/4000s to darken the sky and water while the X1 ensures the off-camera flash fires in perfect synchronization to illuminate the subject. The lightweight AA-battery power source is an advantage here, as replacements are easily found in local markets, unlike proprietary lithium packs.

In a Mumbai studio session for product photography, the X1 is used for its precision. When capturing reflective surfaces like jewelry or electronics, the 1/3 stop power adjustments allow the photographer to fine-tune highlights with extreme granularity. The 32-channel system is particularly useful in dense studio complexes where multiple photographers might be working in adjacent rooms; by selecting a specific channel and using the Digital ID feature (available in later firmware), the photographer ensures their strobes are not triggered by a neighbor’s flash.

Compatibility and Ecosystem Pairing

The Godox X1 Trigger is designed to work seamlessly with any Godox flash that has a built-in 2.4GHz X-system receiver. This includes the AD-series (AD100Pro, AD200Pro, AD300Pro, AD400Pro, AD600Pro, AD1200Pro), the V-series speedlights (V860II, V860III, V1), and the TT-series (TT685, TT600, TT350). For older flashes or studio strobes from other manufacturers like Bowens, Elinchrom, or Profoto, the X1 transmitter must be paired with a Godox X1R receiver. The X1 comes in specific versions for different camera brands: X1T-C for Canon, X1T-N for Nikon, X1T-S for Sony, X1T-F for Fujifilm, and X1T-O for Olympus/Panasonic. While the transmitter is brand-specific to support TTL and HSS communication with the camera’s hot shoe, it can trigger any Godox X-system flash regardless of that flash’s native brand version. For example, an X1T-S on a Sony camera can trigger a V860II-C (Canon version) in full TTL and HSS, provided the flash is updated to the latest firmware.

Limitations and Alternative Considerations

While the Godox X1 Trigger is a highly capable tool, it has specific limitations that may lead a professional to consider other models in the Godox range. The physical interface of the X1 is its most significant drawback; the small LCD screen and the menu-diving required to change certain settings can be slower than the dedicated group buttons found on the Godox XPro or X2T. The scroll wheel on the X1 is also known for being sensitive, sometimes skipping values if turned too quickly. Furthermore, the X1 lacks the "TCM" (TTL-Convert-Manual) function found on the XPro and X3 triggers, which allows a photographer to take a shot in TTL and then instantly convert that exposure into a manual power setting for consistency.

Photographers who require a more modern interface with a larger, tilted screen should look toward the Godox XPro. Those who need Bluetooth connectivity to adjust flash settings via a smartphone app would be better served by the Godox X2T, which also features a redesigned button layout and a more secure quick-release locking mechanism. For users who prioritize a minimalist, touchscreen-driven workflow, the Godox X3 (Nano) offers a significantly smaller footprint and an internal rechargeable battery. The X1 remains the choice for those who need a reliable, cost-effective entry point into the X-system or who specifically require the pass-through hot shoe on top of the trigger, a feature absent on the XPro and X3 models.
