Ricoh Theta S 360 Degree Digital Camera

The Dual-Sensor Architecture of the Ricoh Theta S

The Ricoh Theta S represents a significant evolution in the manufacturer’s spherical imaging lineup, moving beyond the consumer-oriented m15 to provide a more robust tool for professional documentation and immersive content creation. At the core of this device are two 1/2.3-inch CMOS image sensors, each boasting an effective output of approximately 12 megapixels. When these two inputs are processed and stitched internally, the camera produces a single 14.4-megapixel spherical image with a resolution of 5376 x 2688 pixels. This architecture is designed specifically to eliminate the "blind spots" common in multi-camera rigs, utilizing a folded optics array that allows the two sensors to be positioned back-to-back in a slim, 22.9mm chassis.

The optical formula consists of two ultra-wide fisheye lenses, each featuring 7 elements in 6 groups. These lenses provide a 180-degree field of view on each side, which overlaps slightly to facilitate the stitching process. The f/2.0 maximum aperture is a critical specification for this model, as it allows for significantly better light gathering compared to the f/3.5 or f/5.6 apertures found on many entry-level 360-degree cameras. This makes the camera suitable for indoor environments where artificial lighting may be limited. The device is positioned as a high-performance bridge between casual 360-degree photography and high-end professional VR rigs, offering a simplified workflow for real estate virtual tours, site inspections, and social media content.

Image Quality and Optical Performance

The image quality of the Ricoh Theta S is defined by its ability to maintain sharpness across a spherical plane. Because the lenses are fixed-focus, the camera relies on a deep depth of field to keep objects from approximately 10cm to infinity in focus. This is essential for 360-degree imaging, where the viewer may choose to look at a foreground object or a distant background simultaneously. The f/2.0 aperture works in tandem with an ISO range of 100 to 1600 for still images, allowing the user to maintain a faster shutter speed in indoor settings to reduce motion blur. The shutter speed itself ranges from 1/6400 seconds for bright outdoor environments to a maximum of 60 seconds for long-exposure night photography, a feature accessible through the manual shooting mode.

Color reproduction and dynamic range are managed by an internal image processing engine that balances the exposure between the two independent sensors. This is particularly important when one lens is facing a bright light source, such as the sun or a window, while the other is facing a shadowed area. The camera employs an auto-exposure algorithm that calculates the optimal settings for the entire sphere, though users can manually override this via the smartphone interface to prioritize specific zones. The resulting JPEG files are formatted in the standard equirectangular projection, which is the industry standard for VR platforms and web-based 360 viewers. The internal stitching algorithm is calibrated to minimize the "seam line" where the two images meet, though the physical proximity of objects to the lens (closer than 20cm) can still cause minor parallax artifacts.

Build Quality and Handling on Set

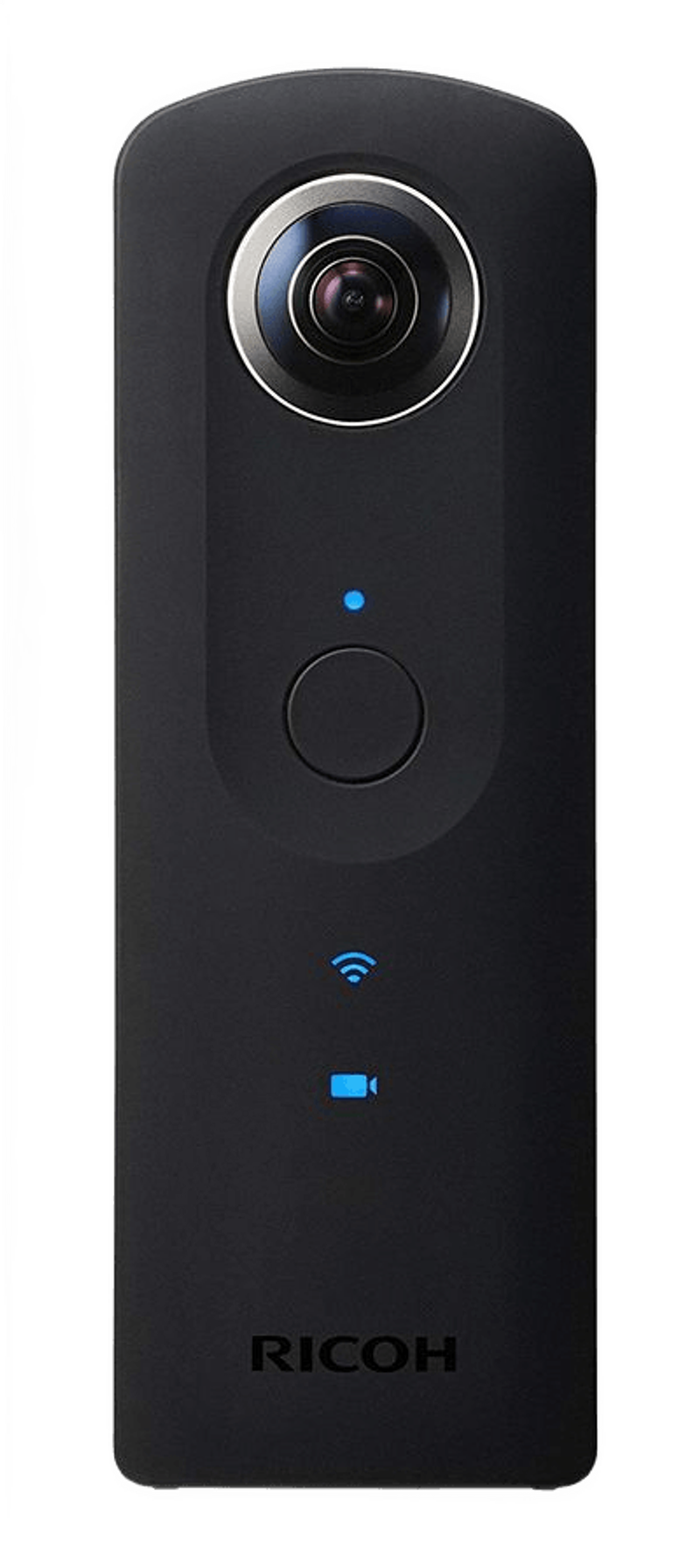

The physical design of the Ricoh Theta S is prioritized for handheld stability and discreet placement. It weighs approximately 125 grams and measures 44mm in width and 130mm in height. The exterior is finished in a matte black, rubberized coating that provides a secure grip and reduces reflections that could be caught in the 360-degree field of view. On the side of the device, three dedicated buttons control power, Wi-Fi activation, and the toggle between photo and video modes. A large shutter release button is located on the front face, positioned for easy thumb operation when held vertically.

For professional handling, the base of the camera features a standard 1/4"-20 tripod thread. Because the camera captures everything in a sphere, the use of a traditional tripod head often results in the tripod legs occupying a large portion of the bottom of the frame. Consequently, the camera is best handled using a slim monopod or a dedicated "invisible" stand. The status of the camera is communicated through a series of LED icons on the front panel, indicating the current shooting mode, Wi-Fi connectivity status, and memory capacity. Unlike many cameras, the Theta S does not have a built-in LCD screen for live view; instead, it relies on a 2.4GHz Wi-Fi connection to a smartphone or tablet. This connection allows for a live preview at approximately 30 frames per second, enabling the operator to hide from the shot while still monitoring the composition and exposure.

Video Capability and Technical Constraints

The video functionality of the Ricoh Theta S allows for the capture of spherical moving images in Full HD resolution. The camera records at 1920 x 1080 pixels at a frame rate of 30fps. The video is encoded using the MPEG-4 AVC/H.264 codec with a maximum bitrate of 16Mbps. While the resolution is 1080p, it is important to note that this resolution is spread across the entire 360-degree sphere. When viewed through a VR headset or a cropped window on a screen, the effective resolution the viewer sees at any one time is lower than standard 1080p flat video. The maximum recording time per clip is 25 minutes or a file size of 4GB, whichever comes first.

One of the more advanced features of this model is its live streaming capability. The camera includes a Micro-HDMI (Type-D) port and a Micro-USB port, both of which can be used to output a live 360-degree feed. Via USB, the camera outputs a dual-fisheye (unstitched) video stream at 1280 x 720 at 15fps. Via HDMI, it can output 1920 x 1080 at 30fps, though the output remains in the dual-fisheye format and requires external software on a computer to stitch the feed into a usable equirectangular format for platforms like YouTube Live or Facebook Live. Audio is captured via a built-in monaural microphone, which provides basic ambient sound but lacks the spatial orientation found in newer four-channel microphone arrays.

On the Shoot: Practical Scenarios in India

In a Bengaluru wedding reception held in a large, decorated banquet hall, the Ricoh Theta S serves as a specialized tool for capturing the scale of the decor. Placed on a tall, thin light stand in the center of the room, the f/2.0 aperture allows the camera to capture the ambient lighting of the chandeliers and floral arrangements without excessive noise. The photographer can trigger the shutter from behind a pillar using the Wi-Fi remote, ensuring they are not part of the 360-degree capture. The resulting image provides a complete record of the venue's layout, which is often used by wedding planners for their portfolios or by the couple as an immersive memory of the space.

During a travel shoot in Goa, the camera's portability is its primary advantage. When walking through the narrow streets of Fontainhas or standing on a crowded beach at sunset, the 125g weight allows it to be held aloft on a selfie stick. The 1/6400s shutter speed is utilized here to prevent overexposure of the bright Goan sun while capturing the surrounding architecture and the horizon simultaneously. Because the camera captures everything, the user does not need to "aim" the device, making it useful for capturing candid moments in busy markets where traditional filming might be intrusive.

In a Mumbai studio session for a product launch, the camera is often used for "Behind the Scenes" (BTS) documentation. By mounting the camera to the top of a C-stand, the production team can record a 360-degree view of the entire studio setup, including the lighting positions, the crew's locations, and the talent. This serves as a technical reference for future shoots or as interactive content for social media. The HDMI output can be routed to a laptop, allowing the director to see a wide-angle view of the entire set to ensure no equipment is accidentally visible in the primary camera's frame.

Compatibility and Essential Pairings

The Ricoh Theta S is a self-contained system but requires specific pairings to function effectively in a professional workflow. It features 8GB of internal memory, which is not expandable. This capacity holds approximately 1,600 full-resolution still images or about 65 minutes of total video at the highest quality setting. Because the storage is fixed, frequent offloading of data via the Micro-USB 2.0 port is necessary during long production days. The internal lithium-ion battery is also non-removable and provides enough power for approximately 260 still images per charge. For extended shoots, the camera can be powered via the Micro-USB port using a standard 5V power bank, though this may interfere with some mounting solutions.

Compatibility with mobile devices is central to the camera's operation. The Ricoh Theta S app is available for iOS and Android, providing full manual control over shutter speed, ISO, and white balance. For post-processing, the Ricoh Theta desktop application for Windows and Mac is required to convert the dual-fisheye video files into the equirectangular format necessary for editing in software like Adobe Premiere Pro or Final Cut Pro. The camera uses a standard 1/4"-20 mount, making it compatible with almost all photographic support gear, but it is most effectively paired with slim-profile monopods like the Manfrotto VR series or dedicated Ricoh extension poles to minimize the footprint of the stand in the final image.

Limitations and Alternative Choices

While the Ricoh Theta S is a pioneer in the 360-degree space, it has distinct limitations that may necessitate choosing a different model. The most significant limitation is the resolution of the video. While 1080p sounds sufficient, when stretched over 360 degrees, the level of detail is considerably lower than what users expect from modern 4K displays. For filmmakers requiring high-definition VR content, the Ricoh Theta V or the Theta Z1—which offers 4K video and a much larger 1-inch sensor—would be more appropriate choices. The Theta S also lacks the ability to shoot in RAW format for still images, which limits the ability to recover highlights or shadows in post-production compared to the Z1.

The 8GB internal storage is another bottleneck for professional use. On a multi-day shoot without access to a computer for offloading, the memory will fill up quickly, especially when shooting video. There is no MicroSD card slot, so once the memory is full, the camera cannot record further. Additionally, the 2.4GHz Wi-Fi can be prone to interference in crowded urban environments or at large events like trade shows, leading to lag in the live view or slow file transfers. For users who need to record for several hours or who require 3D spatial audio, the Theta V or higher-end professional rigs with swappable storage and multi-channel mics are better suited to those specific demands.

SUMMARY:

• 360 Degree Spherical Panorama images and Spherical Videos up to 25 minutes
• Live view function on mobile device
• Transfer videos directly to your mobile device without the need of a computer
• Full HD Video at 30fps , 360 Degree Spherical Video Supported by YouTube
• Charge the battery by connecting it to a PC using the supplied USB cable

DETAILS:

The new RICOH THETA S gives you even higher quality and performance. Beauty as far as the eye can see, and a breathtaking sense of presence making you feel you are "right there, right now". From still images to long movies (max. 25 minutes long), record your memories in a vivid, high resolution 360° world. In addition to the imaging capabilities, the Theta S has also been revamped with enhanced sharing capabilities, including the ability to wirelessly share both movies and photos to a mobile device for posting online. Built-in Wi-Fi also enables remote live view and camera settings adjustment from your smartphone or tablet. Finished imagery can up uploaded to the dedicated Theta 360 website for sharing with social media sites as well as published on Google's Street View app to allow others to view your spherical imagery.

From the manufacturer

360° experience.

Experience a new world of images with the Ricoh Theta S. With one touch of a button, spherical images and videos are created which are unlike anything you've ever seen. The Theta S offers capabilities not previously attainable in past models including a new, a larger image sensor, which gives you approximately 14 megapixel, high-quality spherical images and Full HD movie recording up to 25 minutes. Improvements have been made for low light shooting including the addition of a newly developed bright f/2.0 lens along with the option to shoot in Manual Mode and set shutter speeds up to 60 seconds, built-in memory to store up to 8GB of data, as well as live view and live streaming functionality. Discover 360-degree images and videos, the future of digital photography.

Highlights

• 360° Spherical images and videos
• New enlarged sensor - 12MP
• Output Size - 14MP
• Full HD video at 30fps
• Live streaming (USB/HDMI)

Overview

Capture spherical images and videos

Easily capture and share everything in your environment with the Theta S. Featuring a twin-lens folded-optical system, view and share completely spherical images.

Improved image quality

Equipped with a larger (1/ 2.3-inch) image sensor, enjoy high-quality spherical images at approximately 14 megapixels, the best quality of all Theta models. The Theta S features a newly designed lens, optimized for the new sensor, providing sharper images than previous models.

Improved UI with more functions

Added to the Theta S is an LED status notification on the body of the device, which allows you to switch between still image and movie mode more easily than previous models. Wi-Fi speed has also been upgraded to 8Mbps, as well as built-in memory to store up to 8GB.

High movie quality

Improved hardware enables 30fps of Full HD original data. Recording time is also improved to a maximum of 25 minutes.

Dedicated application

The Theta applications allow for easy shooting and sharing of your spherical images and videos. From the applications you can capture still images and videos, employ full command and control over various shooting modes, and share your spherical images and videos directly to social media. Additional Theta applications will allow you to edit your spherical images to the way you want them to be.

Live view and live streaming functionality

Live View function is added with still images. With this new function, 10fps images are displayed as a preview on your smartphone. Enjoy live streaming when your device is connected to either a USB or HDMI cord.
