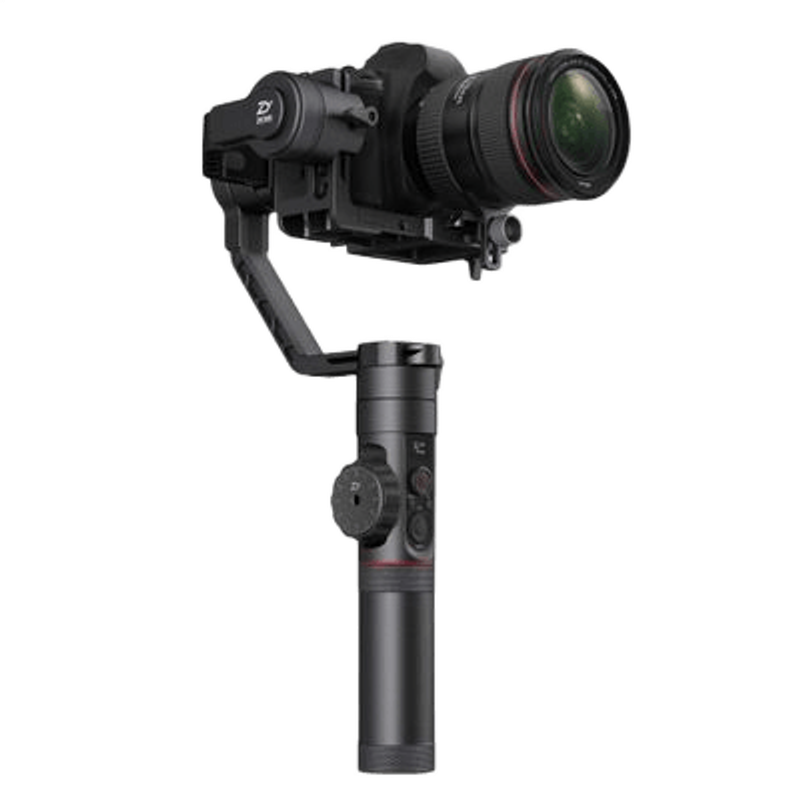

Crane 2 3-Axis Camera Stabilizer

The Professional Evolution of the Zhiyun Crane 2

The Zhiyun Crane 2 represents a significant milestone in the development of three-axis handheld stabilizers, designed specifically for DSLR and mirrorless camera systems. Positioned as the high-payload successor to the original Crane and Crane V2, this stabilizer was engineered to bridge the gap between lightweight consumer gimbals and heavy-duty cinema rigs. At its core is the 6th Generation Instune Algorithm System, which provides a 50% increase in motor torque and a 100% improvement in respond speed compared to previous iterations. This allows the unit to support a maximum payload of 3.2kg (approximately 7.05 lbs), making it capable of stabilizing professional setups such as a Canon EOS 5D Mark IV with a 24-70mm f/2.8 lens or a Sony a7R III with a 70-200mm f/4 lens. The stabilizer operates on a three-axis system providing 360 degrees of rotation along the pan axis, and a wide range of tilt and roll movement, ensuring that the camera remains level regardless of the operator's movement.

Stabilization Technology and Motor Performance

The mechanical performance of the Zhiyun Crane 2 is defined by its high-torque brushless motors and the precision of its internal sensors. The 6th Gen Instune Algorithm works in real-time to compensate for vibrations, sudden jolts, and the natural sway of a walking operator. Unlike smaller gimbals that struggle with the inertia of heavier glass, the Crane 2 maintains its orientation even when the center of gravity shifts slightly during zooming. The motors are designed with high-resolution encoders that detect movement down to 0.02 degrees of variance. This level of precision is critical for long-focal length shooting where even a microscopic tremor is magnified. Furthermore, the stabilizer features a "Slow-fall" protection mechanism; when the unit is powered down, the motors gradually release their hold rather than cutting out instantly, preventing the camera lens from crashing into the gimbal frame and potentially causing optical damage.

Handling, Build Quality, and the Integrated Interface

Constructed primarily from high-grade aluminum alloy, the Zhiyun Crane 2 is built for the rigors of field production. A standout physical feature is the integrated OLED display located on the handle. This 0.96-inch screen provides immediate visual feedback on critical parameters including battery level, stabilizer mode (Follow, Locking, or Pan-Follow), and camera settings when connected via control cables. Below the screen is a tactile control dial and a series of buttons that allow the operator to adjust shutter speed, aperture, and ISO directly from the gimbal handle, reducing the need to touch the camera body and disturb the balance. The gimbal utilizes a Manfrotto-standard quick-release plate, which is a significant workflow advantage for cinematographers who need to move the camera rapidly between the stabilizer and a tripod or monopod. The handle also features a 1/4"-20 threaded hole at the base, allowing for the attachment of extension poles, dual-handle grips, or mounting onto a jib arm.

Follow Focus Control and Camera Integration

One of the most distinctive features of the Zhiyun Crane 2 is its integrated digital follow focus. This is controlled via a large, knurled wheel on the left side of the handle. When connected to compatible cameras (most notably the Canon EOS series via the included Micro-USB cable), the wheel allows for real-time electronic focus pulling with three levels of sensitivity adjustment. This eliminates the need for a separate external follow focus motor in many scenarios, keeping the rig lighter and more streamlined. For cameras that do not support electronic focus control, the gimbal can be paired with an external mechanical follow focus motor (available separately) which plugs into the dedicated port on the tilt motor. The gimbal also facilitates camera charging for certain Sony models, drawing power from the stabilizer's internal batteries to extend the camera's runtime during long shooting sessions.

On the Shoot: Real-World Indian Production Scenarios

In a Bengaluru wedding reception, the Zhiyun Crane 2 excels due to its 18-hour maximum runtime, powered by three 18650-type batteries with a total capacity of 6000mAh. Wedding cinematographers often face 12 to 14-hour days where charging is not an option. The ability to carry a Canon 5D series body with a heavy L-series zoom lens through a crowded hall while maintaining smooth tracking shots of the couple is a primary use case. The gimbal’s torque handles the rapid direction changes required when navigating through guests, while the OLED screen allows the operator to monitor ISO levels as the lighting shifts from the bright stage to the dimmer banquet areas without looking away from the monitor.

For a Goa travel shoot involving coastal landscapes and moving vehicles, the Crane 2’s wind resistance and motor strength are vital. When filming from a moving scooter or a boat, the wind resistance against the camera body can often cause smaller gimbals to vibrate or "micro-jitters" to appear in the footage. The Crane 2’s motors are powerful enough to fight this external pressure. The Manfrotto plate system is particularly useful here; a creator can quickly pop the camera off the gimbal to capture a static sunset timelapse on a tripod and then re-mount it for a stabilized walking shot along the beach without needing to re-balance the entire system from scratch.

In a Mumbai studio product session, the precision of the follow focus wheel becomes the most important tool. When filming macro shots of jewelry or electronics, the depth of field is often razor-thin. The operator can use the follow focus wheel to perform smooth, repeatable focus racks from the foreground to the background of the product. Because the control is integrated into the handle, the operator can manage the pan and tilt movements with one hand while pulling focus with the other, allowing for complex, multi-axis shots that would typically require a two-person crew (a camera operator and a focus puller).

Compatibility, Power, and Essential Pairings

The Zhiyun Crane 2 is compatible with a wide array of camera systems, but its full feature set is best realized with specific pairings.

• Camera Bodies: Full support for Canon EOS series (5D Mark III/IV, 6D, 80D), Sony a7 series (a7S II, a7R III, a9), and Panasonic GH series (GH4, GH5).
• Payload Limits: While the 3.2kg limit is generous, the physical dimensions of the camera also matter. Very long lens setups may require the use of the included lens support bracket to prevent vibrations.
• Power System: It uses three 18650 rechargeable Li-ion batteries. It is recommended to use the original Zhiyun-branded batteries or high-discharge equivalents to ensure the motors receive consistent voltage.
• Cables: The stabilizer comes with a suite of control cables (Micro to Micro USB, Micro to Mini USB, Sony Multi-camera Control Cable, and Panasonic Camera Control Cable). Using the correct cable is essential for the OLED interface and follow focus wheel to function.
• Mounting: The 1/4"-20 thread at the bottom is standard, but for professional use, it is often paired with a dual-handle grip to distribute the weight of a 5kg total rig (gimbal + camera + lens) over both arms, reducing operator fatigue.

Limitations and Alternative Considerations

While the Zhiyun Crane 2 is a robust tool, it has specific limitations that may lead a professional to choose a different model. The most notable limitation is its own weight; at 1.25kg without batteries or a camera, a fully loaded rig can exceed 5kg. For long-duration handheld shooting without a vest or dual-handle grip, this can lead to significant physical strain. Operators looking for a lighter setup for vlogging or travel might prefer the Crane Plus or the newer Crane M series, which are significantly smaller but have much lower payload capacities.

Another consideration is the "Inception Mode" or 360-degree barrel roll. While the Crane 2 can perform this, it is not as seamless or automated as it is on later models like the Crane 3S or the Crane 2S, which have updated axis designs to allow for infinite rolling without hitting the gimbal arms. Additionally, for users shooting with large cinema cameras like the RED Komodo, Blackmagic URSA Mini Pro, or the Sony FX6, the Crane 2’s physical clearance is insufficient. These cameras require the larger frame and higher torque of the Zhiyun Crane 3S or a DJI Ronin 2. Finally, the digital follow focus is primarily optimized for Canon; users of other brands may find the electronic focus less responsive or may need to rely entirely on an external mechanical motor, which adds complexity to the balancing process.

• Zhiyun Crane 2 3-Axis Handheld Gimbal Stabilizer with Follow Focus 3.2kg Payload OLED Display 18hrs Long Runtime for all DSLR cameras
• Instant attitude compensation
• The gimbal body of crane weighs only 950g (excluding batteries)
• It empowers you to shoot steady and smooth streams easily and alone with all imaginable angles of view
