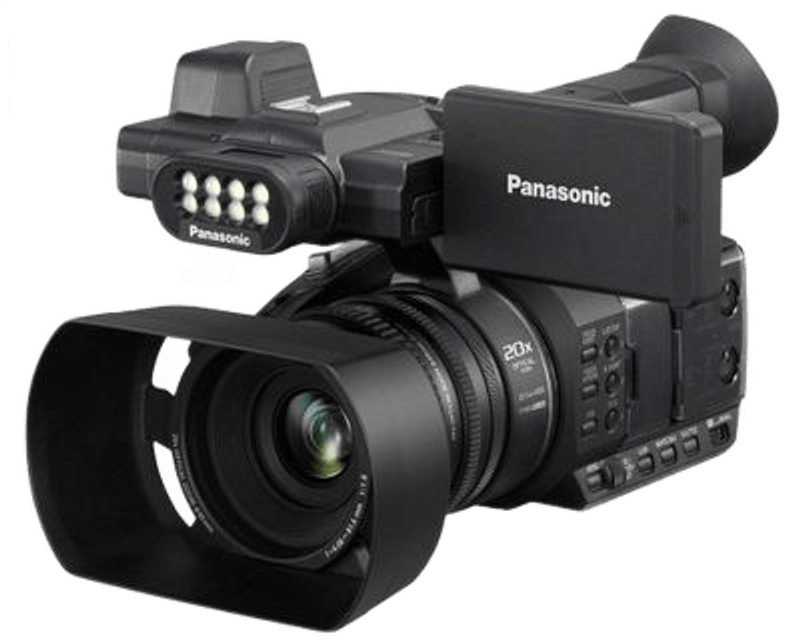

HC-PV100GW Professional Camcorder (Black)

The Core Architecture of the Panasonic HC-PV100GW

The Panasonic HC-PV100GW is a professional handheld camcorder built around a 1/3.1-inch BSI (Back-Illuminated Structure) MOS sensor. This sensor configuration is specifically designed to maximize light intake by relocating the circuitry that typically blocks light in conventional sensors to the rear of the photodiode layer. With an effective pixel count of 6.03 megapixels in a 16:9 aspect ratio, the imaging system is optimized for Full HD acquisition. It occupies a specific niche in the manufacturer’s lineup as a dedicated "event" camcorder, prioritizing physical manual controls and integrated lighting over the large-sensor aesthetics found in cinema lines. The optical formula is centered on a fixed 20x optical zoom lens, providing a 35mm equivalent focal range of 29.5mm to 612mm. This wide-to-telephoto reach allows the operator to capture wide-angle environmental shots and tight close-ups of distant subjects without changing lenses, a critical requirement for news gathering and live event documentation.

Optical Performance and Integrated Illumination

The lens system of the Panasonic HC-PV100GW features an aperture range of f/1.8 at the wide end to f/3.6 at the maximum telephoto extension. This relatively fast aperture at 29.5mm assists in maintaining lower gain levels in indoor environments. The optical design incorporates a 4-drive lens system, which manages four lens groups independently to reduce the physical size of the lens barrel while maintaining a 20x zoom ratio. One of the defining hardware features of this model is the integrated LED video light built into the handle. This light provides an average illumination of 300 lx at a distance of one meter, which is sufficient for filling in shadows during interviews or providing a primary light source in pitch-black environments. The light operates at a color temperature of approximately 5000K. Panasonic includes two clip-on filters with the unit: a diffusion filter to soften the light output and a color conversion filter that shifts the temperature to approximately 3000K for better blending with tungsten ambient light.

Handling, Manual Control, and Physical Interface

Unlike consumer-grade camcorders that rely on touchscreen menus for exposure adjustments, the Panasonic HC-PV100GW utilizes a triple manual ring system on the lens barrel. These three independent rings allow for simultaneous, tactile control over focus, zoom, and iris (aperture). This layout is essential for professional operators who need to perform "rack focus" or smooth iris pulls during a live take. The camcorder also features an illuminated LED ring on the lens barrel that serves as a tally lamp; it glows blue to indicate the camera is in standby mode and turns red when recording is active. For monitoring, the device provides two options: a 3.0-type LCD touch panel with 460,800 dots of resolution that slides out from the handle, and a 0.24-type Electronic Viewfinder (EVF) with 1,555,200 dots. The EVF is tiltable, allowing for comfortable operation when the camera is held at chest level or mounted on a tripod at varying heights. The chassis includes two-channel XLR audio inputs with +48V phantom power, allowing for the connection of professional shotgun or lapel microphones with independent volume dials for each channel.

Video Specifications and Recording Formats

The Panasonic HC-PV100GW records exclusively in High Definition, supporting MOV, MP4, and AVCHD Progressive formats. In the MOV and MP4 containers, the camera achieves a maximum bit rate of 50Mbps at 1920x1080 resolution and 50p/60p frame rates. For projects requiring longer recording times or compatibility with legacy editing systems, the AVCHD mode offers bit rates ranging from 5Mbps to 28Mbps. The camera utilizes dual SDXC card slots, which enable two distinct professional recording modes:

• Relay Recording: When the first card reaches capacity, the camera automatically switches to the second card without interrupting the video file. This allows for virtually unlimited continuous recording, limited only by the number of cards available.
• Simultaneous Recording: The camera writes the same data to both cards at once, creating an instant backup in the field in case of card failure.

Operational Scenarios in the Indian Market

In a Bengaluru wedding reception held in a dimly lit banquet hall, the 1/3.1-inch BSI sensor and the built-in LED light become the primary tools for the videographer. The 20x zoom allows the operator to stand at the back of the hall and capture the "thali" ceremony or exchange of rings at 612mm (equivalent) without intruding on the stage. When the couple moves into the crowd, the built-in LED light with the diffusion filter provides enough fill to keep faces clear against dark backgrounds without the need for an external battery-powered light rig. The triple manual rings allow the operator to adjust the iris instantly as the couple moves under different spotlights.

During a Mumbai corporate seminar or a long-form press conference, the dual SD slots are the most critical feature. A single 64GB card can hold several hours of AVCHD footage, but for a four-hour session, the Relay Recording ensures that the transition between cards is seamless. The XLR inputs allow the camera to take a direct line-out from the venue's audio mixer into Channel 1, while a shotgun mic on Channel 2 captures ambient room sound or audience questions, providing a fail-safe audio backup.

For a Goa travel documentary or outdoor news report, the 5-Axis HYBRID O.I.S. + is essential. When shooting from a moving vehicle or walking alongside a subject on uneven terrain, the stabilization system compensates for the high-frequency vibrations of the engine and the low-frequency sway of the operator's gait. The 29.5mm wide-angle setting is sufficiently wide to capture the landscape or the interior of a small shop, while the physical buttons for Gain, White Balance, and Shutter Speed allow the operator to react to the rapidly changing light of a coastal sunset without diving into digital menus.

Compatibility, Media, and Power

The Panasonic HC-PV100GW uses the industry-standard 49mm filter thread, making it compatible with a wide range of circular polarizers, ND filters, and UV protectors. For power, it utilizes the VW-VBD series batteries (such as the VW-VBD58), which are high-capacity lithium-ion packs that provide several hours of continuous operation. The camera is also compatible with the AG-VBR series batteries used in higher-end Panasonic cinema cameras. Media requirements are straightforward: the camera accepts SD, SDHC, and SDXC cards. For the 50Mbps recording modes, a Class 10 or UHS-I Speed Class 3 (U3) card is required to ensure the write speed keeps pace with the data stream. The dual XLR inputs are standard 3-pin configurations, compatible with any professional microphone from brands like Sennheiser, Rode, or Shure. For monitoring on external displays or mixers, the camera provides a full-size HDMI Type A output, which is more robust than the micro-HDMI ports found on smaller mirrorless cameras.

Limitations and Alternative Recommendations

While the Panasonic HC-PV100GW is a highly capable tool for event work, it has specific hardware limitations that may make it unsuitable for certain productions. The 1/3.1-inch sensor is significantly smaller than the 1-inch sensors found in the HC-X1 or the Full Frame sensors in the Lumix S-series. This means the camera cannot produce a shallow depth of field; almost everything in the frame will remain in focus unless the subject is very close and the lens is at full telephoto. If your project requires "cinematic" background blur (bokeh), a large-sensor mirrorless camera like the Lumix GH5 or S5II would be a more appropriate choice.

Furthermore, this camcorder is capped at 1080p Full HD resolution. It does not support 4K (UHD) recording. For shooters requiring 4K delivery for future-proofing or the ability to crop in post-production, the Panasonic HC-X1500 or HC-X20 would be the logical step up within the same ecosystem. The low-light performance, while improved by the BSI architecture, will still show visible noise at high gain settings (above 12dB or 15dB) compared to cameras with larger physical pixels. Finally, the fixed lens means you cannot swap for specialized glass like ultra-wide fisheyes or macro lenses; you are limited to the 29.5mm-612mm range provided by the integrated optics.

Panasonic PV100 with Simplex Portra Lights, 2 Regular Batteries and  1 Jumbo battery available.
