The Engineering of the Tilta Nucleus-N (Nano)

The Tilta Nucleus-N (Nano) is a highly compact, wireless lens control system designed specifically for mirrorless camera setups and handheld gimbal stabilization. It functions as a single-channel system, meaning it is engineered to control one lens axis—typically focus—though it can be mapped to iris or zoom if required. Within the Tilta ecosystem, the Nucleus-N sits as the lightweight, streamlined alternative to the larger Nucleus-M system. While the Nucleus-M is built for high-torque cinema lenses and multi-channel operation, the Nano is optimized for the physical constraints of gimbals like the DJI Ronin series or Zhiyun Crane, where every gram of payload affects motor performance and balance.

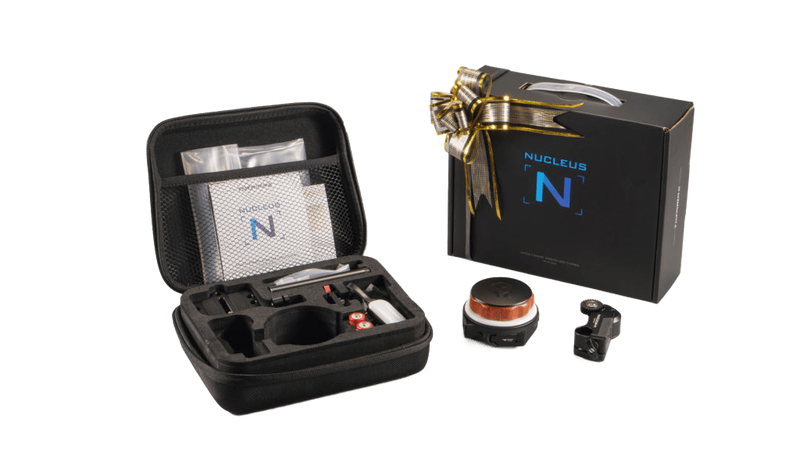

The system consists of two primary hardware components: the Nano Handwheel Controller and the Nano Focus Motor. The motor utilizes a standard 0.8 mod pitch gear, which is the industry standard for cinema lenses and follow-focus gear rings. The controller communicates with the motor over a 2.4GHz wireless frequency, providing a reliable connection up to a range of 300 feet (approximately 90 meters) in clear line-of-sight conditions. This allows the camera operator to maintain focus control while the camera is mounted on a gimbal, or for a dedicated focus puller to operate remotely from a short distance. The design intent focuses on the solo operator or small crew who require precision focus pulling without the bulk of a full-scale wireless FIZ (Focus, Iris, Zoom) system.

Torque, Latency, and Precision Control

The performance of the Tilta Nucleus-N (Nano) is defined by its motor torque and signal responsiveness. The motor is capable of generating 0.65 Nm of torque when powered at 5V via its Micro USB port. This torque level is specifically calibrated for the relatively light rotation of modern mirrorless lenses, such as the Sony FE or Canon RF series. When the motor is powered via a higher voltage source (up to 18V using a D-Tap to Micro USB cable), the torque increases, allowing it to drive slightly stiffer lenses, though it remains optimized for photo-style glass or lightweight cine-primes.

Precision is maintained through a high-resolution internal encoder. The handwheel features a fluid, dampened feel that mimics the tactile resistance of a mechanical follow focus. This dampening is critical for making smooth, slow focus racks where digital "stepping" would otherwise be visible in the footage. The 2.4GHz transmission protocol is designed for low latency, ensuring that the physical movement of the handwheel is translated into motor rotation with no perceptible delay. This instantaneous response is vital when shooting at wide apertures like f/1.4 or f/1.8, where the depth of field is measured in millimeters and any lag in focus adjustment would result in a missed shot.

Build Quality, Mounting, and Power Management

The physical construction of the Tilta Nucleus-N (Nano) prioritizes weight reduction without sacrificing structural integrity. The motor weighs approximately 76 grams, making it one of the lightest wireless motors available. It features a built-in 15mm rod clamp, allowing it to be mounted directly onto a standard 15mm rail. For setups without a rail system, the kit typically includes a 15mm rod attachment that can be secured to a gimbal’s quick-release plate or a camera cage.

The Handwheel Controller is powered by a single 3.7V 14500 lithium-ion battery. These batteries provide roughly six hours of continuous operation, depending on the frequency of focus movements. The handwheel itself is designed to be versatile in its mounting; it can be held as a standalone unit, or it can be attached to the gimbal’s handle using the included adapter. This allows the operator to pull focus with their thumb while simultaneously steering the gimbal. The motor is powered via a 5V Micro USB port. While it can be powered by the camera’s USB output or a portable power bank, it is most commonly powered via the 5V power output on a gimbal’s tilt motor or a D-Tap port on a V-mount battery plate. It is important to note that the motor does not have an internal battery; it requires a constant external power source to function.

Operational Features and Calibration

The Tilta Nucleus-N (Nano) features an automated calibration routine that is essential for protecting both the motor and the lens. When using a lens with hard physical stops (common in cinema lenses), the motor can be set to auto-calibrate. It will rotate until it hits the near and far focus limits, mapping the handwheel’s full rotation to the lens’s focus throw. For photo lenses that have "infinite" focus rings with no hard stops, the system allows for manual calibration. The user can manually set the "A" and "B" points, defining the start and end of the focus range to prevent the motor from spinning fruitlessly or putting undue stress on the lens barrel.

The handwheel also supports A-B markers, which allow the user to set specific limits within the focus throw. This is particularly useful for shots that require racking focus between two specific subjects at different distances. By setting these markers, the operator can move the handwheel quickly and confidently, knowing the motor will stop exactly at the pre-defined points. Additionally, the system supports Run/Stop functionality for a variety of cameras. By using optional, camera-specific cables, the operator can trigger recording directly from the handwheel, which is a significant ergonomic advantage when the camera is mounted on a gimbal and the body's record button is difficult to reach.

On the Shoot: Real-World Indian Scenarios

In a Bengaluru wedding reception, the environment is often characterized by low, atmospheric lighting and high-speed movement on the dance floor. A cinematographer using a Sony A7S III on a gimbal with a 35mm f/1.4 lens faces the challenge of maintaining focus on the couple amidst moving guests. The Tilta Nucleus-N (Nano) allows the operator to mount the handwheel to the gimbal handle, enabling them to adjust focus with their thumb as the couple moves toward or away from the camera. The low latency ensures that even at f/1.4, the focus can stay locked on the eyes, preventing the "hunting" often associated with older autofocus systems in dim light.

During a travel shoot in Goa, portability is the primary concern. A solo creator filming a motorcycle journey along the coast needs a rig that can be stripped down and packed into a single backpack. The Nano’s small footprint means it can remain mounted on the camera and gimbal setup without adding significant bulk. When filming b-roll of local markets or beach sunsets, the manual calibration feature allows the creator to use lightweight, vintage manual lenses, giving the footage a specific aesthetic character that modern autofocus lenses cannot replicate. The ability to power the motor directly from the gimbal’s accessory port simplifies cable management, reducing the risk of snags during fast-paced shooting.

In a Mumbai studio product session, precision is paramount. When filming a high-end watch or jewelry, the camera is often equipped with a macro lens where the depth of field is extremely shallow. The Tilta Nucleus-N (Nano) allows the focus puller to stand away from the table, viewing a high-resolution monitor and making micro-adjustments to the focus. The dampened handwheel provides the necessary control to slowly roll the focus across the texture of a watch face or the facets of a gemstone. In this controlled environment, the A-B limits are used to ensure the focus rack starts and ends exactly on the product’s branding, ensuring every take is technically perfect.

Compatibility and Pairing

The Tilta Nucleus-N (Nano) is designed for broad compatibility across the mirrorless and DSLR landscape. It pairs seamlessly with cameras such as the Sony Alpha series (A7 IV, A7S III, A1), the Panasonic GH5 and GH6, the Canon EOS R series, and the Blackmagic Pocket Cinema Camera 4K and 6K. Because it uses a standard 0.8 mod gear, it is compatible with almost all cinema lenses from manufacturers like XEEN, Sigma Cine, and DZOFILM. For photo lenses that lack built-in gears, the kit includes follow-focus gear rings that can be tightened around the lens barrel.

In terms of support hardware, the Nano is most effective when paired with a gimbal that provides a 5V power output, such as the DJI RS 2, RS 3 Pro, or the Zhiyun Weebill series. For power-hungry setups, pairing the motor with a D-Tap to Micro USB cable and a V-mount battery allows for higher torque and longer run times. The handwheel can also be paired with the Tilta Nucleus-M motors if a user decides to upgrade their motor but prefers the smaller handwheel for specific shots. It is also compatible with the Tilta Gravity G2X and other gimbal systems that utilize a 15mm rod mount for accessories.

Limitations and Alternative Choices

While the Tilta Nucleus-N (Nano) is a powerful tool for its size, it has specific limitations that may necessitate a different choice of equipment. The primary limitation is motor torque. Because the motor is small and typically powered by 5V, it may struggle with heavy, stiff, or vintage cinema lenses that have high mechanical resistance. If you are shooting with older PL-mount glass or large cine-zooms, the Tilta Nucleus-M is the more appropriate choice, as its motors are significantly more powerful and designed for 14.8V power as standard.

Another limitation is the single-channel nature of the system. If a production requires simultaneous control of focus, iris, and zoom, the Nano is insufficient. A multi-channel system like the Nucleus-M or a Teradek RT system would be required to handle three separate motors from a single controller. Furthermore, the 2.4GHz frequency, while reliable, can face interference in environments with extremely high wireless traffic, such as major tech trade shows or dense urban centers with hundreds of overlapping Wi-Fi networks. In these rare cases, a system with frequency hopping or a wired connection option might be more stable. Finally, the use of 14500 batteries in the handwheel is a specific requirement; users must ensure they have these specific 3.7V cells, as standard AA or AAA batteries will not fit or provide the correct voltage.
