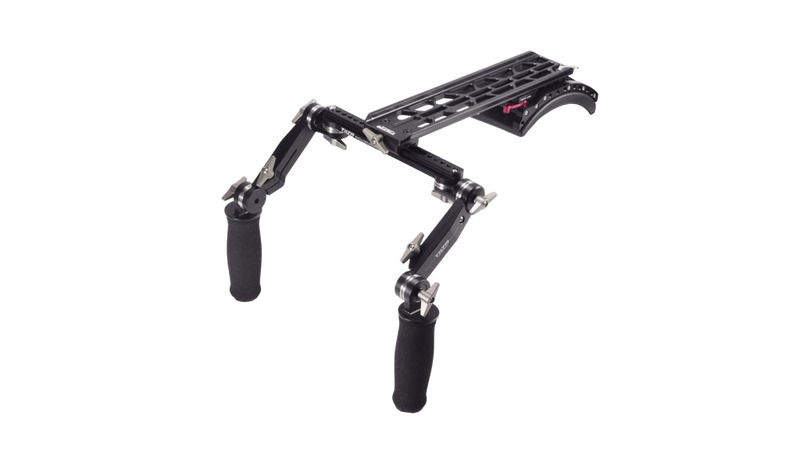

Shoulder rig 19mm

The 19mm Studio Standard and Cinema Support Hierarchy

The Shoulder rig 19mm represents the heavy-duty tier of camera stabilization, designed specifically for high-end cinema environments where payload weight exceeds the structural limits of the 15mm Lightweight Support (LWS) standard. While 15mm rods are spaced 60mm apart and are typically used for mirrorless or small-form-factor cinema cameras, the 19mm studio system utilizes rods spaced 104mm apart from center to center. This increased width and the 19mm diameter of the rods provide the torsional rigidity required to support large-format sensors, heavy cinema zooms, and complex accessory chains without flexing or mechanical failure. This rig is the foundational support for cameras such as the ARRI Alexa 35, Sony Venice 2, and RED V-Raptor when equipped with high-capacity batteries and long-range wireless transmitters.

In the hierarchy of camera support, the 19mm system is positioned as the "Studio" standard. It is engineered for stability over portability, prioritizing the precise alignment of optical accessories. Because the rods are thicker and the spacing is wider, the rig can maintain the 85mm distance from the rod center to the optical center of the lens, which is the global standard for professional matte boxes and follow focus units. This ensures that when a lens is swapped, the height of the accessories remains constant, provided the camera is mounted on a compatible bridge plate. This rig is designed for cinematographers who require a "locked-in" feel when operating from the shoulder, eliminating the micro-jitters often associated with thinner, more flexible rod systems.

Structural Integrity and Mechanical Design

The core of the Shoulder rig 19mm is its mechanical architecture, which relies on high-grade T6061 aluminum or carbon fiber components to manage heavy payloads. The primary bridge plate is the most critical component, often featuring a sliding dovetail mechanism that allows for rapid balancing. Unlike consumer-grade rigs, the 19mm system uses ARRI-standard rosettes with 60 teeth, providing a secure, non-slip connection for the handle arms. This is essential when the total camera package exceeds 15kg, as friction-based joints would likely slip under the weight. The rosettes allow for 360-degree rotation, enabling the operator to position the handgrips exactly at their center of gravity, which reduces fatigue during long takes.

The 19mm rods themselves are typically stainless steel or thick-walled aluminum. Stainless steel is preferred for studio configurations where weight helps dampen vibrations, while aluminum is used for shoulder-mounted work to keep the total mass manageable. These rods support the lens motor systems, such as the ARRI CLM or Preston DM2 motors, which exert significant torque when driving heavy cinema glass. A 19mm system ensures that this torque does not twist the rods, which would otherwise cause the gears to skip or lose calibration. The shoulder pad is usually constructed from high-density memory foam or contoured gel, designed to distribute the weight across the trapezius muscle rather than resting directly on the collarbone.

Mounting Precision and Handling Dynamics

Handling a 19mm rig on a professional set requires an understanding of the ARRI dovetail system. The Shoulder rig 19mm typically interfaces with a 12-inch or 18-inch dovetail plate. This allows the operator to slide the entire camera package forward or backward to achieve perfect balance, regardless of whether a heavy anamorphic lens or a lightweight prime is mounted. The bridge plate features a locking lever that secures the camera to the rods with zero play. This rigidity is vital when using wireless follow focus systems; any movement between the camera body and the rods would result in inaccurate focus pulls.

On a shoot, the handling is characterized by its "mass-positive" stability. While a lighter rig is easier to pick up, a 19mm rig uses its own inertia to smooth out the operator's natural movements. The handgrips are often telescoping, allowing the operator to extend the arms for better leverage or tuck them in for tight spaces. The inclusion of 1/4"-20 and 3/8"-16 mounting points across the cage and handle arms allows for the attachment of on-board monitors, such as the SmallHD Ultra 5 or Cine 7, and wireless video transmitters like the Teradek Bolt 6, without compromising the rig's balance. The quick-release nature of the bridge plate means the camera can transition from the shoulder rig to a fluid head (like an O'Connor 2575D) in seconds, provided the tripod is also equipped with a matching 19mm studio bridge plate.

Cinema Integration and Accessory Compatibility

The Shoulder rig 19mm is built to accommodate the most demanding cinema accessories. Matte boxes such as the ARRI MB-20 or Bright Tangerine Strummer DNA are designed specifically for 19mm studio rods. These matte boxes often feature "swing-away" designs, which allow the DP to change lenses without removing the matte box from the rods. The 19mm standard ensures that the matte box remains perfectly centered with the lens, preventing light leaks or vignetting that can occur if the support system is misaligned. Furthermore, heavy-duty lens supports are a staple of this rig, providing a physical brace for lenses like the Fujinon HK Premiere zooms, which can weigh over 5kg.

Power management is another area where the 19mm rig excels. The rear of the rig often features a battery plate (V-Mount or Gold Mount) that acts as a counterweight. This plate is usually mounted on the 19mm rods behind the shoulder pad, allowing the operator to use high-capacity batteries (such as 150Wh or 290Wh blocks) to power the camera, monitor, and wireless motors simultaneously. This integration turns the camera into a self-contained unit, free from umbilical cables that could trip crew members or restrict movement. The rig's design also accounts for cable management, with dedicated channels or tie-down points to keep BNC and Lemo cables from snagging during fast-paced operation.

The Rig in Professional Indian Production Scenarios

In a Mumbai studio during a high-end commercial shoot for a jewelry brand, the Shoulder rig 19mm is indispensable. When shooting with a Sony Venice 2 and a heavy macro lens for extreme close-ups, the rig provides the necessary mass to prevent micro-vibrations that would be magnified at such high focal lengths. The operator can use the 19mm studio bridge plate to slide the camera back for a comfortable shoulder-mounted "lifestyle" shot, then quickly slide it onto a pedestal for a precision product shot, all while maintaining the exact alignment of the follow focus motors and the matte box.

During a large-scale destination wedding in Bengaluru, where the cinematography team is using an ARRI Alexa Mini LF to capture a high-energy Baraat procession, the 19mm rig offers the durability needed for hours of continuous use. The high-density shoulder pad and the ability to perfectly balance a 10kg+ setup mean the operator can move through the crowd, capturing stable, cinematic footage that would be impossible with a handheld mirrorless setup. The rig's 19mm rods easily support the large V-mount batteries required to keep the Alexa running through the long ceremony without frequent power cycles.

On a feature film set in the humid, sandy environment of a Goa beach, the Shoulder rig 19mm demonstrates its ruggedness. The stainless steel rods and hard-anodized aluminum components resist corrosion from salt air. When the production requires a "walk-and-talk" sequence along the shoreline, the rig's stability allows the operator to maintain a steady frame even while walking on uneven sand. The 19mm system's ability to hold a heavy matte box with multiple 6.6x6.6 filters is crucial here, as the DP may need to stack ND filters and polarizers to manage the harsh coastal sunlight without worrying about the filters shifting or the rods sagging.

Compatibility, Standards, and Essential Pairings

The Shoulder rig 19mm is built around several industry-standard specifications that dictate its compatibility. The most important is the 104mm rod spacing and the 19mm rod diameter. It is essential to pair this rig with a 19mm Studio Bridge Plate (such as the ARRI BP-8 or BP-9) to ensure the camera sits at the correct height. It is not natively compatible with 15mm LWS accessories unless a step-down adapter or a multi-standard bridge plate is used. The rig typically requires an ARRI-standard dovetail plate for mounting to tripods, which should be a heavy-duty fluid head capable of supporting the combined weight of the rig and camera (e.g., O'Connor 2560 or Sachtler Cine 30).

• Rods: 19mm diameter, typically in lengths of 240mm, 340mm, or 440mm.
• Rosettes: ARRI-standard (31.5mm diameter with 60 teeth and M6 threading).
• Mounting: 1/4"-20 and 3/8"-16 threaded holes for monitors and accessories.
• Dovetail: Standard 12-inch or 18-inch ARRI-style sliding plates.
• Lenses: Designed for cinema zooms and primes with front diameters up to 165mm.
• Power: Compatible with rod-mounted V-Lock or Gold Mount battery plates.

Limitations and Alternative Support Systems

While the Shoulder rig 19mm is the gold standard for stability, it is not the correct choice for every production. Its primary limitation is weight and bulk. For solo operators or those using mirrorless cameras like the Sony A7S III or Canon R5, a 19mm rig is excessively heavy and physically incompatible without significant adaptation. In these cases, a 15mm LWS (Lightweight Support) rig is far more appropriate, as it offers a smaller footprint and lower overall weight, making it easier to transport and operate for long durations without a dedicated camera assistant.

Furthermore, the 19mm rig is not suitable for gimbal work. Most handheld gimbals, such as the DJI Ronin 2 or Freefly Movi Pro, have their own proprietary mounting plates and cannot accommodate the width of 104mm spaced rods. If a shoot requires frequent transitions between shoulder-mounted and gimbal-mounted shots, a 15mm system or a dedicated gimbal-to-handheld transition plate is a more efficient choice. Additionally, for documentary filmmakers who need to remain inconspicuous or travel light, the 19mm system's requirement for large cases and heavy-duty tripods makes it a logistical burden. For those users, a minimalist handheld cage or a lightweight 15mm shoulder mount would be the superior tool.
