Over Head Pole Rig

What it is

The Over Head Pole Rig is a specialized heavy-duty support system designed to facilitate stable, perfectly vertical "top-down" or "flat-lay" perspectives that are physically impossible to achieve with a standard tripod. This configuration typically consists of two industrial-grade C-stands (Century Stands) acting as vertical pillars, connected by a reinforced telescopic or fixed-length crossbar. It is engineered to suspend a camera system directly over a subject—such as a dining table, a product display, or a floor-level set—without the support structure appearing in the frame. In the professional hierarchy of camera support, this rig sits between a tripod with a lateral arm and a full-scale overhead truss system. It is designed specifically for commercial photographers, food cinematographers, and product videographers who require a "God’s eye view" with absolute structural rigidity.

The core of the system relies on the 5/8-inch (16mm) "Baby Pin" standard, allowing it to integrate with a vast ecosystem of grip equipment. The crossbar is usually constructed from chrome-plated steel or high-grade aluminum, designed to minimize "sag" or deflection when a camera body and lens are mounted at the center of the span. Unlike a tripod with a horizontal column, which is prone to tipping due to a single point of failure, the Over Head Pole Rig distributes the payload weight across two distinct points of contact with the ground, significantly increasing the safety margin for expensive camera setups. It is the industry standard for creating "knolling" photography and "hands-in-frame" cooking videos where the camera must remain perfectly parallel to the ground surface.

Build and Mounting Stability

The structural integrity of the Over Head Pole Rig is defined by its component parts, primarily the C-stands which feature a "turtle base" design. These bases provide a low center of gravity and a staggered leg height, allowing multiple stands to be nested closely together. The vertical risers are typically 10-foot (3.04m) three-section columns, providing enough height to clear large sets while maintaining a footprint that is manageable in smaller studio spaces. The crossbar, often a 1.25-inch (32mm) diameter steel pipe or a dedicated telescopic pole, is secured to the stands using 2.5-inch grip heads (also known as "gobo heads"). These heads utilize a friction-locking T-handle and a serrated internal disc to prevent the pole from rotating under the weight of the camera.

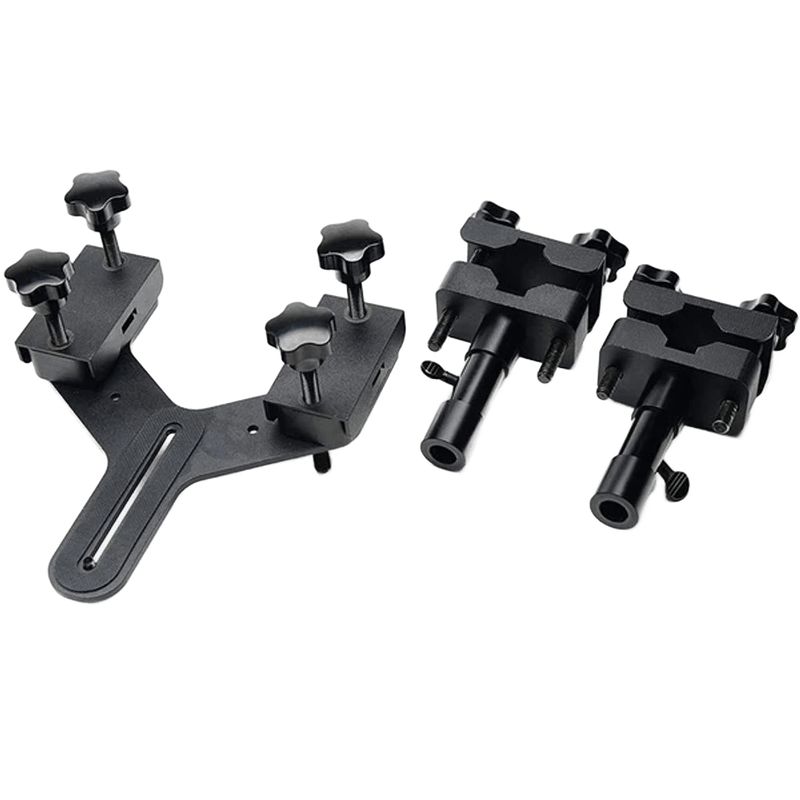

Mounting the camera to the pole requires a specialized interface, such as a Manfrotto Super Clamp (035) paired with a 90-degree speed plug or a heavy-duty ball head. This allows for micro-adjustments in the camera’s pitch and roll to ensure the sensor is perfectly level. For heavier payloads, a "junior to baby" adapter or a dedicated "pole-parter" bracket may be used to increase the surface area of the connection. The rig is designed to handle a safe working load (SWL) that varies based on the width of the span; at a 6-foot (1.8m) extension, a high-quality steel rig can typically support up to 10kg (22 lbs), which comfortably accommodates a full-frame mirrorless camera, a cinema prime lens, and a wireless video transmitter. However, as the span increases to 10 or 12 feet, the weight capacity drops significantly due to the physics of leverage and potential tube bowing.

Handling and Real-World Operation

Operating an Over Head Pole Rig requires a specific workflow to ensure both safety and precision. The "Right-Hand Rule" is the most critical aspect of handling: the grip heads must be oriented so that the weight of the crossbar naturally tightens the locking handle rather than loosening it. On a real shoot, the rig’s primary advantage is the elimination of the "tripod leg shadow" and the physical obstruction that standard supports create for the operator or talent. Because the camera is suspended high above the set, the floor remains clear for lighting stands, reflectors, and the movement of the crew.

Leveling the rig is achieved through a combination of the C-stand’s sliding legs (on "Rocky Mountain" versions) and the adjustment of the grip heads. In practice, a digital level or a bubble level placed on the camera’s LCD or the crossbar is essential. Once the height is set, the rig is typically "sandbagged" at the base of each C-stand. A standard 15kg (33 lb) sandbag should be draped over the tallest leg of each stand to counter the weight of the overhead arm. This prevents the rig from shifting if it is accidentally bumped or if the floor is uneven. The handling of the camera itself—focusing, changing settings, or triggering the shutter—is almost always done remotely, as touching the camera while it is suspended can introduce vibrations that take several seconds to dissipate.

Video Capability and Vibration Control

For videography, the Over Head Pole Rig offers a stable platform for long-duration takes, such as "tasty-style" recipe videos or stop-motion sequences. The primary technical challenge in video is the management of micro-vibrations. Steel poles have a natural resonant frequency; if a person walks heavily near the rig or if an air conditioning unit is vibrating the floor, those movements can travel up the C-stands and manifest as "shaky cam" in the footage. To combat this, professional setups often use "muffler" weights or additional grip arms to triangulate the support and dampen movement. The rig does not have built-in dampening, so the use of a camera with In-Body Image Stabilization (IBIS) or a lens with Optical Image Stabilization (OIS) is often recommended to smooth out any residual high-frequency jitter.

Recording limits are not a factor of the rig itself, but cable management is a significant consideration for video. Because the camera is out of reach, HDMI or SDI cables must be run along the crossbar and down the C-stand to an external monitor at eye level. If these cables are not properly secured with Velcro ties or tape, their weight can pull on the camera’s ports or, in extreme cases, cause the camera to tilt slightly over time. Furthermore, the rig allows for the mounting of small LED panels or microphones directly onto the crossbar alongside the camera, creating a self-contained "overhead studio" that maintains consistent lighting and sound even if the entire rig is moved across the room.

On the Shoot

In a Mumbai commercial studio, the Over Head Pole Rig is frequently deployed for high-end food photography. When shooting a traditional Indian thali from above, the rig allows the photographer to capture the entire spread with a 35mm or 50mm lens without the distortion associated with wide-angle lenses used at lower heights. The rig stays in place for the duration of the 12-hour shoot, ensuring that every dish is captured from the exact same geometric center, which is vital for creating consistent menus or stop-motion "assembly" animations.

During a product demo shoot for a Bengaluru-based tech startup, the rig is used to film unboxing videos of new hardware. The camera is positioned 7 feet above a white cyclorama table. By using the Over Head Pole Rig, the presenter can move their hands freely across the table without hitting a tripod leg. The rig’s height allows for a 4K crop in post-production, giving the editor the ability to "zoom in" on specific details of the product without losing the top-down perspective. The stability of the steel crossbar ensures that even as the presenter interacts with the table, the frame remains rock-solid.

In a Delhi fashion house, the rig is used for "flat-lay" styling of bridal lehengas and heavy jewelry. These garments are often too large for a standard copy stand. The Over Head Pole Rig is set up with a 10-foot span, allowing the stylist to spread the garment fully on the floor. The photographer uses a tethered Capture One setup, viewing the live feed on a laptop. The rig’s ability to hold a high-resolution medium format camera perfectly parallel to the floor ensures that the intricate embroidery is in sharp focus from edge to edge, a feat that is nearly impossible to achieve with a handheld or tripod-mounted camera at an angle.

What it Pairs With

The Over Head Pole Rig is a modular system that requires specific accessories to be functional. It must be paired with at least two heavy-duty C-stands, preferably with turtle bases for stability. For the camera interface, a Manfrotto 035 Super Clamp and a 496 or 498 Ball Head are the most common choices. To ensure the safety of the equipment, a steel safety cable should always be looped through the camera’s strap eyelet and around the crossbar, providing a secondary fail-safe in case the primary clamp fails.

In terms of electronics, this rig is almost always used with a tethering cable (such as a 15-foot USB-C or Micro-B cable) to a laptop, or a wireless transmitter like a Teradek or Hollyland system. Because the camera’s built-in screen is facing the ceiling, an external monitor (like an Atomos Ninja V) mounted at eye level on one of the C-stands is essential for framing and focus. For power, rather than climbing a ladder to change batteries, a dummy battery connected to an AC adapter or a large V-mount battery strapped to the base of the C-stand is the preferred professional configuration.

Who Should Choose Something Else

While the Over Head Pole Rig is the gold standard for studio top-down shots, it is not suitable for every scenario. If the shoot requires frequent movement or "tracking" shots from above, a camera jib or a slider mounted on a truss is a better choice, as the pole rig is a static support system that is time-consuming to reposition. If the camera system exceeds 12kg (such as a fully rigged ARRI Alexa with a heavy cine zoom), a standard pole rig will suffer from significant bowing; in these cases, a professional goal-post truss made of 2-inch global trussing is required for safety.

For photographers on the move or those working in very tight residential spaces, this rig is often too cumbersome. A tripod with a 90-degree center column (like the Manfrotto 190XPRO3) is a more portable alternative, though it lacks the height and extreme stability of the pole rig. Additionally, if the goal is to capture "low-angle" shots or standard eye-level portraits, this rig is entirely unnecessary and overly complex. It is a specialized tool for a specific geometric perspective, and its utility is limited to those who need a fixed, high-altitude, vertical orientation.
