Hollyland Mars 300 Hdmi

A Dedicated Wireless HDMI Ecosystem

The Hollyland Mars 300 HDMI is a professional-grade, entry-level wireless video transmission system designed to provide a stable, long-range link between a camera and a remote monitor. It consists of two primary units: a dedicated transmitter (TX) and a dedicated receiver (RX). Within the manufacturer’s product hierarchy, the Mars 300 serves as the foundation of the Mars series, positioned as a cost-effective alternative to the high-end Cosmo series while offering significantly more reliability than consumer-grade Wi-Fi based solutions. It was engineered specifically for independent filmmakers, wedding videographers, and small-scale commercial production teams who require a wireless monitoring solution that bypasses the physical limitations and safety hazards of long HDMI cable runs. Unlike many budget systems that rely on 2.4GHz frequencies, this system utilizes the 5GHz band to ensure a cleaner signal in environments crowded with mobile devices and wireless routers.

Signal Integrity and Transmission Technology

The core of the Hollyland Mars 300 HDMI is its ability to transmit uncompressed 1080p60 video across a distance of up to 300 feet (approximately 91 meters) with a line-of-sight clearance. The system employs a 5GHz wireless frequency, which is less prone to the interference commonly found in the 2.4GHz spectrum used by most consumer electronics. To maintain signal stability, the device uses a proprietary noise reduction technology that minimizes image degradation during the transmission process. The latency is rated at approximately 0.1 seconds (100 milliseconds), which is sufficient for framing, focus pulling in non-critical scenarios, and client monitoring. The digital signal processing ensures that the color reproduction and contrast of the source material are maintained from the transmitter's input to the receiver's output, supporting a wide range of HDMI resolutions including 480p, 720p, 1080i, and 1080p at various frame rates.

Build Quality and Physical Handling

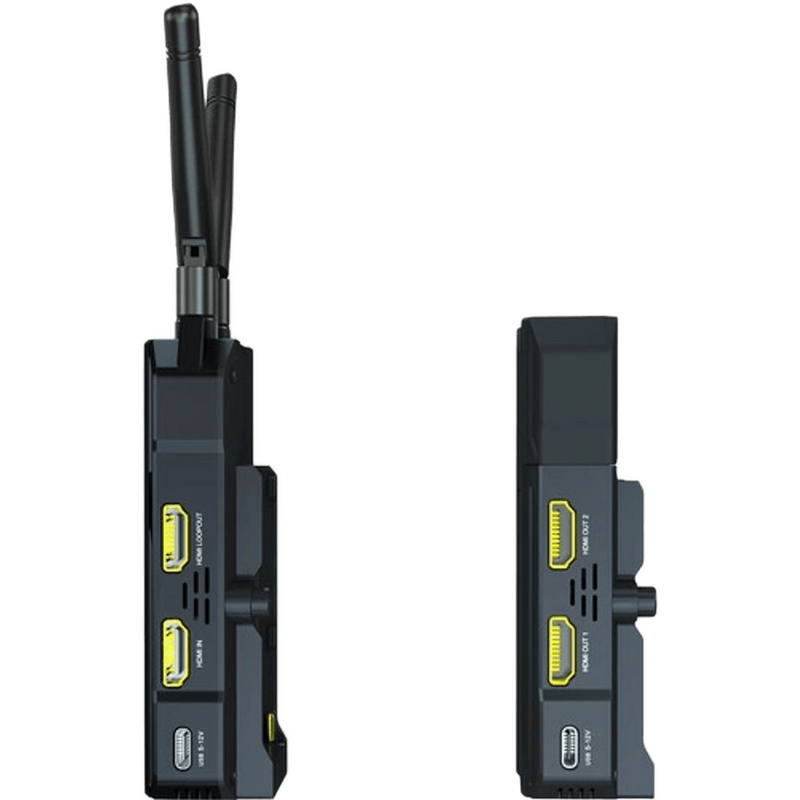

Both the transmitter and receiver are housed in a rugged, industrial-grade aluminum alloy casing. This metal construction serves two purposes: it protects the internal components from the rigors of a professional set and acts as a passive heat sink to dissipate warmth during extended periods of operation. The transmitter features an HDMI input and an HDMI loop-out port, allowing the camera operator to maintain a local on-camera monitor while simultaneously sending the signal to the receiver. The receiver is equipped with dual HDMI outputs, enabling the signal to be fed into two separate monitors or a monitor and a wireless streaming switcher simultaneously. Both units feature 1/4"-20 threaded mounting points on the bottom, allowing for easy attachment to camera cages, magic arms, or light stands. The system uses external, user-replaceable RP-SMA antennas, which provide better signal gain and directional flexibility compared to internal antenna designs. Power is managed via integrated Sony NP-F style battery plates on the rear of each unit, or through a 6-16V DC barrel input for continuous power from a D-Tap source or wall outlet.

Video Specifications and Format Support

The Hollyland Mars 300 HDMI is strictly an HDMI-based system, supporting a maximum resolution of 1920 x 1080 at 60 frames per second. It is compatible with a broad array of progressive and interlaced formats, including 1080p (60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps), 1080i (60, 59.94, 50 fps), and 720p (60, 59.94, 50 fps). It is important to note that the device does not perform internal scaling; the input resolution provided by the camera must match a supported format for the receiver to display the image correctly. The system does not support 4K input or output, nor does it support HDR metadata transmission. The audio is embedded within the HDMI signal, supporting two channels of 24-bit 48kHz uncompressed audio, ensuring that the remote monitor or recorder receives a synchronized scratch track or high-quality audio feed directly from the camera’s internal processing.

Operational Scenarios in the Indian Production Context

In a high-pressure wedding environment, such as a large-scale reception in a Bengaluru banquet hall, the Hollyland Mars 300 HDMI addresses the challenge of navigating a crowded floor. With hundreds of guests carrying smartphones, the 5GHz transmission helps the videographer move freely with a gimbal while the director or client views the live feed at a stationary monitoring station up to 300 feet away. The metal build is particularly useful here, as it survives the inevitable bumps and knocks of a fast-moving event. In a Mumbai-based corporate studio setting, the system is used to provide a "client monitor" feed. By using the HDMI loop-out on the transmitter, the cinematographer can use a high-brightness 7-inch monitor for focus, while the receiver sends a clean feed to a 24-inch production monitor in the client lounge, eliminating the need for long, trip-hazard cables across the studio floor. For a travel documentary shoot in Goa, the compact footprint of the Mars 300 allows it to be powered by small NP-F550 batteries, keeping the overall rig weight low enough for handheld operation on beaches or in remote outdoor locations where mains power is unavailable.

Compatibility and Integration

The Hollyland Mars 300 HDMI is designed for universal compatibility with any camera featuring a standard HDMI output. This includes popular mirrorless and DSLR bodies such as the Sony A7 series, Panasonic GH series, Canon EOS R, and the Blackmagic Pocket Cinema Camera line. Because it uses the standard Sony NP-F battery mount (L-series), it integrates seamlessly into existing workflows where these batteries are already used for monitors or LED lights. For mounting, it pairs effectively with articulating friction arms (magic arms) or cold-shoe-to-1/4"-20 adapters. When used in conjunction with a gimbal like the DJI Ronin or Zhiyun Crane, the transmitter can be powered via the gimbal’s DC output using a compatible cable, reducing the weight on the camera's tilt axis. The dual HDMI outputs on the receiver make it compatible with all standard field monitors, such as those from Atomos, SmallHD, or FeelWorld, as well as HDMI-to-USB capture cards for live streaming applications.

Limitations and Alternative Considerations

While the Hollyland Mars 300 HDMI is a robust tool for many, it has specific limitations that may necessitate a different product choice. It lacks SDI inputs and outputs, making it unsuitable for high-end cinema cameras like the Arri Alexa or RED V-Raptor without the use of external converters. Users requiring a transmission range beyond 300 feet should look toward the Mars 400S Pro or the Cosmo series, which offer ranges of 400 to 2000 feet. This specific model does not feature mobile app monitoring; if the ability to view the feed on an iPad or smartphone is required, the Mars 300 Pro or Mars 400S Pro would be the appropriate upgrade. Furthermore, the 0.1s latency, while low, may be noticeable for high-speed action or critical focus pulling on very fast lenses (e.g., f/1.2), where a zero-latency bolt-style system would be preferred. Finally, the system does not support 4K signals; if the production workflow requires a 4K monitoring path, a more advanced transmission system or a direct wired connection is necessary.

• Transmission Range: 300ft (Line of Sight)
• Frequency Band: 5GHz
• Maximum Resolution: 1080p60
• Input/Output (TX): 1x HDMI In, 1x HDMI Loop-Out
• Output (RX): 2x HDMI Out
• Battery Support: Sony NP-F (L-Series)
• Power Consumption: <6W (TX), <5W (RX)
• Latency: <0.1s
• Construction: Aluminum Alloy
• Antennas: External RP-SMA (Removable)
