Sdi To Hdmi Converter

The Role of the SDI to HDMI Converter in Professional Broadcast

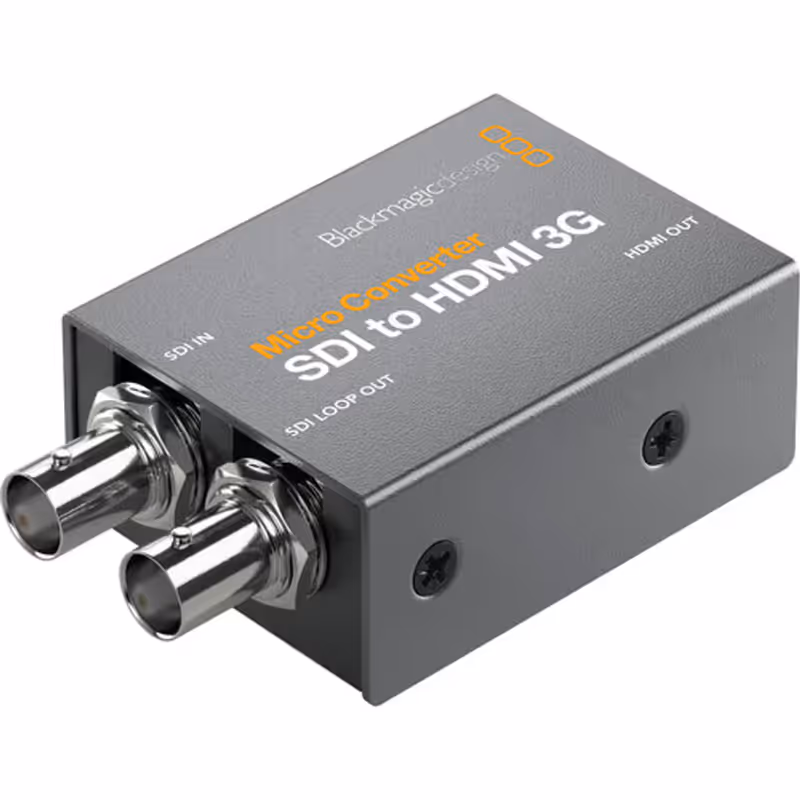

The SDI to HDMI Converter, specifically the broadcast-grade 3G models manufactured by industry leaders like Blackmagic Design, serves as the critical bridge between professional cinema equipment and consumer or prosumer monitoring solutions. In the hierarchy of video production, Serial Digital Interface (SDI) is the standard for reliability and long-distance transmission, while High-Definition Multimedia Interface (HDMI) is the standard for display ubiquity. This converter is designed for cinematographers, digital imaging technicians (DITs), and live broadcast engineers who need to feed a signal from a high-end camera—such as an Arri Alexa, Sony Venice, or RED V-Raptor—into a standard HDMI television, projector, or affordable production monitor. Unlike consumer-grade adapters, this professional converter is engineered to maintain signal integrity over 3G-SDI, supporting bitrates up to 2.97 Gbps. It sits in the lineup as a utility tool, essential for any set where the camera output does not match the display input, or where the distance between the camera and the monitor exceeds the 5-meter reliable limit of standard HDMI cabling.

Signal Integrity and Technical Processing

The primary technical advantage of a professional SDI to HDMI Converter lies in its signal processing capabilities. It utilizes 10-bit video processing to ensure that the color depth and gradients captured by the camera sensor are not compressed or banded during the conversion process. The device supports YUV 4:2:2 sampling, which is the broadcast standard for color representation, ensuring that the chroma and luma information remains accurate to the source. A critical feature within this unit is SDI re-clocking. When a digital video signal travels over long lengths of copper BNC cable, it suffers from "jitter"—a timing instability that can lead to signal dropouts or digital noise. The converter’s internal re-clocking mechanism regenerates the SDI signal at the input stage, aligning the data packets before converting them to HDMI. This allows the converter to work reliably at the end of cable runs that can reach up to 100 meters for 3G-SDI signals, providing a stable, flicker-free image on the HDMI display that would be impossible with a direct HDMI connection.

Build Quality and Field Handling

Designed for the rigors of a working film set, the SDI to HDMI Converter is typically housed in a rugged, laser-cut metal chassis. This is not merely for durability; the metal housing acts as a heat sink, dissipating the thermal energy generated by the high-speed FPGA (Field Programmable Gate Array) chips inside during continuous 24/7 operation. The physical footprint is intentionally small, often no larger than a deck of cards, allowing it to be Velcro-mounted to the back of a monitor or tucked into a cable tray. Power is usually delivered via a 5V micro-USB or USB-C port, which provides significant flexibility on location. It can be powered directly from a camera’s USB accessory port, a V-mount battery’s D-Tap to USB adapter, or a standard mobile power bank. The BNC connectors are industrial-grade, designed to lock securely and withstand the mechanical stress of heavy RG6 or RG59 cables. The HDMI port is typically reinforced to prevent the port from shearing off the internal PCB—a common failure point in cheaper, plastic alternatives.

Video Standards and Format Support

The SDI to HDMI Converter is built to handle a wide array of television and cinema standards. It automatically detects the incoming signal format and switches its internal processing to match. Supported resolutions include standard definition (NTSC and PAL), 720p, 1080i, and 1080p. In terms of frame rates, it covers the full spectrum required for global production: 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, and 60 frames per second. It is compatible with both Level A and Level B 3G-SDI, which is a vital distinction for professionals using older legacy gear alongside modern high-frame-rate cameras. Furthermore, many professional versions of this converter include 3D LUT (Look-Up Table) support. This allows a DIT to load a specific color grade (.cube file) into the converter via software. When the flat, "Log" footage from a cinema camera enters the converter, it applies the LUT in real-time, so the director and clients viewing the HDMI monitor see a finished, color-corrected image rather than a grey, desaturated signal.

On the Shoot: Real-World Indian Scenarios

In a Mumbai studio product session, the SDI to HDMI Converter is frequently used to facilitate "Client Village." While the cinematographer monitors the feed on a high-end SDI OLED, the production house often provides a 55-inch 4K HDMI television for the agency and brand managers. The converter takes the secondary SDI output from the camera, applies a Rec.709 LUT so the product colors look vibrant and accurate, and feeds the television via a short HDMI cable. This ensures the client sees exactly what the camera sees without requiring the rental of multiple expensive broadcast monitors.

During a large-scale wedding reception in Bengaluru, the distance between the stage and the vision mixer (located at the back of the hall) can easily exceed 60 meters. HDMI cables fail at these distances. The videography team runs a single, durable SDI cable from the camera on the jib to the mixer. At the mixer end, an SDI to HDMI Converter is used to plug that feed into a standard HDMI switcher or a large LED wall processor. The converter’s ability to handle the long-distance SDI signal and output a clean HDMI signal ensures that the live feed on the screens remains sharp and synchronized with the audio.

For a travel documentary shoot in the narrow lanes of Old Delhi, weight and power efficiency are paramount. A filmmaker using a Sony FX6 might need to use a small, lightweight HDMI on-camera monitor that they already own. By mounting the SDI to HDMI Converter to the camera rig, they can use the camera’s robust SDI output—which is less prone to accidental disconnection than HDMI—and convert it right at the monitor. Powering the converter from the camera's own USB port keeps the rig cable-managed and avoids the need for extra batteries, allowing for a mobile, "run-and-gun" setup in crowded environments.

Compatibility and Essential Pairings

To function effectively, the SDI to HDMI Converter must be paired with high-quality peripherals. For the input side, 75-ohm BNC cables (such as Belden 1694A) are the standard; using 50-ohm cables intended for networking will result in signal errors. On the output side, high-speed HDMI 2.0 cables are recommended to ensure the 1080p60 signal is carried without handshake issues. The converter is compatible with any SDI source, including Blackmagic Ursa, Sony FS7/FX9, Panasonic Varicam, and professional switchers like the ATEM series. For power, while a wall plug is often included, pairing it with a D-Tap to USB-C cable allows it to integrated into professional battery ecosystems (V-Mount or Gold Mount). If the shoot involves monitoring HDR (High Dynamic Range) content, ensure the HDMI display is capable of receiving the metadata, although the converter primarily operates within the Rec.709 or BT.2020 color spaces depending on the specific model's firmware.

Limitations and Alternative Choices

While the SDI to HDMI Converter is a versatile tool, it has specific limitations that may necessitate a different product choice. This is a unidirectional device; it cannot convert an HDMI source (like a laptop or a mirrorless Sony A7IV) into an SDI signal. For that, an HDMI to SDI Converter is required. Furthermore, this specific 3G model is capped at 1080p resolution. If the production requires monitoring in native 4K (UHD or DCI) over a single cable, a 12G-SDI to HDMI 4K Converter is necessary. It also does not perform "up-scaling" or "down-scaling"; if you input a 1080p60 signal and your monitor only supports 1080i50, the converter will not change the frame rate or scan type, resulting in a "No Signal" or "Format Not Supported" error on the display. In such cases, a dedicated "Streaming Bridge" or a "Scaling Converter" would be the appropriate choice. Finally, for setups requiring conversion in both directions simultaneously, a BiDirectional SDI/HDMI Converter is a more space-efficient and cost-effective solution than carrying two separate units.
