Hollyland Mars 400S PRO Sdi/Hdmi

The Evolution of Mid-Range Wireless Transmission

The Hollyland Mars 400S PRO SDI/HDMI is a wireless video transmission system designed to bridge the gap between entry-level Wi-Fi monitoring and high-end zero-latency broadcast systems. Positioned as the professional iteration of the original Mars 400S, this "PRO" version introduces a redesigned transverse chassis, integrated cold shoe mounting, and enhanced data rates. It is engineered for independent filmmakers, event videographers, and small-to-medium production crews who require a stable 1080p60 signal across distances up to 400 feet (approximately 120 meters) line-of-sight. Unlike the standard consumer models, the PRO variant prioritizes physical stability and multi-platform monitoring, allowing the signal to be received simultaneously by a dedicated receiver and up to two mobile devices via the HollyView app, or four mobile devices if no receiver is in use.

In the Hollyland ecosystem, the Mars 400S PRO SDI/HDMI sits above the Mars 300 Pro and below the Mars 4K and Cosmo series. Its primary distinction is the inclusion of both SDI and HDMI ports on both the transmitter (TX) and the receiver (RX). This dual-interface capability makes it a versatile tool for crews using a mix of mirrorless cameras (HDMI) and professional cinema cameras or production switchers (SDI). The system operates on the 5GHz frequency band, utilizing a 12Mbps data rate to ensure that the H.264 stream maintains visual fidelity while managing the bandwidth constraints of crowded wireless environments.

Signal Integrity and Latency Specifications

The core performance of the Hollyland Mars 400S PRO SDI/HDMI is defined by its 0.1-second (100ms) latency. While not "zero-latency" in the way that expensive bolt-style systems are, this 100ms delay is optimized for monitoring composition, performance, and general focus. The system utilizes an 8MHz to 20MHz bandwidth and employs automatic channel scanning upon startup. This feature identifies the cleanest available frequency among the 13 available channels, which is critical in urban environments where 5GHz traffic from routers and other wireless devices is high. Users can also manually select channels through the OLED screen on both units to avoid interference from other on-set wireless kits like follow-focus systems or audio links.

The image quality is sustained by a 12Mbps transmission bitrate, which is a significant increase over the 8Mbps found in earlier Mars models. This higher bitrate reduces macroblocking and compression artifacts in high-motion scenes or complex textures. The system supports a wide range of resolutions, including 1080p at 60, 59.94, 50, 30, 25, and 24 frames per second, as well as 1080i and 720p standards. The inclusion of SDI allows for longer cable runs from the receiver to a production switcher without signal degradation, while the HDMI ports ensure compatibility with the vast majority of on-camera monitors and consumer displays.

Physical Build, Cooling, and Mounting Ergonomics

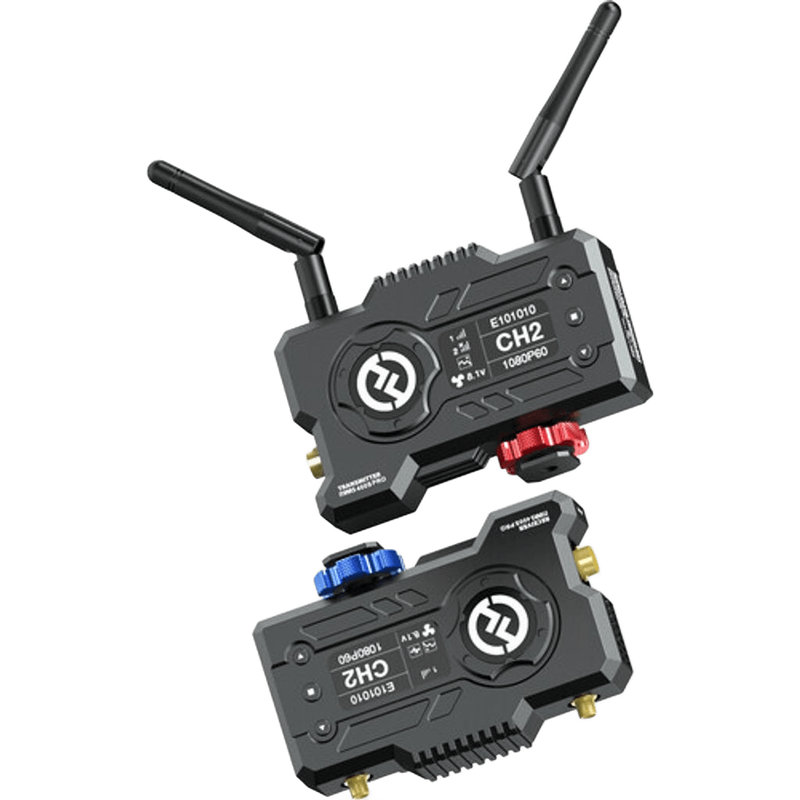

The physical design of the Hollyland Mars 400S PRO SDI/HDMI represents a departure from the vertical orientation of its predecessors. The transverse (horizontal) design lowers the center of gravity when the unit is mounted on top of a camera, reducing the risk of the camera becoming top-heavy or the mount loosening during rapid movement. Each unit weighs approximately 206 grams and is encased in a robust metallic housing that acts as a heat sink. To manage internal temperatures during long shoots, the units feature an integrated cooling fan with three distinct modes: Auto, Low Speed, and Off. This allows the operator to prioritize silence during a take or maximum cooling during standby in hot climates.

Mounting is handled by an integrated cold shoe on the bottom of the transmitter, which eliminates the need for additional articulating arms or mounting plates in many configurations. Additionally, a 1/4"-20 threaded hole is available for more traditional mounting on cages or light stands. The OLED display is positioned on the side of the unit, providing immediate feedback on the current channel, signal strength, battery voltage, and video format. This visibility is essential for troubleshooting on a busy set, as it allows the AC or DIT to verify the link status without needing to access the camera menu or the receiver's output.

Video Interface and Monitoring Flexibility

The Hollyland Mars 400S PRO SDI/HDMI is notable for its cross-conversion capabilities and flexible monitoring options. The transmitter features one HDMI 1.4 input and one 3G-SDI input, while the receiver provides one HDMI 1.4 output and one 3G-SDI output. This allows for a "mixed" workflow where a camera might output HDMI to the transmitter, but the receiver outputs SDI to a professional broadcast monitor or a Blackmagic ATEM switcher. The system supports the HD-SDI standard, ensuring compatibility with professional infrastructure common in broadcast and high-end corporate video.

Beyond the hardware receiver, the system excels in app-based monitoring. By using the HollyView app on iOS or Android, the transmitter can stream directly to mobile devices. This is particularly useful for hair and makeup, wardrobe, or clients who need to see the frame without being tethered to a physical monitor station. The app includes professional monitoring tools such as waveform, histogram, focus peaking, zebra, and the ability to load 3D LUTs for a graded preview. The app also supports firmware updates via the mobile device, ensuring the hardware stays current with the latest stability patches from Hollyland.

On the Shoot: Real-World Indian Production Scenarios

In a Bengaluru wedding reception held in a large convention center, the Hollyland Mars 400S PRO SDI/HDMI proves its worth by managing the dense RF environment. With hundreds of guests carrying smartphones and multiple wireless microphones in use, the 5GHz channel scanning allows the videographer to find a clear frequency to transmit from a roaming gimbal to the main LED wall consoles. The 400-foot range is sufficient to cover the distance from the stage to the back of the hall, while the SDI output on the receiver ensures a secure connection to the venue's professional video mixers.

For a travel documentary shoot in Goa, the system's power versatility becomes a primary asset. When shooting in remote outdoor locations where AC power is unavailable, the units can be powered via USB-C using standard power banks or through Sony NP-F style batteries (L-series). The ability to monitor the feed on an iPad allows the director to stay in the shade of a vehicle while the camera operator captures handheld footage on the beach. The rugged metal build protects the units from the humidity and the occasional bumps associated with run-and-gun travel production.

In a Mumbai-based commercial studio session for a product launch, the low latency of the Hollyland Mars 400S PRO SDI/HDMI allows for efficient collaboration between the cinematographer and the client. The transmitter is mounted on a cinema camera on a slider, sending a signal to a 24-inch director's monitor via SDI. Simultaneously, the agency representatives can monitor the frame on their own tablets via the HollyView app. This reduces the number of people crowding around the main monitor, maintaining a professional and socially distanced workflow in a tight studio space.

Compatibility, Power, and Ecosystem Pairing

The Hollyland Mars 400S PRO SDI/HDMI is designed to be compatible with a wide array of industry-standard accessories. Powering the units is highly flexible, supporting three distinct methods:

• Sony L-Series (NP-F) Batteries: A single NP-F970 battery can power the unit for several hours, making it ideal for mobile setups.
• DC Input: The 6V to 16V DC barrel input allows for connection to D-Tap power sources on V-mount or Gold-mount plates using a compatible cable.
• USB-C: The 5V/2A USB-C port provides a modern power solution, compatible with wall adapters or portable power banks.

The system pairs seamlessly with monitors from brands like Atomos, SmallHD, and Blackmagic. For example, pairing the receiver with an Atomos Sumo 19 via SDI allows for high-brightness outdoor monitoring and recording. When using the transmitter on a gimbal like the DJI RS3 Pro, the compact form factor and integrated cold shoe ensure that the balance of the gimbal is not significantly disrupted. It is also compatible with standard BNC cables for SDI and high-speed HDMI cables, though users should ensure cables are rated for 1080p60 to avoid signal drops.

Limitations and Alternative Considerations

While the Hollyland Mars 400S PRO SDI/HDMI is a highly capable system, it has specific limitations that may necessitate a different choice for certain productions. The 0.1-second latency, while low, is detectable. For precision focus pulling on high-speed subjects or in fast-paced narrative cinema, a zero-latency system (less than 0.001s) like the Hollyland Cosmo C1 or a Teradek Bolt would be more appropriate. These systems use different transmission technologies to eliminate the delay inherent in H.264 encoding.

Furthermore, this system is limited to a maximum resolution of 1080p60. If the production requires a 4K wireless monitoring path to verify focus on a 4K display, the Mars 4K system is the logical step up. The 400-foot range is also a "line-of-sight" rating; in environments with thick concrete walls or heavy metal obstructions, the effective range will decrease significantly. For long-range applications such as drone-to-ground monitoring or large-scale stadium events, systems with 1000-foot or 3000-foot ratings are required. Finally, the 5GHz frequency is unlicensed and shared; in extremely congested areas like trade shows, even the best channel scanning may struggle compared to licensed-band or DFS-equipped professional systems.
