Black Magic Hdmi to SDI Cross Converter

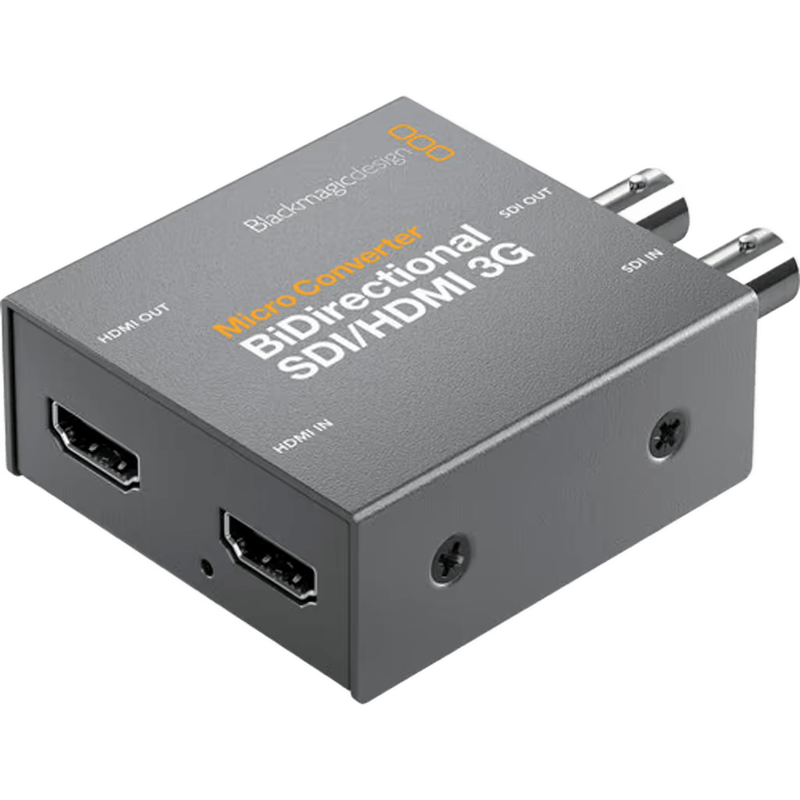

The Role of the Blackmagic Micro Converter BiDirectional SDI/HDMI 3G

The Blackmagic Micro Converter BiDirectional SDI/HDMI 3G is a broadcast-grade signal interface designed to bridge the gap between consumer HDMI equipment and professional SDI infrastructure. Within the Blackmagic Design ecosystem, this device occupies a critical position as the most compact and versatile "cross" converter available. Unlike single-direction units, this specific model allows for the simultaneous conversion of SDI to HDMI and HDMI to SDI. This dual-path functionality means it can effectively perform the work of two separate converters at once, or be used to insert an HDMI camera into an SDI workflow while simultaneously providing an SDI-to-HDMI return feed for a local monitor. It is engineered for broadcast engineers, digital imaging technicians (DITs), and live event videographers who require reliable signal conversion without the bulk of rack-mounted hardware.

The device is built around a 3G-SDI architecture, making it compatible with all Standard Definition (SD) and High Definition (HD) formats up to 1080p60. It sits below the Teranex Mini series in terms of size and price, yet it maintains the same internal 10-bit processing quality found in Blackmagic’s larger converters. It was specifically designed for environments where space is at a premium, such as on-camera rigs, inside small fly-packs, or tucked behind wall-mounted displays. By supporting both Level A and Level B SDI standards, it ensures compatibility with a wide range of legacy and modern broadcast hardware, solving the common "black screen" issues encountered when mixing different SDI signal types.

Signal Integrity and 10-Bit Processing

The technical core of the Blackmagic Micro Converter BiDirectional SDI/HDMI 3G is its commitment to signal purity. It utilizes high-quality 10-bit video processing, which is essential for maintaining the color depth and gradients of the original source. This is particularly important when converting signals from professional cameras that output 10-bit 4:2:2 video, as it prevents the contouring or "banding" often seen in cheaper 8-bit converters. The device supports YUV color space and provides a transparent signal path that adheres to SMPTE standards, ensuring that the metadata, timecode, and audio remain intact during the conversion process.

One of the most significant technical features of this converter is the inclusion of SDI re-clocking on the 3G-SDI output. In professional environments, SDI signals can degrade over long cable runs due to jitter—timing inconsistencies in the digital pulse. The re-clocking circuit inside this converter regenerates the SDI signal, reducing jitter and effectively "cleaning" the signal before it is sent further down the line. This allows for significantly longer cable runs, often up to 100 meters for 3G-SDI signals, without the risk of signal dropouts or digital noise. Furthermore, the HDMI output includes support for HDMI EDID (Extended Display Identification Data), which allows the converter to communicate with the connected display and automatically negotiate the correct resolution and frame rate, ensuring a stable handshake every time a new monitor is connected.

Build Quality and Field Handling

The physical construction of the Blackmagic Micro Converter BiDirectional SDI/HDMI 3G is centered on durability and thermal efficiency. The chassis is made from a rugged, laser-cut metal that acts as a heat sink, dissipating the warmth generated by the high-speed processing chips without the need for an internal fan. This silent operation is a critical requirement for quiet studio environments or intimate event recordings. The unit is small enough to be secured to a camera cage using a simple hook-and-loop fastener or a dedicated mounting bracket, and its lightweight nature ensures it does not significantly alter the balance of a handheld gimbal or shoulder rig.

Power management is handled via a 5V USB-C port. This is a significant departure from older barrel-connector designs, as it allows the converter to be powered by a wide variety of common sources. On a professional set, it can be powered directly from a camera’s USB accessory port, a V-mount battery’s USB output, or even a standard mobile power bank. This flexibility eliminates the need for proprietary power bricks and makes it easier to integrate into mobile kits. The device features two LED indicators: one for power and one for signal lock. These provide immediate visual confirmation that the unit is receiving a valid video feed, which is invaluable during the high-pressure setup phase of a live production. The connectors themselves are recessed slightly into the metal housing, providing a degree of protection against physical impact and reducing the strain on the internal solder joints when cables are pulled or snagged.

Video Standards and Technical Capabilities

The Blackmagic Micro Converter BiDirectional SDI/HDMI 3G supports a comprehensive array of video standards, making it a "Swiss Army knife" for video signal management. In the SDI realm, it complies with SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, and SMPTE 425M Level A and B. This broad compliance ensures that whether you are working with an older broadcast deck or a brand-new digital cinema camera, the signal will be recognized and processed correctly. The supported resolutions include 525i59.94 NTSC and 625i50 PAL for standard definition work, as well as a full suite of HD formats.

For High Definition, the converter handles 720p at 50, 59.94, and 60 fps. In the 1080i range, it supports 50, 59.94, and 60 fps. For progressive 1080p, it covers 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, and 60 fps. It even supports 1080PsF (Progressive Segmented Frame) at 23.98, 24, 25, 29.97, and 30 fps, which is often required when interfacing with older Sony or Panasonic broadcast cameras. The HDMI input and output are HDMI 2.0 compliant, supporting high bit-rate signals and ensuring that the full color range of the source is preserved. It is important to note that this is a converter, not a scaler; it does not change the resolution or frame rate of the input signal. If you input 1080p24 via HDMI, the SDI output will be 1080p24. This transparency is vital for maintaining sync in multi-camera environments where all sources must match the switcher's settings exactly.

On the Shoot: Real-World Indian Scenarios

In a Bengaluru wedding reception held in a large convention hall, the Blackmagic Micro Converter BiDirectional SDI/HDMI 3G becomes an essential tool for signal distribution. A videographer using a Sony A7S III or a Panasonic GH6—cameras that only offer HDMI output—needs to send a feed to a video switcher located 40 meters away at the back of the hall. HDMI cables fail at these distances, but by using this converter, the HDMI signal is instantly transformed into a robust 3G-SDI signal that can travel over high-quality BNC cabling without loss. Simultaneously, the converter can take an SDI return feed from the switcher and convert it back to HDMI for a small on-camera monitor, allowing the operator to see the "Program" feed or instructions from the director while they move through the crowd.

During a Mumbai studio product session, the converter is often used to facilitate client monitoring. A high-end cinema camera might be outputting an SDI signal for the DIT, but the client wants to view the live feed on a large 4K consumer television which only has HDMI inputs. The converter takes the SDI feed from the camera's "Monitor Out" and provides a clean HDMI signal to the TV. Because the converter supports 10-bit processing, the client sees an accurate representation of the colors and lighting, which is crucial for high-end commercial work where brand colors must be precise. The USB-C power allows the DIT to power the unit from a laptop, keeping the workstation tidy and reducing the number of AC outlets required.

For a travel documentary shoot in the humid environment of Goa, the converter’s rugged metal build and lack of moving parts are significant advantages. If the crew is using a GoPro or a small action camera for a specific "crash cam" angle, they can use the converter to bring that HDMI signal into their professional SDI-based field recorder or wireless transmitter. The ability to power the unit from a small USB power bank means the crew can set up a remote monitoring station on a beach or in a forest without needing a generator or heavy lead-acid batteries. The status LEDs allow the crew to quickly troubleshoot signal issues in bright daylight, ensuring that the connection is locked before they start recording.

Compatibility and Essential Pairings

The Blackmagic Micro Converter BiDirectional SDI/HDMI 3G is designed to be a universal connector, but it performs best when paired with specific professional hardware. For cabling, it should be used with high-quality 75-ohm BNC cables, such as those from Belden or Canare, to ensure the 3G-SDI signal reaches its maximum distance. On the HDMI side, high-speed HDMI 2.0 cables are recommended to maintain signal stability, especially at higher frame rates like 1080p60. When it comes to power, any 5V USB-C source providing at least 500mA is sufficient, though using a regulated power source like a Blackmagic power supply or a reputable V-mount battery plate is preferred for long-term stability.

This converter is the perfect companion for the Blackmagic ATEM series of switchers. Many ATEM models, like the ATEM Television Studio HD, have a mix of HDMI and SDI inputs. Using this converter allows you to standardize your entire input chain to SDI, which is more secure due to the locking BNC connectors. It also pairs exceptionally well with professional monitors from brands like SmallHD, TVLogic, or Atomos. For example, if you have a monitor that only has an SDI input, this converter allows you to use it with an HDMI-only camera like a Fujifilm X-T4. It is also compatible with the Blackmagic Camera Setup utility, which allows for internal software updates and settings adjustments via the USB-C port when connected to a Mac or Windows computer.

Limitations and Alternative Choices

While the Blackmagic Micro Converter BiDirectional SDI/HDMI 3G is highly versatile, it is not the correct tool for every scenario. The most significant limitation is its resolution ceiling; it is a 3G-SDI device, meaning it is strictly limited to 1080p HD. If your workflow requires 4K (Ultra HD) signal paths, you must look toward the Blackmagic Micro Converter 12G series, which supports 2160p resolutions. Using the 3G model with a 4K source will result in no signal, as the hardware cannot down-sample the 12G or 6G signal to 3G internally.

Another limitation is the lack of scaling or frame rate conversion. This device is a "transparent" converter. If you input a 1080i50 signal and your monitor only accepts 1080p50, this converter will not bridge that gap. For those needs, the Blackmagic Micro Converter UpDownCross HD is the appropriate choice, as it includes a full hardware scaler that can convert any input format to a different output format. Additionally, while the metal housing is durable, the unit is not weather-sealed. In extreme dust or heavy rain, it requires external protection. Finally, for users who only need to convert in one direction—such as simply getting an HDMI signal into an SDI switcher—the dedicated Micro Converter HDMI to SDI 3G is a more focused alternative that provides the same signal quality in a slightly simpler package.
