Black Magic Atem Mini Pro Extrem 8 Input

Professional Multi-Camera Production with Eight Inputs

The Blackmagic Design ATEM Mini Extreme is a significant expansion of the ATEM Mini line, doubling the input capacity of the Pro model to provide a total of eight HDMI inputs. It occupies the space between entry-level webcasting switchers and high-end rack-mounted broadcast hardware, offering a compact, desk-based form factor with physical tactile controls. This switcher is designed for complex live productions where four inputs are insufficient, such as panel discussions with multiple speakers, live musical performances requiring dedicated instrument close-ups, or corporate presentations that necessitate multiple laptop feeds alongside camera angles. Each of the eight HDMI inputs features its own dedicated standards converter, allowing the device to automatically sync and convert 1080p, 1080i, and 720p sources to the designated video standard of the switcher. This eliminates the need for external scalers when mixing different camera brands or frame rates.

Internally, the device operates with a 10-bit 4:2:2 YUV color space, maintaining broadcast-quality signal integrity throughout the switching process. It is built for creators who need to manage a sophisticated visual narrative without the footprint of a traditional broadcast van. The inclusion of two independent HDMI outputs and two USB-C ports allows for simultaneous multi-view monitoring, program output, and recording or streaming. This hardware-based switching solution offloads the processing requirements from a computer, ensuring that the live stream remains stable even during high-bitrate transitions or complex layering of graphics.

Signal Processing and Internal Image Quality

The image quality of the Blackmagic Design ATEM Mini Extreme is defined by its internal processing engine, which handles all video at 10-bit precision. This ensures that gradients, such as those found in studio backdrops or sky shots, are rendered without the banding artifacts often associated with 8-bit systems. The switcher supports a wide range of standards including 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60 frames per second. By utilizing a 4:2:2 YUV sampling method, the device preserves enough color information for high-quality chroma keying, which is essential for virtual set productions.

A standout feature in this model is the inclusion of four upstream chroma keyers. These allow for the creation of complex virtual sets where up to four cameras can each have their own independent green screen replacement. Additionally, the switcher features two independent DVEs (Digital Video Effects) and a SuperSource multi-layer processor. The SuperSource engine is a separate internal layer that provides four additional DVE layers plus a background layer, all appearing as a single video source. This allows for "picture-in-picture" layouts that can show four presenters simultaneously over a branded background, a capability previously reserved for much larger ATEM production switchers. The hardware also includes two downstream keyers for adding logos, bugs, or lower thirds without consuming the upstream keyer resources.

Physical Interface and Hardware Control

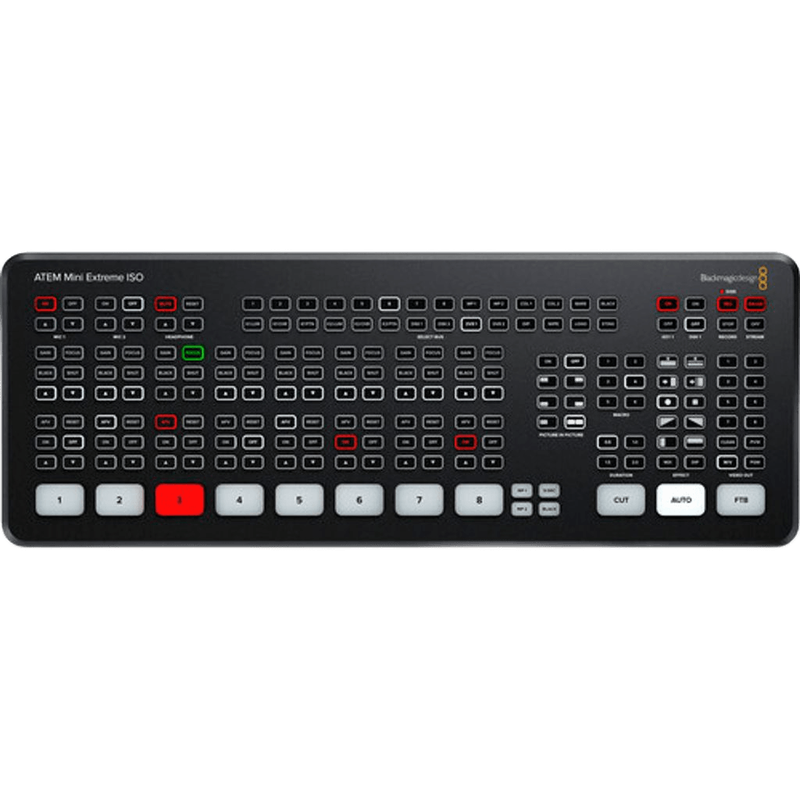

The physical layout of the Blackmagic Design ATEM Mini Extreme is designed for "blind" operation, where the technical director can switch sources without looking away from the monitor. The front panel features large, backlit buttons for the eight primary inputs, along with dedicated buttons for transition selection, including Cut, Auto, and various Wipe patterns. Unlike the smaller models, the Extreme includes a dedicated 3.5mm headphone jack for real-time audio monitoring, which is critical for verifying the mix before it goes live. The audio interface also includes two 3.5mm stereo mic inputs, which can be switched between mic and line level, allowing for direct connection of wireless lapel receivers or a soundboard feed.

The chassis is built with an internal cooling fan that manages the heat generated by the eight HDMI scalers and the hardware streaming engine. On the rear, the eight HDMI Type A inputs are spaced to accommodate standard cables, though slim-profile connectors are recommended for easier cable management. The dual USB-C ports provide significant flexibility; one can be used to connect to a computer to mimic a webcam for Zoom or Skype, while the other can be used to record the program feed directly to an external SSD. Alternatively, one USB port can be used for mobile data tethering, allowing the switcher to stream via a 4G or 5G phone connection if the local Ethernet fails.

Streaming, Recording, and Video Specifications

The Blackmagic Design ATEM Mini Extreme features a built-in hardware streaming engine that supports RTMP streaming via its Ethernet port. This allows for direct streaming to platforms like YouTube Live, Facebook Live, and Twitch at bitrates up to 9Mb/s for "HyperDeck High" settings or lower for more constrained bandwidth environments. Because the streaming is handled by the hardware, there is no risk of dropped frames due to computer CPU spikes. The device also supports the H.264 codec for both streaming and recording, ensuring high compatibility with modern playback devices and editing software.

Recording is handled via the USB-C expansion ports. When an external disk is connected, the switcher can record the Program feed as an H.264 .mp4 file with AAC audio. The recording includes the full 10-bit quality of the internal processing. For monitoring, the switcher provides a highly customizable Multiview. This can be configured to show 4, 7, 10, 13, or 16 views at once. This includes all eight HDMI inputs, the Preview and Program feeds, the media player status, the streaming status, the recording status, and the Fairlight audio meters. This comprehensive monitoring ensures that the operator has full visibility over every technical aspect of the production from a single screen.

Operational Performance in Indian Production Environments

In a Bengaluru-based corporate seminar held in a large tech park, the Blackmagic Design ATEM Mini Extreme excels by managing the high volume of inputs required for a modern professional presentation. A typical setup might involve three cameras (wide, mid, and tight on the speaker), two laptops for PowerPoint or software demos, and a remote guest joined via a dedicated HDMI feed from a computer. The eight inputs allow the technical team to keep a backup laptop and a stationary "room shot" camera active at all times. The SuperSource feature is particularly useful here, allowing the operator to show the speaker's face and their presentation slides side-by-side in a professional layout that maintains the corporate branding.

During a Mumbai studio talk show session, the four upstream chroma keyers become the centerpiece of the production. A small studio space can be transformed into a multi-angle virtual newsroom. By using the ATEM Software Control on a connected laptop, the producer can load high-resolution background graphics into the media pool and use the chroma keyers to place the host and guests into a virtual environment. The 10-bit processing ensures that the edges of the key are clean, even with the fine detail of hair or clothing. The dual HDMI outputs allow the producer to send a clean Program feed to a large studio monitor for the host to see, while the second output provides the Multiview to the technical director.

For a destination wedding in a location like Goa, where internet infrastructure can be unpredictable, the dual USB-C ports provide a critical safety net. The primary Ethernet port can be connected to the hotel's Wi-Fi bridge, while a smartphone is tethered to the USB-C port as a backup. If the hotel internet drops, the switcher automatically switches to the mobile data connection without interrupting the stream. The 8-input capacity allows for comprehensive coverage of the ceremony, including a drone feed, a gimbal-mounted roaming camera, and several fixed angles around the mandap, ensuring no moment is missed during the fast-paced event.

Ecosystem Integration and Peripheral Compatibility

The Blackmagic Design ATEM Mini Extreme is designed to function as the hub of a larger production ecosystem. When paired with Blackmagic Pocket Cinema Cameras (4K, 6K, or 6K Pro), the switcher can control camera settings such as iris, gain, shutter speed, and color balance directly over the HDMI cable. This turns the cameras into studio units that can be color-matched from the switcher’s interface. The Fairlight audio mixer built into the switcher provides professional tools like a 6-band parametric equalizer, compressor, limiter, and noise gate for every input, allowing for a polished audio mix without an external console.

For storage, the device is compatible with high-speed USB-C drives such as the Samsung T5 or T7 series, and SanDisk Extreme Pro SSDs. These drives allow for hours of continuous recording at high bitrates. The ATEM Software Control application, available for Mac and Windows, unlocks the full potential of the hardware, providing access to the macro recorder, the media pool for loading up to 20 RGBA stills, and the full Fairlight audio interface. The switcher also supports the ATEM Camera Control Panel and the ATEM 1 M/E Advanced Panel for users who prefer dedicated physical hardware for color grading and advanced switching.

Limitations and Alternative Considerations

While the Blackmagic Design ATEM Mini Extreme is a powerful tool, it has specific limitations that may necessitate different hardware for certain shoots. The most significant limitation is the lack of 4K support; the device is strictly a 1080p switcher. For productions requiring a 4K broadcast or 4K recording, the ATEM Production Studio 4K or Constellation series would be required. Additionally, all eight inputs are HDMI. In professional environments where cameras are located more than 10-15 meters away, HDMI signal degradation becomes an issue. In such cases, users must either use active optical HDMI cables or external SDI-to-HDMI converters, which adds complexity to the setup. A switcher with native SDI inputs, like the ATEM SDI Extreme ISO, would be a better fit for long-cable runs.

Another consideration is the thermal output. In high-temperature outdoor environments, such as a summer afternoon shoot in Delhi, the internal fan must work at maximum capacity. If the unit is placed in a cramped, unventilated rack, it may experience thermal throttling. Finally, while the Extreme model offers 8 inputs, it does not feature the "ISO" recording capability of its sibling, the ATEM Mini Extreme ISO. This means it can only record the final Program mix, not the individual isolated feeds from each camera. For editors who need to re-cut the show in post-production using a DaVinci Resolve project file, the ISO version of this switcher is the necessary choice.

• Inputs: 8 x HDMI Type A (10-bit HD switchable, 2-channel embedded audio).
• Outputs: 2 x HDMI Type A (Program or Multiview), 2 x USB Type-C 3.1 Gen 1.
• Audio: 2 x 3.5mm stereo analog inputs, 1 x 3.5mm stereo headphone output.
• Streaming: Direct hardware streaming via Ethernet using RTMP.
• Keyers: 4 x Upstream Chroma Keyers, 2 x Downstream Keyers, 1 x Transition Keyer (DVE).
• Processing: 10-bit 4:2:2 YUV internal color precision.
• Multiview: Up to 16 views including 8 inputs, Preview, Program, Media Player, and Status.
