Aja Hdmi to USB

The Role of the AJA U-TAP HDMI in Professional Workflows

The AJA U-TAP HDMI is a compact, bus-powered USB 3.0 capture device designed to bridge the gap between professional HDMI video sources and computer-based software applications. Within the AJA Video Systems lineup, the U-TAP series represents the most portable and streamlined solution for video ingestion, sitting below the more complex Io and KONA series which often require external power or PCIe slots. This device is engineered for professionals who require a reliable, driverless interface to bring high-quality video signals into laptops or workstations for streaming, video conferencing, or live production. Unlike consumer-grade capture dongles, the U-TAP is built to handle the rigors of continuous operation, utilizing the USB Video Class (UVC) and USB Audio Class (UAC) standards to ensure immediate compatibility across Windows, macOS, and Linux operating systems without the need for proprietary software installations.

Signal Processing and Hardware Scaling

The internal architecture of the AJA U-TAP HDMI focuses on maintaining signal integrity while providing the host computer with a format it can easily digest. One of the primary technical advantages of this device is its hardware-based scaling and frame rate conversion. When a camera outputs a 1080i 59.94 signal, but the streaming software is configured for 720p 30fps, the U-TAP performs the necessary downscaling and de-interlacing within its own hardware. This offloads significant processing tasks from the host computer's CPU, which is critical during high-stakes live streams where system resources are at a premium. The device supports YUV 4:2:2 10-bit processing internally, ensuring that color transitions and gradients remain smooth before the signal is handed off to the USB 3.0 bus. For audio, it captures 2-channel, 24-bit, 48 kHz linear PCM audio embedded in the HDMI stream, providing a high-fidelity audio path that remains perfectly synced with the video frames.

Build Quality and Physical Handling

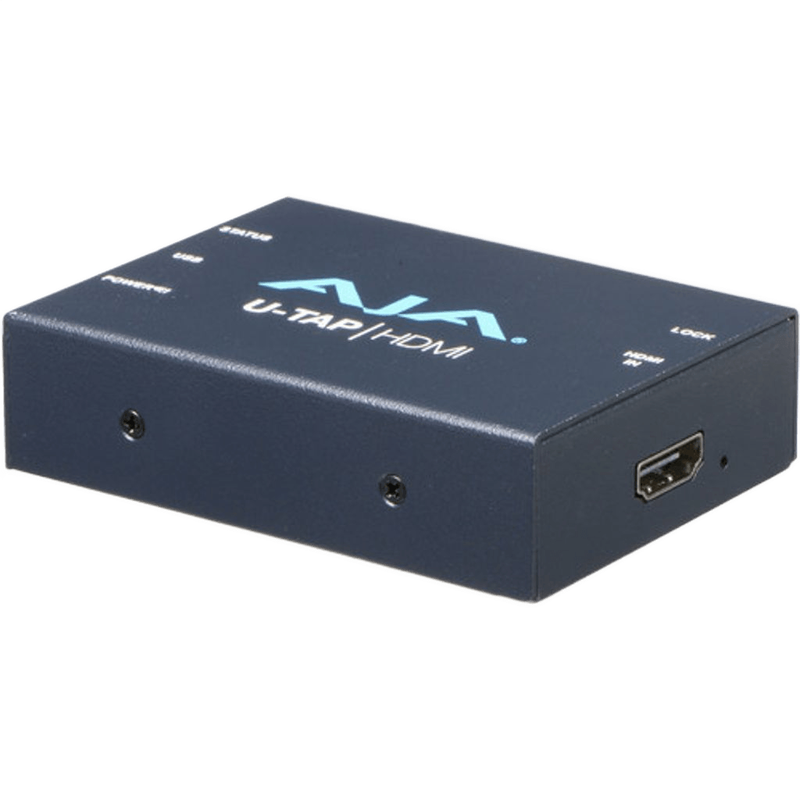

The physical construction of the AJA U-TAP HDMI reflects its professional intent, featuring a rugged, fanless aluminum chassis that measures 84mm x 61mm x 25mm. This small footprint allows it to fit into a pocket or a small accessory pouch in a camera bag. Because it is bus-powered via the USB 3.0 port, there is no requirement for an external AC adapter, reducing cable clutter and potential points of failure on a busy set. The device weighs approximately 100 grams, making it light enough to be secured with hook-and-loop fasteners to a tripod leg or a laptop lid. The HDMI input is a full-sized Type-A connector, which provides a more secure and durable connection than mini or micro-HDMI alternatives. On the output side, it utilizes a USB 3.0 Type-B port, a choice that offers a more robust physical connection than the smaller USB-C or Micro-B ports often found on consumer electronics, ensuring the cable does not accidentally disconnect during a live broadcast.

Video Specifications and Format Support

The AJA U-TAP HDMI supports a wide range of video standards up to 1080p at 60 frames per second. Specifically, it handles progressive formats including 1080p (60, 59.94, 50, 30, 29.97, 25, 24, 23.98), interlaced formats such as 1080i (60, 59.94, 50), and standard definition or 720p resolutions (720p 60/50, 576p, 480p). The HDMI v1.4a input is compliant with standard color spaces, allowing it to interface with everything from a high-end cinema camera to a digital SLR or a gaming console. It is important to note that the device is limited to 8-bit or 10-bit input but outputs via the USB 3.0 bus in a format determined by the host application's request, typically using YUV or MJPEG compression depending on the available bandwidth and software settings. The latency introduced by the hardware is negligible, making it suitable for "IMAG" (Image Magnification) scenarios where a speaker's live video is projected onto a screen in the same room as the audience.

Operational Scenarios in the Indian Production Environment

In a Bengaluru corporate headquarters, the AJA U-TAP HDMI is frequently deployed for high-level executive webinars. In this scenario, a professional cinema camera like a Sony FX6 or a Panasonic GH6 is connected via HDMI to the U-TAP, which then plugs into a MacBook Pro running Zoom or Microsoft Teams. The U-TAP is recognized instantly as a webcam, allowing the production team to use professional optics and lighting while bypassing the low-quality integrated laptop camera. The hardware scaling ensures that even if the camera is set to a high-bitrate 1080p mode, the video remains fluid and stable for the remote audience, regardless of the laptop's background processing load.

During a Mumbai-based studio product shoot, the device serves as a critical link for remote client monitoring. When a client cannot be physically present on the studio floor, the HDMI output from the director's monitor is fed into the U-TAP. This signal is then streamed via a private platform or a high-quality video call. Because the U-TAP handles the audio embedding, the client can hear the director’s talkback and the on-set audio in sync with the high-definition visual, allowing for real-time feedback on lighting adjustments or product placement without the lag associated with software-based capture solutions.

For a live event in a Delhi hotel ballroom, such as a tech conference or a wedding reception, the AJA U-TAP HDMI acts as the final ingest point for a multi-camera switcher. The program out from a Blackmagic ATEM Mini or a similar switcher is sent into the U-TAP. This allows the switched feed—complete with graphics, lower thirds, and multiple camera angles—to be sent directly into a laptop for a YouTube Live or Facebook Live broadcast. The aluminum housing of the U-TAP is particularly beneficial here, as it effectively dissipates heat during long-duration streams that may last several hours in environments where ambient temperatures can be high.

Compatibility and Essential Pairings

The AJA U-TAP HDMI is designed for broad compatibility, but it performs best when paired with specific hardware and software. It requires a genuine USB 3.0 port (SuperSpeed) to provide the necessary bandwidth for uncompressed 1080p60 video; while it may function on USB 2.0 ports, the frame rate and resolution will be significantly throttled. It is fully compatible with major streaming software including OBS Studio, vMix, Wirecast, and XSplit, as well as communication platforms like Skype, Google Meet, and BlueJeans. When selecting cables, it is recommended to use high-quality, shielded HDMI cables to prevent signal dropouts in environments with high electromagnetic interference. For mobile setups, pairing the U-TAP with a USB 3.0 hub is generally discouraged; a direct connection to the host computer's motherboard or bus is preferred to ensure consistent power delivery and data throughput. It is compatible with a wide array of cameras, provided they output a non-HDCP protected HDMI signal; most professional cameras allow for this, but some consumer Blu-ray players or set-top boxes may trigger HDCP encryption which the U-TAP is not designed to bypass.

Limitations and Alternative Selections

While the AJA U-TAP HDMI is a highly reliable tool, it has specific limitations that may necessitate a different choice of equipment. It does not support 4K resolutions; users requiring 4K 60p capture should look toward the AJA T-TAP Pro or other Thunderbolt-based interfaces. Furthermore, this device features an HDMI input only. If the source equipment uses BNC connectors for SDI signals, the AJA U-TAP SDI is the correct alternative, as it offers the same plug-and-play USB 3.0 functionality but with a 3G-SDI input and a loop-through output. The U-TAP HDMI also lacks a "loop-through" or "pass-through" HDMI port, meaning that if you need to send the camera signal to both a computer and a local monitor simultaneously, you will need an HDMI splitter or a camera with dual outputs. Finally, for users who need to record video directly to media without a computer present, the AJA Ki Pro series of external recorders would be a more appropriate choice, as the U-TAP is strictly an interface and has no internal recording capabilities.
