Light Blaster Kit (Canon mount)

The Optical Projection System and Design Intent

The Light Blaster Kit (Canon mount) is a specialized strobe-based image projector designed to transform a standard speedlight into a creative projection engine. Unlike traditional optical snoots that use internal lenses and fixed gobos, this device functions as a slide projector housing that utilizes a photographer’s existing 35mm camera lenses to project images, patterns, or textures onto a subject or background. It sits in a unique category of light modifiers, bridging the gap between high-end theatrical ellipsoidal lights and portable speedlight accessories. The unit is specifically engineered for the Canon EF and EF-S mount system, allowing for the direct attachment of any lens featuring these mounts to the front of the projector body.

The core of the system is a light-tight chamber with a rear aperture designed to accept the head of a standard shoe-mount flash. The internal geometry is optimized to funnel the burst of light through a 35mm transparency (slide) and out through the attached lens. This design was conceived for photographers who require the ability to "location scout" within a studio environment or add complex environmental textures to a scene without the bulk of a dedicated slide projector or the heat limitations of continuous light sources. Because it relies on a strobe, it allows for the use of high shutter speeds and small apertures, which are typically impossible with traditional constant-light projectors.

Light Quality and Optical Physics

The light quality produced by the Light Blaster Kit (Canon mount) is entirely dependent on two variables: the flash output and the optical characteristics of the attached Canon lens. When a flash fires through the unit, the light passes through a 36mm x 24mm slide gate. The resulting projection inherits the sharpness, contrast, and chromatic aberrations of the lens used. For instance, using a Canon EF 50mm f/1.8 STM will yield a different projection edge and brightness than a Canon EF 24-70mm f/2.8L II USM. The "speed" of the lens (its maximum aperture) directly dictates the brightness of the projected image; an f/1.4 lens will project a significantly brighter image than an f/4 lens, as more of the strobe's output is allowed to pass through the optical elements.

Focusing is handled manually via the lens's focus ring. This allows the user to choose between a tack-sharp projection of a pattern or a soft, out-of-focus bokeh effect for background textures. Because the system uses the full 35mm frame area of the slide, the focal length of the lens determines the "throw" and size of the projection. A wide-angle lens like a 24mm will create a large image at a short distance, ideal for covering entire backdrops, while an 85mm or 100mm lens will project a smaller, more concentrated image from a greater distance, which is useful for tight hair-light patterns or specific "window light" effects on a subject's face. The light loss is inherent to the process; projecting through a slide and multiple glass elements typically results in a loss of 2 to 4 stops of light, necessitating a flash with a high Guide Number (GN 58 or higher) for optimal results.

Build, Mounting, and Handling

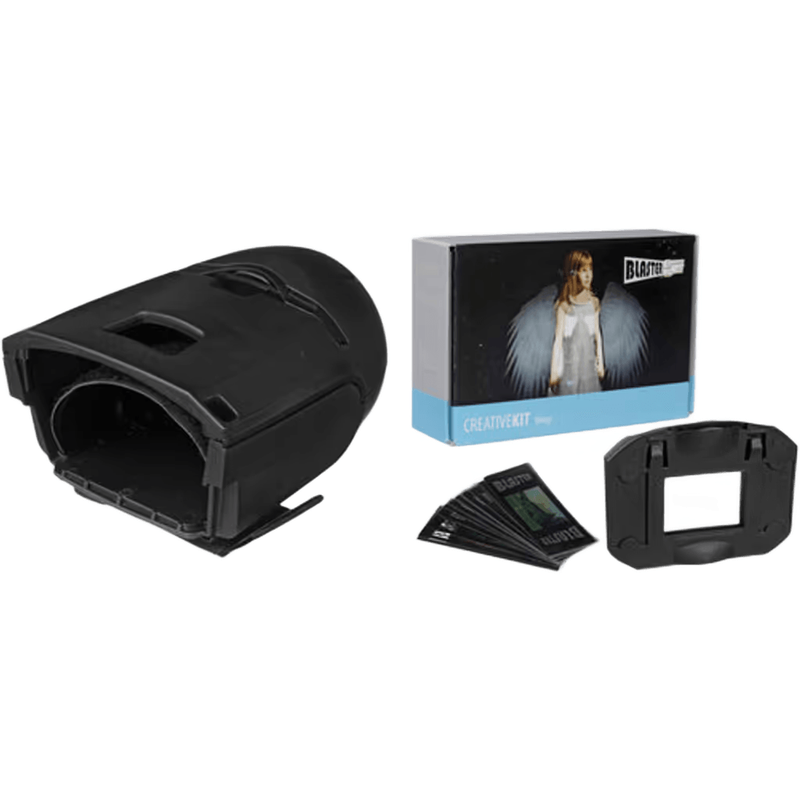

The chassis of the Light Blaster Kit (Canon mount) is constructed from a high-impact polycarbonate, designed to be lightweight enough for handheld use while remaining durable under the weight of professional glass. The rear of the unit features a universal flash slot with a wide, adjustable velcro strap that secures the speedlight head. This interface is compatible with almost all standard flash sizes, from compact units to larger professional strobes like the Canon 600EX-RT II. The front of the unit features a dedicated Canon EF mount. While it is a non-electronic mount—meaning there is no communication between the camera and the lens—it provides a secure mechanical lock for the lens.

For mounting on stands, the base of the unit includes a 1/4"-20 threaded tripod socket. This allows it to be mounted directly onto a light stand via a cold shoe adapter or onto a tripod head for precise positioning. Handling the unit during a shoot requires a manual workflow; since there are no electronic contacts, the lens must have a manual aperture ring if you wish to stop down, though most users shoot wide open to maximize light transmission. If using modern Canon EF lenses without aperture rings, the lens will default to its widest aperture, which is generally the preferred state for this device. The kit typically includes a slide holder that slots into the top of the unit, allowing for quick changes between different transparencies or metal gobos.

Continuous Light and Video Limitations

The Light Blaster Kit (Canon mount) is fundamentally designed for instantaneous bursts of light from a strobe. It does not have an internal cooling system or heat venting. Consequently, it is not suitable for use with high-powered continuous tungsten or halogen lights, which would melt the plastic housing and the 35mm slides within seconds. While it can be used with modern, low-heat LED COB lights, the light output is often insufficient for video work unless the environment is extremely dark and the camera is set to a high ISO. The projection is static; there are no built-in motors or effects wheels.

For video applications, the primary limitation is the "flicker" or "refresh" of the light source used. If paired with a high-end LED, it can project a static background for a talking-head shot, but it cannot project moving images. Furthermore, because the unit relies on the lens's manual focus, pulling focus on a projection during a video take is possible but requires a lens with a smooth, dampened focus throw to avoid shaking the entire projector assembly. Most cinematographers use this kit specifically for "plate" creation—projecting a static texture onto a background during a slow-moving shot to add depth that would otherwise require a large-scale physical set or expensive digital compositing.

On the Shoot: Indian Production Scenarios

In a Mumbai studio editorial session, the Light Blaster Kit (Canon mount) is frequently used to create "architectural" light where none exists. By inserting a slide of a Venetian blind or a geometric window frame and attaching a Canon EF 35mm f/2 IS USM, a photographer can project a sharp, high-contrast shadow pattern across a model. This adds a layer of sophisticated "noir" lighting to a fashion spread without needing to construct physical gobos or "cookies." The ability to focus the lens allows the photographer to keep the pattern sharp on the model’s face while letting it fall softly out of focus on the background, creating a sense of three-dimensional depth in a confined studio space.

During a Bengaluru wedding reception held in a standard hotel ballroom, the kit serves as a portable "gobo projector." Wedding photographers often use it to project the couple’s monogram or a floral pattern onto a plain, unadorned wall. By pairing the unit with a high-power speedlight and a Canon EF 85mm f/1.8 USM, the photographer can stand at the back of the hall and project a clean, bright image onto the far wall. This setup is significantly more portable than traditional stage lighting projectors and allows the photographer to change the projection location instantly as the event progresses, moving from the entrance to the cake-cutting area without re-rigging heavy equipment.

On a Goa travel or lifestyle shoot, the kit is an essential tool for "faking" golden hour or tropical environments. If the weather turns overcast, a photographer can use a slide featuring a palm leaf pattern or a "sunburst" transparency. By projecting this through a wide-angle lens onto a neutral wall or even the subject, they can simulate the dappled light of a forest or the harsh, directional light of a coastal sunset. Because the kit is lightweight and fits into a standard camera bag, it allows a small crew to maintain high production values on location without the need for a generator or large-scale lighting trucks.

Compatibility and Pairing Essentials

The Light Blaster Kit (Canon mount) is designed for the Canon ecosystem but has specific requirements for optimal performance. Lenses: It is most effective when paired with "fast" prime lenses. The Canon EF 50mm f/1.4 USM or the EF 85mm f/1.8 USM are ideal because their large maximum apertures allow the maximum amount of light to reach the projection surface. While EF-S lenses (designed for APS-C sensors) like the 18-55mm or 24mm f/2.8 STM will mount and function, they may exhibit vignetting or "mechanical cut-off" because the slide gate is sized for a full-frame 35mm image circle.

Light Sources: The unit requires a flash with a standard rectangular head. It is perfectly matched with the Canon Speedlite 600EX II-RT, 580EX II, or third-party equivalents like the Godox V860III or AD200 (with the Fresnel head). Round-head flashes may require an adapter or may not fit the rectangular rear aperture of the blaster. Media: The kit uses standard 35mm mounted slides (2x2 inch plastic or cardboard mounts). It is also compatible with the Light Blaster Creative Kits, which offer pre-printed transparencies of wings, space scenes, and patterns. Support: A sturdy C-stand with a grip head is recommended when using heavy "L" series lenses, as the weight of a lens like the 24-70mm f/2.8L can create significant torque on the 1/4"-20 mount.

Limitations and Alternative Solutions

The Light Blaster Kit (Canon mount) has distinct physical and optical limitations that may make it unsuitable for certain high-precision tasks. First, it is a manual device; there is no way to control the lens aperture or focus from the camera. If you need to change the focus of the projection, you must physically walk over to the unit and turn the lens barrel. Second, the light output is limited by the power of the speedlight. For large-scale projections in bright environments, such as a daytime outdoor shoot, the projection will likely be washed out. In these cases, a high-wattage studio strobe (600Ws or more) paired with a dedicated optical snoot like the Westcott Optical Spot or the Aputure Spotlight Mount would be more appropriate, though those are significantly heavier and more expensive.

Another limitation is the heat sensitivity of the slides. If a flash's modeling light is left on for an extended period, or if the flash is fired at full power in rapid succession, the heat can warp or "burn" the 35mm transparency. For photographers using Nikon, Sony, or other mirrorless systems, this specific Canon-mount version will require an adapter or the specific version of the Blaster for their mount; using a Nikon lens on this Canon-mount unit is not possible without a mechanical adapter, which may change the flange distance and prevent the lens from focusing correctly on the slide. Finally, for those requiring a perfectly uniform, edge-to-edge brightness (flat-field projection), this kit may show some fall-off at the corners, a characteristic of using standard camera lenses for projection rather than dedicated projection optics.
