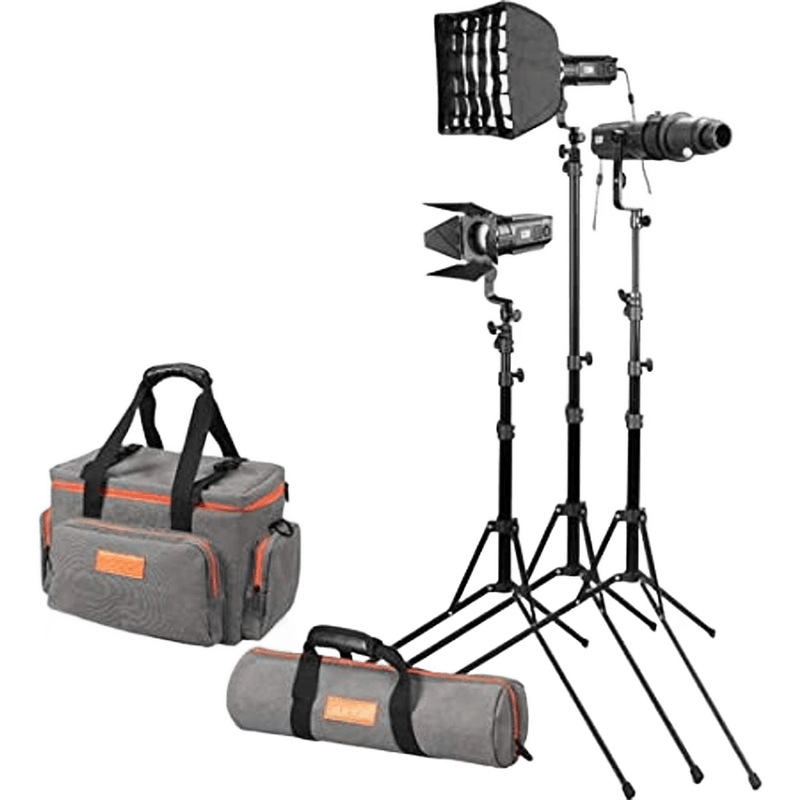

S 30 3 Light Kit with Lens and all Accessories

Precision Optics and the Godox S30 3 Light Kit Ecosystem

The Godox S30 3 Light Kit is a specialized lighting solution built around the S30 Focusing LED Light, a fixture designed for precision light shaping and accentuation. Unlike standard COB (Chip on Board) LEDs that rely on reflectors or large softboxes to diffuse light, the S30 utilizes an integrated aspheric optical lens to provide a beam that is uniform from edge to edge. This kit sits in the Godox lineup as a dedicated tool for product photographers, macro cinematographers, and portrait artists who require surgical control over their light spill. The core of the system is the 30W LED head, which provides a daylight-balanced output of 5600K. It is engineered for those who find traditional Fresnel lights too bulky or imprecise for tabletop and detail work.

The 3-light kit configuration is designed to provide a complete three-point lighting setup that can be powered in three distinct ways: via a DC power adapter (15V/4A) for full 30W output, through an NP-F series Li-ion battery (7.4V) which limits output to 10W, or via a USB power bank (5V/2A) which also operates at 10W. This versatility makes the kit a hybrid solution for both controlled studio environments and remote locations where AC power is unavailable. The inclusion of the SA-P Projection Attachment and its accompanying lenses transforms these lights from simple illuminators into precision projectors capable of casting sharp-edged shapes, patterns, and focused slivers of light.

Optical Performance and Light Quality

Light quality in the Godox S30 3 Light Kit is defined by its high color rendering indices, boasting a CRI of 96 or higher and a TLCI of 96 or higher. These figures ensure that skin tones, fabric textures, and product colors are reproduced accurately without the green or magenta shifts often found in lower-tier LED fixtures. The standout feature of the S30 is its adjustable beam angle, which can be mechanically shifted from a tight 6-degree spot to a 55-degree flood. This 1:10 zoom ratio allows the user to transition from a concentrated punch of light to a wider wash by simply rotating the focusing dial on the rear of the lamp head.

The aspheric lens is critical to the S30’s performance. In a standard LED with a reflector, the center of the beam is often significantly brighter than the edges, creating a "hot spot." The S30’s optical design eliminates this, providing a flat field of illumination. When used with the SA-P Projection Attachment, this flatness becomes even more apparent. The light maintains its intensity and color temperature across the entire projected area, which is essential when using gobos or framing shutters to create architectural lines or geometric patterns in the background of a shot.

Build Quality, Mounting, and Thermal Management

Each S30 head in the kit is constructed with a focus on portability and durability. The housing is compact, measuring 215mm by 108mm by 100mm, and weighs approximately 907g. This lightweight profile allows the lights to be mounted on the included lightweight stands or boomed out on C-stands without requiring heavy counterweights. The yoke design allows for 360 degrees of rotation, providing the flexibility to angle the light vertically or horizontally in tight spaces. The locking mechanism on the yoke is robust enough to hold the weight of the SA-P Projection Attachment and a 150mm telephoto lens without slipping.

Thermal management is handled through a passive cooling system supplemented by an internal fan. The fan is designed to be exceptionally quiet, ensuring that the lights do not interfere with on-set audio recording, even when positioned close to the talent. The rear of the unit features a clear LCD panel that displays the current brightness percentage (adjustable from 10% to 100%) and the power source being utilized. The physical control dial provides tactile feedback, allowing for precise 1% increments in brightness adjustments. The kit also includes dedicated battery cradles that clip onto the light stands, keeping the center of gravity low and the workspace organized.

Video Capabilities and Flicker-Free Operation

For cinematographers, the Godox S30 3 Light Kit offers flicker-free performance across its entire dimming range. This is a critical requirement for high-frame-rate videography; the S30 maintains a consistent output that does not produce banding or strobing effects when shooting at 60fps, 120fps, or higher. The 5600K color temperature is consistent across the 10% to 100% dimming curve, meaning you won't see a shift toward warmer tones as you reduce the intensity of the light.

The silent operation of the S30 is its primary advantage in video production. In small studio setups or interview scenarios where the lights are placed just a few feet from the microphone, the absence of fan noise is a significant benefit. Furthermore, the ability to power the units via USB or NP-F batteries allows for "run-and-gun" style shooting. A cinematographer can move a light from a stand to a handheld position or hide it behind a practical prop on set without being tethered to a wall outlet. However, it is important to note that the drop from 30W to 10W when switching to battery power must be accounted for in the exposure settings.

The Godox S30 in Professional Indian Shoot Scenarios

In a Mumbai-based commercial studio specializing in high-end jewelry, the Godox S30 3 Light Kit is used for its ability to highlight microscopic details. When photographing a diamond-encrusted watch, the photographer uses the SA-07 Framing Shutters to create a razor-thin line of light that catches the edge of the bezel without spilling onto the velvet backdrop. The SA-06 Iris Diaphragm is employed to create a tiny, circular highlight on the watch face, simulating a natural glint that would be impossible to achieve with a larger, softer light source.

During a wedding reception in a heritage hotel in Bengaluru, the kit serves as a sophisticated accent lighting system. While the main ballroom is lit with large softboxes, an S30 is tucked away to project a "gobo" pattern—perhaps a floral motif or a window pane effect—onto a plain pillar or a section of the wall behind the couple. This adds depth and texture to the background of the video and photos. Because the S30 is compact, it can be hidden behind floral arrangements or decor elements, remaining invisible to the guests while significantly enhancing the visual production value.

For a travel documentary shoot in the spice markets of Old Delhi, the portability of the S30 kit is the deciding factor. The crew uses the lights powered by NP-F970 batteries to illuminate a merchant's face in the dimly lit stalls. The 6-degree spot setting allows them to throw light from a distance, cutting through the ambient shadows without requiring a large footprint in the crowded market. The included carrying case (CB14 or CB15) ensures that all three heads, the projection attachments, and the various lenses are organized and protected during transit through busy streets and domestic flights.

Compatibility and Essential Accessories

The Godox S30 3 Light Kit is a modular system that relies heavily on its accessory ecosystem. The most critical component is the SA-P Projection Attachment, which accepts a variety of light-shaping tools. The kit typically includes the following:

• SA-01 85mm Lens: The standard lens for the projection attachment, offering a balanced throw and sharp focus for gobos and shutters.
• SA-09 Gobo Set: A collection of metal plates with various patterns (windows, leaves, textures) that are inserted into the projection attachment to cast shadows.
• SA-07 Framing Shutters: Four independent blades that allow the user to crop the light into squares, rectangles, or sharp triangles.
• SA-06 Iris Diaphragm: A multi-blade iris that allows for a continuously variable circular beam, from a wide circle to a pin-sized dot.
• SA-05 Scrim Set: Includes single-layer, double-layer, and graduated scrims to reduce light intensity in specific areas of the beam without changing the focus.
• SA-30 Softbox: A small, dedicated softbox for the S30 that provides a softer light quality while maintaining the compact form factor.

In terms of power, the S30 is compatible with any standard NP-F series battery, such as the NP-F550, F750, or F970. For maximum runtime and the full 30W output, the included AC adapters are the preferred choice. The light stands included in the kit feature a standard 5/8-inch stud, making the heads compatible with almost any photography or cinema stand on the market. While the S30 does not feature built-in wireless control, it is often used alongside Godox’s larger COB lights like the VL150 or UL150, which can be controlled via the Godox Light app or RC-A6 remote, though the S30 itself requires manual adjustment on the unit.

Limitations and Alternative Recommendations

While the Godox S30 3 Light Kit is a masterclass in precision, it is not a universal lighting solution. Its primary limitation is its total power output. At 30W on AC power, it cannot compete with direct sunlight or high-powered strobes. If you are shooting a large group portrait or need to fill a cavernous room with light, the S30 will be insufficient. In those cases, a higher-wattage COB LED like the Godox SZ150R or the Knowled M200D would be more appropriate, as they offer significantly more lumens while still providing some level of focusing capability.

Another limitation is the fixed color temperature. The S30 is a 5600K daylight-only fixture. While the kit includes SA-11T color temperature adjustment gels to convert the light to tungsten (3200K), this process further reduces the light output. Users who frequently work in mixed-lighting environments and require the ability to dial in specific Kelvin temperatures without using gels should consider the Godox S60, which offers more power, or a Bi-color alternative like the Forza 60B. Finally, the S30 is designed for hard, shaped light; even with the SA-30 softbox, it cannot replicate the wrap-around quality of a 120cm octabox. If your shoot requires soft, flattering light for beauty or fashion, a dedicated large-format LED source is a better choice than trying to adapt the S30.
