Amaran 200X (Bi-Colour) with Soft Box & Battery

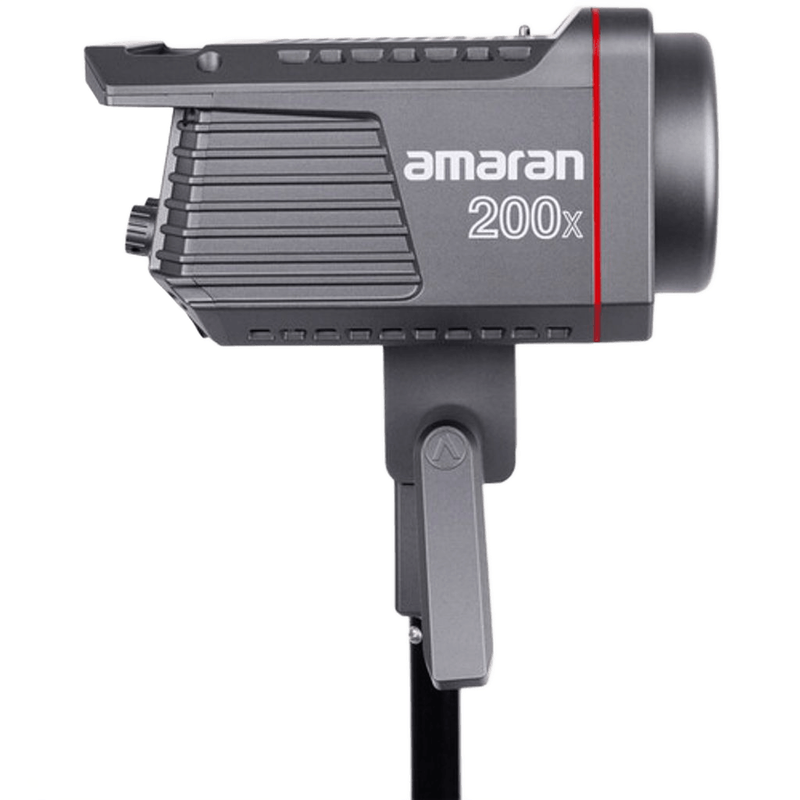

The Architecture of the Aputure Amaran 200X

The Aputure Amaran 200X (Bi-Colour) is a point-source COB (Chip-on-Board) LED fixture designed to bridge the gap between high-output professional studio lighting and the portability required by independent content creators. Rated at a 200W power draw, this fixture sits as the mid-to-high tier offering within the Amaran series, providing significantly more luminance than the 60x or 100x models while maintaining a compact form factor. Unlike daylight-only fixtures, the 200X utilizes a bi-color LED array, allowing for a variable color temperature range of 2700K to 6500K. This flexibility is achieved through a dense cluster of alternating warm and cool LED chips under a single glass cover, which ensures a uniform beam pattern without the "multi-shadow" artifacts common in older LED panels. The light is engineered for users who require a single, powerful key light that can adapt to varying ambient light conditions, from the warm tones of tungsten indoor lighting to the cooler hues of natural daylight.

Spectral Quality and Photometric Performance

Light quality in the Aputure Amaran 200X is defined by its high color fidelity scores, which are critical for accurate skin tone reproduction and post-production color grading. The fixture achieves a CRI (Color Rendering Index) of 95+ and a TLCI (Television Lighting Consistency Index) of 95+. In terms of spectral accuracy, it provides an SSI (Tungsten) of 86 and an SSI (D56) of 75, ensuring that the light output lacks the heavy green or magenta shifts often found in budget LED solutions. When used with the included Hyper Reflector at a 5600K color temperature, the 200X is capable of producing up to 51,600 lux at a distance of 1 meter. Even at its warmest setting of 2700K, the output remains substantial at approximately 43,500 lux at 1 meter with the reflector. The dimming curve is linear and flicker-free from 0% to 100%, making it suitable for high-frame-rate cinematography. The bi-color capability allows for fine-tuning in 100K increments, providing precise matching to existing environmental light sources.

Build, Mounting, and Thermal Management

The chassis of the 200X is constructed from a lightweight, high-strength polycarbonate, bringing the total head weight to approximately 1.56 kilograms. This lightweight design is intended to reduce the load on travel stands and boom arms. The fixture features a standard Bowens Mount, which is the most widely used accessory mount in the industry, allowing for the attachment of a vast array of modifiers including softboxes, beauty dishes, and fresnels. The integrated yoke is equipped with a 5/8-inch (Baby Pin) receiver and an umbrella hole, providing multiple rigging options. To manage the heat generated by the 200W COB, the unit employs an active cooling system consisting of a large internal heatsink and a low-decibel fan. The fan speed is intelligently regulated based on the internal temperature of the LED, ensuring that the fixture can run continuously on long shoots without thermal throttling. The control interface on the rear of the unit consists of a single clickable jog dial and an LCD screen, allowing for tactile adjustment of intensity and color temperature.

Control Protocols and Integrated Effects

The Aputure Amaran 200X incorporates Sidus Mesh technology, allowing it to be controlled wirelessly via the Sidus Link mobile application. This Bluetooth-based control system enables users to adjust brightness, color temperature, and lighting effects from a smartphone or tablet at distances up to 80 meters. Within a mesh network, multiple Amaran and Light Storm fixtures can communicate with each other, extending the control range and allowing for complex lighting cues. The fixture comes pre-programmed with nine built-in lighting effects: Paparazzi, Fireworks, Lightning, Faulty Bulb, TV, Pulsing, Strobe, Explosion, and Fire. Each effect can be customized for intensity and frequency. For video professionals, the ability to trigger these effects remotely is essential for maintaining the pace of a shoot. The unit also supports AC power via the included 1.5m power cable and 3m DC cable, or DC power via 48V inputs, which is where the battery compatibility becomes critical for field use.

Operational Scenarios in the Indian Production Environment

In a Mumbai-based studio setting for a corporate interview, the Aputure Amaran 200X serves as an ideal key light when paired with the included softbox. The 200W output is sufficient to create a soft, wrap-around light that can compete with the ambient spill from office windows. By adjusting the color temperature to 4500K or 5000K, the cinematographer can balance the cool light coming from the windows with the warmer overhead office fluorescents, ensuring the subject's skin tones remain natural and separated from the background.

During a wedding reception in Bengaluru, where lighting conditions often shift between warm decorative tungsten lamps and cool LED stage lights, the bi-color range of the 200X allows the photographer to quickly pivot. Mounted on a lightweight stand, the light can be moved through the crowd to provide fill light for portraits. The ability to dial the light down to 1% allows for subtle enhancement of the couple's features without destroying the ambient mood of the venue. The silent fan mode is particularly useful here, as it ensures that the light does not interfere with the audio recording of speeches or vows.

For a travel shoot in the coastal regions of Goa, the battery-powered capability of this kit is indispensable. When shooting at sunset on a beach where mains power is unavailable, the 200X can be powered by V-mount batteries via a 2-bay battery power station. This allows the crew to maintain a high-quality light source for "blue hour" interviews. The Bowens mount softbox can be quickly swapped for a reflector to punch light over a longer distance, providing a rim light that separates the subject from the darkening ocean background.

Compatibility and Essential Pairings

The versatility of the 200X is maximized through its compatibility with the Bowens Mount ecosystem. This kit includes a softbox, typically the Light Dome SE, which features a 16-rod circular design and two layers of diffusion (1.5 stop and 2.5 stop) to create a soft, round catchlight in the subject's eyes. For power, the fixture requires a 48V DC input to reach full output. This is commonly achieved using the Aputure 2-Bay Battery Power Station, which takes two 14.8V or 26V V-mount batteries and steps the voltage up to the required 48V. Users should ensure their V-mount batteries are capable of a high continuous discharge (at least 15A) to support the 200W draw. Other compatible modifiers include the Aputure Lantern for 360-degree ambient fill and the Fresnel 2X for intensifying the beam angle from 15 to 45 degrees. For secure mounting, a heavy-duty C-stand is recommended when using large softboxes, although the light's own weight is low enough for standard air-cushioned light stands in basic configurations.

Limitations and Alternative Considerations

While the Aputure Amaran 200X is a highly capable fixture, it has specific limitations that may necessitate a different choice for certain productions. The polycarbonate construction, while lightweight, is not as rugged as the aluminum alloy housing found in the Light Storm (LS) series. It lacks weather sealing, meaning it cannot be used in rain or high-moisture environments without external protection. For shoots requiring extreme durability or IP65 ratings, the LS 600 series is a more appropriate choice. Furthermore, the 200X uses a combined LED chip for bi-color; if a user requires the absolute maximum possible brightness at a fixed 5600K, the Amaran 200d (Daylight) offers a higher raw output because all its LEDs are tuned to a single color temperature. Additionally, the 200X does not feature built-in DMX control ports, relying instead on the Sidus Link app. For large-scale film sets that utilize a DMX console for lighting control, a fixture like the LS 300x, which includes 5-pin DMX I/O, would be the necessary upgrade. Finally, the 48V DC requirement means that powering the unit at 100% brightness on batteries requires a specific power station; it cannot be powered by a single standard 14.8V V-mount battery directly into the head.
