600 Bulb LED Light (Bi-Colour)

The Architecture of the 600 Bulb LED Light (Bi-Colour)

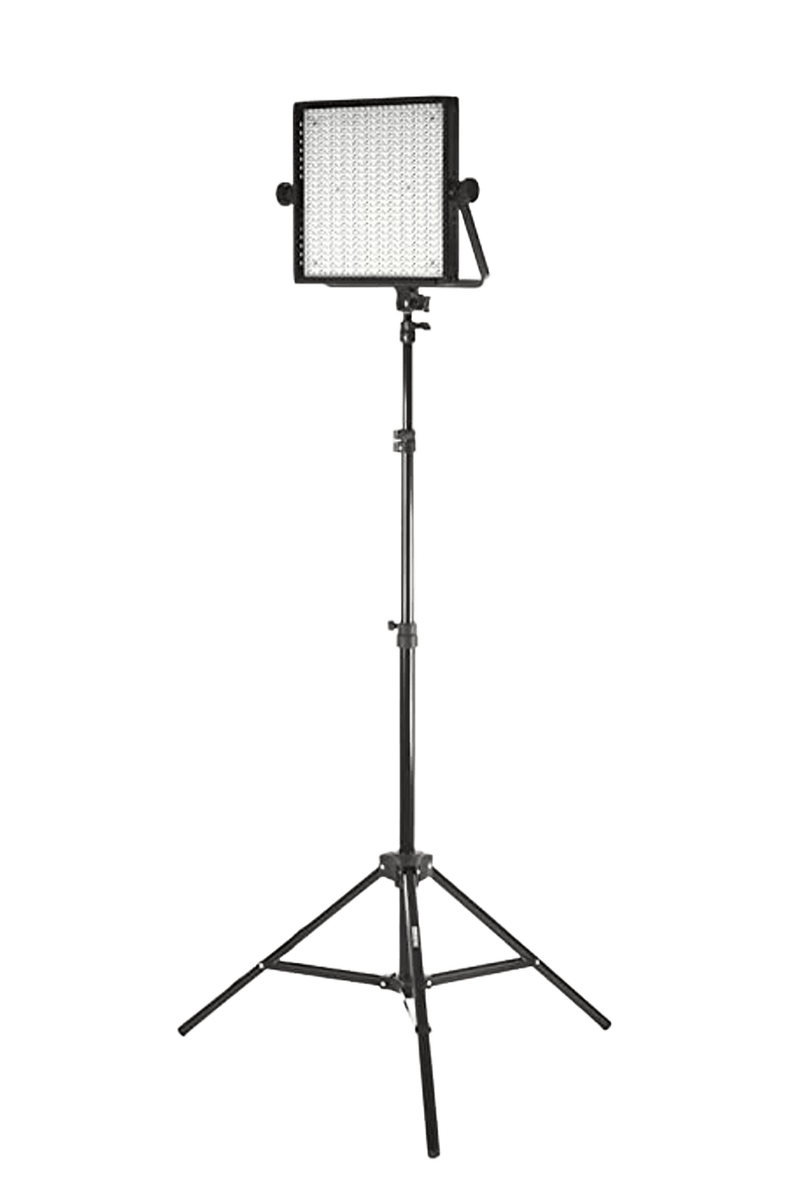

The 600 Bulb LED Light (Bi-Colour) is a mid-range, portable LED panel designed to provide a balance between high-intensity output and color flexibility. The unit is constructed using an array of 600 individual light-emitting diodes, typically split into 300 tungsten-balanced (3200K) bulbs and 300 daylight-balanced (5600K) bulbs. This specific configuration allows the user to dial in a precise color temperature across the Kelvin spectrum without the need for external filtration or gels. In the broader landscape of production lighting, this fixture occupies the "1x1" form factor category, though its actual dimensions are often more compact, making it a staple for mobile newsgathering, corporate interviews, and independent cinematography.

The output of the 600 Bulb LED Light (Bi-Colour) is generally rated at approximately 4500 to 5500 Lux at a distance of one meter, depending on the specific efficiency of the diodes used. Unlike Chip-on-Board (COB) LEDs which utilize a single large light source, this panel distributes its power across a wide surface area. This design choice results in a naturally softer light source compared to a point-source fixture, while still maintaining a throw distance suitable for key lighting in small rooms or fill lighting in larger environments. It is engineered for creators who require a "set-and-forget" lighting solution that can be powered via standard AC mains or V-Mount batteries for field use.

Spectral Accuracy and Light Quality

The primary technical advantage of the 600 Bulb LED Light (Bi-Colour) lies in its Color Rendering Index (CRI) and Television Lighting Consistency Index (TLCI) ratings, which typically exceed 95. This ensures that skin tones are rendered accurately and that the full spectrum of colors in a scene is captured without the green or magenta shifts often associated with lower-quality LED arrays. The bi-colour functionality is achieved through a variable mixing of the two diode sets. When set to 4400K, both sets of bulbs are at full power, providing the maximum possible brightness. At the extremes of 3200K or 5600K, only half the bulbs are active, which is a critical consideration for cinematographers calculating their exposure levels.

The beam angle of this fixture is generally fixed at 60 degrees. This provides a wide, even wash of light that is effective for lighting groups or providing a general fill. Because the light is emitted from 600 individual points, the shadows produced are softer than those from a Fresnel or a bare COB light, but they can exhibit a "multi-shadow" pattern if the light is placed too close to a subject without diffusion. To mitigate this, the fixture includes a dedicated slot for a diffusion panel, which blends the individual light points into a single, cohesive source. The dimming circuitry is designed to be flicker-free, utilizing Pulse Width Modulation (PWM) that allows for dimming from 100% down to 10% or 0% without affecting the color temperature or causing banding on high-speed camera sensors.

Build Quality, Mounting, and Thermal Management

The 600 Bulb LED Light (Bi-Colour) is housed in a chassis that balances weight and durability, often utilizing a combination of high-grade aluminum and impact-resistant polymers. The most prominent physical feature is the U-shaped yoke (or bracket), which allows for 360-degree rotation of the panel. This yoke terminates in a standard 5/8-inch (16mm) baby pin receiver, making it compatible with almost every professional light stand and C-stand available. The locking knobs on the side of the yoke are designed to provide enough friction to hold the panel at steep angles, even when heavy modifiers like a softbox are attached.

On the rear of the panel, the interface consists of two primary rotary encoders: one for brightness and one for color temperature. Many models also include a digital LCD readout that displays the current intensity percentage and the Kelvin value, allowing for precise repeatability across different shoot days. For power, the unit features a 12V-15V DC input and an integrated V-Mount battery plate. This plate is a critical feature for location work, allowing the light to run for 1.5 to 3 hours on a standard 95Wh or 150Wh V-Mount battery. Thermal management is typically passive, meaning the back of the panel acts as a large heat sink. The absence of cooling fans makes the 600 Bulb LED Light (Bi-Colour) completely silent, an essential requirement for sound-sensitive environments like interview sets or quiet studio recordings.

Video Performance and Control Systems

For video applications, the 600 Bulb LED Light (Bi-Colour) is optimized for modern digital sensors. The flicker-free performance is tested to remain stable even when shooting at higher frame rates, such as 120fps or 240fps, which are common in slow-motion sequences. The light output remains consistent throughout the battery discharge cycle; the internal voltage regulators ensure that the light does not dim as the V-Mount battery loses its charge, maintaining a constant exposure until the battery reaches its cutoff voltage.

Control of the light is primarily manual, but many versions of the 600-bulb array include a 2.4GHz wireless receiver. This allows the fixture to be assigned to a specific channel and group, enabling remote adjustment of brightness and color temperature from a handheld controller. This is particularly useful when the light is mounted high on a stand or rigged to a ceiling grid. The four-leaf barn doors included with the unit are not just for protection; they are lined with a reflective silver surface to maximize output and provide a degree of spill control. By adjusting these doors, a gaffer can prevent light from hitting the camera lens or spilling onto the background, though the "cut" of the light is not as sharp as that produced by a dedicated ellipsoidal or Fresnel fixture.

On the Shoot: Real-World Indian Scenarios

In a Bengaluru wedding reception, the 600 Bulb LED Light (Bi-Colour) proves its utility in the face of unpredictable venue lighting. Most banquet halls in Bengaluru use a mix of warm decorative lamps and cool overhead LEDs. By adjusting the Kelvin dial on the 600-bulb panel, a videographer can perfectly match the ambient light of the hall, ensuring that the couple on stage does not look unnaturally blue or orange. The ability to run the light off a V-Mount battery is vital here, as trailing power cables through a crowded guest area presents a significant safety hazard and limits mobility.

During a Goa travel shoot, specifically for sunset interviews on the beach, the portability of this fixture is its greatest asset. As the sun dips toward the horizon, the color temperature of the natural light shifts rapidly from 5600K toward 3200K. The 600 Bulb LED Light (Bi-Colour) allows the crew to track this change in real-time, maintaining a natural look on the presenter's face. The 60-degree beam angle is wide enough to cover two people in a frame, and the passive cooling ensures that sand and salt air are not sucked into the unit by a fan, which would otherwise reduce the lifespan of the electronics.

In a Mumbai studio product session, such as shooting high-end jewelry or cosmetics, the 600 Bulb LED Light (Bi-Colour) serves as an excellent large-surface fill light. When placed behind a large silk or diffusion sheet, the 600 individual diodes create a massive, soft glow that minimizes harsh reflections on metallic surfaces. The high CRI ensures that the specific gold tones of jewelry or the exact shades of makeup are captured accurately for post-production color grading. The barn doors allow the photographer to flag the light off the camera lens to prevent flare, which is a common issue in tight studio spaces.

Compatibility and Essential Pairings

The 600 Bulb LED Light (Bi-Colour) is part of a wider ecosystem of grip and power equipment. For mounting, it is most commonly paired with heavy-duty C-stands or air-cushioned light stands. Given the weight of the panel and a V-Mount battery (often totaling over 3kg), a sturdy base is required to prevent tipping. For light modification, dedicated 1x1 softboxes are the most frequent pairing. These softboxes often include a honeycomb grid (egg crate) to narrow the beam angle and provide more directional control.

Power compatibility is centered around the V-Mount battery system. A 14.8V V-Mount battery is the standard, though some units can also be powered via a D-Tap to DC cable from a larger power station. For studio work, the included AC adapter is usually a two-part brick with a long cable, allowing the transformer to sit on the floor rather than hanging from the light stand. In terms of color management, while the light is bi-colour, it is often paired with CTO or CTB gels if the user needs to push the color temperature beyond the 3200K-5600K range, such as matching deep orange candle light or very cool moonlight.

Limitations and Alternative Choices

While the 600 Bulb LED Light (Bi-Colour) is a versatile tool, it has distinct limitations. The most significant is its "multi-shadow" effect. Because the light source is composed of 600 distinct points, objects placed close to the light will cast a series of overlapping shadows rather than one clean shadow. If your shoot requires sharp, defined shadows or the use of a "hard" light source, a COB (Chip on Board) LED like an Aputure LS series or a Godox VL series with a Fresnel lens would be a superior choice.

Another limitation is the total light output. While 5000 Lux is ample for indoor interviews, it is insufficient to compete with direct Indian midday sun. If you are shooting outdoors in high-contrast environments and need to fill shadows on a subject's face against the sun, a high-output 600W or 1200W COB light or an HMI fixture is necessary. Additionally, this panel is limited to the bi-colour spectrum. If your production requires creative colors (reds, greens, blues), an RGBWW LED panel would be required to avoid the light loss associated with traditional plastic gels. Finally, the fixed beam angle means this light cannot be "spotted" down to a tight circle; for long-throw applications, a dedicated spotlight or a light with a Bowens mount for specialized reflectors is more appropriate.
