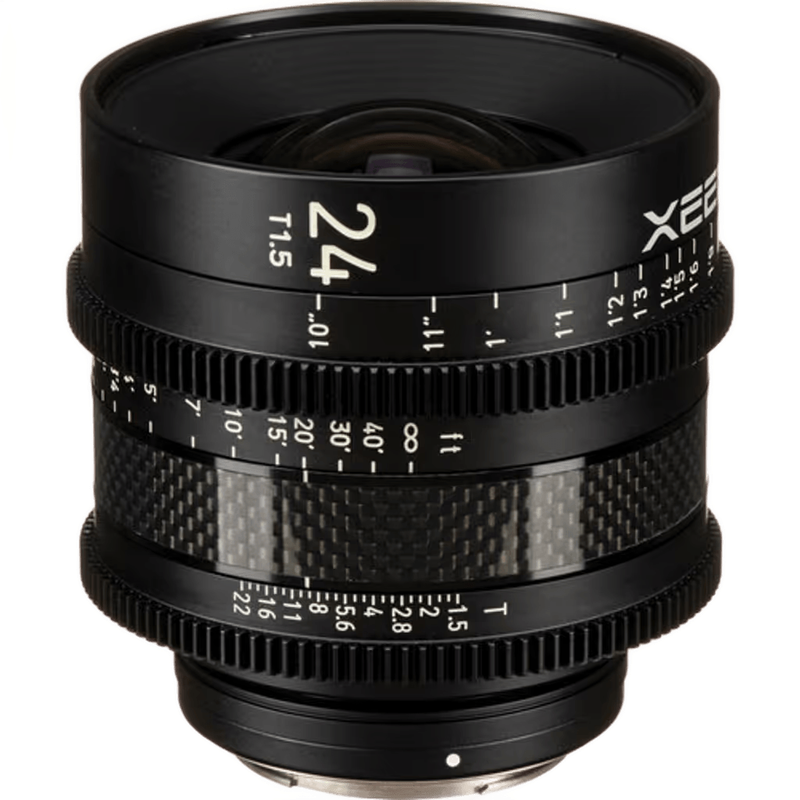

Xeen 24mm T1.5 Lens

The Optical Foundation of the Xeen 24mm T1.5

The Xeen 24mm T1.5 is a purpose-built cinema prime lens designed to cover full-frame 35mm sensors (36 x 24mm). It occupies a central position in the Xeen lineup, bridging the gap between the ultra-wide 14mm and the standard 35mm focal lengths. The optical formula consists of 13 elements arranged in 12 groups, a configuration engineered to resolve detail for 4K, 6K, and 8K digital cinematography. Unlike repurposed photo lenses, this optic is designed specifically for the rigors of high-resolution motion capture, featuring a dedicated cinema housing that remains consistent across the entire focal range of the series. The lens is intended for directors of photography and camera operators who require a fast, wide-angle prime that provides a natural perspective without the extreme distortion often associated with wider focal lengths. It is compatible with a variety of mounts, including PL, Canon EF, Sony E, Micro Four Thirds, and Nikon F, making it a versatile asset for diverse camera systems ranging from mirrorless hybrids to high-end cinema cameras like the ARRI Alexa or RED V-Raptor.

Light Transmission and Image Characteristics

The primary technological feature of the Xeen 24mm T1.5 is the proprietary X-Coating technology. This multi-layer coating is applied to the glass elements to minimize internal reflections, ghosting, and flare, which are common challenges when shooting against strong light sources. In practice, this results in a high-contrast image with controlled saturation, even in high-dynamic-range environments. The lens features a fast T1.5 maximum aperture, which refers to the actual light transmission rather than just the physical geometry of the iris. This allows for significant light intake in low-light scenarios and provides a shallow depth of field that is difficult to achieve with slower wide-angle lenses. The iris itself is constructed with 11 blades, creating a nearly circular aperture across the entire T-stop range. This 11-blade configuration ensures that out-of-focus highlights, or bokeh, remain smooth and rounded, avoiding the polygonal shapes often seen in lenses with fewer blades. The color rendering is calibrated to be consistent across the entire Xeen set, ensuring that footage shot on the 24mm will match seamlessly with the 50mm or 85mm during the color grading process.

Mechanical Build and On-Set Handling

The Xeen 24mm T1.5 is housed in a robust, all-metal aluminum chassis designed for professional production environments. One of its most critical features for a camera assistant is the unified 114mm front diameter. This standardized size allows for the use of professional matte boxes and 114mm "donut" rings without the need for step-up adapters when switching between different focal lengths in the Xeen series. The lens features a 200-degree focus rotation, providing a long throw that allows for precise focus pulls, especially when working with a follow-focus system. The focus and aperture rings are equipped with industry-standard 0.8 MOD gearing, ensuring compatibility with motorized and manual focus controllers. The aperture ring is de-clicked, allowing for smooth iris pulls (t-stop transitions) during a shot without any tactile or audible clicks. For visibility in low-light environments, the focus and aperture scales are printed on both sides of the lens barrel using high-contrast white paint. The lens weighs approximately 1.2 kilograms (depending on the mount), providing enough mass to aid in handheld stability while remaining manageable for gimbal and steadicam work.

Video Performance and Optical Limits

As a dedicated cinema lens, the Xeen 24mm T1.5 is optimized to minimize focus breathing—the slight change in focal length that occurs when adjusting focus from the minimum distance to infinity. This is essential for narrative filmmaking where focus racks are used to shift viewer attention without distracting shifts in the frame's composition. The lens has a minimum focusing distance of 0.25 meters (approximately 10 inches), allowing for close-up shots that maintain a wide environmental context. While the lens is capable of resolving 8K resolution, it maintains a character that is often described as "organic" rather than "clinical," providing a slight roll-off in sharpness at the edges when shot wide open at T1.5. When stopped down to T2.8 or T4, the center-to-edge sharpness becomes exceptionally uniform. There is no electronic communication between the lens and the camera body; it is a fully manual optic. This means metadata such as focal length and aperture will not be recorded in the camera's EXIF data unless entered manually into the camera's system.

Practical Application in Indian Production Scenarios

In a Bengaluru wedding reception held in a large, dimly lit banquet hall, the Xeen 24mm T1.5 excels by allowing the cinematographer to capture wide environmental shots of the stage and guests without relying heavily on artificial on-camera lighting. The T1.5 aperture enables the use of lower ISO settings on cameras like the Sony FX6 or Panasonic S1H, preserving dynamic range and reducing noise in the shadows of the venue. The 24mm focal length is wide enough to capture the scale of the decor while remaining narrow enough to avoid the "fisheye" distortion that would unflatteringly warp the faces of guests near the edges of the frame.

For a travel commercial shoot in the coastal regions of Goa, the lens's X-Coating becomes a vital asset. When shooting at "golden hour" or directly toward the Arabian Sea, the coating manages the intense backlight and prevents the image from washing out. The 200-degree focus throw is particularly useful here for tracking a subject moving from the foreground into the distance on the beach, allowing the focus puller to maintain sharp eyes throughout the movement. The metal construction provides a level of durability against the humidity and wind-blown sand, though external protection for the front element is always recommended in these environments.

In a Mumbai-based studio session for a high-end fashion brand, the 24mm focal length is frequently used for "low-angle" hero shots. By placing the camera low and tilting up, the lens elongates the subject's legs and adds a sense of scale to the studio environment. The 11-blade iris ensures that any practical lights or reflections in the background of the studio are rendered as soft, circular highlights, preventing the background from becoming a distraction. The 0.25m minimum focus distance allows the camera to get physically close to the garments to highlight texture while still keeping the model's entire silhouette in the frame.

Compatibility and Pairing Essentials

The Xeen 24mm T1.5 is designed to be part of a larger ecosystem. It is most effectively paired with other lenses in the Xeen prime set, such as the 14mm, 35mm, 50mm, and 85mm, as they share identical gear positions for focus and iris. This allows a camera crew to swap lenses without moving the follow focus motor or the matte box on the 15mm or 19mm rail system. For mounting, the PL version is the standard for high-end cinema rigs, while the EF and E-mount versions are preferred for shooters using the Canon C300 Mark III or Sony Venice. Because it is a heavy lens, it is often paired with a lens support bracket that attaches to the camera's rod system to reduce strain on the camera mount. In terms of filtration, the 114mm front diameter is compatible with standard 4x4 or 4x5.65 cinema filters housed in a matte box. For power and media, the lens has no requirements, but the cameras it typically pairs with will require high-speed media (such as CFexpress Type B or CFast 2.0) to handle the 4K/8K data rates that this glass is capable of resolving.

Limitations and Alternative Considerations

While the Xeen 24mm T1.5 is a highly capable cinema tool, it is not the ideal choice for every production. Its primary limitation is its physical size and weight. At 1.2kg and with a 114mm front, it may be too bulky for small-scale gimbal setups like the DJI RS3 or for drone cinematography where weight is a critical factor. In these instances, the XEEN CF (Carbon Fiber) version or the Samyang VDSLR MK2 series would be more appropriate, as they offer similar focal lengths in a much lighter and more compact form factor. Furthermore, the 24mm is a fully manual lens. For solo operators or documentary filmmakers who rely on modern autofocus systems (such as Sony’s Real-time Eye AF or Canon’s Dual Pixel CMOS AF), this lens will not be suitable, as it lacks the internal motors and electronic contacts required for these features. In such cases, a high-end photo-native lens like the Sony 24mm f/1.4 GM or the Canon RF 24mm f/1.4L would be a better choice, despite the trade-offs in focus throw and gear consistency. Finally, while the 24mm is wide on a full-frame sensor, it behaves more like a 36mm "normal" lens when used on a Super 35 or APS-C sensor. Shooters looking for a true wide-angle perspective on a cropped sensor should consider the Xeen 14mm or 16mm instead.
