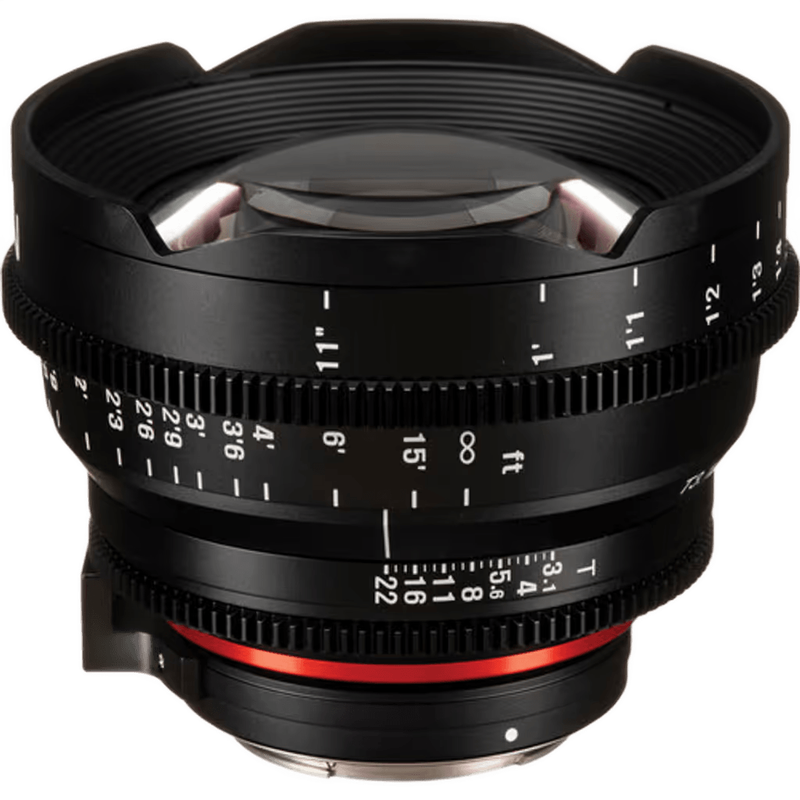

Xeen 14mm T3.1 Lens

The Architecture of the Xeen 14mm T3.1

The Xeen 14mm T3.1 is a professional-grade cinema prime lens designed to cover full-frame 35mm sensors, providing an ultra-wide field of view of 115.7 degrees on a full-frame body. It represents the widest focal length in the Xeen lineup, a series engineered by Samyang/Rokinon to provide high-resolution optical performance suitable for 4K, 6K, and 8K acquisitions. Unlike repurposed stills glass, this lens is built from the ground up for the cinema environment, featuring a unified design language that matches other lenses in the Xeen series. This consistency allows for seamless lens swaps on set without the need to reposition follow focus motors or matte boxes. The optical formula consists of 14 elements arranged in 10 groups, a complex arrangement necessitated by the extreme wide-angle perspective and the requirement for a flat image plane across a 43.3mm image circle.

Positioned as a high-value alternative to legacy cinema glass, the Xeen 14mm T3.1 serves independent cinematographers, documentary filmmakers, and commercial production houses who require a robust, reliable wide-angle solution. It is specifically designed for large-format sensors, ensuring that there is no vignetting even when shooting on cameras like the Arri Alexa Mini LF, Sony Venice, or RED V-Raptor. The lens is available in multiple interchangeable mounts, including PL, Canon EF, Sony E, Nikon F, and Micro Four Thirds, though the internal optical block remains consistent across all versions. This versatility makes it a staple for rental kits where cross-platform compatibility is a priority.

Optical Engineering and Image Quality

The image quality of the Xeen 14mm T3.1 is defined by its specialized glass elements and proprietary coating technologies. To manage the inherent distortions of a 14mm focal length, the lens incorporates one aspherical element and one hybrid aspherical element. These components are critical for maintaining sharpness at the edges of the frame and reducing spherical aberrations that often plague wide-angle optics. Additionally, the lens features two extra-low dispersion (ED) elements and three high-refractive index (HR) elements. These work in tandem to minimize chromatic aberration, ensuring that high-contrast edges—such as a dark building against a bright sky—remain free of purple or green fringing.

A defining characteristic of the Xeen series is the X-Coating technology applied to the glass surfaces. This multi-coating is designed to control internal reflections and ghosting while maintaining a consistent color temperature across the entire lens set. In practice, this means the 14mm will produce the same skin tones and contrast levels as the 35mm or 85mm Xeen primes, significantly reducing the time required for color grading in post-production. The lens features a maximum aperture of T3.1. While slower than the T1.5 found in the longer Xeen primes, the T3.1 rating is a physical necessity for a 14mm lens that maintains full-frame coverage without excessive weight. The iris is constructed with 11 rounded blades, which creates a circular aperture throughout the T-stop range, resulting in smooth, naturalistic out-of-focus highlights and a gentle roll-off in the highlights.

Mechanical Build and Handling

The Xeen 14mm T3.1 is housed in a rugged, all-metal aluminum enclosure designed to withstand the rigors of professional film sets. One of its most significant handling features is the 114mm front diameter, which is a standard size in the cinema industry. This allows for the use of professional matte boxes and filter trays without the need for specialized adapter rings. The lens weighs approximately 1.1 to 1.2 kilograms depending on the mount, providing enough heft for stable handheld operating while remaining light enough for use on medium-to-large gimbals. The focus and aperture rings are positioned in the exact same location as other lenses in the Xeen series, facilitating fast lens changes during time-sensitive shoots.

The focus throw is a generous 200 degrees, providing ample room for precise focus pulls, even when working with the deep depth of field inherent to a 14mm lens. The focus and iris scales are printed on both sides of the lens barrel, allowing both the camera operator and the focus puller to read the settings simultaneously. The gears are standard 0.8 MOD (32 pitch), ensuring compatibility with all major follow focus systems, whether manual or wireless. The aperture ring is de-clicked, allowing for smooth, stepless iris pulls to maintain exposure during shots that move between environments with different lighting levels. The mechanical movement of both rings is dampened to provide a consistent, tactile resistance that does not shift under the weight of a motor.

Video Performance and Technical Limits

In terms of video capability, the Xeen 14mm T3.1 is optimized for high-resolution digital sensors. It exhibits minimal focus breathing, a crucial requirement for cinematography where the focal length should not appear to change when racking focus from a foreground subject to the background. While no ultra-wide lens is entirely free of breathing, the optical design of the 14mm keeps this effect well-controlled, ensuring that the frame remains stable during focus transitions. The lens is fully manual, meaning there are no electronic contacts for autofocus or metadata transmission. This is a deliberate design choice for the cinema market, prioritizing mechanical reliability and manual control over automated features.

The T3.1 aperture provides a balance between light-gathering capability and optical size. On a Super 35 sensor, the 14mm focal length behaves like a 21mm lens (approximate 1.5x crop), which is a classic wide-angle focal length for narrative storytelling. On a full-frame sensor, the 14mm is an extreme wide-angle, capable of capturing vast vistas or cramped interiors with significant perspective distortion if the camera is tilted. The lens is designed to resolve detail far beyond 4K, making it a future-proof investment for productions shooting in 6K or 8K. However, users should be aware that the front element is bulbous and does not accept screw-in filters; all filtration must be handled via a matte box or rear-mounted filters if the mount allows.

Practical Application in Indian Production Scenarios

On a high-end wedding shoot in a Bengaluru palace or a large banquet hall, the Xeen 14mm T3.1 is the primary tool for establishing shots. When the couple enters a grand venue, this lens captures the entirety of the architecture, the floral decor, and the scale of the gathering in a single frame. Its ability to maintain sharpness across the frame is vital here, as wedding films often require high-detail wide shots that can be cropped or stabilized in post-production. The T3.1 aperture is generally sufficient for these well-lit environments, and the 11-blade iris ensures that the decorative fairy lights in the background are rendered as soft, circular bokehs rather than distracting polygons.

For a travel documentary or a commercial shoot in Goa, the lens excels at capturing the expansive coastlines and the interiors of heritage Portuguese villas. In tight indoor spaces where a 24mm or 35mm lens would be too restrictive, the 14mm allows the cinematographer to capture the full context of a room. The X-Coating is particularly useful in the harsh, direct sunlight of coastal India, as it helps maintain contrast and prevents the image from washing out when the sun is just outside the frame. The rugged metal build also provides peace of mind when shooting in humid or dusty outdoor environments, although the lens is not officially weather-sealed and requires standard protection.

In a Mumbai studio setting for a music video or an automotive commercial, the Xeen 14mm T3.1 is used to create a sense of scale and dynamism. For car interiors, the ultra-wide perspective can make a cabin feel more spacious, while for dance sequences, the lens can be placed close to the performer to exaggerate movement and create a more immersive, high-energy feel. The 114mm front diameter ensures that professional-grade ND filters and polarizers can be used to control the studio lighting reflections on metallic surfaces, while the 200-degree focus throw allows for precise tracking of subjects moving toward the camera.

Compatibility and Pairing

The Xeen 14mm T3.1 is designed to be part of a larger ecosystem. It pairs perfectly with the other lenses in the Xeen prime set, specifically the 24mm, 35mm, 50mm, and 85mm T1.5 lenses. Using these lenses together ensures that the color, contrast, and flare characteristics remain uniform throughout a project. For camera bodies, it is frequently paired with the Sony FX6 or FX9, the Canon C300 Mark III, or the Blackmagic Design URSA Mini Pro 12K. When used on these systems, the lens provides a professional cinematic aesthetic that is distinct from the "clinical" look of many modern stills lenses.

Support-wise, the lens requires a 15mm or 19mm rail system to support a matte box and follow focus. Because of its 1.1kg weight, a lens support bracket is recommended when using the EF or E-mount versions to reduce stress on the camera mount, especially during high-vibration shoots or when mounted on a vehicle. For power and media, the lens has no requirements, but the cameras it is typically paired with will require V-mount or Gold-mount batteries for long production days and high-speed CFexpress or C-Fast 2.0 media to handle the high-bitrate data the lens is capable of resolving.

Considerations for Alternative Selection

While the Xeen 14mm T3.1 is a versatile wide-angle tool, it is not the ideal choice for every scenario. Filmmakers working in extremely low-light conditions without a lighting budget may find the T3.1 aperture limiting. In such cases, a faster wide-angle prime, such as a 16mm T1.5 or T2.0, would be more appropriate, though these often come with a higher price point or a larger physical footprint. Additionally, the 14mm focal length produces significant perspective distortion; if the goal is a "natural" wide-angle look for close-up portraits, a 24mm or 35mm lens would be a better choice to avoid stretching the subject's features.

For operators using small, lightweight gimbals like the DJI RS3 or RS4, the 1.1kg weight and the 114mm front diameter of the Xeen 14mm may be cumbersome. In these instances, a compact "stills-style" wide-angle lens or a smaller cinema prime like the Samyang VDSLR series might be preferred for ease of balancing. Finally, if the production requires autofocus for tracking fast-moving subjects on a gimbal, this fully manual lens is not suitable. Users requiring autofocus should look toward the Sony G-Master or Canon L-series wide-angle primes, keeping in mind that they will lose the mechanical precision and unified housing benefits of the Xeen cinema glass.
