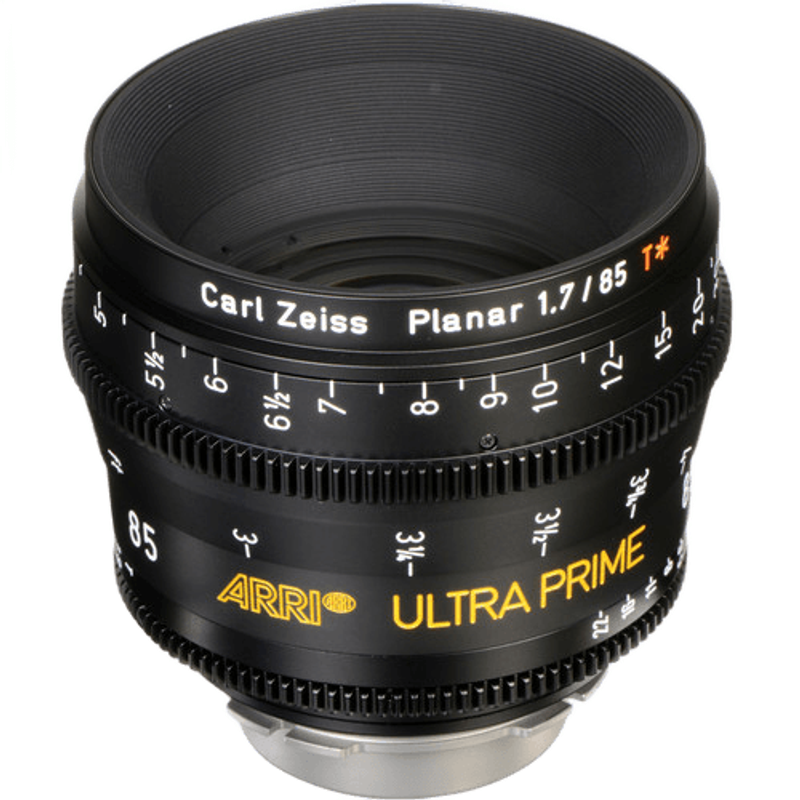

The Engineering and Heritage of the Ultra Prime 85mm

The Ultra Prime 85mm is a foundational element of the professional cinema landscape, born from the long-standing technical partnership between ARRI and Zeiss. This lens is designed specifically for the Super 35mm format, providing a focal length that serves as the industry standard for medium-telephoto cinematography and portraiture. Within the ARRI lens hierarchy, the Ultra Prime series occupies the critical space between the vintage-leaning High Speed "B-Speed" lenses and the technically flawless Master Prime series. While the Master Primes offer a faster T1.3 aperture, the Ultra Prime series, including this 85mm focal length, provides a consistent T1.9 maximum aperture across almost the entire range, allowing for a more compact housing and lighter weight without sacrificing the high-contrast, high-resolution "Zeiss look."

The optical formula of the 85mm variant is engineered to deliver a neutral color balance that matches perfectly with the rest of the Ultra Prime set, which spans from 8mm to 180mm. This ensures that a production can switch focal lengths between setups without requiring extensive color grading to unify the look. The lens utilizes a floating element design, a sophisticated optical arrangement where internal lens groups move independently during focusing. This specific architecture ensures that the lens maintains its edge-to-edge sharpness and minimizes aberrations even when transitioning from its minimum focus distance of 0.9 meters (3 feet) to infinity. For the cinematographer, this means the 85mm remains a reliable tool for both tight close-ups and compressed architectural or landscape shots.

Optical Performance and the T* XP Coating

The image quality of the Ultra Prime 85mm is defined by its high modulation transfer function (MTF) performance, which translates to high contrast and fine detail rendition even at the maximum aperture of T1.9. A key technology contributing to this performance is the Zeiss T* XP anti-reflex coating. This "Extended Performance" coating is layered onto the glass elements to drastically reduce internal reflections, ghosting, and flares. In practice, this allows the lens to maintain deep black levels and high image contrast even when high-intensity light sources are positioned just outside or directly within the frame. Unlike vintage lenses that may "veil" or lose contrast when hit by light, the 85mm maintains a clean, punchy image that is highly sought after for commercial and corporate productions.

The color reproduction is intentionally neutral. Zeiss and ARRI engineered these lenses to avoid the warm or cool biases found in other cinema glass, providing a "reference" image. This neutrality is vital for VFX-heavy productions where accurate color reproduction simplifies the integration of CGI elements. The 85mm focal length on a Super 35 sensor provides a horizontal angle of view of approximately 18.2 degrees. This narrow field of view, combined with the T1.9 aperture, allows for significant isolation of the subject from the background. The out-of-focus highlights, or bokeh, are rendered smoothly thanks to the multi-blade iris diaphragm, which maintains a circular shape throughout the aperture range, avoiding the jagged polygonal highlights often seen in lower-end optics.

Mechanical Build and On-Set Handling

The Ultra Prime 85mm is housed in a rugged, precision-machined barrel designed to withstand the rigors of professional film sets. One of the most significant advantages for a camera assistant (AC) or focus puller is the standardized 95mm front diameter. This consistency across the Ultra Prime range means that matte boxes and clamp-on filters do not need to be swapped or adjusted with different adapter rings when changing lenses, significantly speeding up the workflow. The lens weighs approximately 1.2 kg (2.6 lbs), making it balanced enough for handheld operation or Steadicam use, yet substantial enough to feel stable on a studio tripod.

The focus and iris rings feature industry-standard 0.8 mod gearing. The focus throw is generous, allowing for precise marks and smooth racks between subjects. Because the lens uses a cam-driven focus mechanism rather than a traditional helicoid, the physical length of the lens does not change during focusing, and the front element does not rotate. This is essential when using clip-on matte boxes or geared follow-focus systems. The focus scales are large, highly legible, and available in either metric or imperial measurements, engraved on both sides of the barrel so the focus puller can work from either the operator or the assistant side of the camera. The mechanical tolerances are exceptionally tight, ensuring there is zero "play" or backlash in the rings, which is critical when using wireless follow-focus motors like the ARRI WCU-4 or Hi-5.

Cinematic Capabilities and Optical Characteristics

In cinema applications, the Ultra Prime 85mm is prized for its lack of "breathing"—the distracting shift in focal length that occurs when racking focus from a near object to a far object. While many photographic lenses exhibit significant breathing, the Ultra Prime's internal optical movement is designed to keep the frame size constant, ensuring that the audience's attention remains on the movement within the frame rather than the lens's mechanical adjustments. This makes it an ideal choice for narrative storytelling where focus pulls are used to direct the viewer's eye.

The lens covers the Super 35mm format with an image circle of approximately 30mm. This coverage is sufficient for the majority of digital cinema sensors, including the ARRI Alexa 35, Alexa Mini (in S35 modes), and various RED sensor configurations. While it is not a "Full Frame" or "Large Format" lens, its performance on S35 sensors remains a benchmark for sharpness and distortion control. Chromatic aberration—the purple or green fringing often seen in high-contrast transitions—is exceptionally well-controlled in the 85mm. This is a result of the use of anomalous partial dispersion glass, which ensures that all wavelengths of light converge at the same focal plane, resulting in clean edges even when shooting wide open at T1.9.

The Ultra Prime 85mm on the Indian Film Set

On a high-end wedding production in a heritage palace in Rajasthan, the Ultra Prime 85mm excels during the evening "Pheras." The T1.9 aperture allows the cinematographer to capture the intimacy of the couple's expressions under low-light conditions—often lit only by the ceremonial fire and ambient decorative lamps—without needing to push the camera's ISO to noisy levels. The 85mm focal length provides enough distance for the camera crew to remain unobtrusive while still capturing tight, emotionally resonant close-ups of the couple. The T* XP coating handles the numerous decorative "fairy lights" in the background, turning them into soft, circular orbs of light without creating distracting internal flares that would wash out the skin tones.

In a Mumbai studio environment for a high-fashion jewelry commercial, the lens's ability to resolve fine detail is paramount. When filming close-ups of intricate gold work or gemstones, the 85mm's sharpness and high contrast ensure that every facet of the jewelry is rendered with clarity. The neutral color science of the Zeiss glass ensures that the specific hue of 22-karat gold is captured accurately, reducing the time spent in the color suite trying to correct for lens-induced tints. The 0.9m close focus allows for relatively tight framing on the jewelry, and the lack of distortion ensures that the proportions of the model's face remain natural and flattering.

For a corporate documentary shoot in a Bengaluru tech park, the 85mm serves as the primary "interview lens." The compression provided by the 85mm focal length is widely considered the most flattering for the human face, as it gently flattens features and provides a professional, cinematic separation from the office background. Even in a cluttered or mundane office setting, the T1.9 aperture can blur the background into a pleasing wash of color, keeping the viewer's focus entirely on the subject. The mechanical reliability of the lens is a benefit here, as the crew can move quickly between different office locations, knowing the 95mm front diameter will fit their standard matte box setup every time.

Compatibility and Pairing Recommendations

The Ultra Prime 85mm utilizes a standard PL (Positive Lock) mount, the universal interface for professional cinema cameras. It is natively compatible with the ARRI Alexa line (including the Alexa 35, Mini, and Amira), the Sony Venice and Venice 2 (in Super 35 crop modes), and the RED V-Raptor or Komodo. When using mirrorless cameras like the Sony A7S III or Panasonic S1H for "B-roll" or gimbal work, a high-quality PL-to-E or PL-to-L mount adapter is required. Due to the lens's weight and the precision of its focus throw, a solid support system—such as 15mm or 19mm studio rods—is recommended to prevent stress on the camera mount when using heavy follow-focus motors.

In terms of filtration, the 95mm front diameter is designed for standard 4x5.65" filters held in a matte box like the ARRI LMB-25 or SMB-2. For a complete kit, the 85mm is most frequently paired with its siblings in the Ultra Prime set: the 24mm for wide establishing shots, the 32mm or 50mm for medium shots, and the 135mm for extreme close-ups or long-lens compression. Because they share the same T1.9 stop and color characteristics, intercutting between these lenses is seamless. For power and media, the lens itself is purely manual and does not require battery power, but it is often used on cameras powered by V-Mount or Gold Mount batteries to support the necessary accessories like monitors and wireless transmitters.

Considerations and Alternative Choices

While the Ultra Prime 85mm is a versatile and high-performing lens, it is not the ideal choice for every production. The most significant limitation is its image circle; it is designed for Super 35mm sensors. If you are shooting on a Full Frame sensor like the Sony Venice 2 in 8K or the ARRI Alexa Mini LF and require the full sensor area, this lens will exhibit significant vignetting or a "porthole" effect. In those instances, the ARRI Signature Primes or Zeiss CP.3 Full Frame lenses would be more appropriate choices.

Furthermore, the Ultra Prime look is characterized by its "clinical" perfection—it is sharp, high-contrast, and lacks the "character" or "imperfections" that some filmmakers desire. If the project requires a vintage aesthetic with soft edges, anamorphic flares, or heavy chromatic aberration, the 85mm Ultra Prime may feel too modern or "clean." In such cases, filmmakers might opt for Cooke Speed Panchros or ARRI Zeiss High Speeds. Finally, for documentary or run-and-gun shoots where a single operator must change focal lengths instantly, a high-quality cinema zoom like the Fujinon Cabrio 19-90mm might be more practical, although it will not offer the fast T1.9 aperture or the compact size of the 85mm prime.
