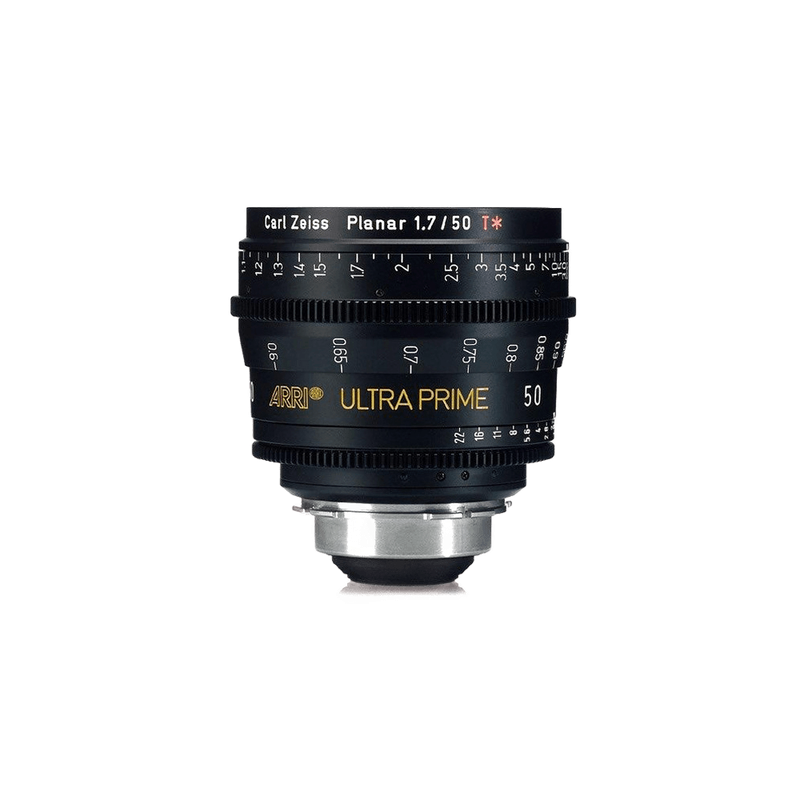

Ultra Prime 50mm

The Optical Foundation of the Ultra Prime 50mm

The Ultra Prime 50mm T1.9 is a cornerstone of the legendary collaboration between ARRI and Zeiss, designed to bridge the gap between the vintage character of the Super Speeds and the clinical perfection of the Master Prime series. This lens is engineered specifically for the Super 35mm format, providing a focal length that closely approximates the perspective of the human eye when mounted on a standard cinema sensor. The optical formula is built around a series of high-refractive index glass elements and a floating element design, which ensures that resolution and contrast remain consistent from the minimum focus distance of 0.6 meters (2 feet) all the way to infinity. Within the ARRI lineup, the 50mm occupies the "normal" position in a set that spans from 8mm to 180mm, offering a naturalistic rendering of space that avoids the compression of telephoto lenses and the distortion of wide angles. It was designed for cinematographers who require a high-speed prime that can withstand the rigors of professional film sets while delivering a "clean" image that serves as a neutral canvas for color grading and post-production.

Image Quality and Optical Performance

The defining characteristic of the Ultra Prime 50mm is its implementation of the Zeiss T* XP (Extended Performance) anti-reflex coating. This specific coating technology is applied to every air-to-glass surface within the lens barrel to maximize light transmission and minimize internal reflections. In practice, this results in an image with exceptionally high contrast and deep black levels, even when shooting into direct light sources. Unlike vintage lenses that may bloom or lose contrast when wide open, this lens maintains a sharp MTF (Modulation Transfer Function) curve at its maximum aperture of T1.9. The color rendition is strictly neutral, calibrated to match every other lens in the Ultra Prime set, which eliminates the need for complex color correction when intercutting between different focal lengths. The lens also features a 9-blade iris diaphragm, which produces a circular, non-distracting bokeh. Out-of-focus highlights are rendered with smooth edges and a lack of "onion-ringing," a common artifact in lesser aspherical designs. Furthermore, the optical design significantly suppresses chromatic aberration, ensuring that high-contrast edges—such as a dark silhouette against a bright sky—remain free of purple or green fringing.

Mechanical Build and On-Set Handling

The Ultra Prime 50mm is housed in a rugged, all-metal barrel designed for the high-torque demands of wireless follow-focus motors. One of its most significant advantages for a camera department is the standardized 95mm front diameter, which is consistent across almost the entire Ultra Prime range. This allows for rapid lens changes without the need to swap matte box rings or adjust the position of accessories like bellows and flags. The lens utilizes a PL (Positive Lock) mount, the industry standard for cinema cameras, ensuring a rock-solid connection with zero play. The focus scale is highly legible, with large, engraved markings available in both feet and meters, and the focus throw is approximately 300 degrees, allowing for extremely precise pulls even at shallow depths of field. Mechanically, the lens employs a helical focus mechanism that is internal, meaning the physical length of the lens does not change during focusing, and the front element does not rotate. This is critical when using clip-on matte boxes or graduated filters. Weighing in at approximately 1.0 kg (2.2 lbs), it is light enough for handheld operation and gimbal work but substantial enough to provide the thermal stability required for consistent focus tracking in varying environments.

Cinema-Specific Capabilities and Technical Constraints

As a dedicated cinema prime, the Ultra Prime 50mm is rated in T-stops rather than F-stops, accounting for the actual light transmission through the glass. The T1.9 rating makes it a "fast" lens, capable of capturing usable images in low-light environments without excessive sensor gain. In terms of "breathing"—the shift in focal length that occurs when racking focus—this lens is remarkably well-controlled. While not entirely eliminated as it is in the more expensive Master Prime series, the breathing is minimal enough to be imperceptible in most narrative shooting scenarios. The lens covers a standard Super 35 image circle (approximately 28mm to 30mm diameter), which is sufficient for the ARRI Alexa 35, the RED Helium 8K S35, and the Sony Venice in S35 crop mode. However, it is important to note that this lens is not designed for Full Frame (Large Format) sensors. When used on a sensor like the Alexa Mini LF or the Sony Venice 2 in Full Frame 3:2 or 17:9 modes, the lens will exhibit significant vignetting and a loss of resolution toward the corners of the frame. It is also worth noting that the lens lacks electronic metadata contacts (LDS), meaning lens data like iris and focus position must be mapped manually in external wireless systems.

Performance in Indian Production Scenarios

On a high-end Mumbai studio floor for a commercial product shoot, the Ultra Prime 50mm excels due to its lack of geometric distortion. When filming symmetrical objects or architectural elements, the straight lines remain perfectly parallel to the frame edges, a critical requirement for VFX integration and high-fashion aesthetics. The high contrast and sharpness allow for the capture of fine textures in fabrics and skin, providing a level of detail that holds up under 4K and 8K mastering requirements.

In the context of a Bengaluru wedding reception held in a dimly lit heritage hall, the T1.9 aperture becomes the lens's greatest asset. It allows the cinematographer to isolate the couple from a busy background of guests and decor, creating a cinematic separation that slower zoom lenses cannot achieve. The T* XP coating handles the complex array of LED stage lights and decorative "fairy lights" without producing the veiling glare that often plagues lower-end optics, ensuring that the skin tones of the subjects remain natural and saturated.

For a travel documentary or a feature film sequence shot on the bright, high-contrast beaches of Goa, the lens's flare suppression is vital. Even with the sun positioned just outside the frame, the internal baffling and coatings prevent ghosting, allowing the camera to capture the full dynamic range of the scene. The mechanical robustness of the Zeiss housing also provides peace of mind when operating in humid, sandy environments, as the tight tolerances of the focus and iris rings help prevent the ingress of fine particles that could jam the mechanism.

Compatibility and Pairing Recommendations

The Ultra Prime 50mm is most naturally paired with other lenses in the Ultra Prime family to maintain visual consistency. Common companions include the 24mm for wide establishing shots and the 85mm for tight close-ups. Because it uses a standard PL mount, it is compatible with a wide range of camera bodies:

• ARRI Alexa Series: Alexa 35, Alexa Mini, and Alexa SXT.
• Sony CineAlta: Sony Venice and Venice 2 (in S35 crop modes), and the Sony FX9 or FX6 via a PL-to-E mount adapter.
• RED Digital Cinema: V-Raptor, Komodo, and DSMC2 bodies with PL mounts.
• Mirrorless Systems: Can be adapted to Canon RF, Sony E, or Panasonic L mounts using high-quality adapters (e.g., Metabones or Wooden Camera), though the weight of the lens requires a supported mount or rod system to avoid stressing the camera's native mount.

In terms of accessories, the 95mm front diameter is compatible with industry-standard matte boxes like the ARRI LMB-25 or the Bright Tangerine Misfit. For focus control, the 0.8 mod gearing is compatible with all professional follow-focus units, including the ARRI WCU-4, Hi-5, and Tilta Nucleus-M.

Limitations and Alternative Considerations

While the Ultra Prime 50mm is a versatile workhorse, it is not the correct choice for every production. Its primary limitation is its image circle; if the project is being shot on a Full Frame or Large Format sensor and requires the use of the entire sensor area, this lens will fail to cover the frame. In such cases, the ARRI Signature Primes or Zeiss CP.3 lenses would be more appropriate choices. Furthermore, while T1.9 is fast, it is not "ultra-fast." For extreme low-light situations or for an even shallower depth of field, the ARRI Master Primes (T1.3) offer more than a full stop of additional light. Finally, the Ultra Prime look is often described as "clinical" or "honest." It does not provide the anamorphic-like flares, heavy vignetting, or soft edges that some directors prefer for a "vintage" or "dreamy" aesthetic. If a project requires a more stylized, organic look with heavy character, lenses like the Cooke S4/i or vintage Zeiss Super Speeds would be better suited to those creative goals.
