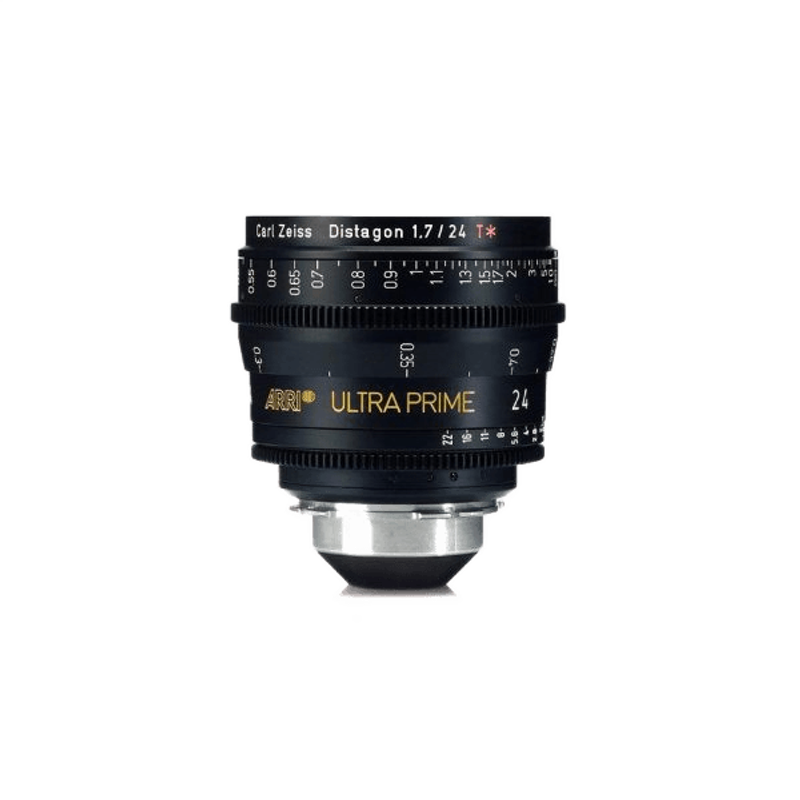

Ultra Prime 24mm

The ARRI Zeiss Ultra Prime 24mm in the Cinema Ecosystem

The Ultra Prime 24mm is a wide-angle focal length within the renowned Ultra Prime series, a collaborative engineering effort between ARRI and Zeiss. Designed specifically for the Super 35mm film format, this lens occupies a central position in a 15-lens lineup that ranges from 8mm to 180mm. It was engineered to provide a bridge between the extreme wide-angle perspectives and the more naturalistic 35mm field of view. The optical design is built around a T1.9 maximum aperture, providing a balance between light-gathering capability and physical size. Unlike the larger Master Prime series, the Ultra Primes were developed to be compact and lightweight without sacrificing the high-contrast, high-resolution characteristics required for 4K and 6K digital acquisition. The 24mm focal length provides an approximately 53.1-degree horizontal angle of view on a standard ANSI Super 35 sensor (24.9mm x 18.7mm), making it a primary choice for establishing shots, medium close-ups in tight interiors, and narrative storytelling where a slight wide-angle perspective is needed without the aggressive distortion of wider glass.

Optical Performance and Image Characteristics

The image quality of the Ultra Prime 24mm is defined by the Zeiss T* anti-reflective coating and a sophisticated internal design that utilizes floating elements. This floating element construction ensures that the lens maintains high MTF (Modulation Transfer Function) performance across the entire focus range, from its close-focus distance of 0.3 meters (12 inches) to infinity. In practice, this means that sharpness does not degrade when pulling focus from a distant background to a subject near the lens. The lens is engineered for high contrast and the suppression of stray light, resulting in deep blacks and a clean rendering of highlights. The colorimetry is matched across the entire Ultra Prime set, ensuring that the 24mm produces the same neutral color balance as the 50mm or 85mm in the series, which simplifies the color grading process in post-production. Geometric distortion is exceptionally well-controlled for a 24mm lens; straight lines at the edges of the frame remain parallel, a critical requirement for architectural photography or shots involving structured interior sets. The 9-blade iris diaphragm produces a circular aperture, resulting in smooth, organic bokeh and natural-looking out-of-focus highlights that avoid the "onion ring" effect or harsh polygonal shapes often seen in lower-end optics.

Mechanical Build and On-Set Handling

The Ultra Prime 24mm is housed in a rugged, all-metal barrel designed to withstand the rigors of professional film sets. It features a standard PL mount (Positive Lock), ensuring a secure, light-tight connection to a wide range of cinema cameras. One of the most significant handling features is the standardized 95mm front diameter, which is consistent across almost the entire Ultra Prime range (excluding the extreme telephoto and wide lenses). This allows camera assistants to switch lenses without moving the matte box or changing donut rings, significantly speeding up lens changes. The focus ring features a 300-degree rotation, providing ample space for precise focus marks, which is essential when working at the T1.9 maximum aperture where the depth of field is shallow. The focus and iris gears are industry-standard 0.8 mod, positioned in the same location relative to the mount as other lenses in the set, allowing follow-focus units and lens motors to remain in place during swaps. Weighing approximately 1.0 kg (2.2 lbs), the lens is light enough for handheld operation, Steadicam work, and gimbal stabilization, where weight distribution is a critical factor for balance.

Video Capability and Technical Specifications

While the Ultra Prime 24mm is a fixed focal length lens with no internal recording capabilities, its optical specifications are tailored for high-end digital cinema. It covers an image circle of at least 28mm, which comfortably encompasses the Super 35 sensor format. When used on sensors larger than Super 35, such as "Open Gate" modes on certain cameras, users must be aware of potential illumination fall-off or vignetting at the corners. The lens exhibits minimal focus breathing—the phenomenon where the focal length appears to change slightly when adjusting focus—allowing for smooth rack focuses between subjects without distracting shifts in the frame's composition. The T1.9 aperture is a true transmission stop, accounting for light loss through the glass elements, ensuring consistent exposure calculations regardless of the lens used in the set. The lens does not feature internal stabilization, relying instead on the camera's mounting system or external support. It is a fully manual lens, lacking electronic autofocus or iris control, which is the standard for professional cinema workflows where these parameters are controlled by a dedicated focus puller or remote lens control system.

On the Shoot: Indian Production Scenarios

In a Mumbai studio environment, such as a set built for a high-end television commercial, the Ultra Prime 24mm is often the "workhorse" lens. When shooting in a confined kitchen or living room set, the 24mm provides enough width to capture the environment and the actor's performance simultaneously without the "fisheye" look that would distract from the product being advertised. Its ability to maintain sharpness at close proximity allows the cinematographer to move the camera in for a medium shot of a talent interacting with a product while keeping the background legible but aesthetically soft.

During a heritage wedding shoot in a palace hotel in Rajasthan or a traditional hall in Bengaluru, the lens excels in low-light conditions. The T1.9 aperture allows the cinematographer to capture the ambient glow of oil lamps or decorative "fairy lights" without pushing the camera's ISO to levels that introduce heavy digital noise. The 24mm focal length is wide enough to capture the scale of the architecture and the gathering of guests, yet tight enough to avoid the edge stretching that can make people at the periphery of the frame look distorted. The Zeiss T* coating is particularly useful here, as it handles the complex multi-point lighting of a wedding stage without creating veiling glare that would wash out the rich colors of traditional attire.

For a travel documentary or feature film sequence shot on the beaches or in the spice plantations of Goa, the mechanical reliability of the Ultra Prime 24mm becomes its primary asset. The lens is built to operate in high-humidity environments and is well-sealed against dust. When shooting at high noon, the lens's superior flare control ensures that the image retains its contrast even when the sun is just outside the frame. The lightweight build makes it an ideal choice for a "run-and-gun" setup on a handheld rig, allowing the operator to follow a subject through a crowded market or along a narrow trail without the physical fatigue associated with heavier anamorphic or high-speed prime lenses.

Compatibility and Pairing

The Ultra Prime 24mm is natively compatible with any camera featuring a PL mount, including the ARRI Alexa 35, Alexa Mini, Sony Venice (in S35 crop mode), and RED V-Raptor. For cameras with shorter flange focal distances, such as the Sony FX6, Canon C70, or Panasonic GH6, the lens must be used with a high-quality PL-to-E, PL-to-RF, or PL-to-MFT adapter. To utilize the lens effectively, it should be paired with a 95mm matte box (such as the ARRI LMB-25 or Tilta Mirage) and 4x5.65-inch filters. For focus control, it pairs seamlessly with manual follow-focus units like the ARRI FF-4 or wireless systems like the Tilta Nucleus-M or ARRI WCU-4. Because it is a Super 35 lens, it is often paired with other lenses in the Ultra Prime set, specifically the 16mm for wider establishing shots and the 50mm for close-up portraits, to maintain a consistent visual texture across a project. When used on a gimbal like the DJI Ronin 2 or Freefly Movi Pro, its compact length ensures that the center of gravity remains close to the tilt axis, simplifying the balancing process.

Limitations and Alternative Choices

The most significant limitation of the Ultra Prime 24mm is its sensor coverage. It is designed for Super 35 sensors and will not cover a Full Frame or Large Format (LF) sensor without significant vignetting. Cinematographers shooting on the ARRI Alexa Mini LF or Sony Venice in Full Frame mode should instead look to the ARRI Signature Primes or Zeiss CP.3 lenses, which are designed for larger image circles. Additionally, while T1.9 is fast, it is not as bright as the ARRI Master Prime 25mm, which offers a T1.3 aperture. If a production requires an extremely shallow depth of field or is shooting in near-total darkness, the Master Prime series is the superior, albeit much heavier and larger, choice. Furthermore, the Ultra Primes are known for a "clinical" and "sharp" look. If a project requires a vintage aesthetic with heavy flaring, lower contrast, and chromatic aberrations, a cinematographer might prefer the Cooke Speed Panchro or ARRI Zeiss Super Speed (MKII/MKIII) lenses. Finally, as a fully manual cinema lens, it is not suitable for solo operators who require autofocus for tracking fast-moving subjects, in which case native electronic lenses from Sony (G-Master) or Canon (L-Series) would be more appropriate.
