Ultra Prime 135mm

The Optical Foundation of the Ultra Prime 135mm

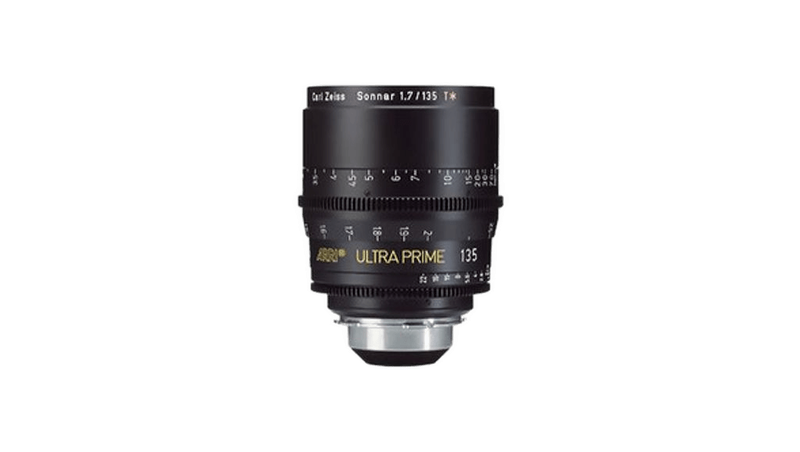

The Ultra Prime 135mm is a high-performance telephoto prime lens developed through the long-standing technical partnership between ARRI and ZEISS. Within the ARRI lens hierarchy, the Ultra Prime series serves as the industry-standard workhorse, positioned between the vintage-character Standard Primes and the ultra-fast, high-resolution Master Primes. This specific 135mm focal length is designed for Super 35mm format cinematography, offering a horizontal angle of view of approximately 7.5 degrees when used on a standard S35 sensor. The optical formula is engineered to provide a balance of high contrast and high resolution, maintaining a consistent look across the entire Ultra Prime range, which spans from 8mm to 180mm. It is designed for cinematographers who require a clinical, sharp, and predictable image that can withstand the rigors of high-end feature film and commercial production.

The lens features a maximum aperture of T1.9, which is exceptionally fast for a 135mm telephoto lens in this class. This speed is achieved through the use of high-refractive index glass and a sophisticated internal construction that minimizes light loss. The "T" in T1.9 refers to the transmission stop, a calibrated measurement of the actual light reaching the sensor, ensuring exposure consistency that "f-stops" on photographic lenses cannot guarantee. The optical design incorporates floating elements, which move independently during focusing to correct for aberrations at different distances. This ensures that the lens performs just as well at its close-focus limit of 1 meter (3 feet 3 inches) as it does at infinity. For the technical professional, this means the 135mm maintains its MTF (Modulation Transfer Function) performance across the entire focus range, a critical requirement for high-resolution 4K and 8K digital sensors.

Advanced Light Quality and Optical Coatings

The image quality of the Ultra Prime 135mm is defined by the ZEISS T* XP anti-reflex coating. This "Extended Performance" coating is applied to every air-to-glass surface within the lens to maximize light transmission and suppress internal reflections. In practice, this results in an image with deep blacks and high micro-contrast, even when shooting into direct light sources or high-contrast environments. The lens is specifically engineered to minimize "veiling glare," a phenomenon where stray light bounces inside the lens barrel and washes out the image. By controlling these reflections, the 135mm produces a clean, punchy image that requires less correction in post-production grading. The color rendition is neutral and matched across the entire Ultra Prime set, allowing a DIT (Digital Imaging Technician) or colorist to apply a single LUT (Look Up Table) across multiple shots without encountering shifts in skin tones or primary colors.

Distortion is virtually non-existent in this 135mm focal length. While wider lenses in the series may exhibit slight barrel distortion, the telephoto design of the 135mm ensures that straight lines remain perfectly straight, making it an ideal choice for architectural elements or shots involving precise geometry. The bokeh—the quality of the out-of-focus areas—is characterized by a smooth, circular rendering of highlights, thanks to the multi-blade iris diaphragm. Even when stopped down to T4 or T5.6, the iris maintains a rounded shape, preventing the "polygonal" bokeh often seen in lesser lenses. The fall-off from the plane of focus is sharp but natural, providing the "3D pop" that is a hallmark of ZEISS optics. This clarity is maintained across the entire Super 35 image circle, with minimal corner shading or resolution loss at the edges of the frame.

Mechanical Build and Professional Handling

The Ultra Prime 135mm is built into a rugged, precision-machined housing designed to withstand extreme environmental conditions. It features a standard PL (Positive Lock) mount, the universal interface for professional cinema cameras. One of the most significant advantages of the Ultra Prime series for a camera assistant (AC) is the standardized physical dimensions. The 135mm shares a 95mm front diameter with almost every other lens in the set (except the 8mm and 10mm), allowing for rapid lens changes without the need to swap out matte box rings or adjust the height of rod-mounted accessories. The focus and iris gears are located in the same relative positions across the series, meaning follow focus units and lens motors do not need to be repositioned when switching from a 32mm to this 135mm.

The focus throw is approximately 300 degrees, providing an expansive rotation that allows for extremely precise focus pulls, which is essential given the shallow depth of field at T1.9. The focus scales are large, clear, and engraved on both sides of the barrel, making them easily readable for a focus puller standing on either side of the camera. The internal focus mechanism means the lens does not change its physical length during focusing, which prevents the lens from "pumping" air into the camera body and ensures that the matte box remains stationary. Weighing in at approximately 1.6 kg (3.5 lbs), the lens is substantial enough to provide stability for handheld operating but light enough to be used on mid-sized gimbals or remote heads. The mechanical tolerances are exceptionally tight, with no detectable "play" in the focus or iris rings, ensuring repeatable results over years of use.

Cinematic Performance and Video Capabilities

While the Ultra Prime 135mm was originally designed during the film era, its optical performance exceeds the requirements of modern digital cinematography. It provides a clean, high-resolution image that resolves fine detail on sensors with small photosites, such as those found in the ARRI Alexa 35 or RED V-Raptor. The lens is fully compatible with the ARRI Lens Data System (LDS) in its later versions, which communicates lens metadata—including focal length, iris position, and focus distance—directly to the camera. This data is invaluable for visual effects (VFX) workflows, as it allows compositors to accurately match digital elements to the lens's specific optical characteristics. Even without LDS, the lens's predictable behavior makes it a favorite for productions involving heavy CGI integration.

Focus breathing—the slight change in focal length when racking focus—is remarkably well-controlled for a 135mm prime. While no lens is entirely free of breathing, the floating element design of the Ultra Prime 135mm ensures that the frame remains stable during significant focus shifts, such as a rack from a background object to a foreground subject. This stability is crucial for maintaining the viewer's immersion in narrative filmmaking. The lens's T1.9 speed also allows for shooting in low-light environments without the need for excessive gain or ISO increases, preserving the dynamic range and signal-to-noise ratio of the camera's sensor. The 135mm focal length provides significant background compression, pulling distant elements closer to the subject and creating a sense of intimacy or isolation, depending on the composition.

On the Shoot: Real-World Indian Scenarios

In a Mumbai studio setting for a high-end jewelry or beauty commercial, the Ultra Prime 135mm is often the primary choice for close-up portraiture. The 135mm focal length allows the camera to be positioned at a comfortable distance from the talent, which prevents the perspective distortion (such as an enlarged nose) that can occur with wider lenses. The T1.9 aperture allows the cinematographer to melt away the background, focusing the viewer's eye entirely on the product or the talent's features. The high micro-contrast of the ZEISS glass ensures that the texture of fabrics and the glint of gemstones are rendered with clinical precision, requiring minimal sharpening in the final edit.

During a large-scale wedding production in Bengaluru, particularly during an evening reception at a palace venue, the 135mm excels as a "candid" lens. Its telephoto reach allows the operator to capture intimate moments from the periphery of the room without intruding on the guests. The T1.9 speed is vital here, as wedding lighting is often atmospheric and dim. The lens can isolate the couple against the bokeh of fairy lights or decorative lamps, turning a cluttered ballroom into a cinematic backdrop. The robust PL mount and weather-resistant construction provide peace of mind when moving between the air-conditioned interior and the humid outdoor gardens of a South Indian estate.

On a travel documentary shoot in the Thar Desert of Rajasthan, the 135mm serves a different purpose. It is used to compress the vast landscape, making distant sand dunes or fortresses appear much larger and closer to the subject in the foreground. The T* XP coating is particularly effective here, as it handles the harsh, direct sunlight and the reflections off the sand without losing contrast. The 95mm front diameter allows for the easy use of high-quality ND (Neutral Density) filters and polarizers, which are essential for managing the extreme brightness of the desert sun. Despite the fine dust and heat, the sealed mechanical design of the Ultra Prime ensures that the focus helical remains smooth and the iris remains responsive.

Compatibility and Pairing

The Ultra Prime 135mm is a PL mount lens, making it natively compatible with the ARRI Alexa line (Mini, SXT, LF in S35 mode, and Alexa 35), the Sony Venice 1 and 2, and the RED DSMC2 and DSMC3 systems. When used on "Full Frame" or "Large Format" sensors like the Sony Venice or Alexa LF, it is important to note that this lens is designed for Super 35 coverage. On these larger sensors, the lens will produce significant vignetting unless the camera is set to a Super 35 crop mode. For users of mirrorless systems like the Sony Alpha or Canon R-series, a high-quality PL-to-E or PL-to-RF adapter is required. These adapters must be shimmed correctly to ensure that the lens's focus scales remain accurate.

In terms of accessories, the 135mm pairs perfectly with standard 4x5.65 matte boxes such as the ARRI MB-20 or LMB-25. Because of its 135mm focal length, it is highly sensitive to camera shake, necessitating a sturdy support system. It should be used with a professional tripod head (such as an O'Connor 2575 or Sachtler Cine 30) or a high-capacity gimbal like the DJI Ronin 2. For remote focus operation, it is compatible with all industry-standard motors from Preston, Cmotion, and Teradek RT. When building a lens kit, the 135mm is most frequently paired with the 16mm, 24mm, 32mm, 50mm, and 85mm Ultra Primes to provide a comprehensive range of focal lengths with a perfectly matched visual character.

Limitations and Alternative Choices

While the Ultra Prime 135mm is a versatile and high-performing lens, it has specific limitations that may lead a cinematographer to choose a different option. The most significant limitation is its sensor coverage. As a lens designed for the Super 35 format, it does not cover the full image circle of Large Format (LF) sensors. If a production is shooting on an Alexa LF or Sony Venice in full-frame mode, the ARRI Signature Primes or ZEISS CP.3 lenses would be more appropriate choices, as they are designed to cover the larger 46.3mm image circle. Additionally, while T1.9 is fast, it is not as fast as the ARRI Master Prime 135mm, which offers a T1.3 aperture. For extreme low-light situations or for an even shallower depth of field, the Master Prime is the superior, albeit much heavier and more expensive, alternative.

Another consideration is the "look" of the lens. The Ultra Primes are known for being sharp, clean, and relatively "modern." If a project requires a vintage aesthetic with more flare, lower contrast, or "swirly" bokeh, a cinematographer might opt for Cooke Speed Panchros or ARRI/ZEISS Standard Primes instead. Furthermore, the 135mm focal length requires significant physical space; in tight interior locations, such as a small Mumbai apartment set, the 135mm may be too long to achieve anything other than an extreme close-up. In such cases, the 85mm or 100mm Ultra Prime would offer a more manageable telephoto perspective. Finally, for documentary shooters who cannot afford the time for frequent lens changes, a high-end cine zoom like the Fujinon Cabrio 19-90mm or the ARRI Alura 45-250mm might be more practical, though they cannot match the T1.9 speed of this prime lens.
