Art 14mm f/1.8

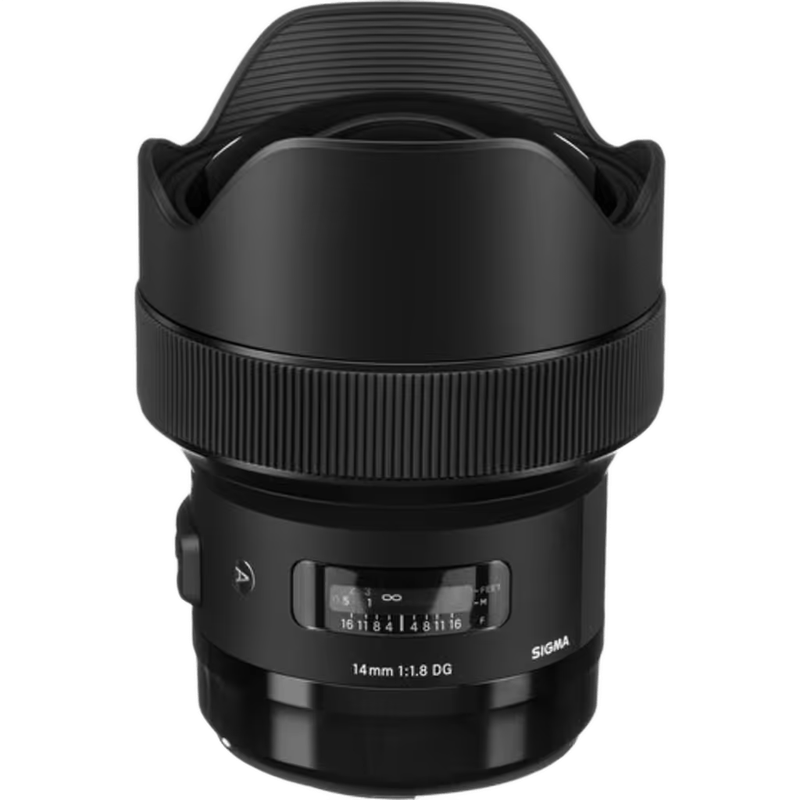

The Engineering of the Sigma 14mm f/1.8 DG HSM Art

The Sigma 14mm f/1.8 DG HSM Art is a wide-angle prime lens designed for full-frame sensors, representing a significant technical milestone as the first 14mm lens to achieve a maximum aperture of f/1.8. It occupies a specialized position within the Art line-up, which is engineered to prioritize optical resolution and contrast over compact dimensions. The lens is constructed with 16 elements arranged in 11 groups, a complex optical formula necessitated by the requirement to maintain a 114.2-degree angle of view while providing a fast aperture. This lens was designed specifically for photographers who require high light-gathering capabilities in ultra-wide perspectives, such as astrophotographers, architectural specialists, and event photographers working in constrained, low-light environments.

At the core of its construction is a massive 80mm diameter precision-molded glass aspherical element. This is the largest element of its kind in the industry for this class of lens, and it serves to minimize distortion while controlling spherical aberrations. The lens utilizes a combination of three FLD (F Low Dispersion) glass elements and four SLD (Special Low Dispersion) glass elements. These materials are chosen for their ability to minimize chromatic aberration, particularly transverse chromatic aberration, which often manifests as color fringing at the edges of high-contrast frames in wide-angle optics. The result is an output that maintains high peripheral brightness and sharpness even when the aperture is used at its widest setting.

Optical Performance and Light Quality

The primary advantage of the f/1.8 aperture in a 14mm focal length is the ability to utilize faster shutter speeds or lower ISO settings in dim conditions. In practice, this changes the approach to wide-angle photography by allowing for a shallower depth of field than is typically possible at 14mm. While wide-angle lenses are generally associated with deep focus, the Sigma 14mm f/1.8 DG HSM Art can produce distinct subject separation when focused at its minimum distance of 0.27 meters. The nine-blade rounded diaphragm creates a smooth, circular bokeh that avoids the "onion ring" effect often seen in lenses with less sophisticated aspherical elements.

For technical applications like astrophotography, the lens is engineered to suppress sagittal coma flare. This specific type of aberration causes points of light, such as stars in the corners of the frame, to appear as smeared or winged shapes rather than distinct points. By correcting this through the optical layout, the lens ensures that stars remain pin-sharp across the entire 35mm full-frame sensor area. Furthermore, the Super Multi-Layer Coating is applied to reduce flare and ghosting, which is critical for a lens with such a prominent, bulbous front element that is susceptible to stray light entering from extreme angles.

Autofocus Mechanism and Mechanical Build

The lens employs a Hyper Sonic Motor (HSM) for its autofocus system. This motor is designed to provide high torque to move the large internal glass elements rapidly. The AF algorithm is tuned for a balance between speed and smoothness, though the sheer mass of the glass means it is not as instantaneous as smaller prime lenses. It features a full-time manual focus override, allowing the user to rotate the focus ring and take control even while the AF is engaged. The focus ring itself is wide and dampened, providing enough resistance for precise manual adjustments, which is essential for landscape and architectural work where the focus point must be exact.

The physical build of the lens utilizes Thermally Stable Composite (TSC) material, which has a thermal expansion rate similar to aluminum. This ensures that the internal barrel components do not expand or contract significantly during temperature fluctuations, maintaining the alignment of the optical axis. The mount is constructed from chrome-plated brass for long-term durability and features a rubber sealing gasket to prevent dust and moisture from entering the camera body. However, it is important to note that the lens itself is not fully submersible and relies on its robust construction to withstand environmental spray. The total weight of the lens is approximately 1,170 grams, making it a substantial piece of equipment that shifts the center of gravity forward on most DSLR and mirrorless bodies.

Video Capabilities and Limitations

In a cinematography context, the 14mm focal length provides an expansive view that is ideal for establishing shots and gimbal work, provided the gimbal can support the 1.1kg weight. The f/1.8 aperture is a significant asset for interior videography where lighting setups are limited. It allows for clean footage in low-light venues without the need for extreme gain or ISO boosting. The lens exhibits some focus breathing—a slight change in the effective focal length when racking focus from the minimum distance to infinity—which is a factor for narrative filmmakers to consider during focus pulls.

The lens does not feature internal optical stabilization, so videographers will rely on in-body image stabilization (IBIS) or external support systems. The aperture is controlled electronically through the camera body, meaning there is no physical aperture ring for manual iris pulls. For those using follow-focus systems, the large diameter of the lens barrel requires standard 0.8 mod gears with a wide circumference. Because the front element is bulbous and the hood is integrated and fixed, the use of traditional screw-on variable ND filters is impossible. Filmmakers must use specialized rear-mount filter kits or large 150mm square filter holder systems to manage exposure in bright outdoor conditions.

Practical Application in Indian Shoot Scenarios

On a high-altitude shoot in Spiti Valley or Ladakh, the 14mm f/1.8 is primarily used for its astrophotography capabilities. In these dark-sky reserves, the f/1.8 aperture allows the photographer to capture the Milky Way with a 15-second exposure at ISO 2000, whereas an f/2.8 lens would require ISO 4000 or a 30-second exposure, the latter of which would introduce visible star trailing. The TSC construction is particularly useful here, as it maintains focus accuracy even as temperatures drop below freezing overnight.

During a wedding at a heritage palace in Jaipur, the lens excels at capturing the scale of the architecture and the grandeur of the "Mandap" setup. In the dimly lit corridors of a haveli, the f/1.8 aperture allows for handheld shots of the decor and environment that would otherwise require a tripod or intrusive flash. The 114-degree field of view is wide enough to capture the entire courtyard from a single corner, though care must be taken to keep the camera level to avoid the converging vertical lines common in ultra-wide photography.

In a Mumbai real estate or interior shoot, the lens is used to make compact luxury apartments feel spacious. The rectilinear design ensures that the edges of walls and door frames remain straight rather than bowing outward, which is a common flaw in lower-quality wide-angle zooms. The ability to shoot at f/4 or f/5.6 while maintaining edge-to-edge sharpness allows the photographer to capture detailed textures of marble flooring and wooden paneling across the entire room in a single frame.

Compatibility and Pairing Recommendations

The Sigma 14mm f/1.8 DG HSM Art is available in several native mounts, including Canon EF, Nikon F, and Sony E-mount. For users of the L-mount system (Panasonic, Leica, Sigma), it can be used natively or via the MC-21 mount converter. When used on Sony E-mount bodies via the MC-11 converter or in its native E-mount version, it supports Fast Hybrid AF and Eye-AF, though the performance is most consistent in the native mount version. It is designed for full-frame sensors but can be mounted on APS-C bodies (such as the Sony A6000 series or Fujifilm X-series via adapters), where it provides an equivalent focal length of approximately 21mm.

To get the most out of the lens's resolving power, it should be paired with high-resolution sensors such as the 45.7MP Nikon D850, the 50.6MP Canon EOS 5DS R, or the 61MP Sony A7R IV. It is compatible with the Sigma USB Dock, which allows users to update firmware and calibrate the autofocus micro-adjustments at four different focus distances. For storage, high-speed media like CFexpress or UHS-II SD cards are recommended, especially when shooting wide-open where the file detail is at its maximum. For filtration, users should look for 150mm filter holder systems from manufacturers like Lee or NiSi, or rear-filter conversion kits that allow for small gelatin filters to be placed at the mount end of the lens.

Limitations and Alternative Considerations

While the Sigma 14mm f/1.8 DG HSM Art is an optical powerhouse, it has distinct limitations that may make other lenses more suitable for certain users. The most prominent drawback is its weight and size. At 1,170g, it is significantly heavier than the Sony 14mm f/1.8 GM, which weighs only 460g. For hikers or travel photographers who prioritize a light pack, the Sigma's bulk can be a deterrent. Additionally, the lack of a front filter thread means that using a circular polarizer or ND filter is a cumbersome and expensive process involving large external brackets.

The 14mm focal length is also extremely wide, which can lead to significant perspective distortion if the lens is tilted even slightly. This makes it unsuitable for traditional portraiture, as subjects near the edges of the frame will appear stretched. If a photographer requires more versatility, the Sigma 14-24mm f/2.8 DG DN Art offers a similar wide-angle perspective with the added flexibility of a zoom range, albeit with a slower maximum aperture. For those who do not specifically need the f/1.8 light-gathering capability for stars or low-light events, an f/2.8 or f/4 wide-angle zoom may provide more practical utility at a lower weight and with easier filter compatibility.
