Samyang 6 Lens Kit

The Samyang 6 Lens Kit: Optical Formula and Market Positioning

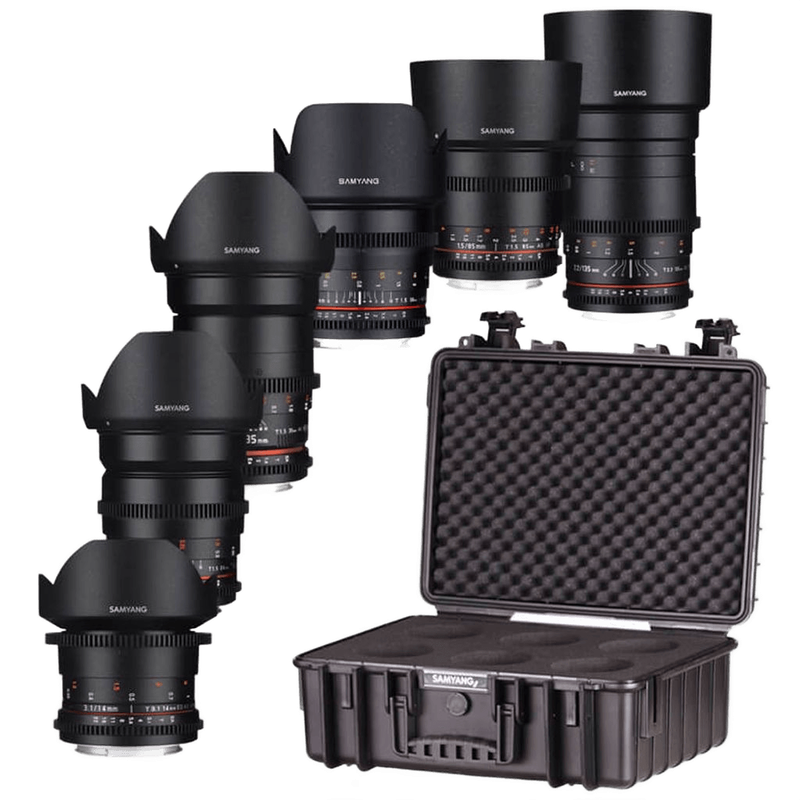

The Samyang 6 Lens Kit, specifically the VDSLR MK2 Cine Lens series, is a comprehensive set of full-frame manual focus prime lenses designed for cinema and video production. This kit typically includes the 14mm T3.1, 24mm T1.5, 35mm T1.5, 50mm T1.5, 85mm T1.5, and 135mm T2.2. These lenses are positioned as an accessible entry point into professional cinematography, offering a matched set of glass that ensures visual consistency across a production. Unlike standard photographic lenses, these are "cine-modded" from the factory, featuring de-clicked aperture rings and standardized 0.8 MOD gearing on both the focus and iris rings.

The optical formula for each lens in the kit is optimized for high-resolution sensors, including 4K and 8K capture. The 14mm T3.1 utilizes 14 elements in 10 groups, including one aspherical and one hybrid aspherical element to manage distortion. The 24mm T1.5 features 13 elements in 12 groups with four Extra-low Dispersion (ED) elements. The 35mm T1.5 is built with 12 elements in 10 groups, while the 50mm T1.5 uses 9 elements in 6 groups. The 85mm T1.5 consists of 9 elements in 7 groups, and the 135mm T2.2 employs 11 elements in 7 groups. This variety of glass types, including High Refractive Index (HR) and ED glass, is used to minimize chromatic aberration and ensure sharpness from the center to the edges of the frame.

Designed for independent filmmakers, documentary shooters, and commercial videographers, this kit bridges the gap between consumer-grade optics and high-end cinema glass. By providing a consistent T-stop (light transmission) value across the core focal lengths (24mm to 85mm are all T1.5), Samyang allows cinematographers to maintain exposure settings when swapping lenses. The MK2 designation introduces weather sealing at the mount and a 9-blade iris for more circular bokeh, distinguishing it from the original VDSLR series which used an 8-blade design.

Image Quality and Optical Technologies

The primary technological driver behind the image quality in the Samyang 6 Lens Kit is the Ultra Multi-Coating (UMC). This coating is applied to all glass surfaces to maximize light transmission and reduce internal reflections that lead to ghosting and flare. In practice, this results in high-contrast images even when shooting in backlit conditions. The color science across the six lenses is matched, meaning the 14mm will produce the same skin tones and color temperature as the 135mm, significantly reducing the time required for color grading in post-production.

The use of T-stops instead of F-stops is a critical distinction for this kit. While an F-stop is a mathematical ratio of the focal length to the aperture diameter, a T-stop represents the actual amount of light reaching the sensor. The T1.5 rating on the 24mm, 35mm, 50mm, and 85mm lenses allows for extreme low-light performance and very shallow depth of field. The 9-blade aperture diaphragm in the MK2 version creates a smooth, circular bokeh that avoids the "stop-sign" hexagonal shapes often seen in older or cheaper lenses when stopped down. When the lenses are stopped down, the 9-blade iris also produces clean 18-point sunstars, a specific aesthetic choice for landscape or urban cinematography.

Distortion management varies by focal length. The 14mm T3.1 is a rectilinear lens, meaning it attempts to keep straight lines straight despite its 115.7-degree angle of view. The 135mm T2.2, at the other end of the spectrum, provides significant background compression and a 18.8-degree angle of view, making it ideal for isolating subjects from busy backgrounds. The resolving power of the glass is sufficient to cover the 43.3mm image circle required for full-frame sensors, and it remains sharp even when used on Super 35mm or APS-C sensors, where the "sweet spot" of the center glass is utilized.

Build Quality, Handling, and Mechanical Design

The mechanical design of the Samyang 6 Lens Kit is focused on the requirements of a professional film set. One of the most important features is the unified gear positions. The distance from the lens mount to the focus gear and the iris gear is consistent across the 24mm, 35mm, 50mm, and 85mm lenses. This allows a camera assistant to swap lenses without having to reposition the follow focus motor or the matte box, saving minutes on every lens change. The gears are standard 0.8 MOD, compatible with almost all industry-standard follow focus systems.

The focus throw on these lenses is significantly longer than their photographic counterparts, typically around 140 to 150 degrees depending on the specific focal length. This expanded rotation allows for precise focus pulls, especially when working with the shallow depth of field provided by the T1.5 aperture. The focus scales are printed on both sides of the lens barrel, allowing a focus puller to operate from either the left or right side of the camera. These scales are marked in both metric (meters) and imperial (feet) units.

Build materials include a mix of aluminum alloy and high-grade plastics, keeping the weight manageable for gimbal use. For example, the 50mm T1.5 weighs approximately 525g, while the 135mm T2.2 is the heaviest at roughly 840g. The MK2 lenses feature a weather-sealing gasket at the mount, which prevents dust and light moisture from entering the camera body or the rear element of the lens. The aperture ring is de-clicked, allowing for smooth "iris pulls" where the exposure can be adjusted mid-shot without the tactile or audible clicks found on stills lenses.

Video Capability and Performance Limits

The Samyang 6 Lens Kit is designed for manual video acquisition. There are no electronic contacts on the mount, which means there is no communication between the lens and the camera body. The camera will not record EXIF data such as the focal length or the set aperture, and features like in-body lens corrections or auto-exposure will not function. This is standard for cinema glass but requires the operator to be comfortable with fully manual control.

Focus breathing—the slight change in focal length that occurs when racking focus from the minimum distance to infinity—is present but controlled. In the 35mm and 50mm focal lengths, breathing is minimal, making them suitable for narrative scenes where the focus shifts between two actors. The 14mm T3.1 has a minimum focusing distance of 0.28m, while the 135mm T2.2 requires at least 0.8m. These distances are important for blocking shots in tight spaces.

The lenses are capable of resolving 8K video, but they do exhibit "character." At T1.5, the lenses are slightly softer and show a gentle glow around highlights, which many filmmakers prefer for a more organic, "filmic" look compared to the clinical sharpness of modern AF lenses. When stopped down to T2.8 or T4.0, the lenses become significantly sharper across the frame. The 14mm T3.1 has a built-in petal-shaped lens hood and a bulbous front element, which means it cannot accept standard screw-on filters; it requires a specialized 150mm filter holder or a large matte box.

On the Shoot: Indian Production Scenarios

In a Mumbai studio product session, the 100mm (if substituted) or the 85mm T1.5 and 135mm T2.2 become the primary tools. When filming high-end jewelry or cosmetics, the 85mm T1.5 allows the cinematographer to blur the background into a smooth wash of color, focusing entirely on the product texture. The de-clicked iris is essential here; if the studio lights are slightly too bright, the operator can shave off a fraction of a T-stop to perfect the exposure without any jarring jumps in the image.

During a Bengaluru wedding reception held in a dimly lit banquet hall, the T1.5 aperture of the 24mm and 35mm lenses is a necessity. Shooting on a full-frame sensor like a Sony A7S III or Canon C70 with an EF adapter, these lenses allow for clean images at lower ISOs. The 24mm T1.5 is wide enough to capture the scale of the stage and decor, while the 35mm T1.5 serves as a "storyteller" lens for candid shots of guests. The unified gear positions are a major advantage here, as the fast-paced nature of a wedding requires quick lens swaps on a gimbal-mounted camera.

On a Goa travel documentary shoot, the weather sealing of the MK2 series provides protection against the humid, salty air and occasional sand spray on the beach. The 14mm T3.1 is the standout for capturing the expansive landscapes of South Goa or the architecture of Old Goa churches. Because the kit is relatively lightweight compared to PL-mount cinema zooms, a single operator can carry the entire 6-lens set in a backpack, making it feasible for run-and-gun shooting in varied terrain.

Compatibility and Pairing Recommendations

The Samyang 6 Lens Kit is most commonly found in the Canon EF mount, which makes it one of the most versatile kits in terms of compatibility. It can be used natively on Canon Cinema EOS cameras (C100, C200, C300, C500, C70) and Blackmagic Design cameras (PCC 6K, URSA Mini Pro). Through the use of adapters, these lenses are frequently paired with other systems:

• Sony E-Mount: Using a Sigma MC-11 or Metabones EF-to-E adapter, these lenses work perfectly on the Sony FX3, FX6, and A7 series.
• Panasonic L-Mount: Compatible with the Lumix S1H or S5II via an EF-to-L adapter.
• RF Mount: Pairs with the Canon R5C or RED Komodo using the Canon EF-to-RF adapter.

For accessories, the 77mm front filter thread on the 24mm, 35mm, 50mm, and 85mm lenses allows for the use of standard variable ND filters or circular polarizers. The 135mm T2.2 uses a larger 77mm thread as well, maintaining consistency. When using a matte box, a 114mm or 95mm clamp-on ring may be required depending on the specific matte box model. For power and stabilization, these lenses are light enough to be balanced on mid-sized gimbals like the DJI RS3 or RS4 Pro, even when equipped with a wireless follow focus motor like the Tilta Nucleus-M or Nano.

Who Should Choose Something Else

While the Samyang 6 Lens Kit is highly versatile, it is not the right choice for every production. The most significant limitation is the lack of autofocus. For solo operators shooting fast-moving sports, wildlife, or unscripted events where there is no possibility of a second take, modern AF-enabled lenses like the Sony GM or Canon L-series primes will be more reliable. Pulling focus manually on a T1.5 lens while the subject is moving requires a high level of skill or a dedicated focus puller.

Cinematographers looking for a "perfect" clinical look may find the Samyangs lacking. These lenses exhibit some chromatic aberration (purple fringing) when shot wide open at T1.5, especially in high-contrast areas. If a project requires absolute optical perfection with zero breathing and zero fringing, higher-end (and significantly heavier) options like the Zeiss CP.3 or Sigma Cine Primes would be more appropriate. Additionally, the 14mm T3.1's inability to take standard screw-on filters makes it difficult for shooters who do not own a matte box system but need to use ND filters in bright daylight.

Finally, for productions using PL-mount cinema cameras that require lens metadata (i/Technology or Cooke /i) for visual effects (VFX) heavy workflows, the Samyang VDSLR series is unsuitable. These lenses do not communicate focal distance or aperture data to the camera, which complicates the tracking process in post-production. In such cases, dedicated PL-mount cinema glass with electronic pins is the necessary alternative.
