Samyang 14mm f/3.1

The Architecture of the Samyang 14mm T3.1 VDSLR II

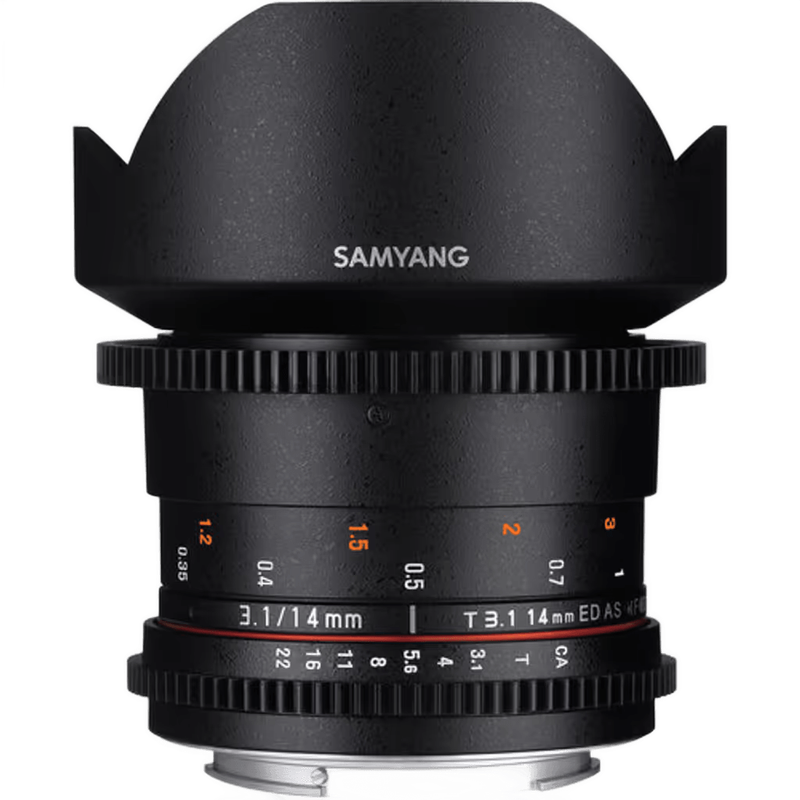

The Samyang 14mm T3.1 VDSLR ED AS IF UMC II is a dedicated wide-angle cinema prime lens designed for full-frame sensors. Within the manufacturer’s ecosystem, this lens occupies a specific position as the widest entry in the VDSLR II lineup, a series characterized by unified gear positions and color-matched optics. The optical formula consists of 14 elements arranged in 10 groups. This complex arrangement is necessitated by the extreme 115.7-degree diagonal angle of view on a full-frame sensor (89.1 degrees on APS-C). To manage the physics of such a wide projection, the lens incorporates one glass aspherical element (ASP) and one hybrid aspherical element (H-ASP). These elements are specifically ground to minimize spherical aberration and ensure that light rays from the periphery of the lens converge at the same focal point as those from the center, maintaining sharpness across the frame.

Designed for cinematographers and videographers who require a rectilinear ultra-wide perspective, this lens avoids the circular distortion of a fisheye while providing a sprawling field of view. It is built around a manual focus and manual aperture philosophy, removing all electronic communication between the lens and the camera body. This makes it a platform-agnostic tool, frequently found in kits where consistency across different focal lengths is prioritized. The "II" designation in its name refers to the updated housing which features a more ergonomic grip and standardized gear placement, allowing for faster lens swaps on a rigged camera system without the need to reposition follow-focus motors or matte boxes.

Optical Engineering and Light Transmission

The image quality of the Samyang 14mm T3.1 is defined by its specialized glass types and chemical coatings. Beyond the aspherical elements, the lens utilizes two Extra-low Dispersion (ED) elements and three High Refractive Index (HR) elements. The ED glass is critical for a 14mm focal length, as it combats chromatic aberration—the "color fringing" that often occurs at the edges of high-contrast subjects in wide-angle photography. By controlling the dispersion of different wavelengths of light, the ED elements ensure that the red, green, and blue channels align precisely on the sensor. The HR elements allow for a more compact lens design by bending light more aggressively than standard optical glass, which helps in reducing the overall physical length of the barrel to approximately 96.1mm (depending on the mount).

Light transmission is managed by Samyang’s Ultra Multi-Coating (UMC) technology. This is a multi-layered coating process applied to the lens surfaces to reduce ghosting and flare, which are common hazards when shooting with a 115.7-degree field of view that often includes the sun or bright studio lights within the frame. The lens is rated at T3.1, a transmission stop measurement rather than a theoretical f-stop. While the physical aperture is f/2.8, the T3.1 rating accounts for the actual light reaching the sensor after passing through the 14 glass elements. This ensures that exposure remains consistent when switching between different lenses in the VDSLR II series. The internal focusing (IF) mechanism means the lens does not change its physical length during focusing, which prevents air and dust from being sucked into the barrel and maintains the center of gravity for gimbal users.

Mechanical Build and Handling on Set

The Samyang 14mm T3.1 is encased in a high-strength aluminum alloy housing, providing a rigid structure that protects the internal optical alignment. The most prominent feature for cinema use is the de-clicked aperture ring. Unlike photographic lenses that click at 1/3 or 1/2 stop intervals, this ring moves smoothly, allowing for precise exposure adjustments (iris pulls) during a shot without introducing camera shake or audible clicks. Both the aperture and focus rings feature industry-standard 0.8 MOD gearing. This allows for immediate compatibility with follow-focus systems, whether they are manual hand-wheels or wireless motors like the Tilta Nucleus or DJI Focus.

The focus throw is significantly longer than that of a standard photography lens, providing approximately 200 degrees of rotation. This expanded scale allows a focus puller to make minute adjustments, which is essential given the deep depth of field inherent to a 14mm lens. The distance scales are marked on both sides of the lens barrel in both metric and imperial units, ensuring the 1st AC can read the marks regardless of which side of the camera they are standing on. The lens features a built-in, petal-shaped lens hood. This hood is permanent and serves two purposes: it protects the protruding bulbous front element from physical impact and prevents stray light from hitting the glass at extreme angles. However, this design means the lens lacks a traditional front filter thread, requiring a specialized 114mm or 150mm square filter system for ND or polarizers.

Video Performance and Cinematic Characteristics

In a video context, the Samyang 14mm T3.1 is valued for its ability to capture expansive environments without the "jello" effect often seen in wider zooms. When used on a 4K or 6K sensor, the lens resolves enough detail for high-resolution acquisition, though it exhibits a characteristic "mustache" distortion pattern. This is a complex form of distortion where the center of the image has barrel distortion that transitions into pincushion distortion toward the corners. While this is less noticeable in organic environments like forests or crowds, it requires correction in post-production for architectural shots with straight horizontal lines. The lens produces a 6-bladed iris, which results in hexagonal bokeh highlights when stopped down and creates distinct 6-pointed sunstars when pointed at small, bright light sources.

Focus breathing—the change in focal length that occurs when adjusting focus—is present but controlled. When pulling focus from the minimum distance of 0.28m to infinity, there is a slight magnification change, but it is generally considered acceptable for a lens in this class. Because it is a fully manual lens, there is no iris flicker during recording, and the lack of an autofocus motor means the lens is completely silent during operation. This is particularly beneficial for documentary filmmakers who need to record clean scratch audio or use on-camera microphones without picking up mechanical whirring. The lens does not provide EXIF data to the camera, so focal length and aperture must be logged manually for VFX or continuity purposes.

Practical Application in Indian Production Scenarios

On a shoot in a dense urban environment like a Mumbai chawl or a narrow street in Old Delhi, the Samyang 14mm T3.1 is an essential tool for establishing shots. In these cramped quarters, a 24mm or 35mm lens cannot capture the scale of the architecture or the density of the crowd. The 14mm focal length allows the cinematographer to place the camera just feet away from a subject while still capturing the entire surrounding environment, creating an immersive "point-of-view" feel that places the audience inside the scene. The T3.1 aperture is fast enough to handle the mixed lighting of these environments, especially when paired with modern high-ISO sensors.

For a destination wedding in Goa, particularly during a beachside sunset ceremony, this lens excels as a gimbal-mounted optic. When balanced on a DJI Ronin or Zhiyun Crane, the 14mm focal length is forgiving of slight stabilization errors, as wider lenses show less camera shake than longer ones. It can capture the entire mandap, the couple, and the surrounding landscape in a single sweeping motion. The manual focus can be set to the hyperfocal distance (approximately 2.5 meters at T8), ensuring that everything from the foreground decorations to the distant horizon remains in acceptable focus without the risk of an autofocus system hunting for a face in the dark.

In a studio setting in Bengaluru for a high-end interior or furniture shoot, the lens provides the necessary width to capture a full room layout in a single frame. While the mustache distortion must be managed, the ability to show a 115-degree view is often the only way to photograph small studio apartments or modular kitchen setups. The 0.28m minimum focus distance also allows for dramatic "hero" shots of products where the item is close to the lens, appearing large and imposing, while the rest of the studio remains visible in the background, providing context and depth.

Compatibility and Rigging Requirements

The Samyang 14mm T3.1 VDSLR II is available in multiple mounts, including Canon EF, Nikon F, Sony E, and Micro Four Thirds. On a Canon EF mount, it can be easily adapted to mirrorless systems like the EOS R series or Sony Alpha series using simple mechanical adapters (like the MC-11 or EF-EOS R). Because it is a full-frame lens, it is fully compatible with "Speed Boosters" or focal reducers when used on APS-C or MFT sensors, which can bring the effective field of view back toward its original 14mm width while increasing the light gathering to approximately T2.2.

For media and power, the lens places no demand on the camera’s battery or processor, as there are no electronics to drive. However, the physical rigging requires consideration. Since there is no front filter thread, users must pair this lens with a 15mm rail-mounted matte box that supports 150mm filters, or use a dedicated adapter like the Haida or NiSi 150mm filter holder specifically designed for the Samyang 14mm. When used on a drone or a heavy-lift gimbal, the 620g weight (EF version) is manageable, but the fixed hood means the lens cannot be used with standard "clamp-on" matte boxes unless they have a large enough diameter to clear the hood's petals.

Limitations and Alternative Considerations

While the Samyang 14mm T3.1 is a versatile wide-angle tool, it has specific limitations that may make other lenses more suitable for certain shoots. The most significant limitation is the lack of autofocus. For high-speed action, sports, or "run-and-gun" journalism where the subject distance is constantly changing and there is no time for manual pulling, a lens with AF like the Sony FE 12-24mm f/4 G or the Canon RF 14-35mm f/4L would be a more reliable choice. The manual nature of the Samyang requires a disciplined approach to focusing, especially when shooting at T3.1 where the plane of focus is thin at close distances.

The "mustache" distortion is another factor; for architectural photographers who require perfect geometric accuracy straight out of the camera, a more expensive rectilinear lens like the Canon EF 11-24mm f/4L or the Sigma 14mm f/1.8 DG HSM Art may be preferable, as they offer more sophisticated distortion correction in their optical design. Furthermore, the fixed lens hood and bulbous front element make the use of circular filters impossible. If a shoot requires the constant use of a Variable ND filter for exterior daylight work and a large 150mm filter rig is too cumbersome, a lens with a standard 77mm or 82mm filter thread would be a more practical alternative. Finally, the 6-bladed iris produces hexagonal bokeh which some may find less "cinematic" than the nearly circular bokeh produced by lenses with 9 or 11 rounded blades.
