Samyang 12mm f/2.0 APS-c

The Samyang 12mm f/2.0 NCS CS Optical Design and Market Position

The Samyang 12mm f/2.0 NCS CS is a manual focus, ultra-wide-angle prime lens designed specifically for APS-C mirrorless camera systems. Within the manufacturer’s lineup, this lens occupies a critical position as a high-speed alternative to standard kit zooms and slower wide-angle lenses. It provides a focal length equivalent to 18mm on a 35mm full-frame sensor, offering a 98.9-degree angle of view. This specific focal length is engineered to bridge the gap between fisheye lenses and standard wide-angle primes, providing a rectilinear projection that keeps straight lines straight rather than curving them at the edges of the frame.

The optical formula consists of 12 elements arranged in 10 groups. This construction is notable for the inclusion of specialized glass elements: one aspherical element (AS), one hybrid aspherical element (H-ASP), and three extra-low dispersion (ED) elements. The "NCS" in the name refers to the Nano Coating System, which was the first instance of Samyang applying a nanocrystal anti-reflection coating to its lens lineup. This coating is applied to the interior surfaces of the glass to minimize ghosting and flare while maximizing light transmission. The "CS" designation indicates that the lens is designed for "Crop Sensor" mirrorless cameras, meaning the image circle is optimized for APS-C and Micro Four Thirds formats, allowing the physical housing to remain significantly smaller and lighter than full-frame equivalents.

This lens was designed for photographers and videographers who require a wide field of view without the bulk of a full-frame system. Its primary audience includes landscape photographers, architectural specialists, and astrophotographers who benefit from the fast f/2.0 maximum aperture. Because it is a fully manual lens, it lacks electronic contacts in most mount versions, meaning the aperture and focus must be controlled physically on the lens barrel. This design choice prioritizes mechanical durability and optical quality over automated convenience, making it a staple for users who prefer tactile control or use follow-focus systems in video production.

Image Quality and Optical Technologies

The image quality of the Samyang 12mm f/2.0 is defined by its ability to resolve high levels of detail across the APS-C sensor even at its widest aperture. The f/2.0 maximum aperture is a full stop faster than many competing wide-angle zooms, which typically start at f/4 or f/2.8. This extra stop of light is critical for maintaining low ISO values in dim environments. The three ED elements are strategically placed to combat chromatic aberration, specifically the "purple fringing" often seen in high-contrast transitions, such as tree branches against a bright sky or the edges of white buildings.

The Nano Coating System (NCS) represents a significant technological leap over traditional Ultra Multi-Coating (UMC). By using a coating with a lower refractive index than the glass itself, the lens reduces internal reflections more effectively. In practice, this results in higher contrast images and better color rendition when shooting into light sources. The two aspherical elements work to correct spherical aberration and comatic flare. Coma is particularly important for astrophotography; this lens is frequently cited for its ability to render stars as points of light rather than "seagull" shapes in the corners of the frame, a common defect in wider lenses.

At f/2.0, the center sharpness is high, though there is a measurable drop-off in the extreme corners and some vignetting (shading at the corners). Stopping the lens down to f/4.0 or f/5.6 significantly evens out the illumination across the frame and brings the corner sharpness closer to the center performance. The lens features a 6-blade aperture diaphragm, which produces six-pointed sunstars when stopped down and pointed at bright, specular light sources. While wide-angle lenses are not typically used for bokeh, the f/2.0 aperture combined with a minimum focusing distance of 0.2 meters (7.9 inches) allows for some background separation when the subject is very close to the front element.

Build Quality, Handling, and Mounting

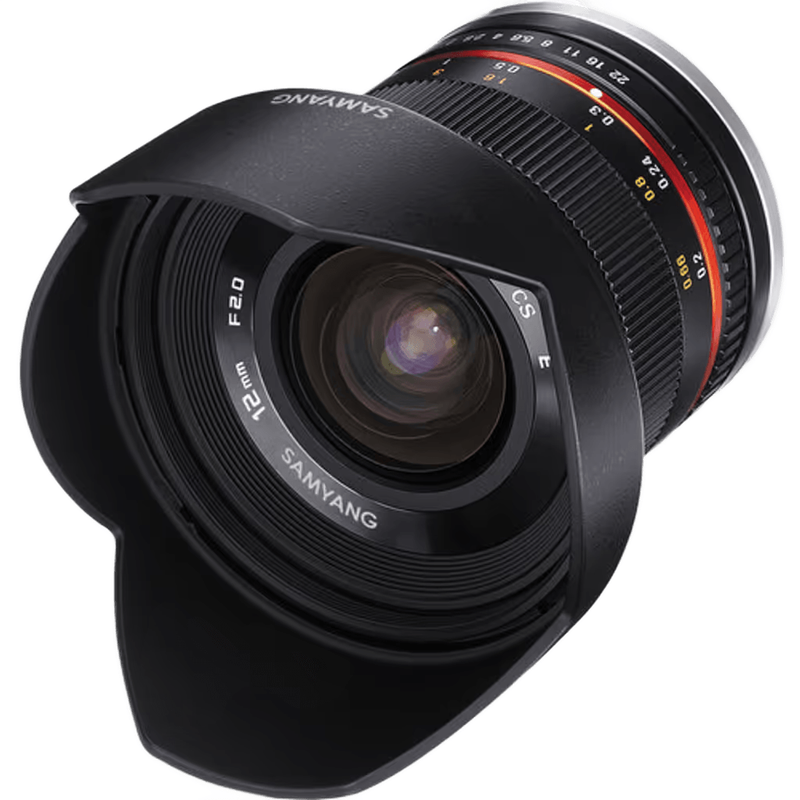

The Samyang 12mm f/2.0 is constructed with a high-strength aluminum alloy chassis, providing a robust feel while maintaining a weight of approximately 245g to 260g, depending on the specific camera mount. The lens measures roughly 59mm in length, making it a compact addition to mirrorless kits. The exterior features a matte black finish with a textured focus ring that occupies a large portion of the barrel. This focus ring is dampened with a smooth, heavy resistance, allowing for precise adjustments—a necessity given the shallow depth of field at f/2.0 and the short throw of wide-angle lenses.

The aperture ring is located near the mount and features tactile clicks at half-stop intervals from f/2.0 to f/22. Unlike some cinema-specific lenses, the standard version of this lens has a clicked aperture, which provides physical feedback to the photographer without needing to look at the lens. The front of the lens features a 67mm filter thread, which is a standard size, allowing for the easy attachment of circular polarizers or ND filters. Because the front element does not rotate during focusing, using graduated ND filters for landscape work is straightforward.

The lens comes with a removable petal-shaped lens hood. The mounting process is purely mechanical; because there are no electronic pins on the standard version, the lens does not communicate focal length or aperture data to the camera’s EXIF metadata. Users must set their cameras to "Shoot without lens" in the menu settings for the shutter to fire. On cameras with in-body image stabilization (IBIS), the user must manually input the 12mm focal length into the camera's stabilization settings to ensure the sensor compensates correctly for movement.

Video Capability and Performance

For videographers, the Samyang 12mm f/2.0 offers a wide, immersive perspective that is particularly useful for gimbal work and vlogging. Its light weight makes it easy to balance on compact gimbals like the DJI Ronin-SC or Zhiyun Crane series. The 12mm focal length provides a stable-looking image even without electronic stabilization, as wider angles naturally minimize the appearance of camera shake. When used for vlogging, the 18mm equivalent field of view is wide enough to capture the presenter and a significant portion of the background at arm's length without the extreme distortion of a fisheye.

One limitation for video is the clicked aperture ring, which prevents smooth exposure transitions during a shot. However, the deep depth of field inherent to a 12mm lens means that focus pulling is often unnecessary. When set to f/5.6 or f/8 and focused at the hyperfocal distance (approximately 1.5 meters), almost everything from 0.7 meters to infinity remains in acceptable focus. This "set and forget" approach is ideal for action sports, street videography, or documentary work where there is no time to hunt for focus.

Focus breathing—the change in focal length when adjusting focus—is present but relatively well-controlled for a lens in this class. The manual focus ring's long throw (approximately 130 degrees of rotation) allows for very fine adjustments, which is beneficial when using a follow-focus gear. The lack of autofocus means the lens is silent in operation, with no motor noise to be picked up by on-camera microphones. However, the user must be comfortable with manual focus peaking or using a monitor with focus assist to ensure sharpness, especially when shooting at f/2.0.

On the Shoot: Indian Photography Scenarios

In a Bengaluru wedding reception, the Samyang 12mm f/2.0 excels in capturing the scale of the venue and the energy of the dance floor. In the often-cramped indoor halls of urban hotels, a 12mm lens allows the photographer to capture the entire stage or a large group of guests without having to back into a wall. The f/2.0 aperture is a significant advantage here, as it allows for faster shutter speeds to freeze movement under the typical ambient or decorative lighting found in Indian wedding venues, reducing the reliance on heavy flash which can wash out the atmosphere.

During a travel shoot in Goa, specifically when documenting the Portuguese-influenced architecture of Old Goa, this lens is used to capture the towering facades of the Basilica of Bom Jesus or the Se Cathedral. The rectilinear correction ensures that the vertical lines of these historic structures remain straight, provided the camera is kept level. The 67mm filter thread is essential here for attaching a circular polarizer to deepen the blue of the coastal skies and manage reflections on the white-washed walls. Its compact size makes it an unobtrusive choice for walking through the Latin Quarter of Fontainhas, where narrow streets demand a very wide angle to capture the colorful houses.

In a Mumbai studio session for interior or real estate photography, the lens is used to make small apartments appear spacious and airy. The 12mm focal length is wide enough to capture three walls of a room in a single frame, which is often a requirement for property listings. Because the lens is manual, it is typically used on a tripod in this scenario. The photographer can use the camera’s magnified live view to perfectly hit focus on the interior details, while the f/8 to f/11 aperture range ensures edge-to-edge sharpness and maximum depth of field, capturing everything from the foreground furniture to the city view through the window.

Compatibility and Pairing Recommendations

The Samyang 12mm f/2.0 is available in several mounts, including Sony E, Fujifilm X, Canon EF-M, and Micro Four Thirds. It is most commonly paired with APS-C bodies like the Sony A6000 series (A6400, A6600), the Fujifilm X-T and X-E series, and the ZV-E10. On Micro Four Thirds cameras (Olympus/Panasonic), the crop factor is 2x, resulting in a 24mm equivalent field of view, which is still wide but less extreme than on APS-C. It is important to note that this is a manual lens; it does not have an autofocus motor, so it will not utilize the sophisticated tracking systems of modern mirrorless cameras.

For accessories, a 67mm Variable ND filter is highly recommended for video work to maintain a 180-degree shutter angle in bright daylight. For landscape photographers, a 100mm square filter system with a 67mm adapter ring is a common pairing, allowing for the use of graduated ND filters. In terms of support, any travel tripod capable of holding 1kg will be more than sufficient for this lens. If using this lens for astrophotography, pairing it with a sturdy tripod and a remote shutter release (or using the camera's built-in timer) is necessary to avoid vibrations during long exposures of 15 to 30 seconds.

When building a kit, this lens pairs well with a 35mm or 50mm prime. The 12mm handles the wide environmental shots, while the longer primes handle portraits and detail shots, creating a versatile two-lens kit for travel or events. Since the lens does not draw power for autofocus, it is very efficient on battery life, making it a good companion for long days of shooting where charging opportunities are limited.

Limitations and Alternative Choices

The Samyang 12mm f/2.0 is not a universal solution, and its limitations are primarily centered on its manual nature. For fast-moving subjects, such as sports or wildlife, the lack of autofocus is a significant hurdle. While the wide angle provides a deep depth of field, tracking a subject moving toward the camera at f/2.0 requires a high level of skill with manual focus. Users who require reliable autofocus for gimbal work or fast-paced event coverage should consider the Samyang AF 12mm f/2.0 (the autofocus version) or the Sony E 11mm f/1.8, though these often come at a different price point or with different distortion characteristics.

Another limitation is the lack of electronic communication. Because the lens does not send aperture or focal length data to the camera, the EXIF information will show "0mm" or "f/0.0". This makes it difficult to organize photos by lens type or to apply automatic lens profile corrections in post-processing software like Adobe Lightroom. Users must manually select the Samyang 12mm profile to correct the native barrel distortion and vignetting. Furthermore, the 6-blade aperture produces relatively simple sunstars; photographers who prefer the 18-point or 22-point sunstars found in higher-end glass may find the 6-point stars less aesthetically pleasing.

Finally, for users of full-frame cameras (like the Sony A7 series), this lens will only work in "Crop Mode," which significantly reduces the resolution of the final image (e.g., a 24MP full-frame sensor becomes a ~10MP image). Full-frame users should instead look for the Samyang 14mm f/2.8 or the 18mm f/2.8 AF, which are designed to cover the larger sensor area. If the goal is extreme "fish-eye" distortion for creative effect, this 12mm lens will be too "straight" and corrected; in that case, the Samyang 8mm fisheye would be the appropriate alternative.
