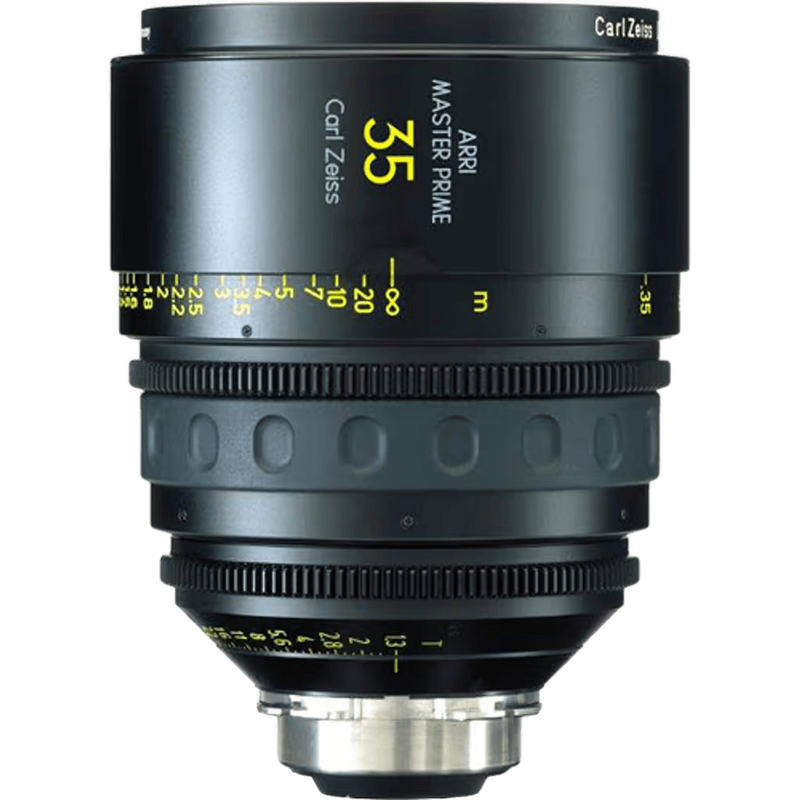

Master Prime 35mm

The Engineering of the ARRI Zeiss Master Prime 35mm

The Master Prime 35mm represents the pinnacle of the collaboration between ARRI and Zeiss, a partnership designed to push the boundaries of optical performance in motion picture capture. This lens is a core component of the Master Prime series, which was engineered to eliminate the traditional compromises found in high-speed cinema optics. While many lenses of its era struggled with spherical aberration or loss of contrast when opened to their widest apertures, this 35mm optic maintains a consistent T1.3 across its entire focus range. It is built around an optical formula that utilizes multiple aspherical elements and exotic glass types with anomalous partial dispersion to ensure that light rays from the edge of the lens converge at the exact same point as those from the center.

In the hierarchy of professional cinema glass, the Master Prime sits above the Ultra Prime series, offering a faster stop and more sophisticated correction of optical artifacts. It was designed specifically for the Super 35mm format, providing a diagonal image circle of at least 29.97mm. This makes it the primary choice for cinematographers working on high-end feature films, premium episodic television, and high-budget commercial productions where image "cleanliness" and technical perfection are the baseline requirements. The lens does not aim for a "vintage" look; instead, it provides a transparent window to the sensor, delivering images characterized by extreme resolution and a total lack of geometric distortion.

Optical Performance and Light Quality

The most significant technical achievement of the Master Prime 35mm is its ability to maintain high contrast and resolution at T1.3. This is achieved through the implementation of the Zeiss T* XP anti-reflective coating. Unlike standard coatings, the XP (Extended Performance) variant is layered to handle a wider spectrum of light angles, which is critical given the steep angles of incidence found in a lens with such a large maximum aperture. This results in a significant reduction in internal reflections, ghosting, and veiling glare, even when high-intensity light sources are placed directly within the frame.

The lens utilizes a dual floating elements design. In traditional lens construction, the optical performance often degrades as the focus moves toward the minimum marked distance. By moving two separate groups of lens elements independently during the focus pull, the Master Prime maintains its edge-to-edge sharpness from infinity down to its close focus point of 0.35 meters (14 inches). This design also effectively eliminates "breathing"—the distracting change in focal length that occurs when shifting focus between subjects. For a 35mm lens, which is often used for medium shots and close-ups with significant depth, the absence of breathing ensures that the frame composition remains static during dramatic focus transitions.

Color reproduction is strictly matched across the entire Master Prime set. This means the 35mm will exhibit the exact same color temperature and transmission characteristics as the 14mm or the 150mm in the series. This consistency is vital for post-production color grading, as it prevents "color jumping" between shots in a single scene. The iris consists of nine blades, which are engineered to create a near-perfect circular aperture at all stops. This results in smooth, organic bokeh where out-of-focus highlights retain a natural shape without the "onion ring" effect or hard edges often seen in lesser aspherical designs.

Mechanical Build and Handling

The physical construction of the lens is as precise as its optics. It features a PL (Positive Lock) mount, the industry standard for secure, play-free attachment to cinema cameras. A defining feature of the Master Prime series is the integrated Lens Data System (LDS). This electronic interface communicates frame-accurately with the camera body, providing real-time metadata regarding the exact iris position and focus distance. This data is invaluable for visual effects (VFX) workflows, where matching virtual cameras to real-world lens settings is required, and for focus pullers using wireless lens control systems that can display a digital depth-of-field scale.

The lens has a standardized front diameter of 114mm, which it shares with almost every other lens in the Master Prime range (with the exception of the extreme wide and telephoto ends). This standardization allows camera assistants to swap lenses without needing to move the matte box or change donut rings, significantly speeding up transitions on set. The focus ring features a 280-degree rotation, providing an exceptionally long throw that allows for minute adjustments, which is critical when shooting at T1.3 where the depth of field is razor-thin. The gears for both focus and iris are standard 0.8 mod, ensuring compatibility with all professional follow-focus units and lens motors.

The housing is designed for thermal stability. Cinema lenses are often subjected to extreme temperature fluctuations, from air-conditioned studios to direct sunlight on location. The internal mechanical linkages of the Master Prime are built to expand and contract at rates that do not interfere with the focus calibration or the smoothness of the rings. The focus scales are large, highly legible, and engraved on both sides of the barrel, allowing the focus puller to work from either the operator's side or the assistant's side of the camera.

Cinematic Capabilities and Geometry

The 35mm focal length on a Super 35 sensor provides a horizontal angle of view of approximately 37.4 degrees. This is often considered the "standard" wide lens in cinema, offering a perspective that closely mimics the human eye's central field of vision without the exaggerated perspective distortion of wider glass. The Master Prime 35mm is particularly noted for its lack of "barrel" or "pincushion" distortion. Straight lines, such as architectural columns or horizons, remain perfectly straight even at the edges of the frame. This makes it an essential tool for plates that will later be used for architectural visualization or CGI integration.

The T1.3 aperture is not merely for low-light shooting; it is a creative tool for depth separation. In a 35mm frame, shooting at T1.3 allows a cinematographer to isolate a subject from a busy background even in a medium-wide shot. The transition from the plane of focus to the out-of-focus areas is exceptionally smooth, a characteristic often described as "creamy" but technically resulting from the sophisticated correction of spherical aberrations. The lens maintains a high MTF (Modulation Transfer Function) even at the corners of the frame, ensuring that detail is not lost if the subject is framed off-center.

On the Shoot: Indian Production Scenarios

In a Mumbai studio session for a high-end jewelry commercial, the Master Prime 35mm excels due to its close-focus capability and micro-contrast. When capturing 8K or 12K resolution plates of intricate gold work or gemstones, the lens provides the necessary resolving power to show the texture of the metal and the clarity of the stones without introducing chromatic aberration (color fringing) on the high-contrast edges of the jewelry. The T1.3 aperture allows the DP to use smaller, more controlled lighting setups while still achieving a shallow depth of field that makes the product pop against the background.

During a wedding film shoot in a heritage palace in Rajasthan, the lens becomes a problem-solver for low-light challenges. Many of these venues have strict restrictions on heavy lighting equipment or are lit primarily by candles and dim tungsten fixtures. The T1.3 speed allows the cinematographer to capture the scale and ambiance of the palace interiors using only the available light, maintaining the natural atmosphere of the event. The 35mm focal length is wide enough to capture the grandeur of the architecture while remaining tight enough to focus on the emotions of the couple without the distortion that a wider 18mm or 21mm lens might introduce to their faces.

For a travel documentary shoot in the narrow lanes of Old Delhi, the lens's resistance to flare is its greatest asset. Shooting in cramped environments with unpredictable light sources—such as harsh sunlight peeking through overhead wires or bright shop signs—can easily wash out a lesser lens. The Master Prime's T* XP coating ensures that the shadows remain deep and the colors saturated, even when a stray light source hits the front element at an awkward angle. The 35mm perspective provides an immersive feel, putting the viewer in the middle of the crowd while the fast aperture helps to blur out the chaotic background, keeping the focus strictly on the subject.

Compatibility and Pairing

The Master Prime 35mm is a PL-mount lens, making it natively compatible with the ARRI ALEXA 35, ALEXA Mini, and the Amira. On these systems, the LDS functionality is fully realized, providing metadata directly into the ArriRaw or ProRes files. It is also frequently used on the Sony Venice and Venice 2. While the Venice has a Full Frame sensor, the 35mm Master Prime is designed for Super 35; however, it will cover the 4K 4:3 and 4K 17:9 modes on the Venice without vignetting. On RED systems like the V-Raptor or Komodo, a PL-to-RF or PL-to-DSMC2 adapter is required, and the user must ensure the sensor crop is set to a Super 35 equivalent to avoid dark corners.

In terms of support hardware, the lens weighs approximately 2.2 kg (4.9 lbs). This requires a robust tripod head, such as an O'Connor 2575 or 2560, especially when built out with a matte box and follow focus. For handheld work, a shoulder rig with counterweights is recommended. The 114mm front diameter is compatible with standard matte boxes like the ARRI LMB 4x5 or the Bright Tangerine Strummer DNA. When using wireless lens control, high-torque motors (like the ARRI CLM-4 or cforce plus) are preferred to handle the precision mechanics of the focus barrel, although the movement is smooth enough for smaller motors in most environmental conditions.

Limitations and Alternative Choices

The primary limitation of the Master Prime 35mm is its image circle. It is a Super 35 lens. As the industry moves toward "Large Format" or "Full Frame" sensors (like the ALEXA Mini LF or Sony Venice in 6K/8K modes), this lens will not cover the entire sensor area. Users seeking a similar "clean" look for Full Frame sensors should instead look to the ARRI Signature Prime series. While the Master Primes are technically superior in terms of speed (T1.3 vs T1.8 in the Signature Primes), the Signature Primes offer the necessary coverage for larger sensors.

Another consideration is the "character" of the lens. The Master Prime is designed for optical perfection. For projects that require a "vintage" aesthetic—characterized by lower contrast, intentional flare, or edge softness—this lens may feel too clinical. In such cases, the ARRI Zeiss Super Speeds (MKII or MKIII) or Cooke S4/i lenses would be more appropriate. The Super Speeds offer a similar T1.3 speed but with much more "flare character" and a softer wide-open look. Finally, the weight and size of the Master Prime make it a challenging choice for small drones or lightweight gimbals like the DJI RS3 Pro. For those applications, the Zeiss CP.3 or ARRI Ultra Prime series offer a much lighter footprint at the cost of a slower maximum aperture (T2.1 or T1.9).

Technical Specifications Summary

• Focal Length: 35mm
• Aperture Range: T1.3 to T22
• Lens Mount: PL with LDS-1
• Close Focus: 0.35m / 14 inches
• Front Diameter: 114mm
• Weight: 2.2 kg / 4.9 lbs
• Length: 147mm / 5.8 inches
• Horizontal Angle of View (S35): 37.4 degrees
• Iris Blades: 9
• Optical Construction: 16 elements in 14 groups
