Master Prime 25mm

The Engineering of the ARRI Zeiss Master Prime 25mm

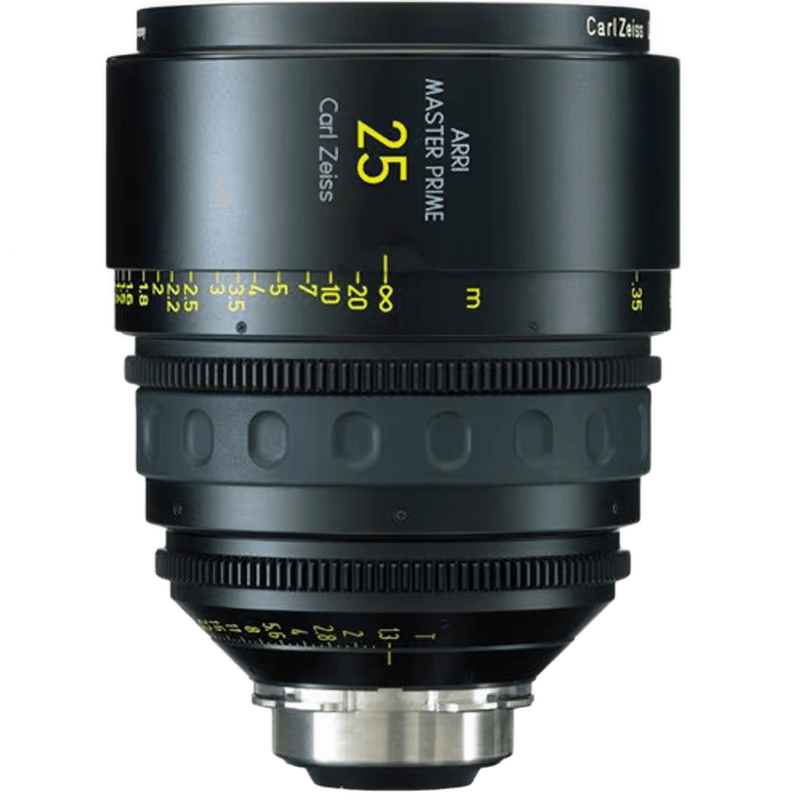

The Master Prime 25mm is a high-speed wide-angle lens developed through the technical partnership between ARRI and Zeiss. It occupies a central position in the Master Prime series, a lineup of sixteen lenses designed to provide a consistent T1.3 aperture across nearly the entire focal range. This specific 25mm focal length offers a 52.4-degree horizontal angle of view when used on a Super 35 format sensor (24.9mm x 18.7mm). It was engineered to solve the historical compromise between high-speed apertures and optical aberrations, utilizing a complex optical formula of 16 elements arranged in 14 groups. The lens is designed for high-end narrative cinematography, commercial production, and any environment where maximum light transmission and optical precision are required without the characteristic "breathing" or distortion common in wider focal lengths.

The optical design incorporates multiple aspherical surfaces and glass types with anomalous partial dispersion. This combination ensures that the lens maintains high contrast and resolution even at its widest aperture of T1.3. Unlike many wide-angle lenses that suffer from spherical aberration or softening at the edges when wide open, this lens is built to deliver a flat field of focus and edge-to-edge sharpness. It is a telecentric design, meaning the light rays exit the rear element nearly perpendicular to the sensor. This is critical for digital sensors, as it prevents the "smearing" or color shifting that can occur when light hits the photosites at extreme angles, a common issue with older lens designs adapted for digital use.

Optical Performance and Light Quality

The primary technical achievement of the Master Prime 25mm is its ability to virtually eliminate lens breathing. In most lenses, the focal length appears to change slightly as the focus is pulled from infinity to the close-focus limit. This lens utilizes a dual-cam focus mechanism that moves internal lens groups independently to counteract this effect. For the cinematographer, this means that a focus pull from a background subject to a foreground subject does not result in a distracting shift in the frame's composition. This makes it an essential tool for complex narrative blocking where focus transitions are a key storytelling element.

Light quality is managed by the Zeiss T* XP (Extended Performance) anti-reflex coating. This coating is specifically formulated to reduce internal reflections and ghosting, which are often exacerbated by the large number of glass elements required for a T1.3 design. The result is a lens that produces extremely high-contrast images with deep blacks and minimal flare, even when high-intensity light sources are placed directly within or just outside the frame. The color rendering is engineered to be neutral, matching perfectly with other lenses in the Master Prime set, ensuring that footage from the 25mm can be intercut with the 18mm or 50mm without requiring extensive color correction to match skin tones or environmental hues.

The iris consists of nine blades, which creates a circular aperture throughout the stop range. At T1.3, the bokeh is smooth and lacks the "onion ring" textures or "cat-eye" deformation often seen in high-speed optics. The transition from the plane of focus to the out-of-focus areas is sharp but natural, providing a distinct separation of the subject from the background that is usually difficult to achieve with wide-angle lenses on the Super 35 format.

Mechanical Build and Handling

The Master Prime 25mm is built with a PL (Positive Lock) mount and features integrated LDS (Lens Data System) contacts. These contacts communicate lens metadata—including exact focus, iris, and zoom position—directly to the camera body. This data is recorded frame-by-frame, which is a critical requirement for modern visual effects (VFX) workflows, as it allows for more accurate match-moving and 3D tracking in post-production. The lens weighs approximately 2.3 kg (5.07 lbs) and has a length of 177mm (7 inches) from the flange to the front of the lens.

Handling on set is facilitated by standardized physical dimensions. The front diameter is 114mm, which is consistent across almost the entire Master Prime set (with the exception of the 150mm). This allows for rapid lens changes without the need to adjust the height or position of matte boxes or follow-focus motors. The focus and iris gears are also located in the same relative positions across the set. The focus ring features a 280-degree rotation, providing a long throw that allows for extremely precise focus adjustments, particularly important when shooting at T1.3 where the depth of field is exceptionally shallow. The markings on the lens are large, clear, and engraved on both sides of the barrel, utilizing a fluorescent material that is visible in low-light environments without the need for a dedicated torch.

Cinematic Capabilities and Limitations

The Master Prime 25mm is optimized for the Super 35 sensor format. While it can be used on larger sensors like the Sony Venice or ARRI Alexa Mini LF, it will not cover the full-frame or "Large Format" area without significant vignetting or a required sensor crop. On a Super 35 sensor, it provides a "normal-wide" perspective that is free from the barrel distortion typically associated with wide-angle glass. This makes it suitable for close-up portraiture where a sense of environment is needed, as it does not distort facial features even at its close-focus limit of 0.25 meters (10 inches).

The lens is capable of resolving detail far beyond 4K resolutions, making it future-proof for 6K and 8K acquisition. However, its "perfection" is sometimes viewed as a limitation by those seeking a "vintage" or "organic" look. It does not produce the anamorphic-style flares, chromatic fringing, or soft corners that some cinematographers use to add character to a digital image. It is a clinical, high-fidelity instrument designed to capture exactly what is in front of it with the highest possible accuracy. The T1.3 aperture is not just for low light; it is also a tool for controlling depth of field in daylight, though this often requires the use of heavy Neutral Density (ND) filtration to maintain the wide aperture without overexposing the sensor.

On the Shoot: Indian Production Scenarios

In a Mumbai studio setting for a high-end jewelry commercial, the Master Prime 25mm is utilized for its 0.25m close-focus capability and its lack of distortion. When filming intricate gold work or gemstones, the lens allows the camera to get physically close to the product while maintaining a wide enough field of view to show the model's face or the studio environment. The T1.3 aperture allows the cinematographer to drop the background into a soft blur, ensuring the viewer's eye remains on the product, while the high contrast of the Zeiss glass ensures that the metallic textures and specular highlights of the jewelry are rendered with maximum "ping" and clarity.

During a night-time wedding sequence in Bengaluru, where the lighting is often a mix of ambient decorative LEDs and low-intensity practicals, the T1.3 speed becomes a functional necessity. The 25mm focal length is wide enough to capture the scale of a large reception hall or a traditional mandap, yet fast enough to shoot at a lower ISO, reducing sensor noise in the shadows. The lens's ability to handle multiple light sources without veiling glare is critical here, as the frame may contain dozens of small, bright light points that would cause "milky" contrast loss in lesser optics.

For a narrative feature shot in the narrow streets of Old Delhi or the coastal markets of Goa, the 25mm serves as a primary "walking" lens. Its wide field of view is sufficient to capture the architecture and the bustle of the environment, but its lack of breathing means that as the actor moves through the crowd and the focus puller tracks them, the background remains stable. The lens's robust mechanical construction also makes it reliable in the high humidity of coastal regions or the dust of urban environments, provided standard PL-mount weather sealing is maintained at the camera interface.

Compatibility and Pairing

The Master Prime 25mm is designed to be paired with industry-standard cinema cameras and accessories. Its primary compatibility includes:

• Camera Bodies: ARRI Alexa 35, Alexa Mini, Sony Venice (in S35 mode), RED V-Raptor (in S35 crop), and any PL-mount film or digital camera.
• Matte Boxes: Any 114mm clamp-on matte box or rod-mounted system (such as the ARRI LMB-25 or SMB-2).
• Follow Focus: Standard 0.8 mod pitch gears are compatible with manual follow focus units like the ARRI FF-4 or wireless systems like the ARRI WCU-4 and Hi-5.
• Filters: Due to the 114mm front, it requires 4x5.65 or 6.6x6.6 filters within a matte box; it does not have a front screw thread for photographic filters.
• Support: While it can be used on a heavy-duty gimbal (like the DJI Ronin 2), its 2.3kg weight requires careful balancing and high-torque motors, especially when adding a wireless focus motor and matte box.

Who Should Choose Something Else

While the Master Prime 25mm is an industry standard, it is not the correct choice for every production. Cinematographers shooting on Full Frame or Large Format sensors (such as the Alexa Mini LF or Sony Venice in 6K/8K Full Frame mode) should look toward the ARRI Signature Prime series. The Signature Primes provide a larger image circle that covers these sensors without vignetting, whereas the Master Prime will show dark corners or a circular mask on those formats.

If the production budget is a primary concern, or if the shoot involves a high-risk environment where the lens might be damaged (such as mounting to the exterior of a vehicle for a stunt), the ARRI Ultra Prime series or Zeiss CP.3 lenses may be more appropriate. These lenses are significantly lighter and more compact, making them better suited for handheld work or smaller gimbals, though they sacrifice the T1.3 speed (usually T1.9 or T2.1) and the advanced breathing compensation of the Master Prime.

Finally, for projects that require a "vintage" aesthetic—characterized by lower contrast, warmer flares, and softer edges—this lens will be too sharp and corrected. In those instances, lenses like the Cooke Panchro/i Classic or various anamorphic options would better serve the creative intent. The Master Prime 25mm is a lens for those who prioritize technical perfection, low-light performance, and a clean, modern image above all else.
