Master Prime 18mm

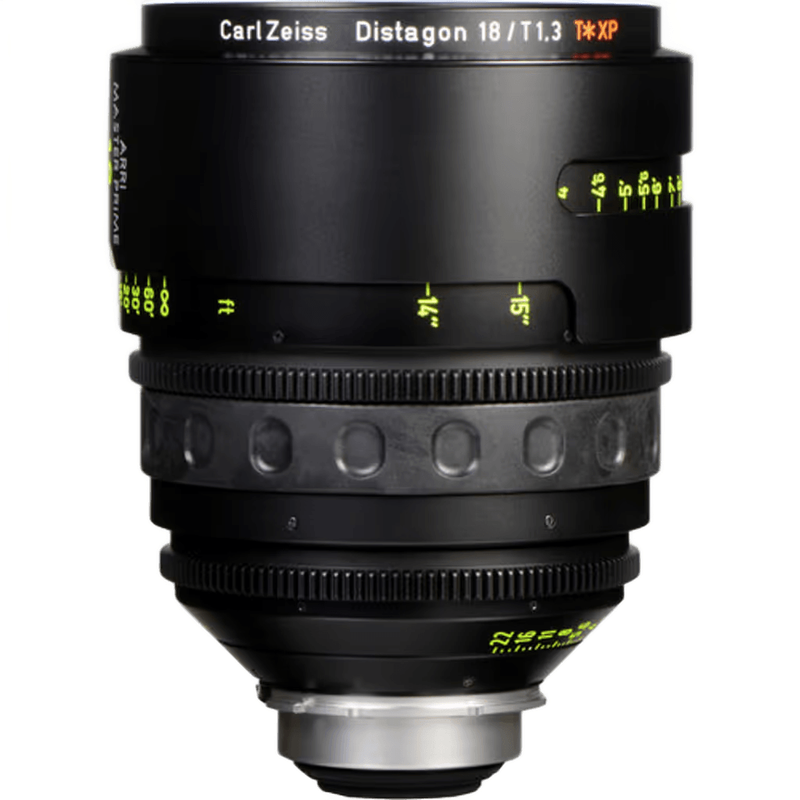

The Engineering of the ARRI Zeiss Master Prime 18mm

The Master Prime 18mm is a high-speed wide-angle cinema lens born from the technical partnership between ARRI and Zeiss. It occupies a central position in the Master Prime lineup, which was engineered to eliminate the traditional compromises between a fast aperture and optical resolution. While many wide-angle lenses suffer from geometric distortion or soft corners when shot wide open, this 18mm prime maintains a constant T1.3 aperture while delivering edge-to-edge sharpness. It is designed for Super 35mm format sensors, providing a diagonal angle of view of approximately 79.5 degrees. The optical formula utilizes high-refractive index glass and multiple aspherical elements to correct for spherical aberrations that typically plague fast wide-angle glass. This lens was created for cinematographers requiring a "rectilinear" wide-angle—meaning straight lines remain straight—making it a primary choice for architectural photography, high-end commercial work, and visual effects-heavy feature films where lens distortion would complicate the tracking and integration of 3D elements.

Optical Performance and Light Transmission

The defining characteristic of the Master Prime 18mm is its ability to resolve fine detail at its maximum aperture of T1.3. This is achieved through the Zeiss T* XP (Extended Performance) anti-reflex coating, which is specifically layered to minimize internal reflections, ghosting, and flares. In practice, this results in a lens with extremely high contrast and a deep black level, even when high-intensity light sources are positioned just outside or within the frame. The color rendition is engineered to be neutral and consistent across the entire Master Prime set, ensuring that footage shot on the 18mm will match perfectly with the 35mm or 50mm counterparts without requiring extensive secondary color correction. Chromatic aberration, often seen as purple or green fringing in high-contrast areas like tree branches against a bright sky, is virtually non-existent due to the use of anomalous partial dispersion glass. The lens produces a clean, clinical, and highly realistic image that serves as a transparent window to the scene, rather than imposing a "vintage" or "soft" character on the footage.

Mechanical Build and On-Set Handling

The Master Prime 18mm is housed in a robust, oversized barrel that prioritizes mechanical precision over miniaturization. It weighs approximately 2.3 kilograms (5.1 lbs), a weight that reflects the significant amount of glass required to achieve a T1.3 rating at an 18mm focal length. The lens features a standard 114mm front diameter, which is consistent across almost the entire Master Prime range. This consistency allows camera assistants to swap lenses without moving the matte box or adjusting the height of rod-mounted accessories. The focus ring features a cam-driven mechanism rather than a traditional helicoid, which allows for an expanded focus scale with 280 degrees of rotation. This ensures that focus pulls are smooth and that distance marks are spaced widely enough for precision, even at the close-focus limit of 0.35 meters (14 inches). The iris consists of nine blades, creating a circular aperture that produces smooth, rounded highlights in the out-of-focus areas, avoiding the polygonal "stop-sign" bokeh found in lesser lenses. The lens also incorporates the ARRI Lens Data System (LDS), which communicates frame-accurate metadata—including focus distance, iris setting, and depth-of-field scales—to the camera body and wireless hand units.

Cinematic Capabilities and Sensor Coverage

While the Master Prime 18mm is a Super 35mm lens, its image circle is generous enough to cover many modern sensors that exceed the traditional 24.89mm x 18.66mm dimensions. On an ARRI Alexa 35, it utilizes the full sensor area with no vignetting. On "Large Format" cameras like the Alexa Mini LF or Sony Venice, the lens will cover the Super 35 crop modes perfectly, though it will show significant dark corners if used in Full Frame or Open Gate 4:3 modes. The T1.3 light gathering capability is a critical asset for digital cinematography, as it allows the sensor to operate at its native ISO in lower light conditions, thereby maximizing dynamic range and minimizing electronic noise in the shadows. Furthermore, the lens is designed with a "floating elements" system, which means the internal lens groups move independently during focusing to maintain optical performance from infinity down to the minimum object distance. This prevents the "breathing" effect—where the field of view appears to change while racking focus—making it ideal for narrative scenes where the focus shifts between a foreground subject and a background element.

On the Shoot: Indian Production Scenarios

In a Mumbai studio environment for a high-end automotive commercial, the Master Prime 18mm is often the primary lens for "hero" shots of the vehicle's exterior. Because the lens has near-zero geometric distortion, the sleek lines and proportions of the car are rendered accurately without the "bowing" effect common in wider lenses. The high contrast and T* XP coating are essential here, as they handle the intense reflections from large overhead softboxes and LED panels without losing detail in the car's metallic paintwork. The 114mm front diameter allows for the easy use of large circular polarizers to control those reflections precisely.

For a night shoot in the narrow, crowded lanes of Old Delhi, the T1.3 aperture becomes the lens's most valuable feature. Cinematographers can capture the ambient glow of street lamps and shopfronts without needing to bring in heavy, intrusive lighting rigs that would be difficult to maneuver in tight spaces. The 18mm focal length provides a wide enough perspective to capture the scale of the environment while the fast aperture allows for a shallow depth of field that can separate a protagonist from the busy background clutter—a feat difficult to achieve with slower wide-angle lenses. The robust weather-sealing of the Master Prime series also provides protection against the dust and environmental variables of an outdoor location shoot.

During a luxury wedding sequence in a heritage palace in Udaipur, the 18mm is used to capture the scale of the architecture. When filming the grand entrance of the couple in a large courtyard, the lens maintains the verticality of the palace pillars and the symmetry of the arches. Because the lens is color-matched to the rest of the Master Prime set, the production team can switch to a 50mm for close-ups of the jewelry and fabric textures, knowing that the skin tones and the specific gold hues of the decor will remain identical across all shots, significantly reducing the time required in the DI (Digital Intermediate) suite.

Compatibility and Essential Pairings

The Master Prime 18mm utilizes a PL (Positive Lock) mount, the global standard for professional cinema cameras. It is natively compatible with the ARRI Alexa line (Alexa 35, Alexa Mini, SXT), the Sony Venice 1 and 2 (in S35 modes), and the RED V-Raptor or DSMC3 systems. To fully utilize the lens's capabilities, it should be paired with a follow focus system—either a manual studio bridge plate unit like the ARRI FF-4 or a wireless system like the ARRI Hi-5 or CML-4—to take advantage of the LDS metadata. For filtration, a 4x5.65 or 6.6x6.6 matte box is required; given the 18mm focal length, a wide-angle matte box tray is recommended to prevent vignetting when using multiple filters. In terms of support, while the lens is not as heavy as a cinema zoom, a sturdy tripod head (such as an O'Connor 2560 or 2575) is preferred for smooth pans and tilts, especially when the camera is fully rigged with batteries, monitors, and wireless transmitters. For power, the lens itself is passive, but the camera body will require high-capacity V-mount or Gold-mount batteries (like the Core SWX Helix or Bebob V200) to run the camera and the lens motors for extended periods.

Limitations and Alternative Selections

The Master Prime 18mm is not a universal solution for every wide-angle requirement. Its primary limitation is its sensor coverage; it is not a Full Frame lens. Cinematographers shooting on the Alexa Mini LF or Sony Venice who wish to utilize the entire Full Frame sensor area without cropping should instead look toward the ARRI Signature Primes or the Zeiss Supreme Primes. While those lenses are slightly slower (typically T1.8 or T1.5), they provide the larger image circle required for 36x24mm sensors. Additionally, the Master Prime 18mm is a "clean" lens. If a project requires a vintage aesthetic, heavy flares, or "anamorphic-style" bokeh, this lens will be too corrected and clinical. In such cases, the ARRI Rental DNA lenses or Cooke Anamorphic/i primes would be more appropriate. Finally, the weight and size of the 18mm Master Prime make it a challenging choice for lightweight gimbal work on smaller stabilizers like the DJI RS3 Pro. For handheld or gimbal-heavy shoots where weight is a primary concern, the Zeiss Ultra Primes or the Zeiss CP.3 series offer a much lighter footprint, albeit with a slower maximum aperture (T1.9 or T2.9) and more noticeable focus breathing.
