Linear Prism

The Optical Architecture of the Linear Prism

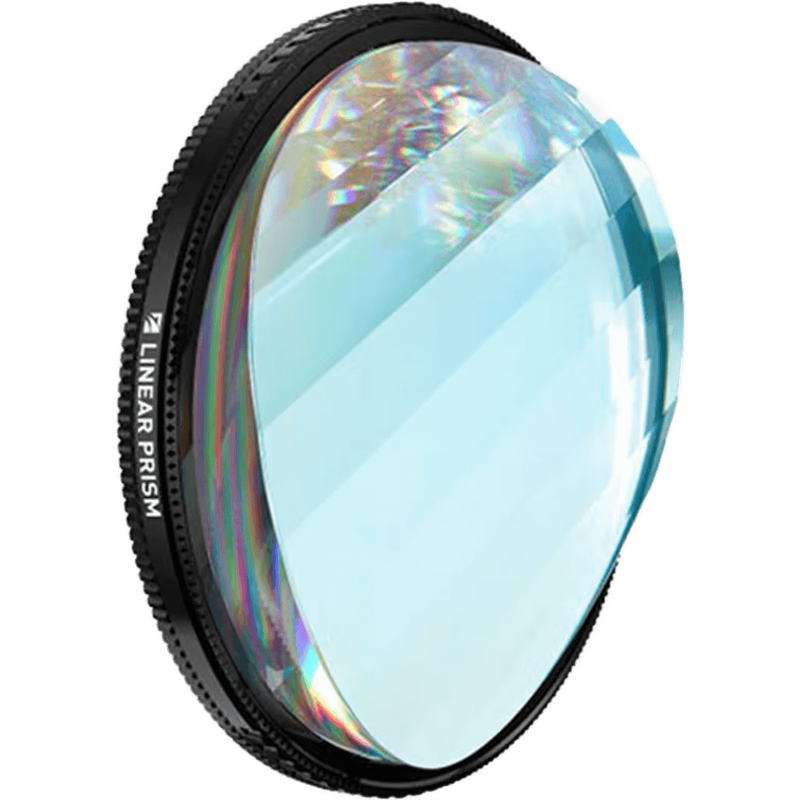

The Linear Prism is a precision-engineered optical modifier crafted from high-grade K9 crystal glass, designed to sit at the front of a lens element to intercept and refract incoming light. Unlike standard circular or kaleidoscope prisms that create a radial pattern of repetitions, this specific tool is defined by its parallel facets. It typically features three to four distinct longitudinal planes ground into the glass surface. These facets are calculated to split the image into a central "clean" zone and multiple repeated "ghost" images that run parallel to the primary subject. In the hierarchy of creative filters, it sits alongside anamorphic streaks and split-diopters as a tool for in-camera manipulation, intended for cinematographers and photographers who require stylized visual distortion without relying on post-production overlays.

The manufacturing process involves precision grinding of the optical glass to ensure that the refractive index remains consistent across the surface. This consistency is vital for maintaining the color temperature of the scene; a high-quality crystal prism will not introduce the chromatic aberration or "rainbowing" often seen in lower-grade plastic alternatives unless specifically pushed by high-contrast backlighting. The filter is usually housed in a rotating aluminum frame, similar to a circular polarizer, which allows the user to orient the linear repetitions at any angle—vertically, horizontally, or diagonally—across the frame. This mechanical flexibility is what distinguishes it from fixed-glass handheld prisms, as it allows for repeatable, stable compositions during long takes or high-speed sequences.

Refraction Physics and Image Quality

The primary function of the Linear Prism is the redirection of light rays before they reach the camera sensor. When light hits the angled facets of the prism, it undergoes refraction, bending the light path so that the sensor perceives the same subject from multiple "virtual" angles simultaneously. The result is a central sharp image flanked by two or more repetitions. The intensity and clarity of these repetitions are governed by the aperture of the lens. At wider apertures, such as f/1.4 or f/1.8, the edges of the prism facets blur into the background, creating a dreamlike, ethereal bleed where the repeated images melt into one another. At narrower apertures, such as f/5.6 or f/8, the physical lines of the prism facets may become visible in the frame, which is generally avoided unless a harsh, geometric aesthetic is desired.

Because the prism is made of dense optical glass, it does not significantly degrade the resolution of the center of the frame. The "clean" portion of the glass allows the lens to resolve detail at its native capability, while the peripheral facets introduce the stylistic "smear" or repetition. This makes it a "subtractive-additive" tool: it subtracts traditional reality and adds a layer of optical complexity. The light transmission loss is negligible, usually less than 0.5 of a stop, meaning exposure settings do not need radical adjustment when the filter is mounted. However, the presence of multiple glass surfaces increases the potential for lens flare. When shooting directly into a light source, the prism will create elongated, linear flares that follow the orientation of the facets, a behavior often used to mimic the look of anamorphic lenses without the associated cost or squeeze factor.

Build Quality, Mounting, and Handling

The physical construction of the Linear Prism is centered around a 77mm or 82mm threaded ring, which are the industry standards for professional prime and zoom lenses. The ring is typically constructed from aerospace-grade aluminum, anodized in matte black to prevent internal reflections within the filter stack. The rotation mechanism is a critical component; it must be dampened enough to prevent accidental shifts during a shot but smooth enough to allow for "rack-rotation" effects where the repeated images spin around the central subject in real-time. This is particularly useful in music video production where the visual rhythm needs to match the audio cues.

Handling the prism on a professional set requires an understanding of its physical footprint. Because the glass is faceted and thicker than a standard UV or ND filter, it can be heavy, often weighing between 120g and 180g. This weight must be accounted for when using lightweight gimbals, as it can shift the center of gravity of the camera-lens payload. Furthermore, the thickness of the glass means that on ultra-wide lenses (wider than 24mm on a full-frame sensor), the edges of the filter ring may cause vignetting. The "sweet spot" for handling this prism is on lenses with focal lengths between 35mm and 85mm, where the compression of the lens complements the refractive angles of the glass facets.

Cinematic Motion and Video Performance

In a video context, the Linear Prism acts as a dynamic motion modifier. When the camera pans or tilts, the refracted images move at a different relative speed across the sensor than the primary image. This creates a parallax-like effect within a single lens, adding a sense of depth and disorientation that is highly effective for dream sequences, psychological thrillers, or abstract montages. Unlike digital plugins that repeat pixels in a 2D plane, the prism reacts to the 3D environment; as the light source moves, the reflections and repetitions shift organically, catching highlights and shadows in a way that software cannot accurately replicate.

The filter does not impose any limitations on resolution or frame rate, making it compatible with 8K acquisition and high-speed recording (120fps or higher). However, the autofocus (AF) performance of the camera can be impacted. Most modern phase-detection AF systems rely on seeing clear contrast edges. The "ghosting" effect of the prism can occasionally confuse the AF sensors, causing the lens to hunt, especially if the subject moves into the faceted areas of the glass. For this reason, experienced operators often use manual focus or lock the focus on the central "clean" portion of the prism before beginning a take. There are no electronic components or firmware requirements; it is a purely mechanical and optical tool that works across all camera brands and mounts.

On the Shoot: Practical Indian Scenarios

In a Bengaluru wedding reception, the environment is often characterized by dense clusters of LED "fairy lights" and ornate chandeliers. Using the Linear Prism in this setting allows a cinematographer to turn a single string of lights into a cascading wall of illumination. By rotating the prism to a 45-degree angle, the bokeh from the background lights is stretched into diagonal streaks, framing the couple in a way that feels more cinematic and high-production. The prism’s ability to "fill" empty space in the frame is particularly useful in large banquet halls where the background might otherwise feel sparse or distracting.

During a Goa travel or music video shoot at golden hour, the prism interacts with the low-angle sun to create dramatic, linear light leaks. As the sun hits the facets, it sends streaks of warm light across the frame, which can be used to transition between shots or to add a "hazy" summer aesthetic to the footage. If the talent is walking along the beach, the prism can be rotated to create a trailing effect, making it look as though the subject is moving through a fragmented reality. The durability of the K9 glass is an advantage here, though care must be taken to keep the facets free of salt spray and sand, which would diffuse the light too much and kill the sharpness of the repetitions.

In a Mumbai studio product session for a high-end watch or jewelry brand, the prism can be used to create sophisticated "multi-product" shots without multiple exposures. By carefully positioning the product in the center and using hard, directional light (like a focused LED spot), the Linear Prism can create clean, architectural repetitions of the item. This adds a sense of luxury and complexity to the composition, making a single watch appear as a synchronized trio. In this controlled environment, the photographer can use a tripod and a small aperture (f/11) to ensure the facet lines are sharp, creating a geometric, avant-garde look that is popular in contemporary fashion and product advertising.

Compatibility and Pairing

The Linear Prism is most effective when paired with fast prime lenses. The following compatibility factors are essential for optimal performance:

• Lens Focal Length: Best results are achieved between 35mm and 85mm. Lenses wider than 28mm may see the filter ring, while lenses longer than 135mm may "see through" the effect too much, resulting in a simple blur rather than distinct repetitions.
• Filter Threading: Most units come in 77mm or 82mm. For lenses with smaller diameters (e.g., 49mm, 52mm, 58mm, 67mm), a step-up ring is required. It is always better to use a larger prism with a step-up ring than a smaller prism with a step-down ring to avoid vignetting.
• Matte Boxes: While the prism can be used with a matte box, it is often easier to mount it directly to the lens thread to allow for full 360-degree rotation without hitting the matte box flags or trays.
• Lighting Gear: This tool thrives on "point" light sources. It pairs exceptionally well with small, powerful LEDs (like the Aputure MC or 60x) and traditional tungsten spots that create hard shadows and bright highlights.
• Gimbals: When using a gimbal (like a DJI RS3 or RS4), ensure the motors are calibrated after the prism is attached, as the front-heavy nature of the glass can strain the tilt motor if not balanced.

Limitations and Alternative Choices

The Linear Prism is a specialized tool and is not suitable for every production. Its primary limitation is its "baked-in" nature; once a shot is recorded with the prism, the effect cannot be removed. For projects requiring a clean "safety" pass, this necessitates shooting the scene twice—once with the filter and once without. Furthermore, it is not an "always-on" filter. In low-contrast environments or under flat, overcast skies, the effect can look like a simple smudge or a dirty lens rather than a deliberate artistic choice. It requires highlights and contrast to "activate" the refractive properties of the glass.

If a project requires a more subtle "glow" without the literal repetition of the subject, a Black Pro-Mist or Glimmerglass filter would be a better choice. These soften highlights and skin tones without distorting the geometry of the frame. If the goal is a circular, kaleidoscopic repetition rather than a linear one, a Circular Fractal Prism or a Kaleidoscope Filter should be selected. Finally, for those who need the "streak" look of an anamorphic lens but want to keep the subject singular rather than repeated, a Blue or Orange Streak Filter is the appropriate alternative. The Linear Prism remains the choice for those who specifically want the "shattered" or "multiplied" linear aesthetic that only faceted crystal glass can provide.
