Hard Stop ND

The Mechanics of the Hard Stop ND

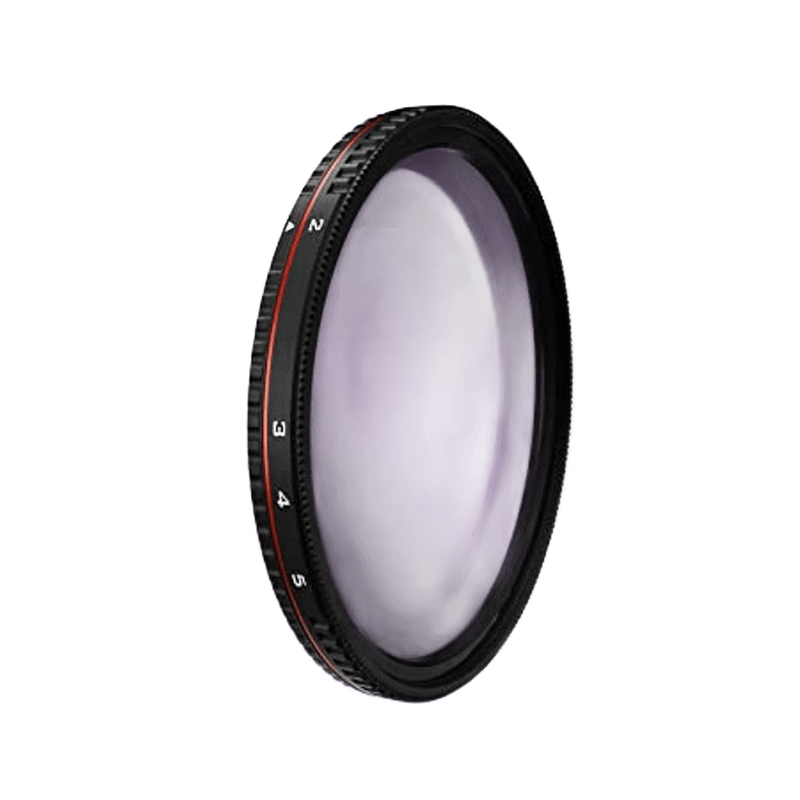

The Hard Stop ND is a variable neutral density filter engineered to provide precise exposure control without the mechanical and optical failures common in entry-level variable filters. At its core, the filter consists of two layers of high-transparency optical glass, each featuring a circular polarizing film. As the front element is rotated, the orientation of these polarizing planes shifts, gradually reducing the amount of light reaching the sensor. Unlike standard variable NDs that rotate infinitely, this specific design incorporates physical "hard stops" at the minimum and maximum density points. This mechanical limitation ensures the user cannot rotate the filter into the "X-pattern" cross-polarization zone, a common optical artifact where the polarization planes intersect at a 90-degree angle, creating a dark cross across the frame.

Designed for cinematographers and run-and-gun photographers, the Hard Stop ND typically occupies a density range of 2 to 5 stops (ND4 to ND32) or 6 to 9 stops (ND64 to ND512). The 2-5 stop variant is the industry standard for maintaining a 180-degree shutter angle in moderately bright conditions, while the 6-9 stop version is utilized for extremely bright environments or for achieving shallow depth of field under direct midday sun. The optical formula is built around Schott B270 glass or equivalent cinema-grade fused quartz, ensuring that the refractive index remains consistent across the entire surface area. This prevents the "smearing" of pixels often seen when using lower-quality filters on high-resolution sensors exceeding 45 megapixels.

Optical Fidelity and Color Neutrality

The primary challenge with variable neutral density filters is the introduction of color shifts, often leaning toward a yellow or green tint as density increases. The Hard Stop ND addresses this through the application of broad-spectrum multi-coatings. These coatings are vacuum-deposited to ensure a uniform thickness, which minimizes internal reflections between the two glass elements. In practice, this results in a high degree of color neutrality, preserving skin tones and natural highlights without the need for aggressive post-production color correction. The light transmission is calibrated to be linear; for example, at the 2-stop mark, exactly 25% of ambient light is transmitted, while at the 5-stop mark, this is reduced to 3.125%.

Beyond color, the filter is treated with an anti-reflective (AR) coating and a hydrophobic "nano" layer. The AR coating is critical when shooting into light sources, such as a sunset or a backlit subject, as it prevents the "ghosting" of the aperture blades on the sensor. The hydrophobic layer serves a dual purpose: it allows water droplets to bead and roll off the surface during outdoor shoots and provides a level of scratch resistance against dust and grit. Because the filter uses two layers of glass, the optical path is longer than a fixed ND; however, the precision grinding of the glass ensures that there is no measurable loss in center-to-edge sharpness, even when paired with ultra-sharp prime lenses like a 35mm or 50mm f/1.2.

Build Quality and Physical Handling

The frame of the Hard Stop ND is typically machined from aerospace-grade aluminum or brass, providing a high strength-to-weight ratio while preventing the filter from "binding" or cross-threading onto the lens. The outer ring features deep, laser-etched knurling, which allows for tactile adjustments even when the operator is wearing gloves or working in humid conditions. The hard stops are implemented via internal brass pins that provide a definitive "thud" at either end of the range. This allows the operator to reset the filter to its minimum or maximum setting by feel, without having to look at the markings on the side of the ring.

One specific handling feature is the "oversized" front element. On a standard 77mm or 82mm Hard Stop ND, the front glass element is often slightly larger than the rear thread diameter. This design choice is intentional; it pushes the filter frame further out of the field of view to prevent vignetting on wide-angle lenses, such as a 16-35mm f/2.8. The rotation is dampened with a specialized lubricant that remains consistent across a wide temperature range, ensuring that the filter does not become too loose in the heat of a coastal shoot or too stiff in high-altitude cold. This resistance is critical for video work, as it allows for smooth "ND pulls" during a take if the light levels change as the camera moves from an indoor to an outdoor environment.

Video Capability and Shutter Control

For videographers, the Hard Stop ND is an essential tool for adhering to the 180-degree shutter rule. In a typical Indian outdoor scenario with a base ISO of 800 (common for Log profiles on cameras like the Sony FX3 or Canon EOS C70), shooting at 24fps requires a shutter speed of 1/50s. Without an ND filter, an f/2.8 aperture would result in massive overexposure. The Hard Stop ND allows the filmmaker to keep the aperture wide for a shallow depth of field while bringing the exposure down to manageable levels. The 2-5 stop range is particularly effective for this, as it covers the transition from "bright overcast" to "direct sunlight" without requiring a filter change.

The absence of the "X-pattern" is particularly vital for video, where a rotating camera or a panning shot could otherwise reveal the uneven polarization of a cheaper filter. Furthermore, the filter's ability to maintain infrared (IR) neutrality is a significant advantage. Many sensors are sensitive to IR light, which can cause blacks to appear muddy or reddish when heavy ND is applied. High-end Hard Stop NDs often incorporate an IR-cut layer to ensure that the black levels remain deep and neutral, which is critical when shooting high-dynamic-range (HDR) content where shadow integrity is paramount.

On the Shoot: Indian Production Scenarios

In a wedding photography context, such as a daytime "Baraat" in Jaipur, the light is often harsh and overhead. A photographer using a Hard Stop ND can maintain an aperture of f/1.4 or f/1.8 on a 85mm lens to isolate the groom from the crowded background. As the procession moves from the bright street into a shaded hotel entrance, the photographer can quickly rotate the filter to reduce the density, maintaining the same "look" and depth of field without having to stop down the lens and lose the bokeh effect.

For a travel documentary shoot in the backwaters of Kerala, the light levels change rapidly as the boat moves under palm cover and back into open water. A cinematographer can use the Hard Stop ND to perform live exposure adjustments. Because the stops are physical, the operator can confidently hit the maximum 5-stop limit when the sun hits the water's surface, cutting the glare and preventing the highlights from clipping. The hydrophobic coating proves its value here, as the humid, misty environment often leads to condensation; the coating allows the glass to be cleared quickly with a single wipe of a microfiber cloth.

In a Mumbai-based commercial studio setting, the filter is used to manage the output of high-powered continuous LED lights. If a production is shooting a product video and requires a specific motion blur on a moving object, but the lights are already at their lowest dimming point, the Hard Stop ND provides the final layer of control. It allows the crew to keep the lights at a high enough power to maintain color accuracy (as some LEDs shift color when dimmed too low) while achieving the exact exposure required for the sensor.

Compatibility and Pairing

The Hard Stop ND is most commonly available in 67mm, 77mm, and 82mm thread sizes. To maximize utility, it is standard practice to use an 82mm filter paired with a set of step-up rings. This allows the filter to be mounted on smaller lenses, such as a 50mm prime with a 58mm thread, without purchasing multiple filters. However, users should be aware that using step-up rings usually prevents the use of the original lens hood. Some manufacturers provide a dedicated lens cap or a "Defender" style cover, as standard clip-on caps often do not fit the oversized front element of the filter.

Compatibility with other filters is possible but should be approached with caution. Stacking a Hard Stop ND on top of a circular polarizer is not recommended, as the interaction between three layers of polarizing film can lead to unpredictable color shifts and heavy vignetting. It is, however, frequently paired with "Mist" or "Diffusion" filters to soften the digital sharpness of modern sensors while maintaining exposure control. When pairing with media, there are no specific requirements, though the high optical quality of the filter ensures that it does not become a bottleneck for high-bitrate codecs like ProRes 422 HQ or Cinema RAW Light.

Limitations and Alternative Choices

While the Hard Stop ND is a versatile tool, it is not the correct choice for every scenario. Photographers specializing in long-exposure landscape photography—such as capturing 30-second exposures of the tide at Marine Drive—will find a 5-stop or even a 9-stop variable ND insufficient. In these cases, a fixed 10-stop (ND1000) or 15-stop solid ND filter is superior. Fixed filters do not use polarizing films, meaning they are thinner, less prone to any form of color shift, and do not affect the reflections on water or glass, which a variable ND will inevitably do due to its polarizing nature.

Furthermore, for high-end cinema productions using a matte box, a 4x5.65-inch drop-in ND filter is often preferred over a screw-on variable ND. Drop-in filters allow for faster swaps and do not require the operator to touch the lens barrel, which can introduce camera shake. If a shoot requires absolute wide-angle performance on a lens wider than 16mm on a full-frame sensor, even an oversized Hard Stop ND may introduce slight corner shading. In such instances, a dedicated rear-mount filter system or a large-format square filter system is the more appropriate technical choice to ensure an unobstructed image path.
